Used BATTENFELD-CINCINNATI solEX 75-40 i of 2015 for sale

2015 | Ref.: 300049422

Extrusion line for PE/PP pipes BATTENFELD-CINCINNATI, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.

Data Sheet of Used BATTENFELD-CINCINNATI solEX 75-40 i

Ref.: 300049422

Year: 2015

Brand: BATTENFELD-CINCINNATI

Status:
For sale
Ask for machine price Want to sell your machine?
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine
BATTENFELD-CINCINNATI - solEX 75-40 i - Used machine

Technical Specifications:

  • Maximum Diameter: 500 mm
  • Minimum Diameter: 200 mm
  • · EXTRUDER: solEX 75-40 i
  • Screw Diameter: 75 mm
  • Number Of Screws: 1
  • Screw L/D Ratio: 40
  • Main Drive Power: 300 kW
  • Screen Changer: Yes
  • Co-Extruder: Yes

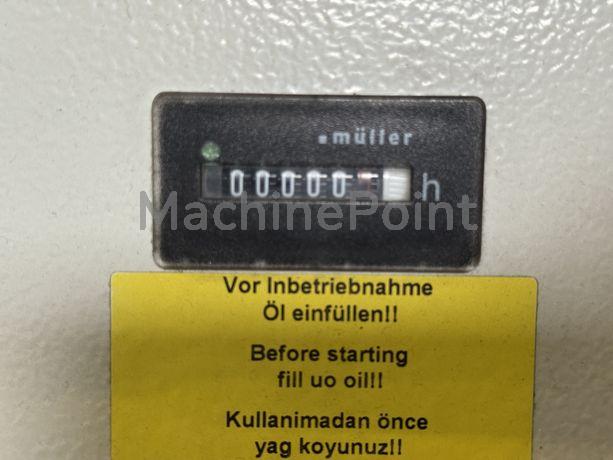

  • Running Hours: 5
  • · DIE HEAD: helix 500 VSI-TZ
  • Year: 2015
  • Pipe Range Diameter: 90-500
  • · CALIBRATION TANK: type 6
  • Year: 2015
  • Pipe Range Diameter: 90-500
  • · COOLING TANK: yes
  • Year: 2015
  • Pipe Range Diameter: 90-500
  • Vacuum Pump: Yes
  • · MARKING UNIT: no

Other Specifications:

Complete line never used in production

· 5 connection hours only for testing
· Yearly maintenance performed
· Machine in as-new condition according to the owner

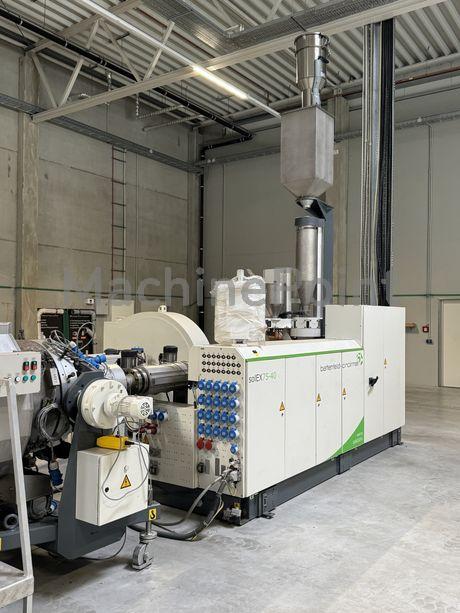

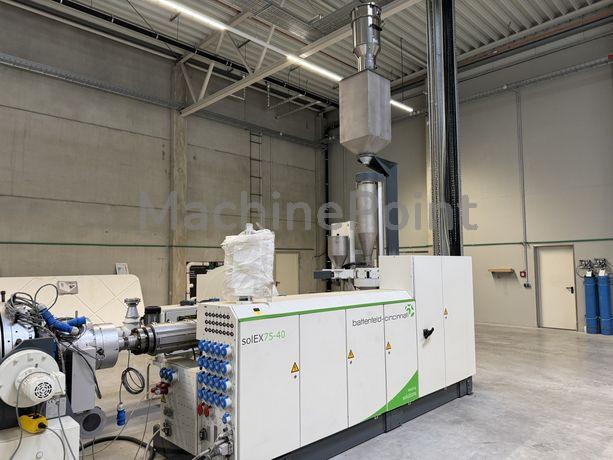

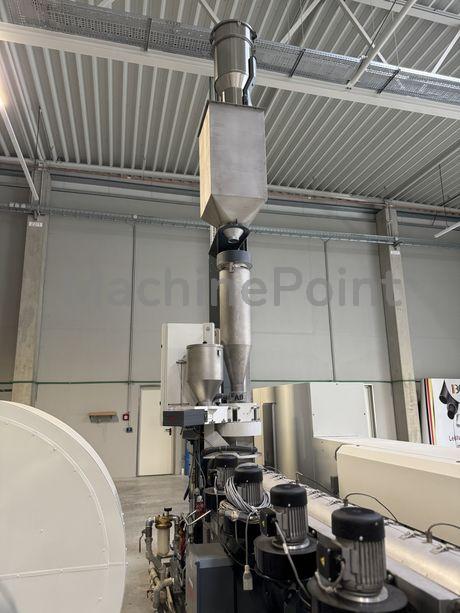

1) Main Extruder
· Battenfeld-Cincinnati solEX 75-40 i

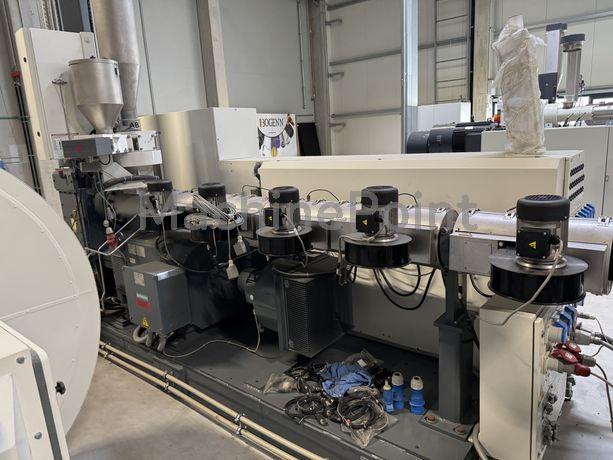

· Barrel heating and cooling zones: 5

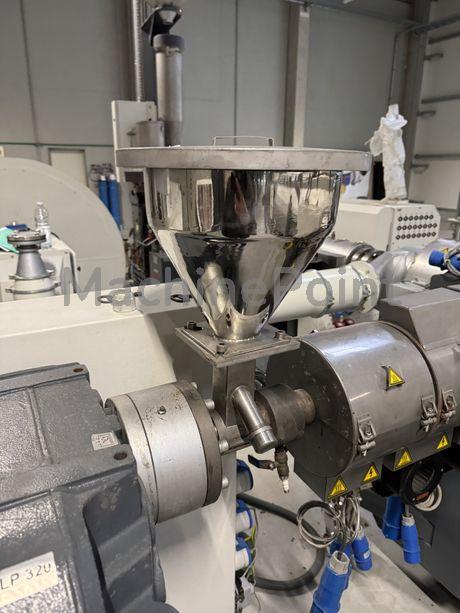

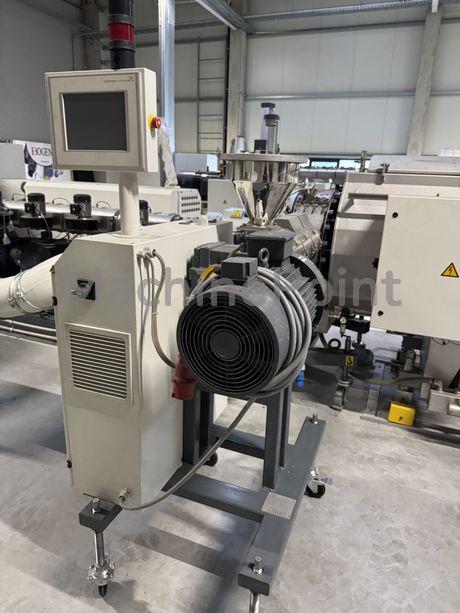

2) Co-extruder (for colour stripes)
· BCE 1-30-25D

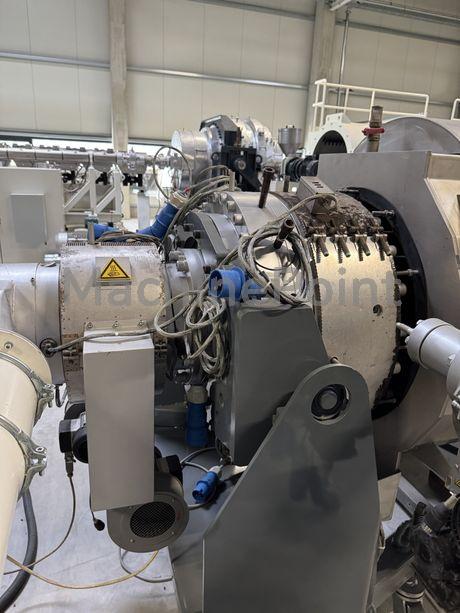

3) Die Head Helix 500 VSI-TZ
·Die heating zones incl. thermocouple
·Die set for pipe O.D.: SDR 11 + SDR 17, diameter range 200-500 mm
(200 mm, 225 mm, 250 mm, 280 mm, 315 mm, 355 mm, 400 mm, 450 mm, 500 mm)

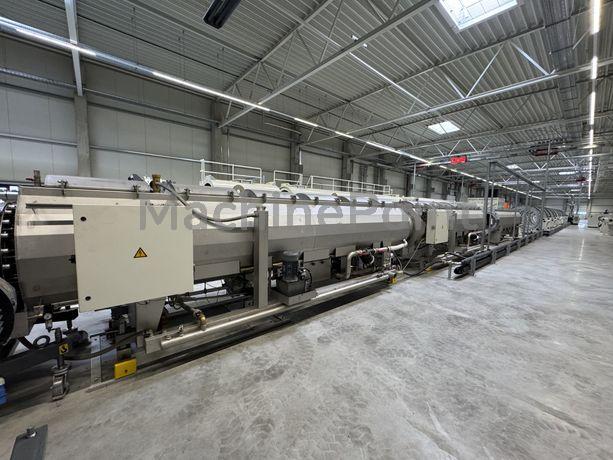

4) Vacuum calibrator: vacStream 500-6
Sleeves included: 200 mm, 225 mm, 250 mm, 280 mm, 315 mm, 355 mm, 400 mm, 450 mm, 500 mm

5) Vacuum calibrator 2: vacStream 500-6

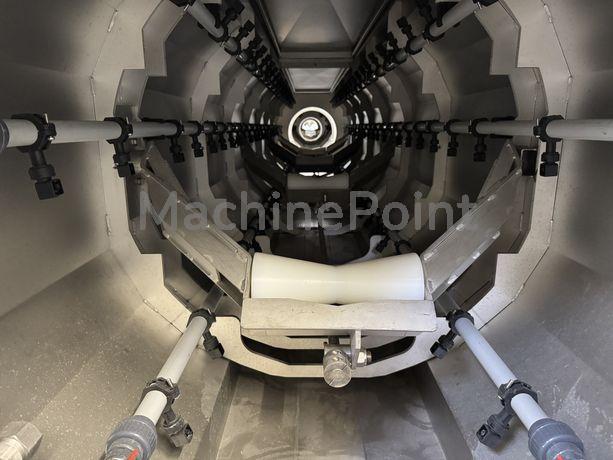

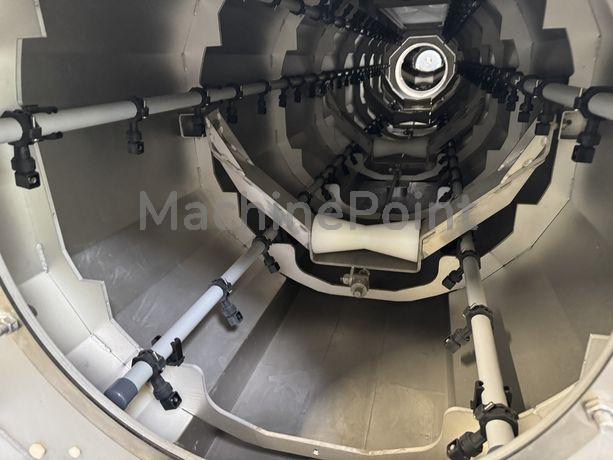

6) Cooling tank: coolStream 500-6 / 4

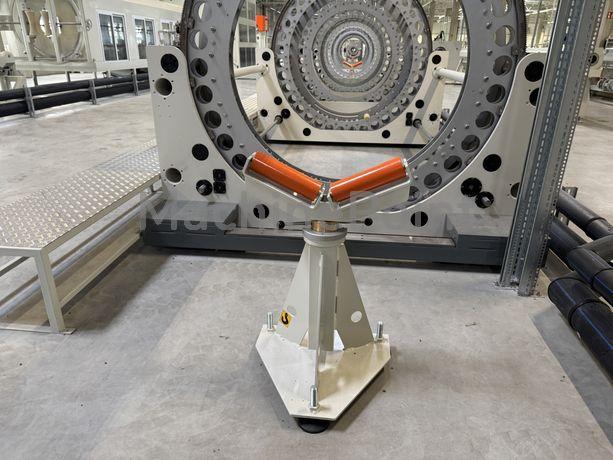

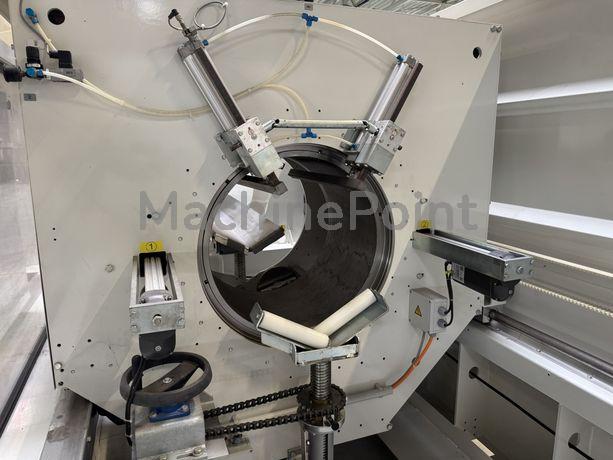

7) Pinch rollers: CB 500 + Roller support: RB 500

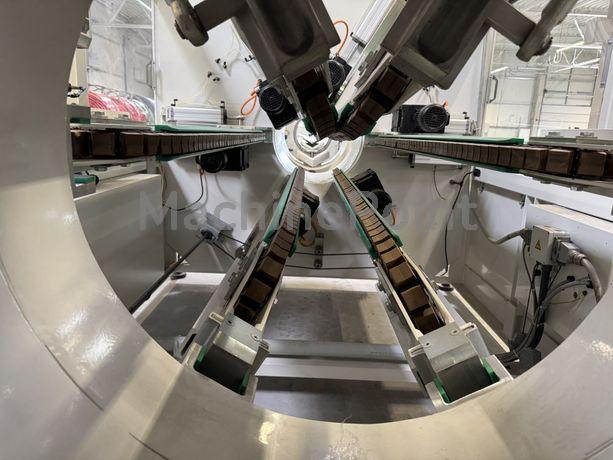

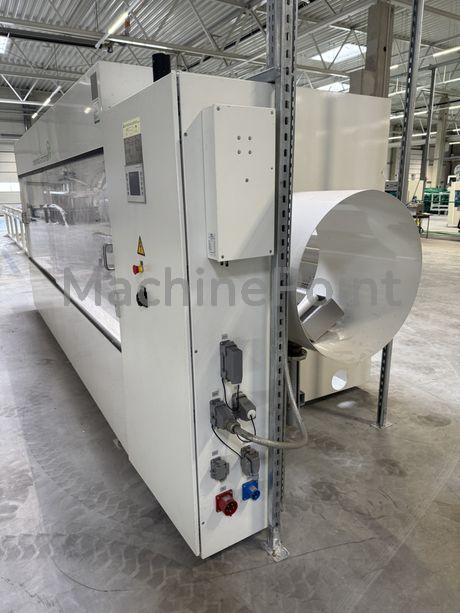

8) Haul-off unit: pullStream R 500-6 E, speed 0.1- 5 m/min

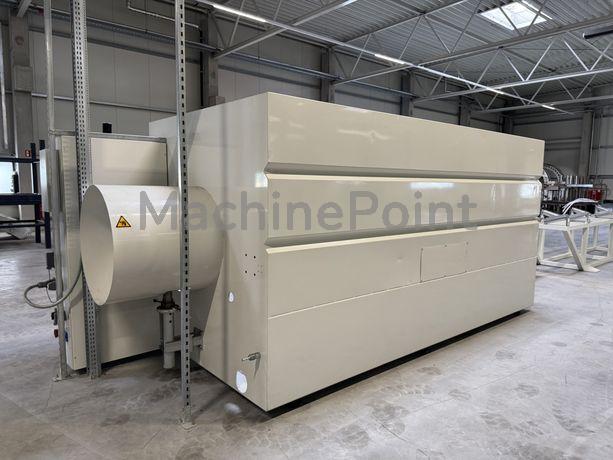

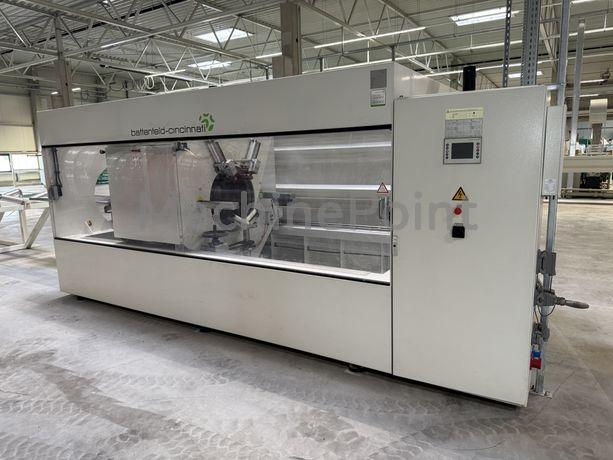

9) Cutting unit: cutStream RTAplus 500 for swarfless cutting

Other Details:

Guarantee: Without guarantee

Current condition: Dismantled. Can't be seen in running condition

Voltage: 400 V Triphase
Frequency: 50 Hz
