Used KÖPPERN High Pressure Grinding Roll of Type 52/8, 1-550 grinder for glass of 2023 for sale
Grinder for glass KÖPPERN, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used KÖPPERN High Pressure Grinding Roll of Type 52/8, 1-550
Ref.: 300049467
Year: 2023
Brand: KÖPPERN
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
Grinder for glass
Other Specifications:

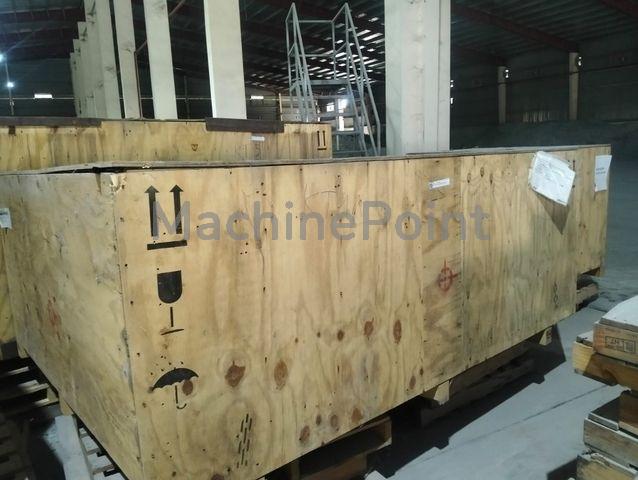

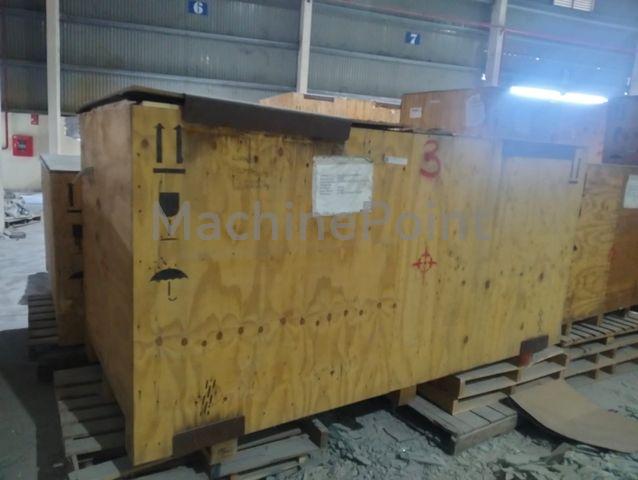

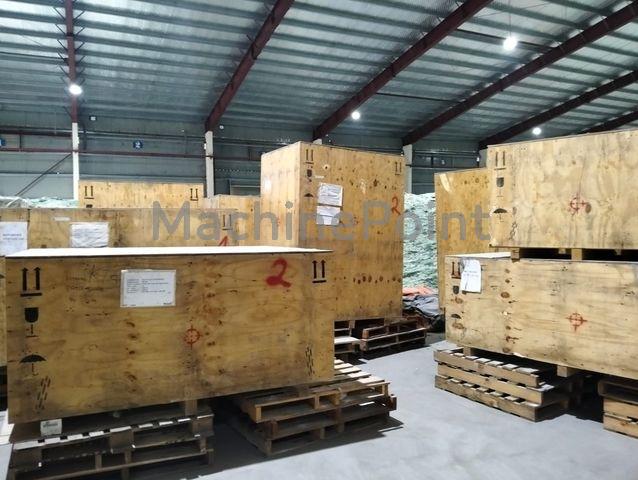

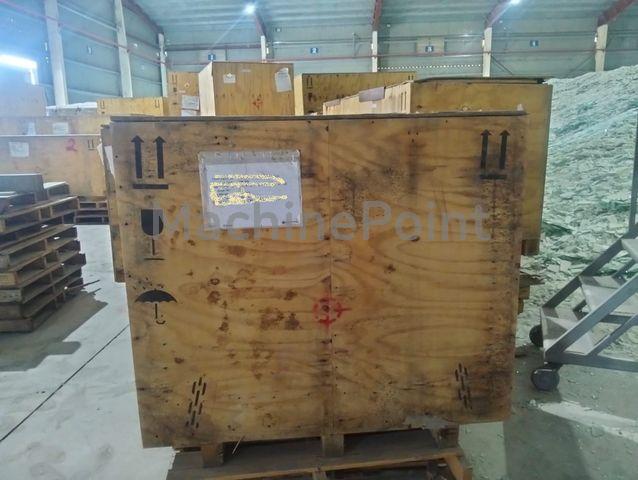

This line has never been installed, still in boxes
Application: Grinding of glass in closed-circuit mode with dry screening
Total Throughput: 65 t/h (dry basis)
Fresh Feed Capacity: 15 t/h
Feed Material: Glass (approx. 23% fresh feed, 77% recycle >0.4 mm)
Product Fineness: 100% < 0.4 mm (depending on screen efficiency)
Feed Moisture: 3%
Roller Diameter: 810 mm
Working Roller Width: 550 mm
Maximum Feed Size: 24 mm
Specific Pressing Force: 4,500 kN/m²
Roller Speed (Nominal): 0.57 m/s
Variable Speed Range: 0.51 – 0.98 m/s
Required Power (Operation): 76 kW at HPGR shaft
Installed Power: 2 × 44 kW
Feeding Device: Gravity feeder
Main Components Included: feeding device, HPGR frame, bearings, roller assembly, hydraulic system, mechanical drive unit, special tools, electrical basic engineering
Instrumentation: vibration sensors, hydraulic pressure monitoring, roller gap, speed switches, hydraulic controller
Auxiliaries Included: load cell system, hydraulic feed gate, hydraulic unit
Other Details:
Guarantee: Without guarantee
Current condition: Disconnected. Can't be seen in running condition
Availability: Immediate
