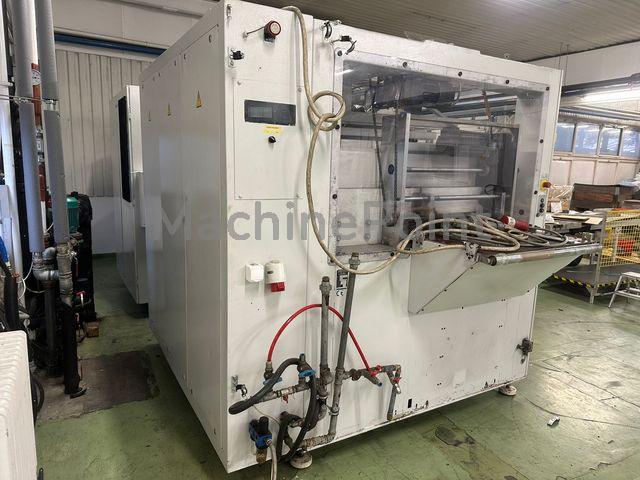

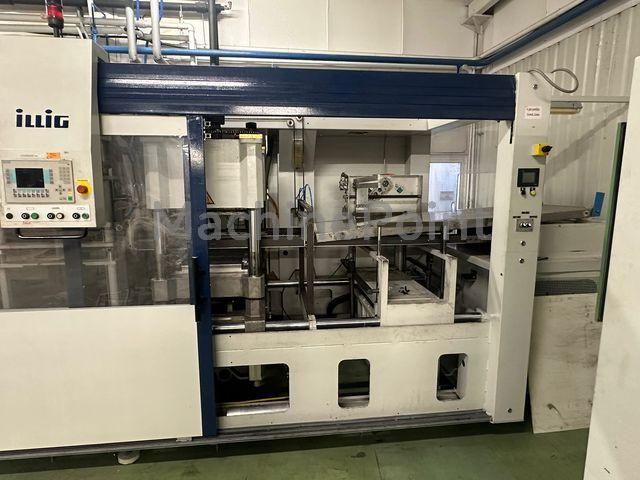

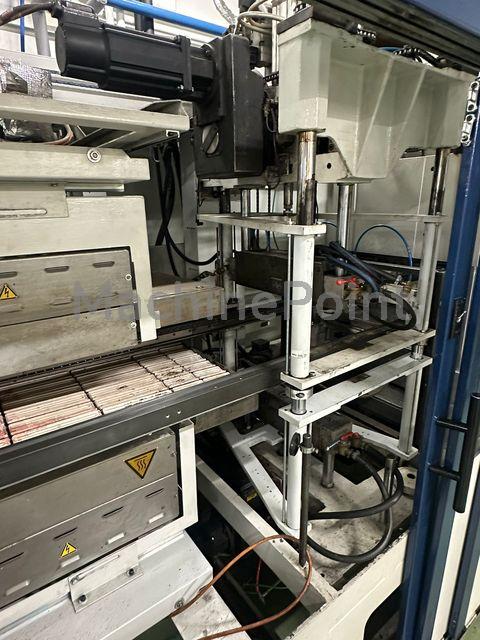

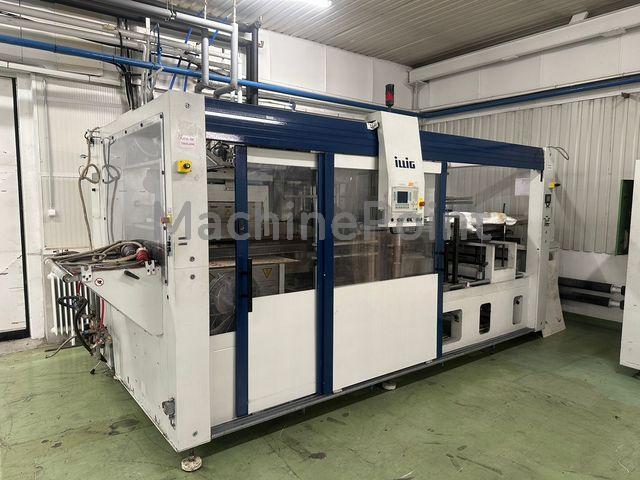

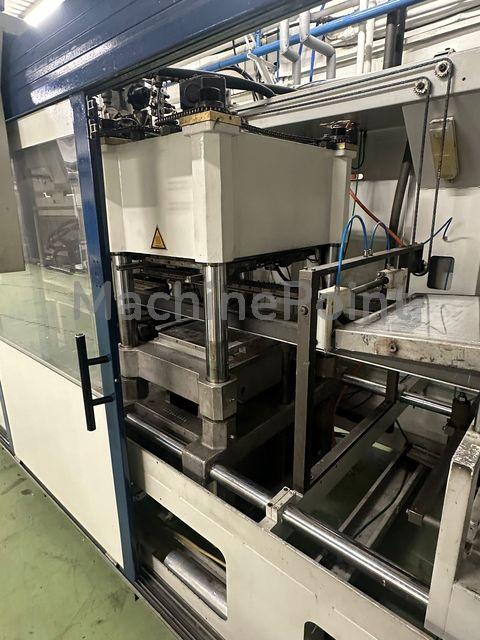

Used ILLIG RD53 of 2002 for sale

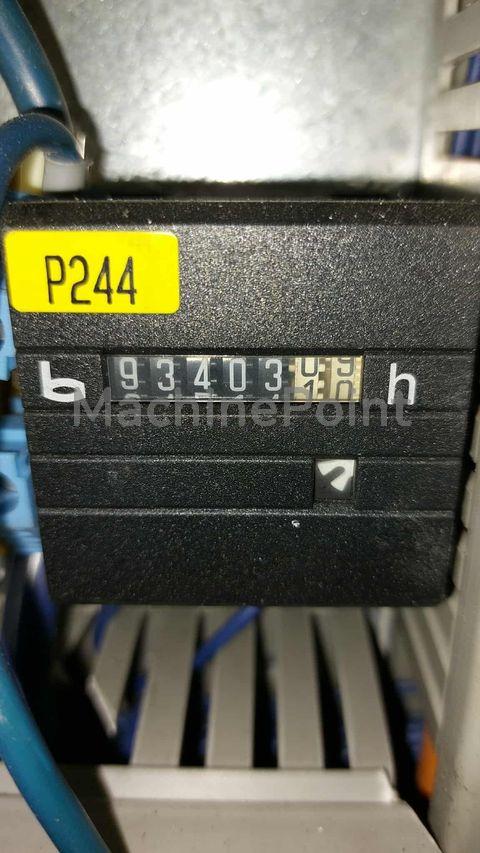

Forming/Cutting/Stacking Min-max forming area: 400x250 - 704x515 Tool width between film transport spars min-max: 420-724mm Tool length in feed direction min-max: 274-538mm Film width min-max: 454-760mm Max. gap dimensions per side: 12mm Feed length min-max . 250-540mm Formed part height above film level max: 120mm Formed part height below film level max: 40mm Table travel upwards max: 160mm Table travel downwards max: 195mm Clamping frame upstroke max: 140mm Blow box stroke max: 60mm Upper heater length: 2000mm Lower heater length: 1875mm Vacuum pump flow max: 100m3/h Max. mold clamping force: 80 kN Max. forming pressure: 2 bar Max. cycle rate: 35 cycles/min Working hours at 25/07/2025 : 30753

Working hours : 3739 (05/06/2025) Forming area min-max : 300x100 - 500x350mm Film width min-max : 340-540mm Piece height above/below film level: 100/30mm Reel diameter: 600mm Connected electrical power of upper heater: 9.8kW Connected electrical power of lower heater: 5.6kW Max output: 15/min The machine is equipped with a stacker. It may not appear in the video, as it's not always used. So there are 3 stations: forming, cutting and stacking. Min thickness worked : 0.28mm

Forming/Cutting/Stacking Min-max forming area: 400x250 - 704x515 Tool width between film transport spars min-max: 420-724mm Tool length in feed direction min-max: 274-538mm Film width min-max: 454-760mm Max. gap dimensions per side: 12mm Feed length min-max . 250-540mm Formed part height above film level max: 120mm Formed part height below film level max: 40mm Table travel upwards max: 160mm Table travel downwards max: 195mm Clamping frame upstroke max: 140mm Blow box stroke max: 60mm Upper heater length: 2000mm Lower heater length: 1875mm Vacuum pump flow max: 100m3/h Max. mold clamping force: 80 kN Max. forming pressure: 2 bar Max. cycle rate: 35 cycles/min Working hours at 25/11/2024 : 22899

Card dimension min-max : 450x400 - 770x500 Card weight max : 600 g/m2 Material width : 540mm Height of package : 100-150 mm Number of cycles at 100mm package height : 3 Number of cycles at 150mm package height : 2,5 Weight of product on total card max : 4kg Material roll diameter max : skin : 350mm / Blister 400mm Material thickness min-max : 0.1-0.5mm Material roll core diameter : 70mm Longitudinal cutting blade max : 9 pieces Number of cross cuts which can be carried out : 11 (=10 cavities) Trim-im place tool : 8 pieces Cutting accuracy max in operation direction : +- 0.5mm Heater power rating : 9.0/13.9 kW Vacuum pump : 40 m3/h Total connected load : 15.55 kW Operation pressure : 6 bar Air consumption/cycle : 70-210 litre Compressor suction capacity min : 230 l/min

Machine for skin, blister and standard thermoforming. The machine has : 1 robot for automatic carton placement on the table 1 conveyor belt 1 thermoforming machine 1 trimming block with guillotine puller + punch-die punch holes, longitudinal separation by trimming knots, max 8 pcs. Cardboard format: 450X1200 mm Max reel diameter (blister) : 495 Film thickness : PE film 100 my, PS : 1.5mm & APET PVC 1.2mm Carton weight : 600g/m2 max Cone diameter : 70 mm Actuality : blistering set of shower curtain rods
