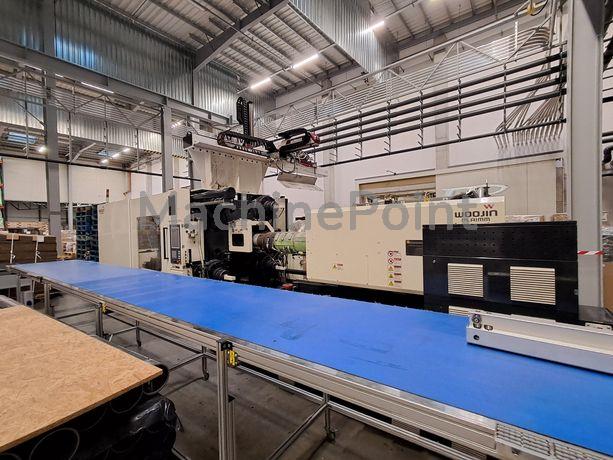

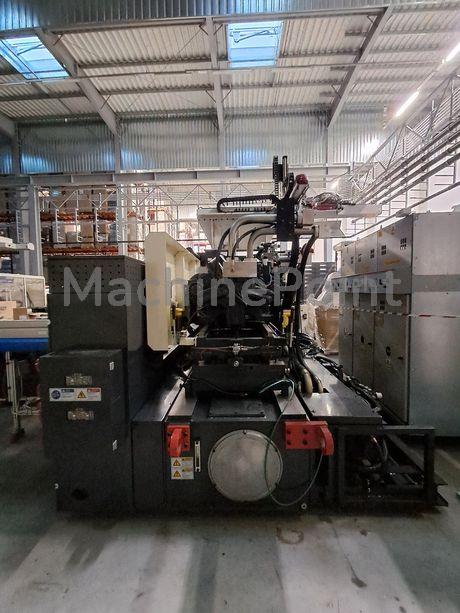

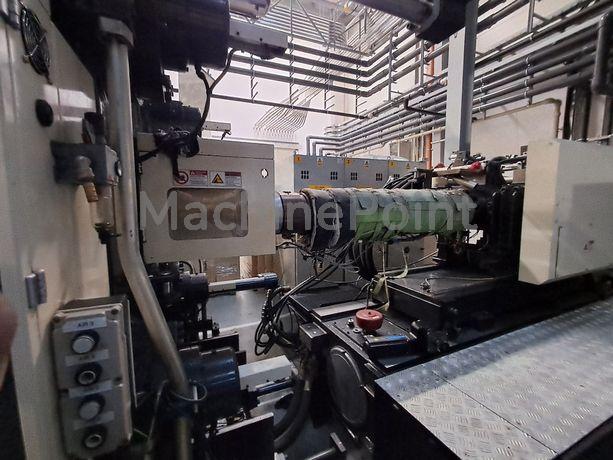

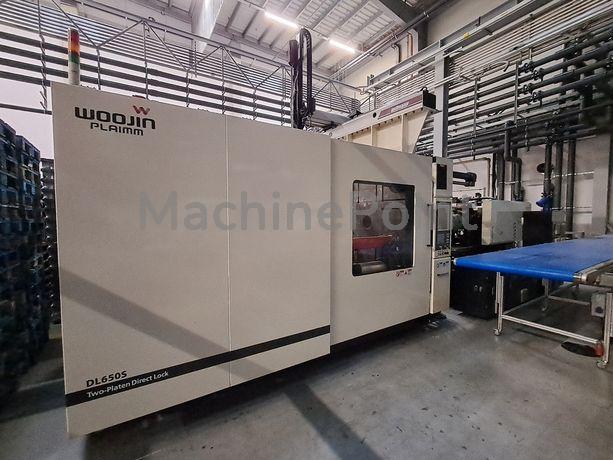

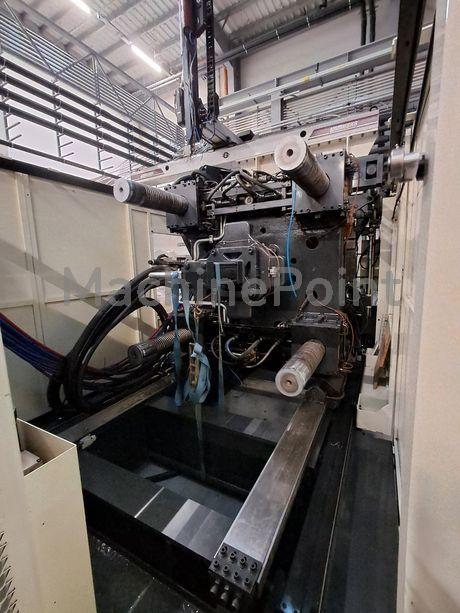

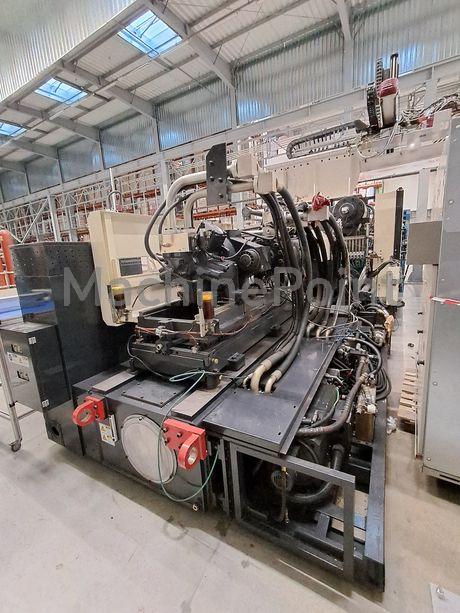

Used WOOJIN DL 650 S of 2014 for sale
2014 | Ref.: 300049485
Injection molding machine from 500 T up to 1000 T WOOJIN, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.
Data Sheet of Used WOOJIN DL 650 S
Ref.: 300049485
Year: 2014
Brand: WOOJIN
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 650 ton
- Shot Weight (Max): 3100 g
- Distance Between Tie-Bars (H): 1010 mm
- Distance Between Tie-Bars (V): 1010 mm
- Platen Size (H): 1460 mm
- Platen Size (V): 1460 mm
- Tie-Bar Diameter: 160 mm
- Mould Height (Max): 1100 mm
- Mould Height (Min): 450 mm
- Daylight Between Platens (Max): 1800 mm
- Opening Stroke (Max): 1350 mm
- Ejector Force: 198 ton
- Ejector Stroke: 250 mm
- Core Pulls: Yes
- Number Of Core Pulls: 2
- Injection Volume: 3410 cm³
- Injection Pressure: 1848.5 bar
- Injection Rate: 801 cm³/s
- Nozzle Stroke (Max): 600 mm
- Plasticising Capacity: 109.5 g/s
- Heating Zones: 6
- Heating Capacity: 33.6 kW
- Oil Tank Capacity: 1500 l
- Orientation: Horizontal
Other Specifications:
Hours in production as of 27/11/2025: 61,300 hrs
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 60 Hz
Installed Power: 195.4 Kw
