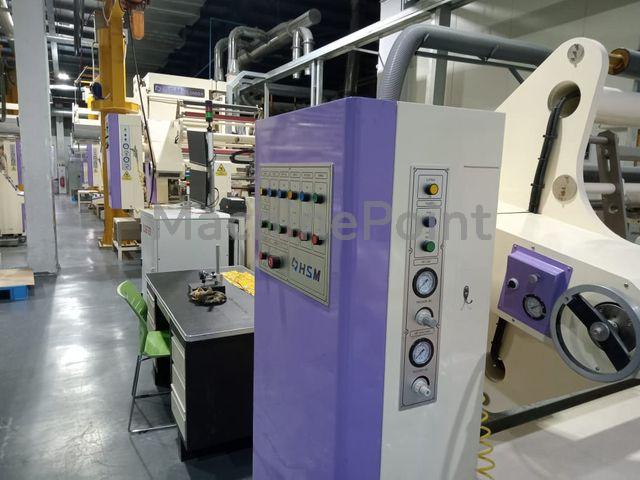

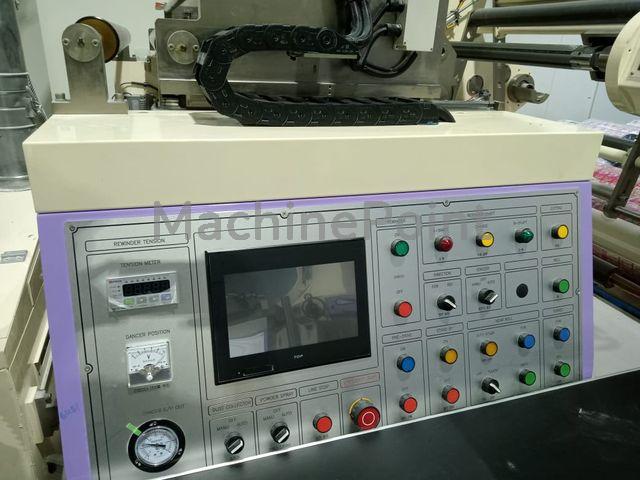

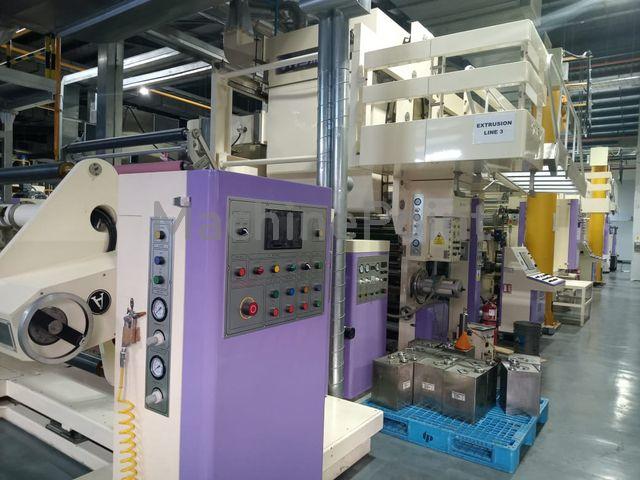

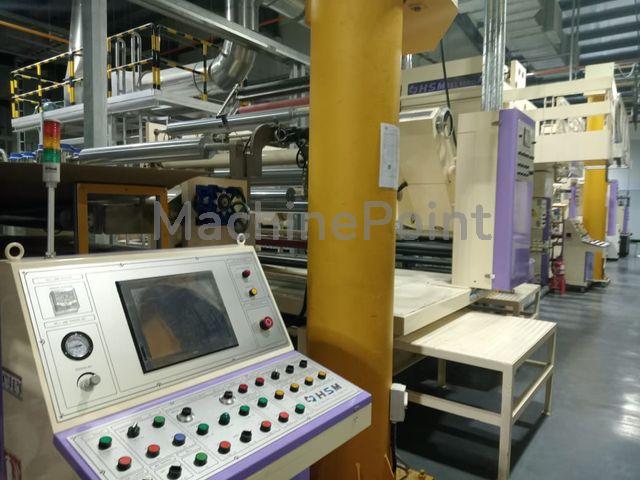

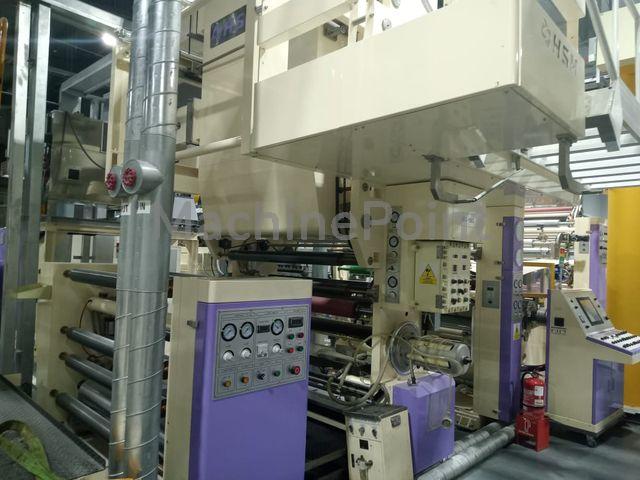

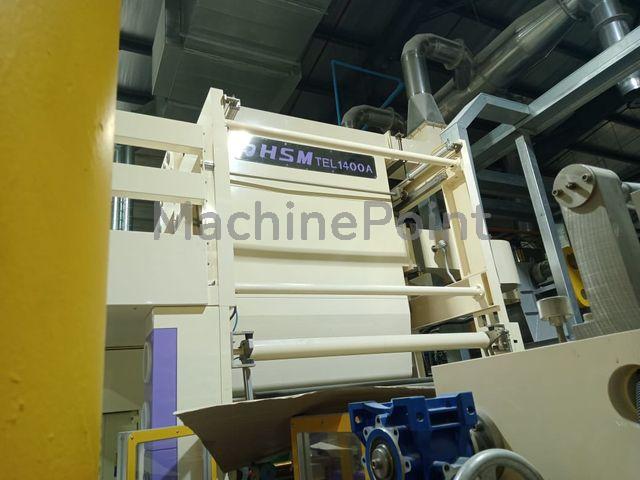

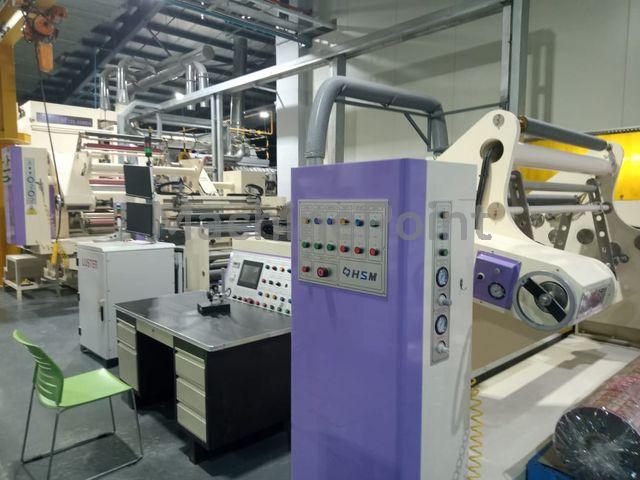

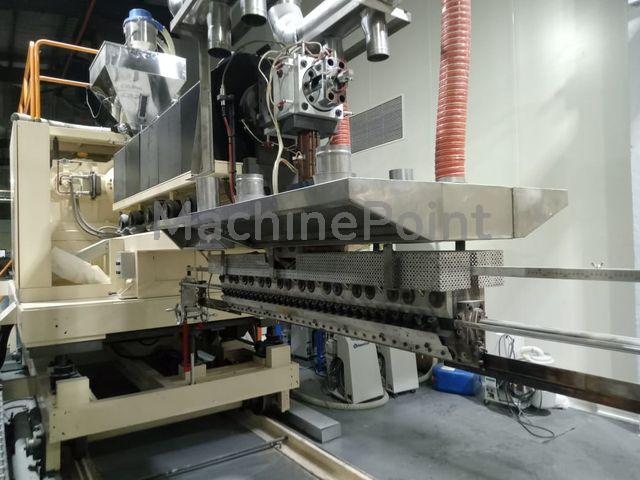

Used HSM KOREA HSM-TEL1400A of 2022 for sale
Extrusion lines for coating HSM KOREA, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.
Data Sheet of Used HSM KOREA HSM-TEL1400A
Ref.: 300049530
Year: 2022
Brand: HSM KOREA
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
Other Specifications:
Tandem extrusion lamination
Type of resin: PE, EVA, PP, Etc
Kind of web: Plastic films & AL foil, paper

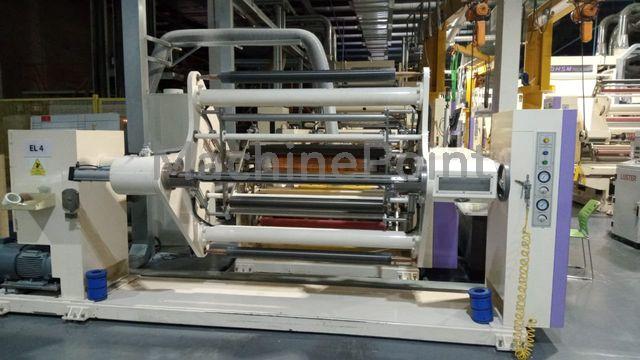

No. of unwinder: 3 unwinder - max. dia: 800 mm / Turret type
No. of rewinder: 1 rewinder - max. dia: 1000 mm / Turret type
Web width: 1200-2000 mm
Guide width: 1300-2100 mm
No. of layer: max. 5 layer
Max. machine speed: 300 m/min
Thickness of extruder: 6-40 microns
Both die size: 1500 mm
Extruder: Single / Co-extruder
Extruder L/d: 30:1-36:1
Cooling roll dia: 600 mm
Flying splice
Double screw extruding station 1 & station 2
Hoppe loader: 2 unit (front & back)
Die make, and auto or manual for thickness: Manual set & auto adjust
How many extruder and size: 2 extruder (front & back)
Anchor coating unit: 2 unit (with dryer)
Film thickness system: Manual set & auto adjust
Main drive motor: AC Vector motor
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown with material
Availability: Immediate
