Used UNION PET Co-Extrusion Line of 2017 for sale

2017 | Ref.: 300049555

Sheet coextrusion lines UNION, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.

Data Sheet of Used UNION PET Co-Extrusion Line

Ref.: 300049555

Year: 2017

Brand: UNION

Status:
For sale
Ask for machine price Want to sell your machine?

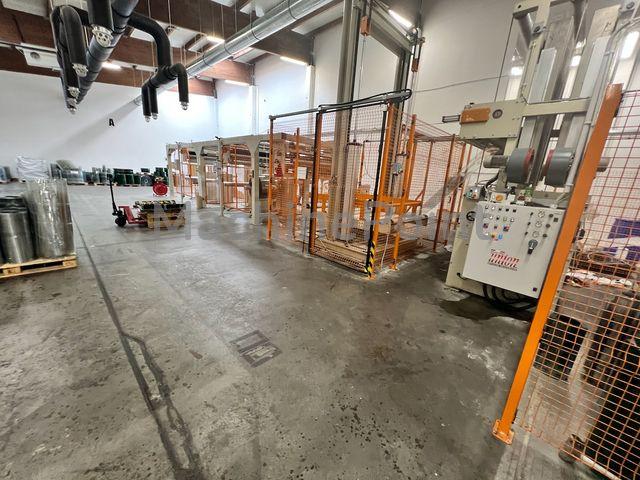

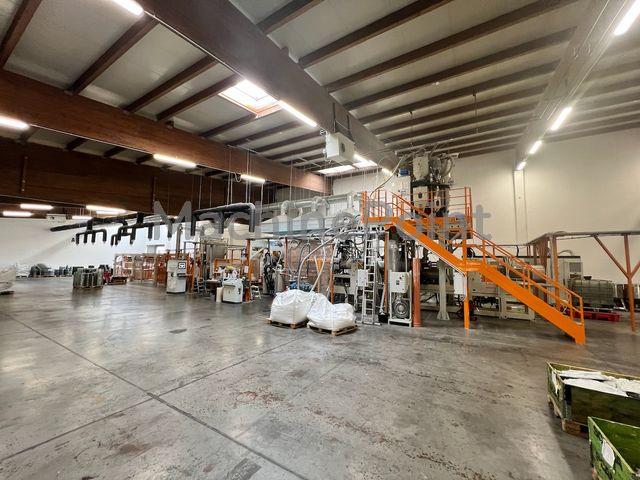

UNION - PET Co-Extrusion Line - Used machine
UNION - PET Co-Extrusion Line - Used machine
UNION - PET Co-Extrusion Line - Used machine
UNION - PET Co-Extrusion Line - Used machine
UNION - PET Co-Extrusion Line - Used machine
UNION - PET Co-Extrusion Line - Used machine
UNION - PET Co-Extrusion Line - Used machine
UNION - PET Co-Extrusion Line - Used machine
UNION - PET Co-Extrusion Line - Used machine
UNION - PET Co-Extrusion Line - Used machine
Please accept marketing-cookies to watch this video.

Technical Specifications:

  • Materials: PET
  • Film Width (Max): 1100 mm
  • Film Thickness (Min): 0.15 mm
  • Film Thickness (Max): 1.4 mm
  • Output Capacity: 1000 kg/h
  • Layers: 3
  • Number Of Extruders: 2
  • Roll Diameter: 800 mm

Other Specifications:

PET film CO-extrusion line
3-layer ABA

Plastic Systems Gravimetric Dosing and feeding system for main extruder , 6 components
4 for PET flakes 1000 kg/h each
1 for masterbatch 0.2 ÷ 25 kg/h
1 for additive 1 ÷ 10 kg/h

Gravimetric device for 4 components with no. 4 plastic system feeders for secundary extruder

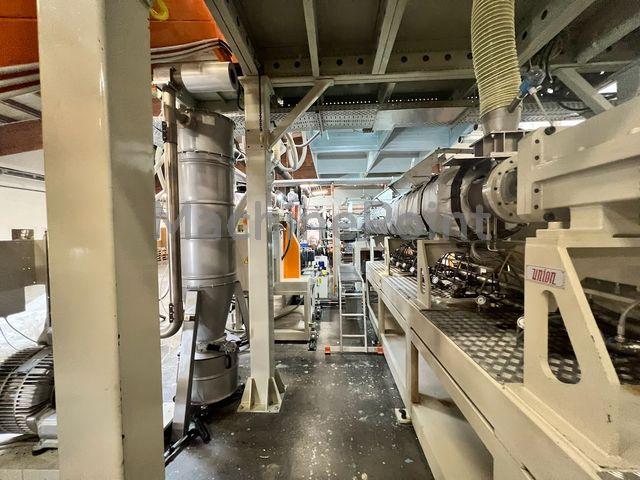

Twin screw extruder zp 92 x / 52 d at triple venting with vacuum degasing and one atmosphere venting
Single screw extruder tr 75, l/d ratio = 44:1 with double venting

Black-box at . no. 2 pins at 3 ways

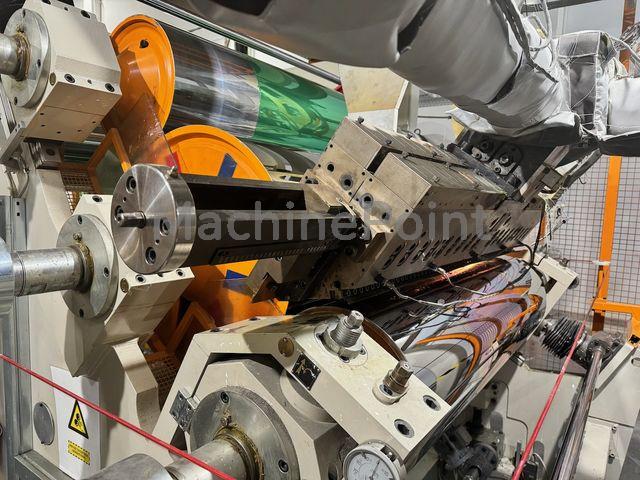

Flat die head type Cloeren - EPOCH III , 1430mm, with lip heating included, manual, chrome plated.
Water thermoregulation central station for calender thermoregulation

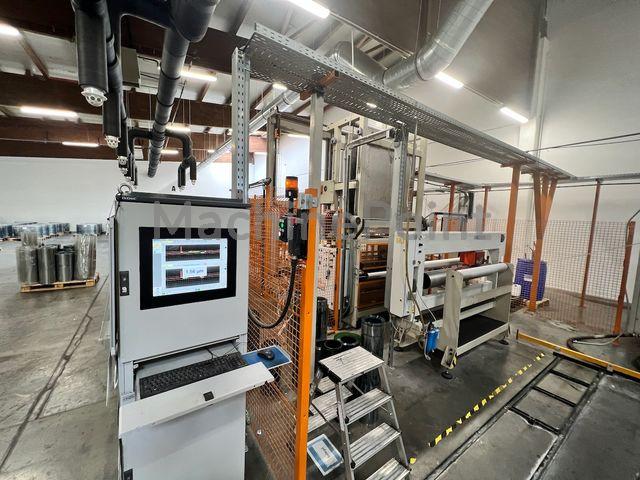

Electronic System thickness measuring gauge (1400 mm width)
Vertical silicone bath (1400 mm width)

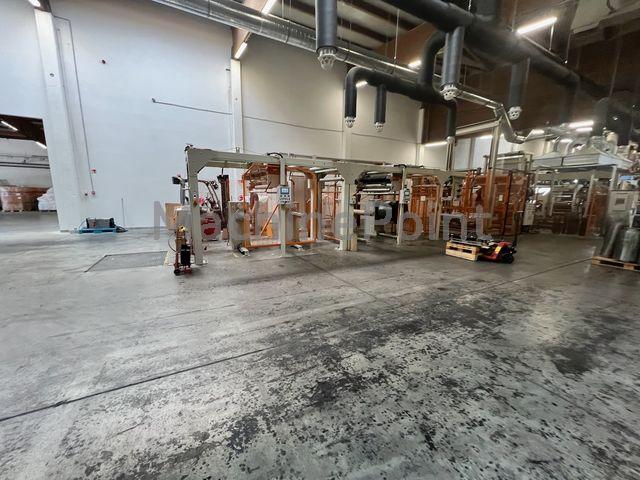

Accumulator of 40 m at double comb (1400 mm width)

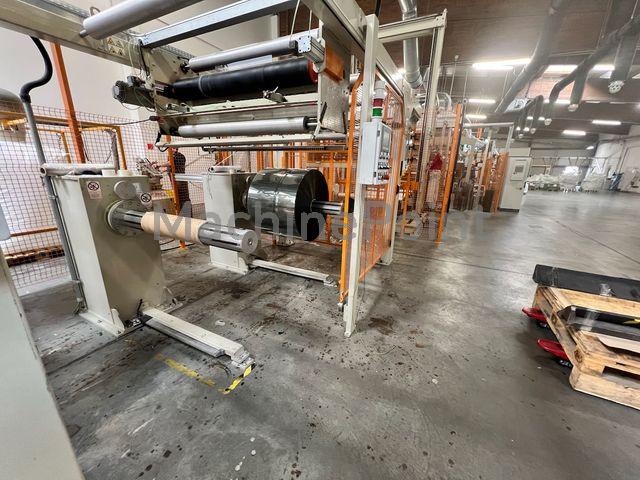

2 web winding systems trolley type (1400 mm width)
Water chiller
Grinder type 50-30/xt-sl

Other Details:

Guarantee: Without guarantee

Current condition: Not running. Can be shown with material

Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 1257 Kw

MachinePoint's services:

Loading and lashing

Packaging

Dismantling

Refurbishing & Overhauling services

Used Machinery Appraisals

Transport of industrial machinery
