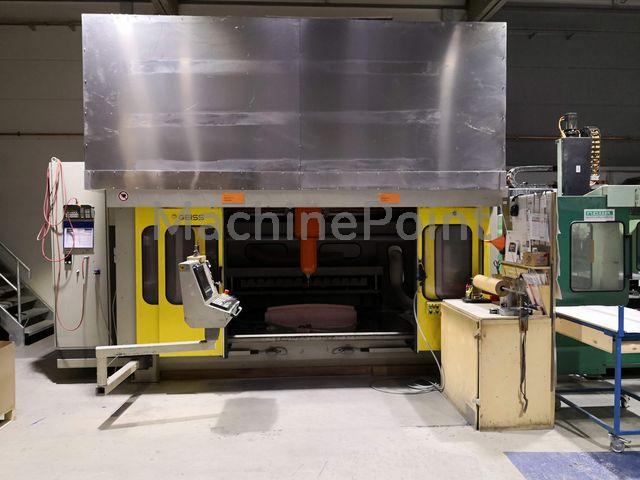

Used GEISS 2000x1000 of 2000 for sale

Max sheet size: 920 x 1110 mm Min sheet size: 350 x 420 mm Max mold height: H500 mm Hours worked: approximately about 30.000h Halogen lamps

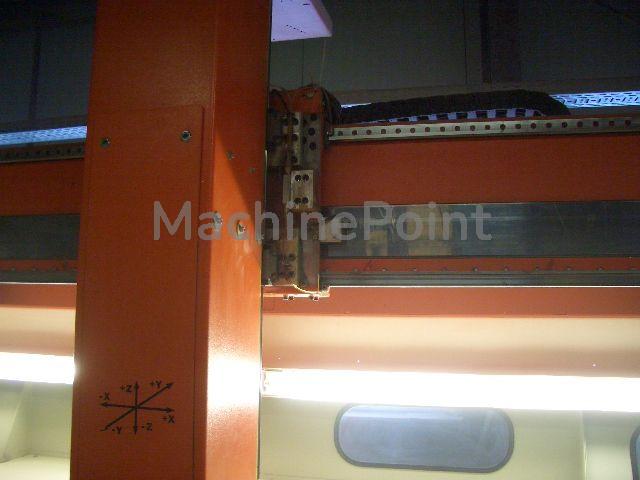

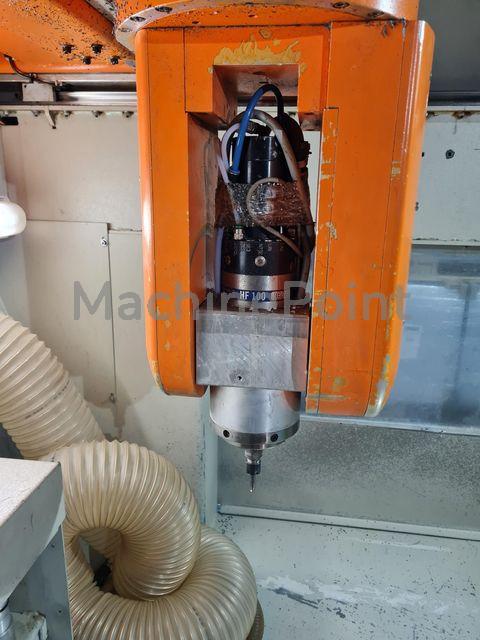

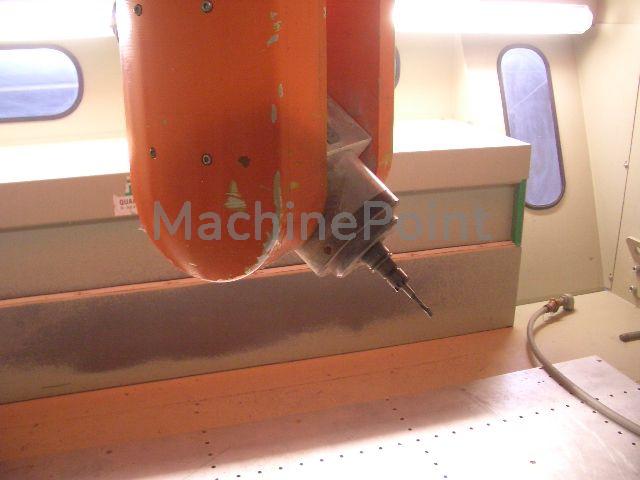

Pick up Jan 2026 before new machine arrives Axis/Travel distances/Speed/Acceleration X-axis/3000 mm/75000 mm/min/4000 mm/s² Y-axis/1200 mm/75000 mm/min/3000 mm/s² Z-axis/750 mm/70000 mm/min/7000 mm/s² B-axis/285/25200 rpm/7200 rps C-axis/520/20880 rpm/5400 rps Milling spindles:Z-axis: GEISS ER16 Maximum speed:40,000 rpm Power:6 kW

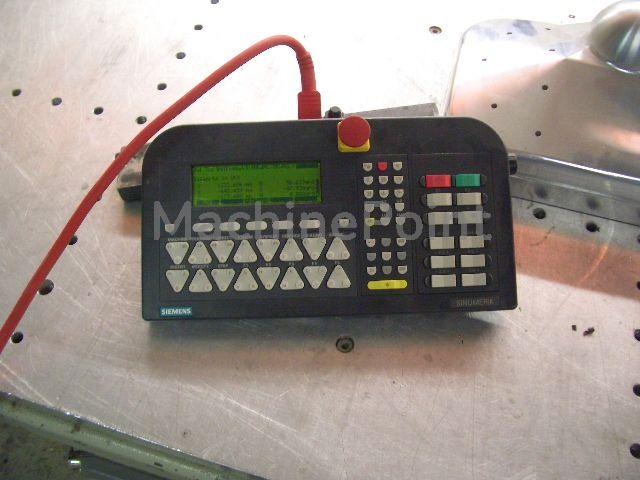

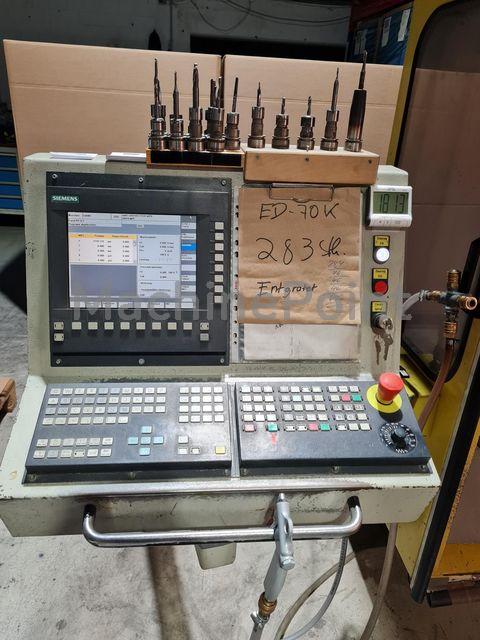

Axis travel / speed / acceleration X-axis : 2450mm / 46875mm/min / 2000mm/s2 Y-axis : 1400 mm / 40909 mm/min /2000mm/s2 Z-axis 800:mm / 50000 mm/min / 1200mm/s2 B-axis : 285º / 14275 º/min / 1200 º/s2 C-axis : 520º / 21600 º/min / 1200 º/s2 Trimming spindles : 2 axis Geiss Max spindle speed : 30.000 U/min Siemens 840D digital control

Flash Heaters Automatic motorised window frame adjustment in both axes Plug assist no sheet loader
