Used ILLIG RV74 of 1999 for sale

1999 | Ref.: 300049672

Thermoformer ILLIG, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.

Data Sheet of Used ILLIG RV74

Ref.: 300049672

Year: 1999

Brand: ILLIG

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

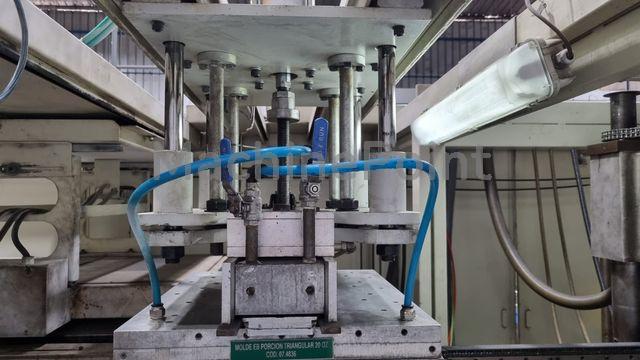

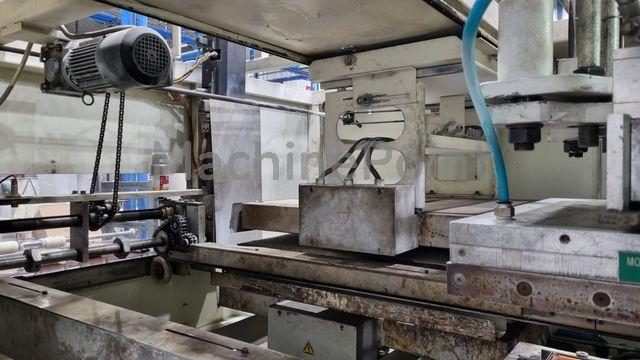

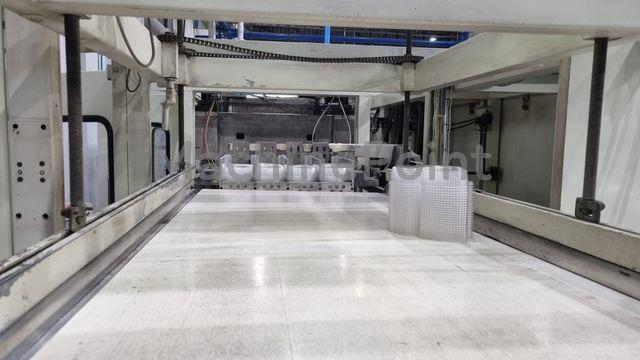

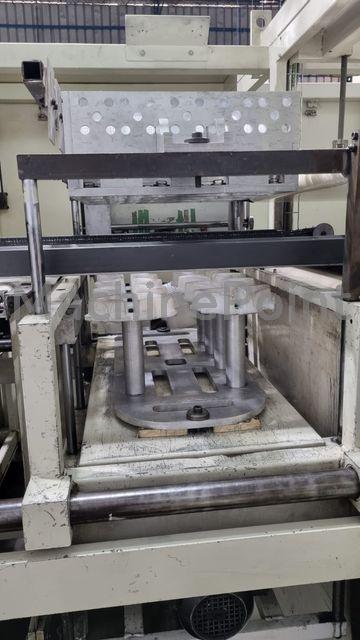

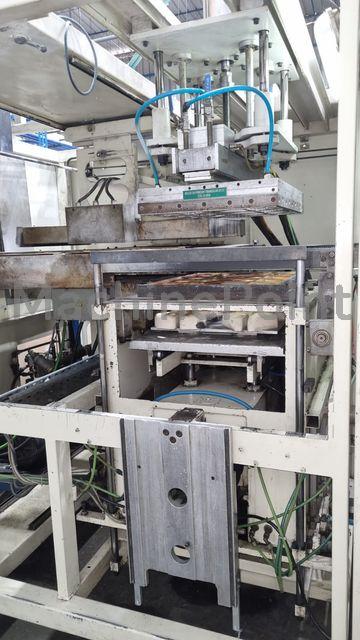

ILLIG - RV74 - Used machine
ILLIG - RV74 - Used machine
ILLIG - RV74 - Used machine
ILLIG - RV74 - Used machine
ILLIG - RV74 - Used machine
ILLIG - RV74 - Used machine
ILLIG - RV74 - Used machine

Technical Specifications:

  • Forming Area (Vxh): 700x500 mm
  • Depth Of Draw: 120 mm
  • Material Thickness (Max): 2 mm
  • Number Of Stations: 3
  • Feeding Systems: Roll fed

Other Specifications:

3 stations : Forming - Cutting - Stacking

Min. forming area: 400x250 mm
Material width min/max: 440-750 mm
Height above/below film level: 120/40 mm
Film reel diameter: 1200 mm
Transport accuracy: +-0.2mm

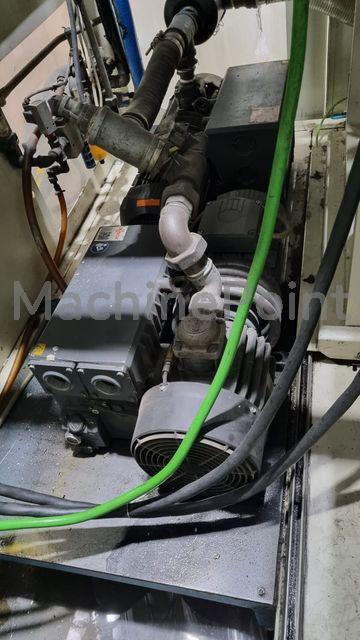

Suction power of the vacuum pump: 200m3/hour
Connected electrical power of the upper/lower heater: 16.2 kW
Length of upper/lower heater: 1125mm
Max. speed: 20/min

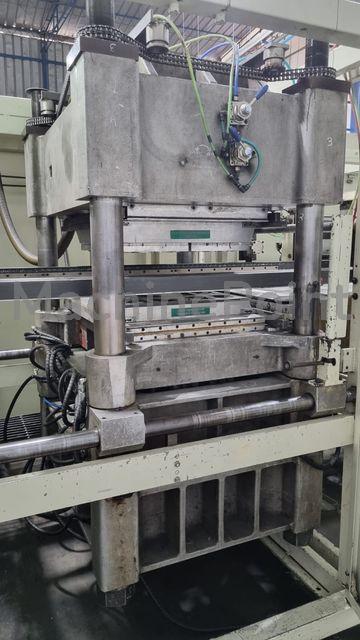

Cutting:
Cutting surface at upper/lower table: 700x500mm
Height of the part to be cut above/below the film level: 120/40mm
Cutting force: 50,000 daN


Complete features forming machine + cutting :
Max speed : 20/min
Total electrical power with lower heater: 46kW
Total electrical power with lower heater and cutting heater: 52.4 kW
Max. diameter of the waste reel (skeleton): 600mm

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 53 Kw
