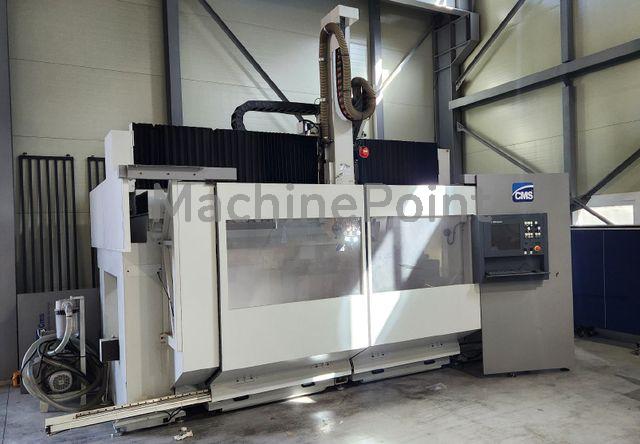

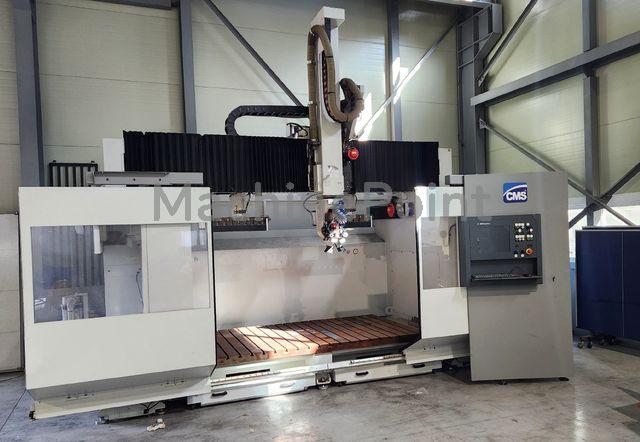

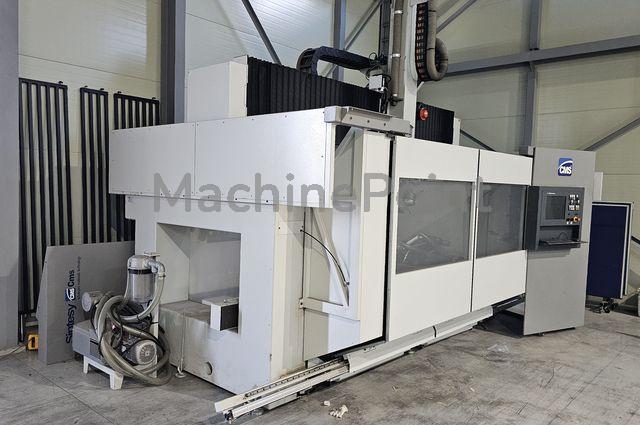

Used CMS SYNTESY PX5 of 2015 for sale

AXES STROKES X 2600 mm Y 1500 mm Z 1200 mm B ±120° Speed movement X/Y 80 m/min Z 70 m/min B 9000 °/min Spindle speed 24.000 rpm Tool change Manual and Automatic

Max sheet size: 1560 x 2560 Min sheet size: 840 x 1360 Max mold height: H800 Hours worked: approximately 22,500 h Automatic loading-unloading system

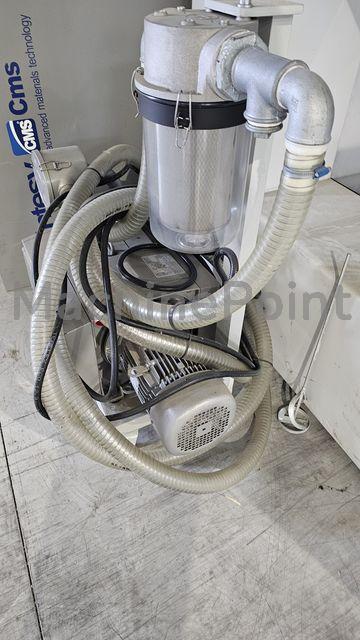

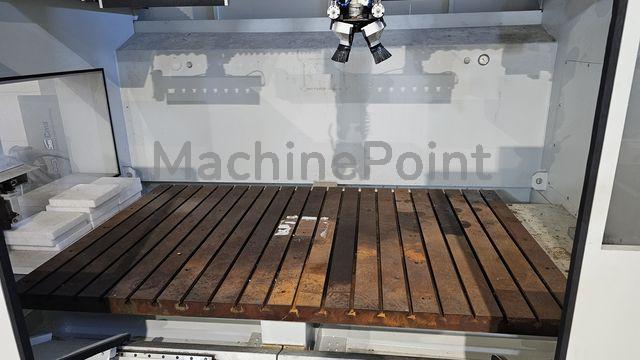

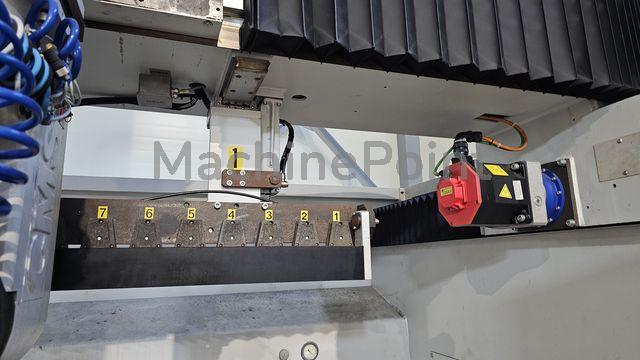

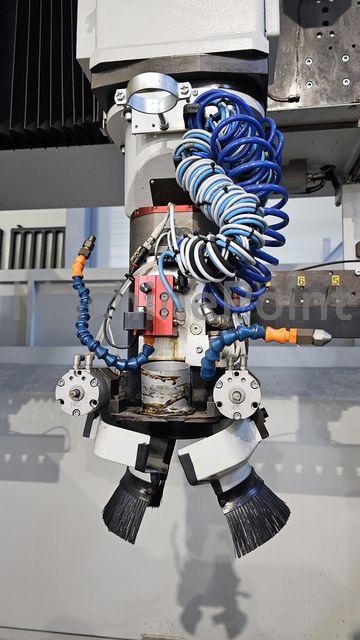

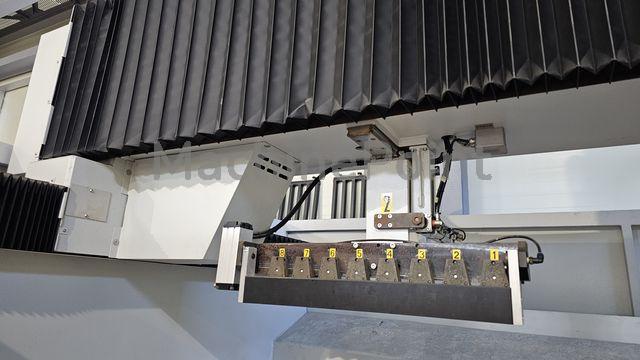

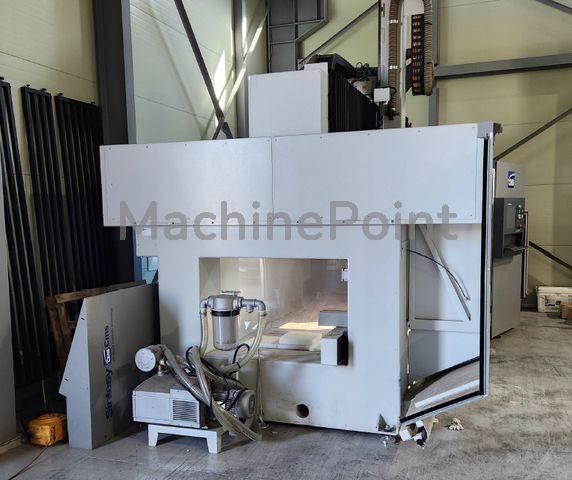

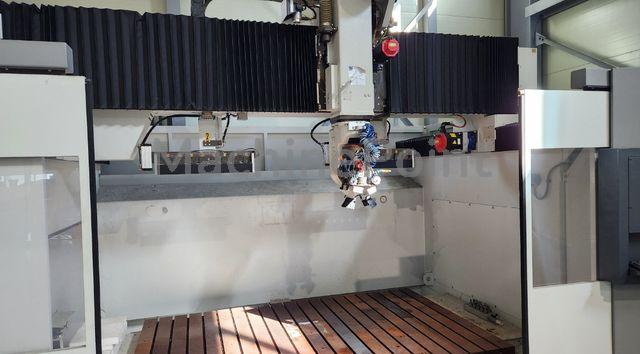

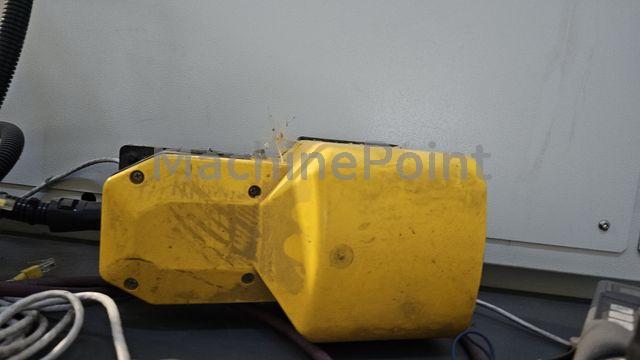

-axis: Gantry driven on both sides. Y-axis: Traversable carriage mounted and guided on the X-traverse. Z-axis: Support mounted on the Y-slide to which the machining unit is attached. The Z-support is equipped with an automatic system that blocks the slide in the event of a voltage drop. The running shoes are protected by double sealing lips. B and C axes: These axes are integrated in the machining unit Axis / Speed in rapid traverse linear X = 3,370 mm 90,000 mm/min Y = 1,500 mm 60,000 mm/min Z = 1,200 mm 40,000 mm/min Rotation: B = ± 120 ° 10,800 °/min C = ± 270 ° 10,800 °/min Machining dimensions with spindle in vertical position: approx. 3,370 x 1,500 x 960 mm Cube dimensions (without partition, one loading station): approx. 2,890 x 1,020 x 960 mm Machining from all 5 sides, with horizontally swivelled spindle. Length from pivot point to spindle nose 115 mm + tool holder (assumption) 65 mm + tool length (assumption) 60 mm Table size approx. 3060 x 1530 mm, table height approx. 320 mm Vacuum connections The machine is equipped with two vacuum distributors with four vacuum connections each. These can be activated with a manual valve and controlled by foot pedal or by M-function via the CNC. Shuttle operation: With two independent vacuum circuits, independent sliding doors and a safety partition between the working areas, the machine can be operated in shuttle mode. Universal tool head 'CX5' Description: Five simultaneously controlled CNC axes allow the milling head to be positioned in all directions of space. The axes are moved by brushless three-phase servo motors and high-precision reduction gears. The unit is equipped with an electric spindle for automatic tool change. 4th and 5th axes: In addition to the machine's three basic axes, the electro spindle can be rotated and tilted by two rotary axes of the 4th and 5th axes. The 4th axis allows continuous rotation of the unit by ±360° on the vertical axis. The 5th axis allows the spindle to swivel ±120° in the vertical plane. Milling spindle: Power: 8.5 kW from 12,000 rpm, max. speed: 24,000 rpm, tool interface HSK63F, liquid-cooled for automatic tool change, grease permanently lubricated, ceramic bearings. Make: HITECO M-function controllable blowing nozzle mounted on the spindle Tool magazine: Row magazine with 6 stations, moving in X-direction, mounted under the moving bridge. Frequency converter: Static frequency converter with a speed range freely programmable by the CNC from approx. 1,000 to 24,000 rpm, with motor braking, and selectable direction of rotation. CNC CONTROL OSAI OPEN Standard supply voltage = 400V +10%/-15% -50 + 60 Hz +/-1%

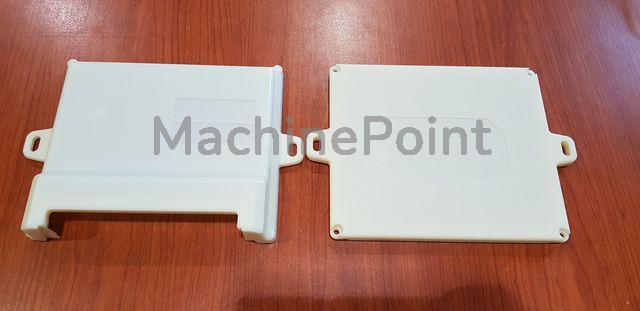

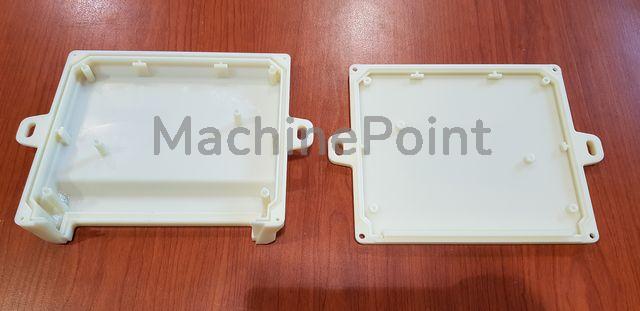

Materials: PS-ABS-PMMA-PC-PP-PSPE-COMPOSITE-WOOD-ALLUMINIUM-RESINS X axis 3050 mm, speed 90 m/min Y axis 1525 mm, speed 60 m/min Z axis 800 mm, 40 m/min C axis 540º (270+270), speed 80º/s B axis 240º (120+120), speed 90º/s
