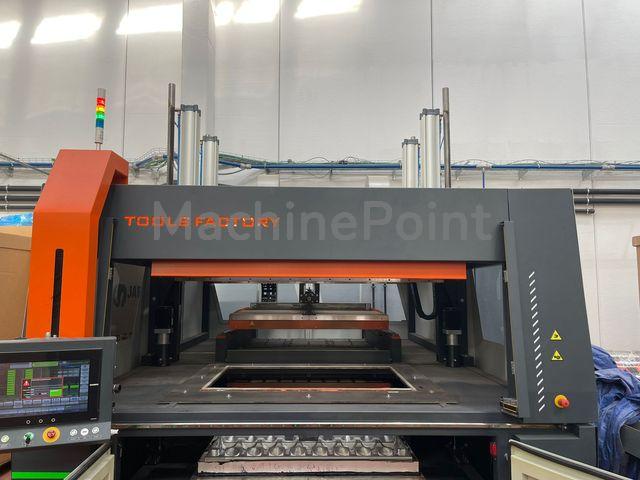

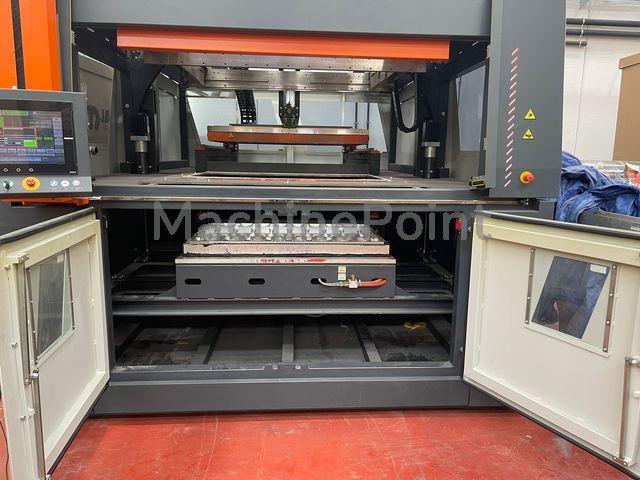

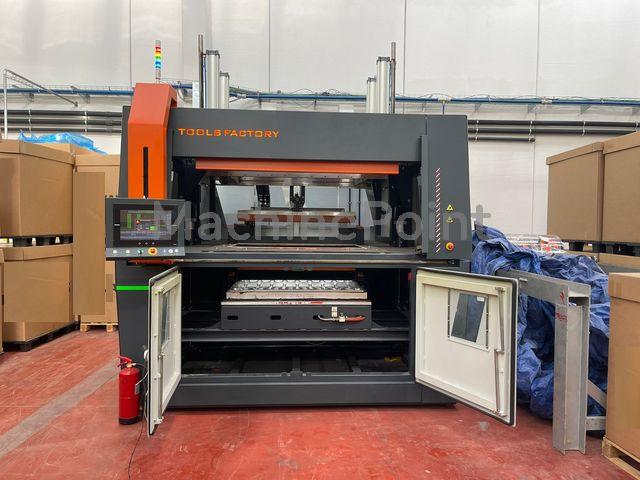

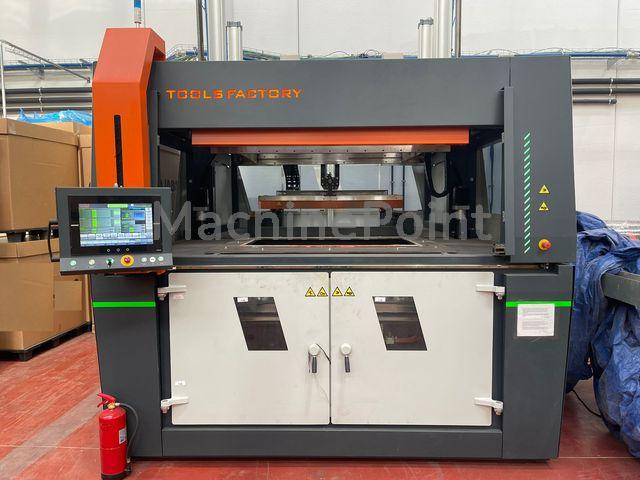

Used TOOLS FACTORY TF SMARTLINE 140 PLUS of 2024 for sale
Thermoformer TOOLS FACTORY, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.
Data Sheet of Used TOOLS FACTORY TF SMARTLINE 140 PLUS
Ref.: 300049712
Year: 2024
Brand: TOOLS FACTORY
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Forming Area (Vxh): 1300x1000mm
- Depth Of Draw: 500 mm
- Material Thickness (Min): 2 mm
- Material Thickness (Max): 10 mm
- Feeding Systems: Sheet fed
Other Specifications:
Working hours : 576
Dimension of material : 1350x1050mm
Max working area : 1300x1000mm
Heating elements – quartz infrared emitters
Regulation of top heater emitters – individual regulation of each heating element
Regulation of bottom heater emitters - zonal power regulation
Control of heating process - digital radiation pyrometer for material temperature measurement.
Vacuum pump and tank
Drive of moving parts - pneumatic
System of quick moves of top and bottom heater
Colour LCD touch 15-inch HMI panel with graphics software
Support of material during warming up with an air bag
Sheet level control - optical protection against falling hot material on the lower heater
Blowing of the hot material (BALLOON)
Positive or negative blown on material
Table drive - electric servo drives
Slow entry and exit of the table into/from hot material
Positioning the table and the clamping frame
Sheet loading with support by the mould
Cooling the moulded elements – radial-reel ventilators ( fans ) are used, with effective power 550 W and capacity 25 m3/min each, 4 units
Clamping frame – adjustable, made of stainless steel :
The adjustment range is: X from 450 to 1300 mm and Y from 450 to 1000 mm
The ability to adjust the dimensions of the vacuum forming – the design of the device allows you to reduce the dimensions of the vacuum forming by manual changing of frames in forming window.
Pulse blow BWM ( Blow Width Modulation ). This option allows you to determine the appropriate pulsation and values of intervals between air blows necessary for taking of the moulding.
Vacuum and proportional valve of vacuum
Possibility of mould loading through the door placed at the front of the device
Vacuum forming with reheating - the process mostly used for thin plastic materials
Forming in auto or manual mode – possibility to work in auto mode
Vacuum gauge
Compressed air pressure gauge
Compressed air sensor
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 66 Kw
