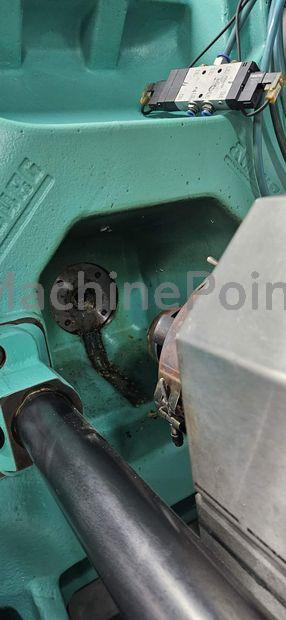

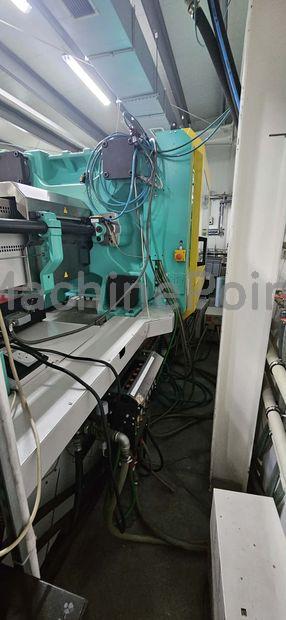

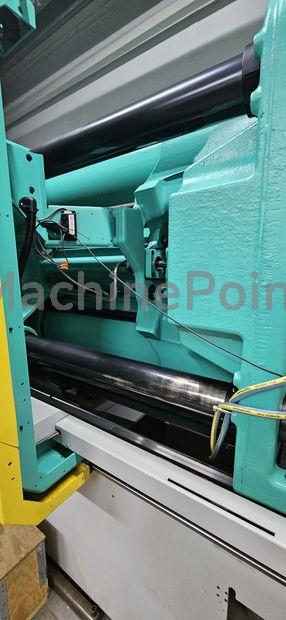

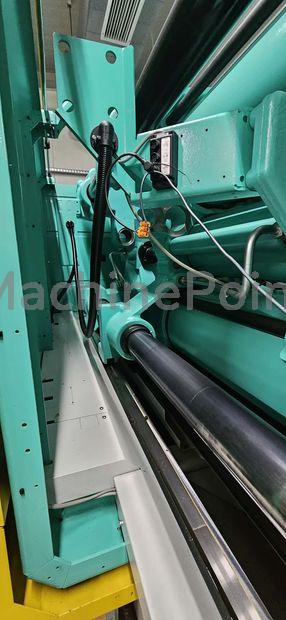

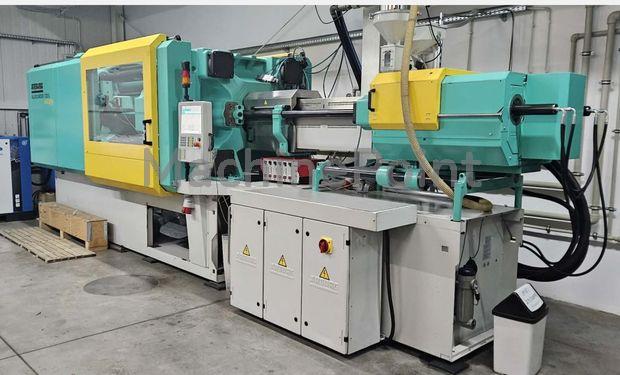

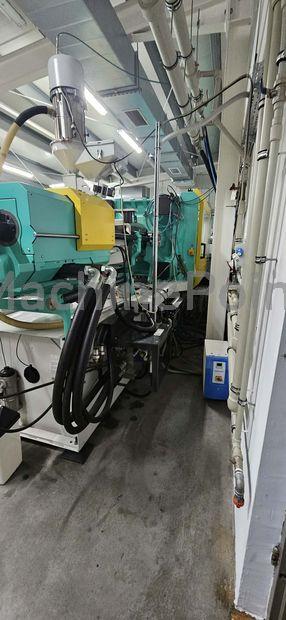

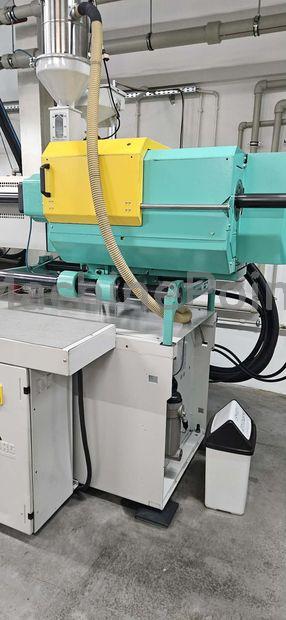

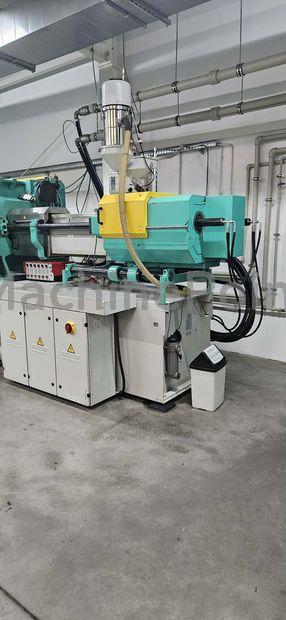

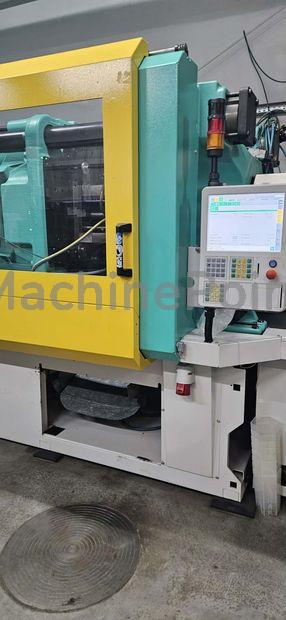

Used ARBURG 720S 3000-1300 GOLDEN EDITION of 2016 for sale
2016 | Ref.: 300049728
Injection molding machine from 250 T up to 500 T ARBURG, The team at MachinePoint will accompany you through the whole process of buying the machine.
Data Sheet of Used ARBURG 720S 3000-1300 GOLDEN EDITION
Ref.: 300049728
Year: 2016
Brand: ARBURG
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 300 ton
- Shot Weight (Max): 826 g
- Distance Between Tie-Bars (H): 720 mm
- Distance Between Tie-Bars (V): 720 mm
- Platen Size (H): 1180 mm
- Platen Size (V): 1350 mm
- Screw Diameter: 70 mm
- Control Type: Hydronica
- Tie-Bar Diameter: 120 mm
- Mould Height (Max): 1050 mm
- Daylight Between Platens (Max): 1250 mm
- Opening Stroke (Max): 850 mm
- Ejector Stroke: 250 mm
- Core Pulls: No
- Screw Speed: 51 rpm
- Injection Volume: 904 cm³
- Injection Pressure: 1470 bar
- Injection Rate: 388 cm³/s
- Nozzle Force (Max): 9 ton
- Nozzle Stroke (Max): 550 mm
- Heating Zones: 8
- Heating Capacity: 21.9 kW
- Oil Tank Capacity: 390 l
- Orientation: Horizontal
Other Specifications:
Working hours 45531 on 04/02/2026
Material: Original, colorless polypropylene, without grinding.
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 73 Kw
