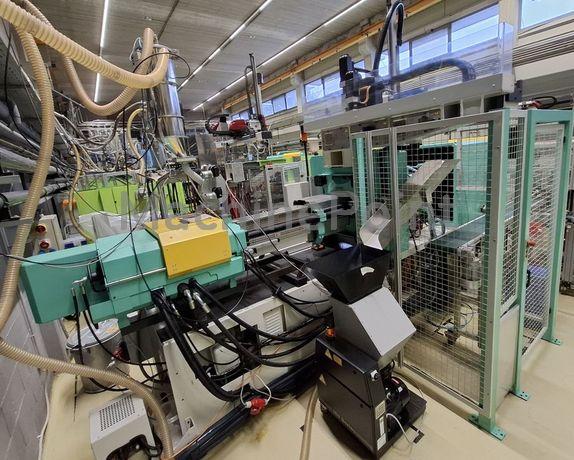

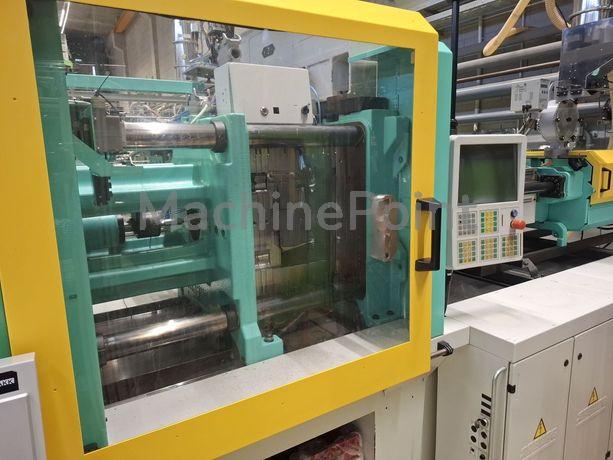

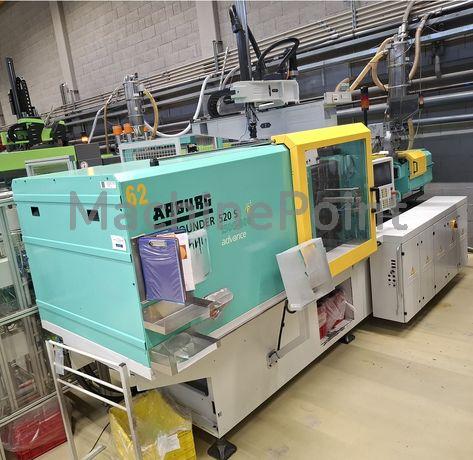

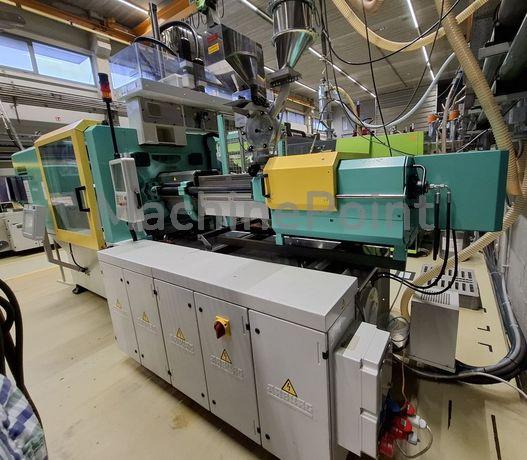

Used ARBURG Arburg 520S 1500/800 of 2010 for sale
2010 | Ref.: 300049745
Injection molding machine up to 250 T ARBURG, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.
Data Sheet of Used ARBURG Arburg 520S 1500/800
Ref.: 300049745
Year: 2010
Brand: ARBURG
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 150 ton
- Shot Weight (Max): 291 g
- Distance Between Tie-Bars (H): 520 mm
- Distance Between Tie-Bars (V): 520 mm
- Platen Size (H): 688 mm
- Platen Size (V): 688 mm
- Screw Diameter: 45 mm
- Mould Height (Min): 250 mm
- Daylight Between Platens (Max): 825 mm
- Opening Stroke (Max): 575 mm
- Ejector Force: 5 ton
- Ejector Stroke: 175 mm
- Core Pulls: Yes
- Number Of Core Pulls: 1
- Dry Cycle (S): 2.4 s
- Injection Volume: 318 cm³
- Injection Pressure: 2470 bar
- Injection Rate: 171.4 cm³/s
- Nozzle Force (Max): 7 ton
- Nozzle Stroke (Max): 400 mm
- Heating Zones: 7
- Heating Capacity: 19.3 kW
- Oil Tank Capacity: 240 l
- Orientation: Horizontal
Other Specifications:

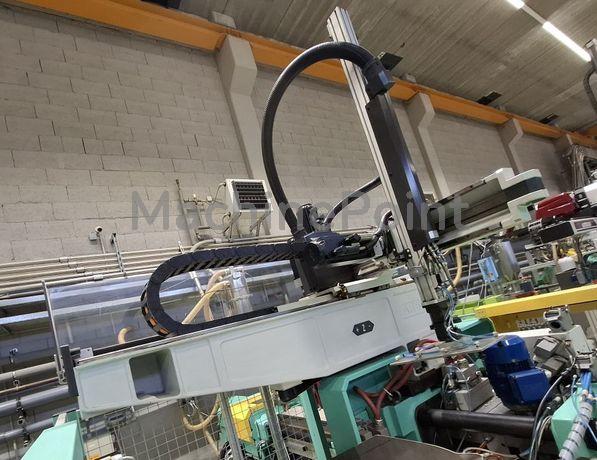

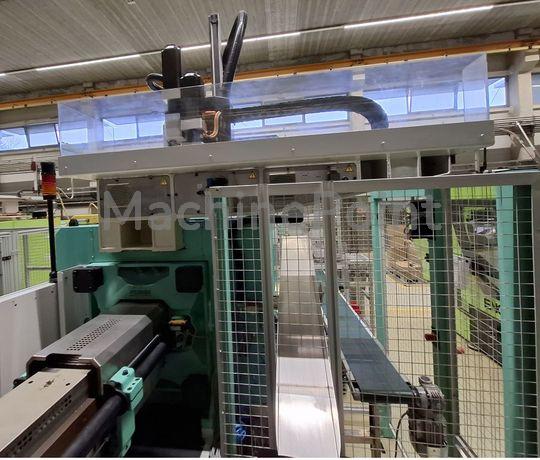

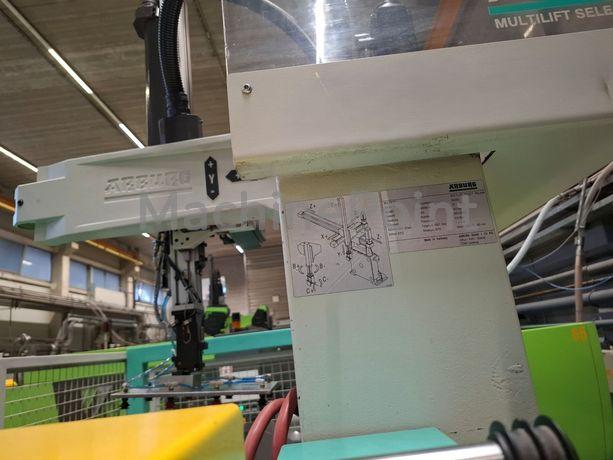

Incld.: Robot : Aburg Multilift Select, 6kg quer
- EUROMAP 67 robot interface
the hours in production: 91.720h
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
