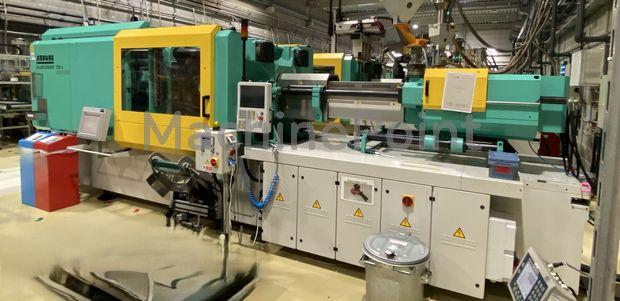

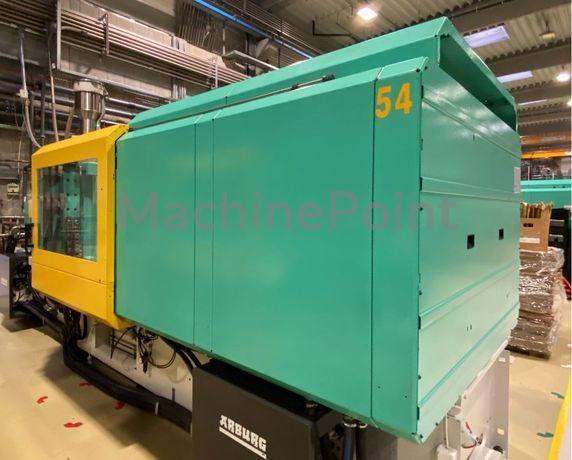

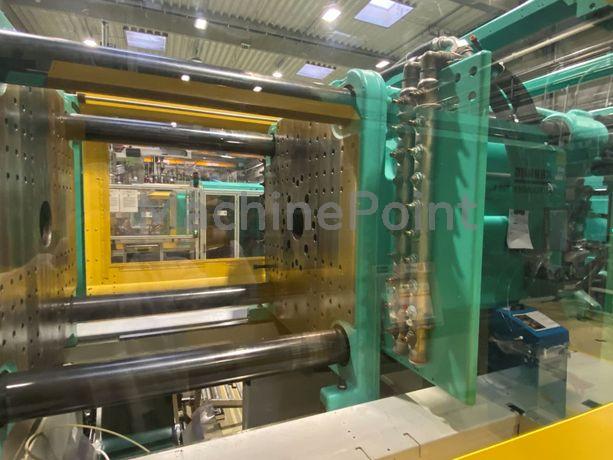

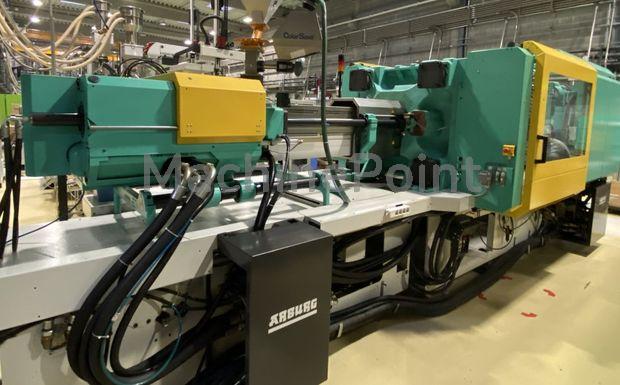

Used ARBURG Arburg 720S 3200/1300 of 2010 for sale
2010 | Ref.: 300049746
Injection molding machine from 250 T up to 500 T ARBURG, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used ARBURG Arburg 720S 3200/1300
Ref.: 300049746
Year: 2010
Brand: ARBURG
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 320 ton
- Shot Weight (Max): 607 g
- Distance Between Tie-Bars (H): 720 mm
- Platen Size (H): 1040 mm
- Platen Size (V): 1040 mm
- Screw Diameter: 60 mm
- Mould Height (Max): 700 mm
- Mould Height (Min): 300 mm
- Daylight Between Platens (Max): 1400 mm
- Opening Stroke (Max): 700 mm
- Ejector Force: 10 ton
- Ejector Stroke: 220 mm
- Core Pulls: Yes
- Number Of Core Pulls: 3
- Injection Volume: 664 cm³
- Injection Pressure: 2000 bar
- Injection Rate: 284 cm³/s
- Nozzle Force (Max): 9 ton
- Nozzle Stroke (Max): 550 mm
- Heating Zones: 7
- Heating Capacity: 21.9 kW
- Oil Tank Capacity: 390 l
- Orientation: Horizontal
Other Specifications:
Working hours 84,854 as of 09/02/2026
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 127 Kw
