XINDA SJW 45 of 2015

2015 | Ref.: 300049758

Co-kneader extruder XINDA, The team at MachinePoint will accompany you through the whole process of buying the machine.

Data Sheet of Used XINDA SJW 45

Ref.: 300049758

Year: 2015

Brand: XINDA

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?
XINDA - SJW 45 - Used machine
XINDA - SJW 45 - Used machine
XINDA - SJW 45 - Used machine
XINDA - SJW 45 - Used machine
XINDA - SJW 45 - Used machine
XINDA - SJW 45 - Used machine
XINDA - SJW 45 - Used machine
XINDA - SJW 45 - Used machine

Technical Specifications:

  • Number Of Screws: 1
  • Screw Diameters: 45
  • Throughput: 60 kg/h
  • Screw L/D Ratio: 20
  • Segmented Screw: Yes
  • Screw Speed: 400 rpm
  • Venting: Yes
  • Side Feeder: Yes

Other Specifications:

SJW-45 20L/D Kneading and Extruding System (type BUSS Co-Kneader)
Output: 20-60 kg/h (may be various due to different formulations)
The barrel is divided into 4 segments; heated and cooled separately; with circular water-cooling system inside barrels

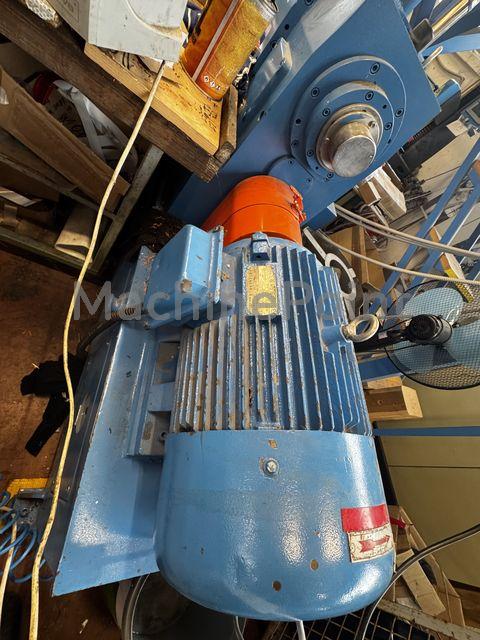

Main motor: 22KW AC with SIEMENS inverter

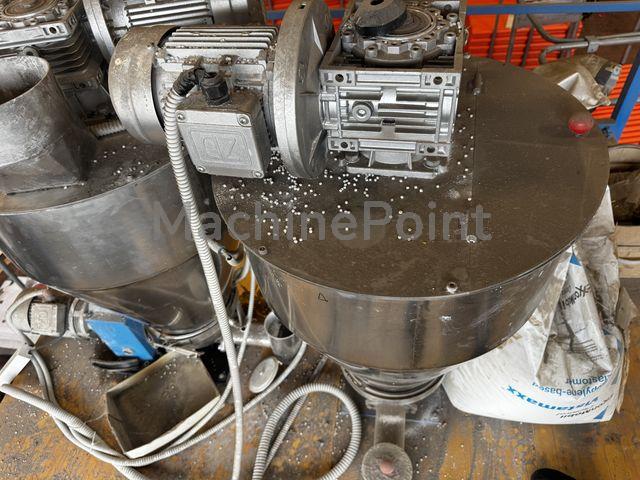

Vertical forcing feeder: 1 set, on 1st barrel section; 0.75 KW. Volume: 15 lt
Equipped with the material level –sensing alarm system and inverter control;the feeder is equipped with feeding hole and vent hole
Side feeder: 1 set, located on 2nd or 3rd barrel section; each side feeder is with twin screw feeder & with cooling system of the barrels
Barrel: 4 segments, with circular cooling system inside; the first segment has a feeding port, the third has a vent (it can be plugged), the fourth has a degassing port
Water recycling and cooling system: including a water tank
Vacuum system: water recycling type, -0.1Mpa, 0.55 KW
Melt pump: 1 set
Air cooling die face cutting system – 1 set: including round die, cutting chamber, one stage blower + pipe + silo; vibrator

Less than 500 working hours

Other Details:

Guarantee: Without guarantee

Current condition: Not running. Can be shown with material

Availability: Immediate
