Used W.M. WRAPPING MACHINERY SA FC 780 HP SPEEDMASTER PLUS of 2020 for sale

2020 | Ref.: 300049795

Thermoformer W.M. WRAPPING MACHINERY SA, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.

Data Sheet of Used W.M. WRAPPING MACHINERY SA FC 780 HP SPEEDMASTER PLUS

Ref.: 300049795

Year: 2020

Brand: W.M. WRAPPING MACHINERY SA

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

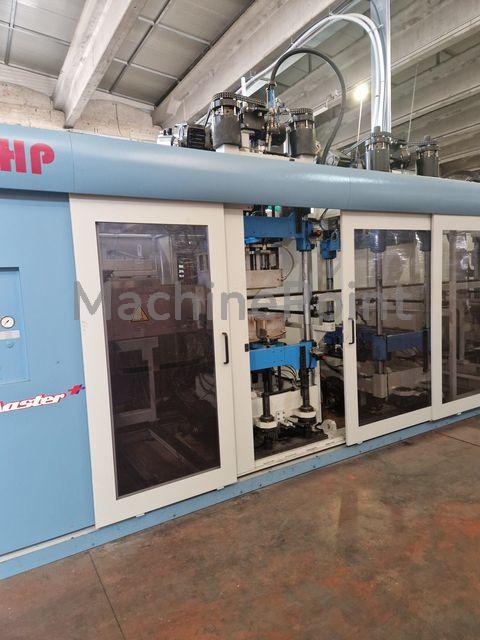

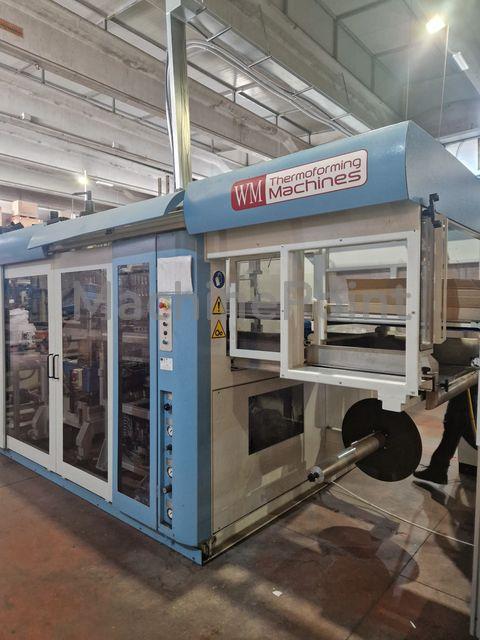

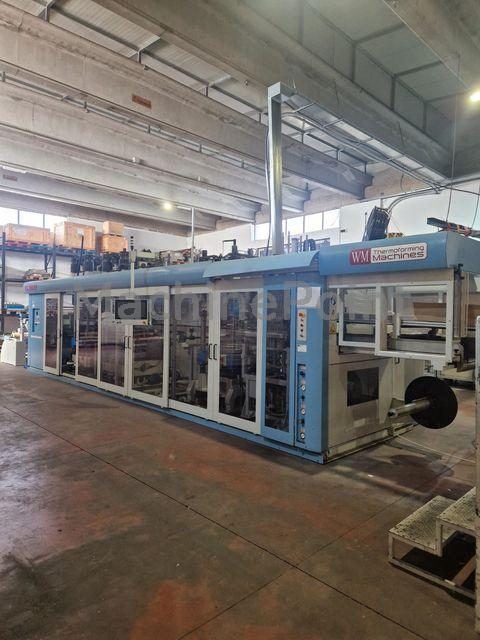

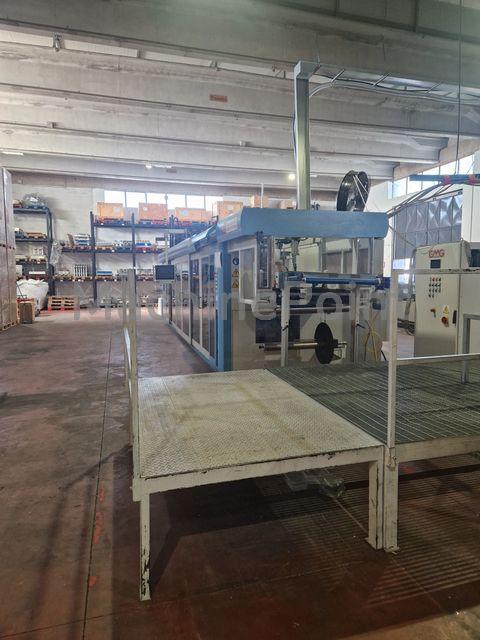

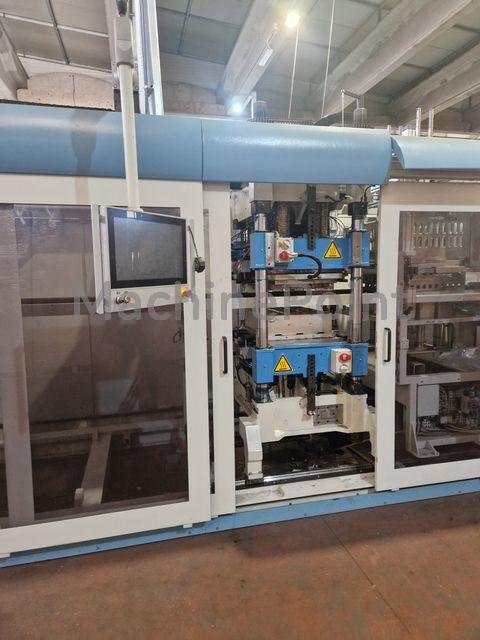

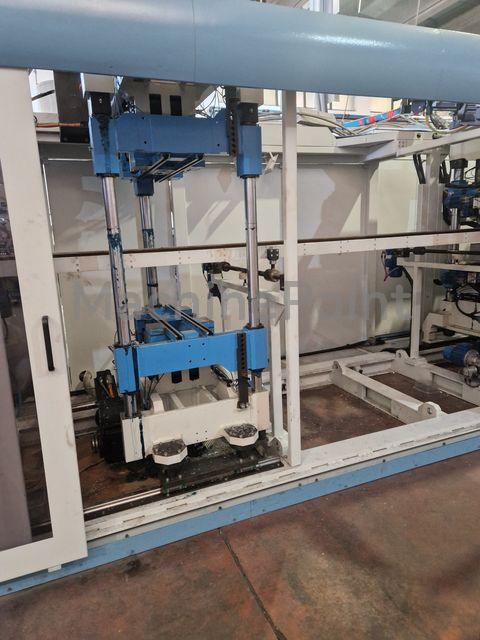

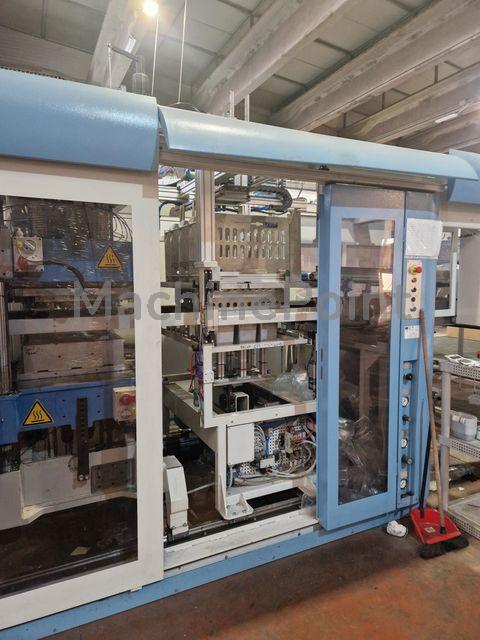

W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine

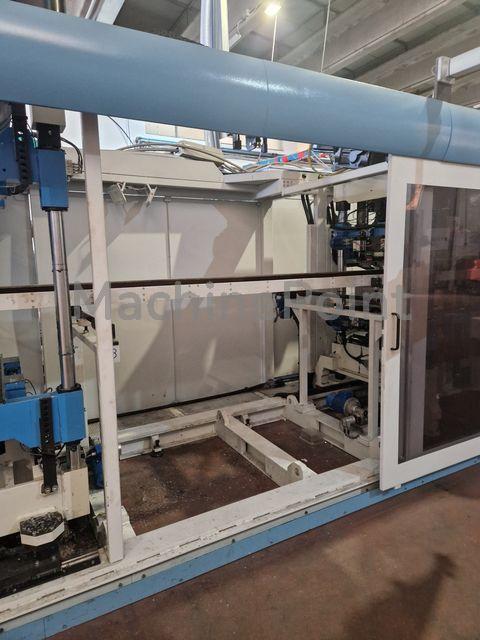

W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine
W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine
W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine
W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine
W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine
W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine
W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine
W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine
W.M. WRAPPING MACHINERY SA - FC 780 HP SPEEDMASTER PLUS - Used machine

Technical Specifications:

  • Forming Area (Vxh): 780*x570
  • Depth Of Draw: 130 mm
  • Number Of Stations: 4
  • Products Type: Container
  • Feeding Systems: Roll fed
  • Type: Electrical

Other Specifications:

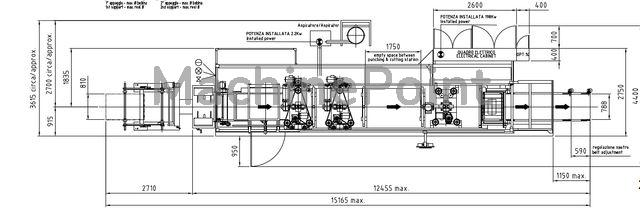

Machine with extra empty space (1750 mm) between punching and cutting

Maximum external mold dimensions: 780x570 mm
Maximum mold size with pneumatic plate press: 750x570 mm
Maximum positive piece height: 130 mm
Maximum negative piece height: 130 mm
Forming closing force kN 300
Punching closing force kN 300
Cutting press closing force kN 600

Accessories included

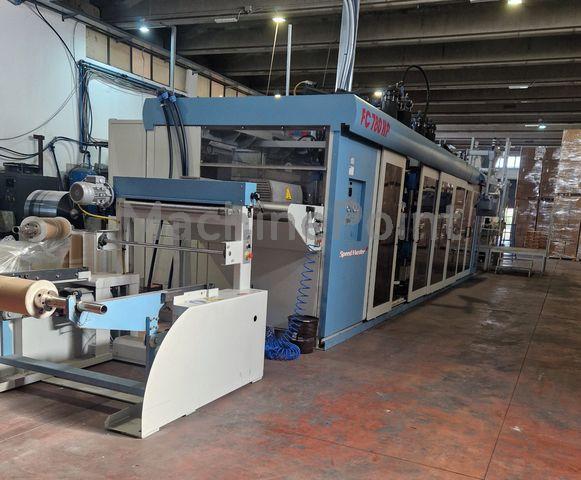

Unwinder with automatic reel lifting
Sheet feed with self-centering guide and preheating
Base extension
Mark reading with pre-printed sheet
DIFFERENCE price for upper and lower heater adjustment for longitudinal rows with ON/OFF option and small resistors in the material entry area. HTS BLACK resistors
Mold inlet/outlet water temperature display
Pneumatic and synchronized sheet press frames for upper/lower planes mounted on mobile planes
Punch press reading and control (alarm)
Cutting force reading and control (alarm)
Quick mold locking for forming machine and press
X-Y axis die adjustment, 2 planes
Upward partition stacker unit
Evacuation belt replacing chute L=2650 mm
Device for moving the lid stack removal plate
Servo valves for on-screen setting of forming pressure, vacuum, and ejection
Industrial vacuum cleaner for punching waste up to 100 kg/h max

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
