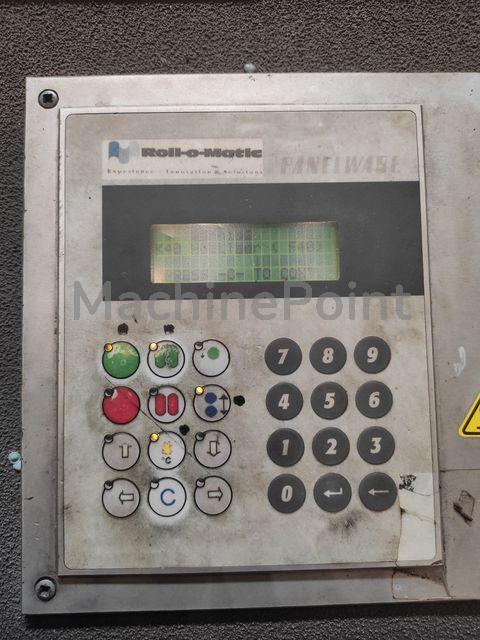

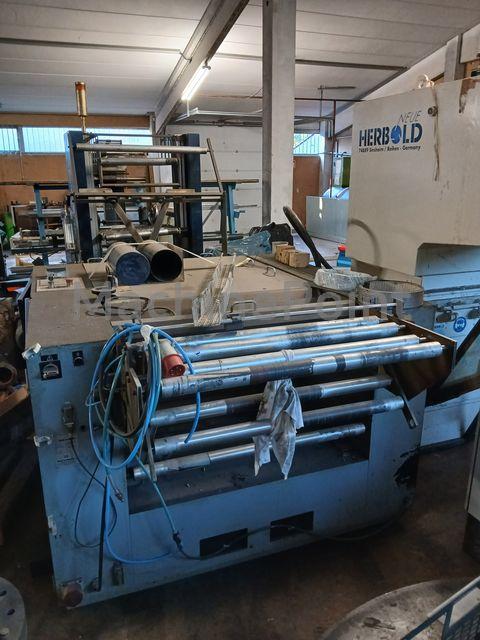

Used ROLLOMATIC COMPACT 860i of 2012 for sale

Rollomatic roll bag production line Delta 1100 T duplex 3 lanes Line production with pre-gusset film width of 800mm for bottom sealed, C-folded bags Min film thickness : 5 microns -Surface driven unwinder 1700 module with one 3" airshaft and warning for film break and empty master roll -Inline dancer -Slit seal module direct heated for 3 lanes production -Inline gusseting module 1700 with nip, for 3 lanes production, with one set (6 pcs) of wooden plates. -T-shirt punching module 1100 for 3 lanes production with inline nip, 5 sets (15 pcs) of cutting plates & cutting roller diameter 140mm. -Sealing/perforating module type Delta 1100 Duplex/Single for 1 lane 800mm wide bottom sealed bags and 3 lanes t shirt production, with one set of perforation knives -T-shirt extraction module 1100 for 3 lanes production -Photocell counter for t shirt bags -Spark counter for bottom sealed bags on HSW 860/15 winder -C-folding equipment for pre-gusset film (max 800mm to 400mm) 1 lane production -C-folding equipment for t-shirt bag (max 340mm to 170mm) 3 lanes production -High speed winder HSW 860/15 module with diameter 30mm chucks. This winder will wind 2 lanes. It will also wind the 1 lane 400mm c-folded bottom sealed bags. -High speed winder HSW 860/15 module with diameter 30 mm chucks. This winder will wind the right lane as 1 lane. It's a normal 2 lanes winder, but only equipped for 1 lane winding, without chucks and motors in one side. -Paper core magazine for diameter 30mm (inner) / 34mm (outer) paper core, for 2 lanes production -Paper core magazine for diameter 30mm (inner) / 34mm (outer) paper core, for 1 lane production Working hours: 1206h for the rewinder and 812h for the sealing unit.

Max. width of master roll: 1400 mm Max. diameter of master roll: 1200 mm Max. gusseting width 2 x 700 mm Max. sealing width: 2 x 440 mm Min. winding width: 2 x 100 mm Max. winding width: 2 x 420 mm (2 x 415 mm with core) Max. roll changes: 15/min/lane Max. finished roll diameter: 200 mm Min. film thickness: 5 microns Max. total sealing thickness: 400 microns Max. Punching width: 2 x 420 mm Cut-out length for T-shirt: Min. 90 mm-Max. 170 mm Cut-out width for T-shirt: Max. 250 mm Surface driven unwinder 1400 module with one 3’’ airshaft and warning for film break and empty Slit seal module direct heated Gusseting 1400 module, with one set of wooden plates T-shirt punching module with five sets of cutting plates – cutting roller Ø 120 mm Print registration Sealing/perforating module type Delta 900 Duplex/Twin with one set of perforation knives T-shirt extraction module Photocell counter for T-shirt bags Winder HSW 860/15 module – supplied as standard with Ø 30 mm chucks Rolls: with core or coreless Paper core magazine for Ø 30 mm (inner) / 34 mm (outer) paper core Lay-on rolls Black box – troubleshooting through internet

Bag width: 600mm ( 2x300) Thickness: 0.008-0,025 HDPE 0,018-0,05 LDPE Side gusseting Mother roll: 600 mm Web guide Slit sealer Bottom + double sealing bar Trim removing system Sealing width: 300 mm Remodeled to make garbage and freezer bags; before machine was used to make T-shirt bags on the roll

Machine for the production of thin gauge bottom sealed bags and star sealed bags on roll with or without core Driven unwinder 1200 mm wide Gusseting station F1100 Slit-seal Photocell for printed film Materials: LLDPE, LDPE, HDPE,MDPE and recycled from 5my Roll change up to 20 per minute Max finished roll diam 250 mm Max finished roll width 1x 620 mm/ 2x 305 mm Max 700 bags/lane per minute

Material : HDPE, BIO material Rolls production: 2x110 Thickness: 00,7-0,025 my Automatic unwinder Sealing width 1 lane max 620 mm Sealing width 2 lanes max 320 mm normal bags Sealing width 2 lanes max 300 mm T-shirt bags Max finished roll diameter 240 mm Draw length (bag length) from 170-800 mm T-shirt punching section Gusseting station with slit-sealer Print registration Paper core feeder PLC control High speed winder
