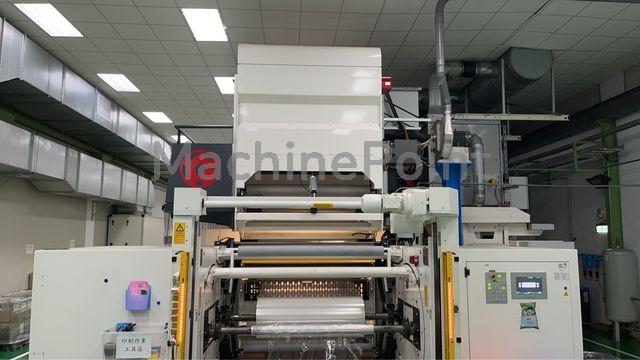

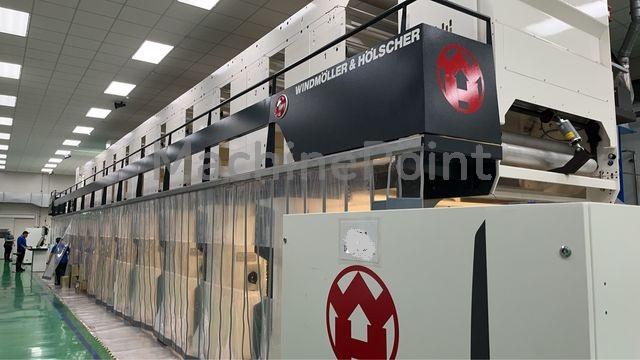

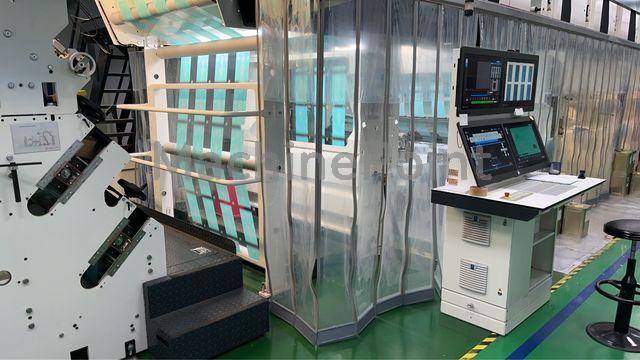

Used WINDMÖLLER & HÖLSCHER Heliostar II of 2023 for sale

2023 | Ref.: 300049843

Rotogravure printing machines WINDMÖLLER & HÖLSCHER, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.


Data Sheet of Used WINDMÖLLER & HÖLSCHER Heliostar II

Ref.: 300049843

Year: 2023

Brand: WINDMÖLLER & HÖLSCHER

Status:
For sale

Delivery time: Immediate


Ask for machine price Want to sell your machine?
Please accept marketing-cookies to watch this video.

Technical Specifications:


  • Number Of Colours: 10
  • Printing Width: 1500 mm
  • Web Width: 1520 mm
  • Printing Repeat (Min): 450 mm
  • Printing Repeat (Max): 920 mm
  • Printing Speed (Max): 400 m/min

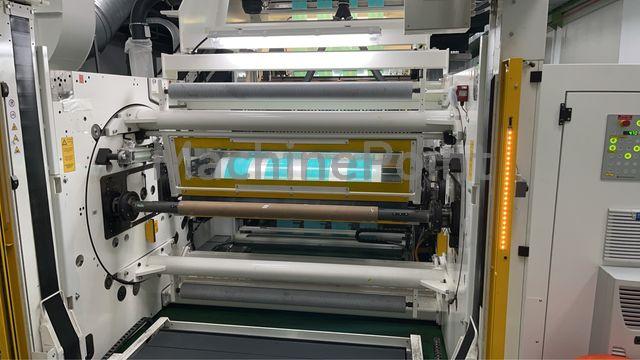

  • Unwinder Type: Double turret
  • Unwinder Diameter: 1000 mm
  • Rewind Unit Type: Double
  • Rewinder Diameter: 1000 mm

Other Specifications:


2 Antistatic bars Enulec
Web break detection via IR sensor
Corona treater
Web guide prior to printing and before the rewinder

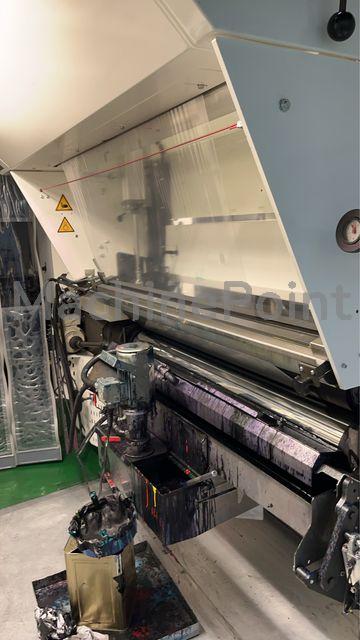

10 Heliostar S gravure printing stations with direct drives
10 combi-carts with inking system
10 electrostatic printing aids
9 hot air dryers with 15 nozzle single drying hoods
9 chill rolls for single-hood dryers
2 hot air dryers with 2x15 nozzle double drying hoods
1 chill roll for double-hood dryer
Viscosimeters VIscocontrol G

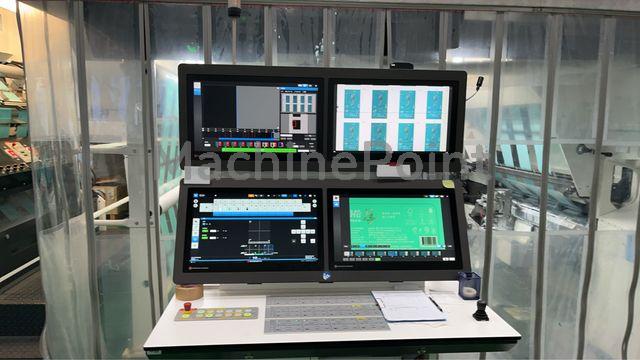

Heliostar Register control
Preregister Easy Sync
Visual zoom print inspection
Vision defect-check 100% inspetion system
Ruby Go

Other Details:


Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
, Frequency: 60 Hz
