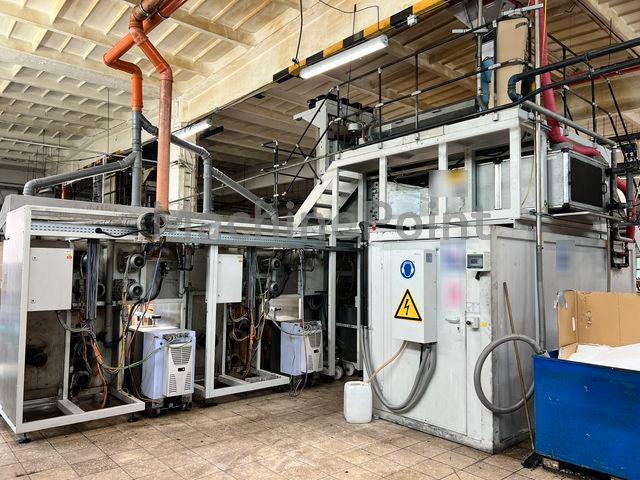

Used SML HT 4x2 E/75 of 2016 for sale

PET sheet Extrusion line Crystallization unit Piovan Dryer Dosing unit PIOVAN, Gravimetric Dosing Unit Screws 150 and 75 mm Die VERBRUGGEN, 2000mm Rewind type Winder Series 4000 Max. rewind reel diameter 1200 MM Thickness measurement Domino Electronic Systems S.P.A In line edge trim collection with Tria Recycling unit Slitting machine Ashe

5 layers stretch extrusion line with 4 extruders A:75/33D , B:90/33D, C: 90/33D, D:75/33D mm Die Nordson, 3600 mm AOM XVII-100/ 40// ENC// MF8 , Min – Max material thickness 9 – 45 my Max. Output 1500 kg/hour (23 micron) Rewind 3” shaftless winder stations Max. rewind reel diameter 450 mm Dosing units Doteco Grado Thickness measurement Inline Edge trim and Recycle system Starlinger Including Noel 1 rewinder year 2011 Noel 2 rewinder year 2012 2x Class Engineering rewinders year 2014

Stretch extrusion line with 4 extruders 2x 90/33 mm and 2x60/28 mm Automatic die Cloeren 2700 mm Min – Max material thickness 10 my - 35 my Max. Output 15 – 20 my Net output 1100 kg / hour from 20 my Net output 1200 kg / hour Rewinder Winder Series 4000 Max. rewind reel diameter 440 MM Number & sizes airshafts winder 2 shafts 76 MM (dia) Hydraulic screen changer DOTECO, Gravimetric Dosing Unit 3 components per extruder Thickness measurement Electronic Systems Edge guide Recycling machine in line STARLINGER recoStar Basic 85

Coextrusion Cast film line - EasyCast for Stretch Wrap film For hand / machine / jumbo rolls 3 extruders – 5 Layers: ABBBC Film Thickness range: 8 to 45 micron Final film width: 3x500 mm Raw materials: LLDPE & VLDPE Extruder A & C (LLDPE) Size : 60mm x 28 L/D Output max : 190 kg/h Extruder B (LLDPE) Size : 90mm x 33 L/D Output max : 800 kg/h Flat Die lip width: 2000 mm Roller width: 2100 mm Chill Roll diam. 1200 mm Mechanical max. speed: 650 m/min Winder Type L 4000 – 4 winding stations Winder mechanical speed : max 650m/min For 2” hand roll + 3” machine/ jumbo rolls Installed electrical power for one line approx. 702 kW Necessary Cooling capacity approx. 422 kW Output calculation: Stretch Wrap Film - 2" cores - hand rolls: 9 micron, 537 m/min Total extruder output: 534 kg/h Stretch Wrap Film - 3" cores - hand rolls: 12 micron, 560 m/min Total extruder output: 742 kg/h Stretch Wrap Film - 3" cores - machine rolls: 15 micron, 600 m/min Total extruder output: 994 kg/h Stretch Wrap Film - 3" cores - machine rolls: 17 micron, 600 m/min Total extruder output: 1126 kg/h Stretch Wrap Film - 3" cores - machine rolls: 23 micron, 465 m/min Total extruder output: 1181 kg/h

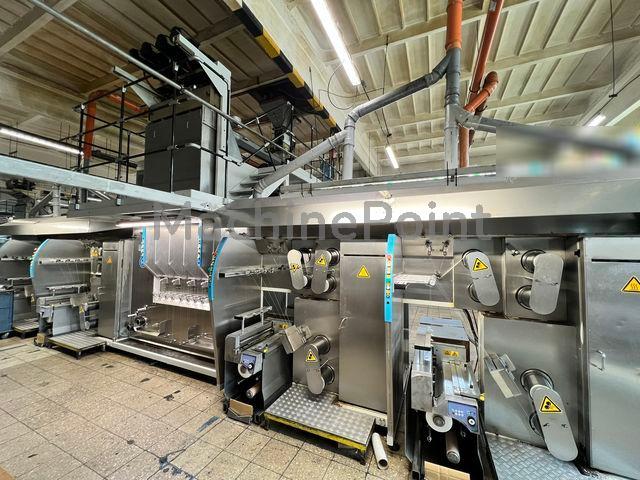

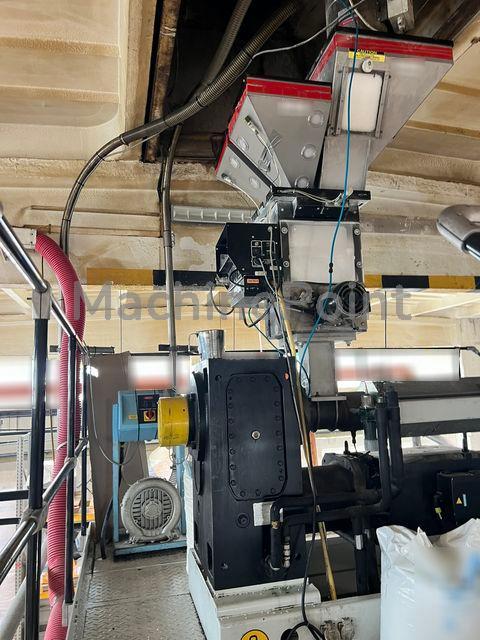

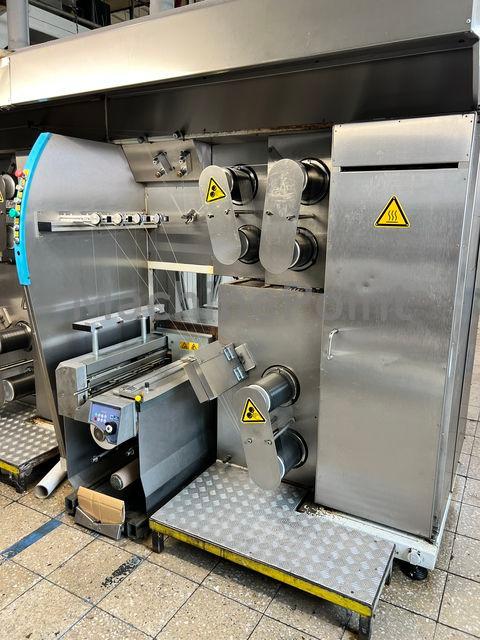

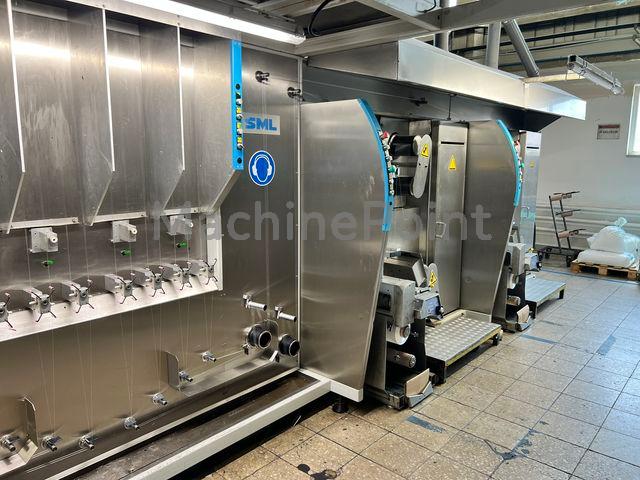

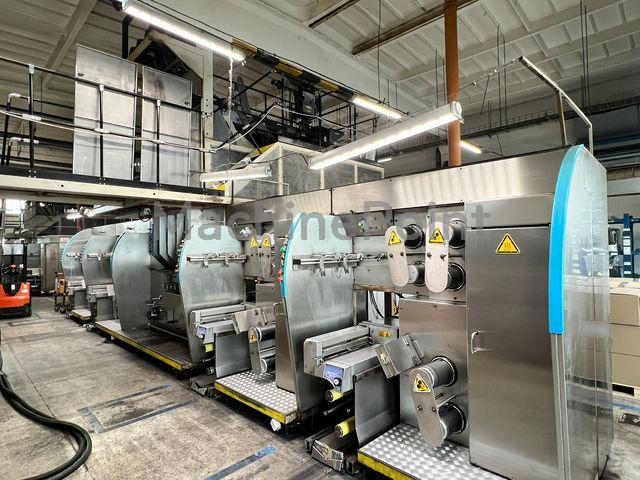

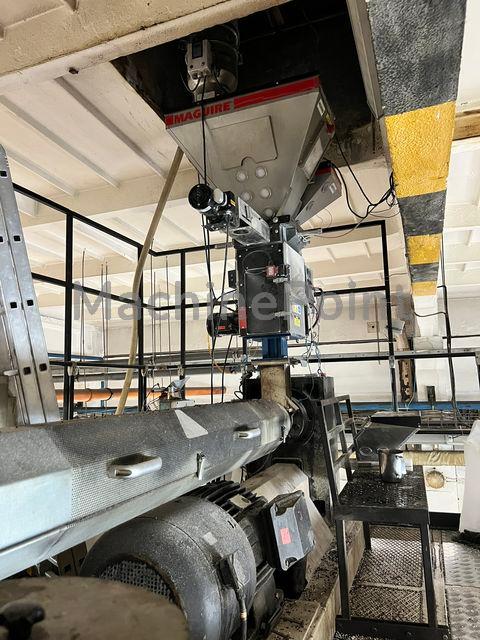

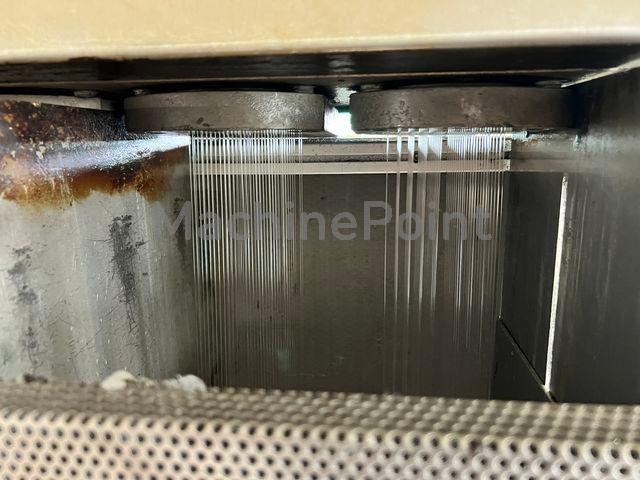

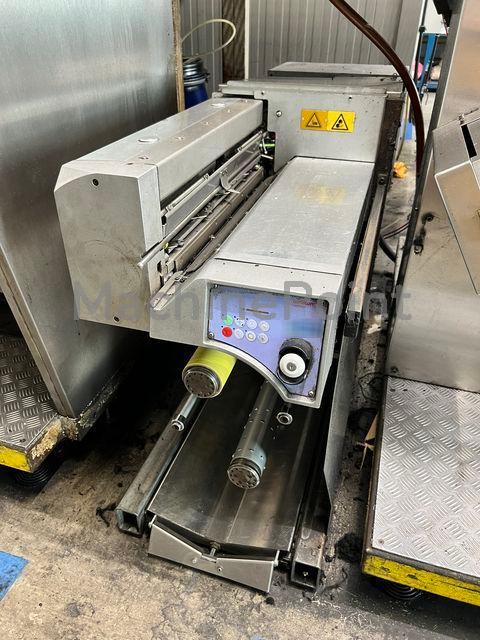

In the beginning, the machine produced POY yarn after the modernisation of the winders, it produces a medium-strength yarn of about 4-4.5 g/den. Single screw extruder Screw diameter 75 mm Screw length 28 D Output max. MDY - PP 110 kg/h Actual output depends on yarn specification Screw speed max. 160min-1 Motor rated power 38 kW Drive system AC motor Screw/barrel material nitrided steel alloy/bimetal cylinder Number of heating zones 5 (cylinders) Number of double spinning pumps 4 Performance of the double spin pump 2x6 cm³/U Number of spin packs 8 Cooling unit Horizontal Zones 3 Vertical Zones 4 Number of stretch units 2 Godet diameter 160mm Stretch ratio variably adjustable max. mechanical godet speed in front of the winder 3300 m/min Number of rewinders 2
