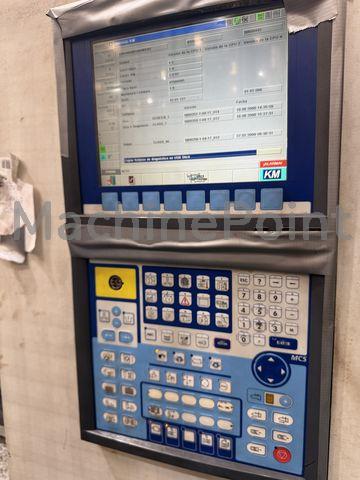

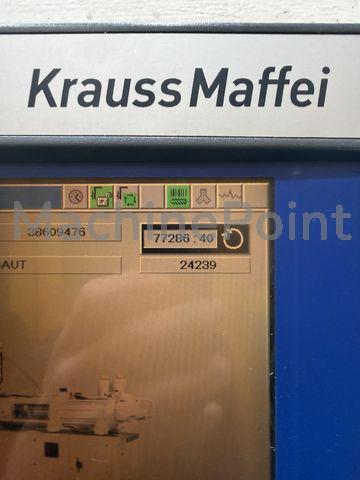

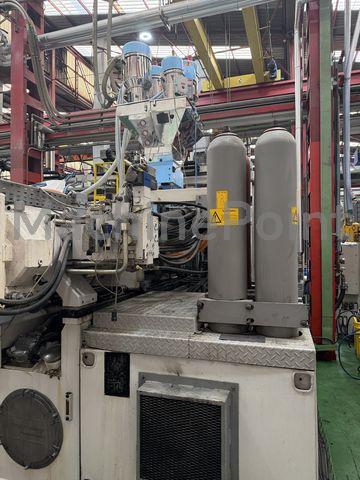

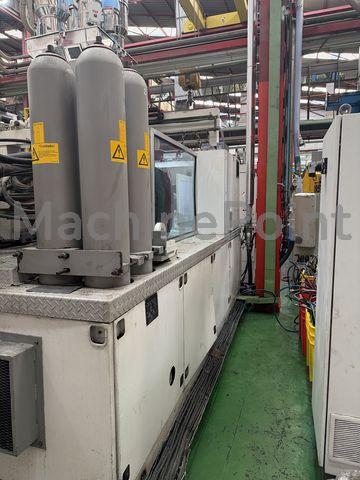

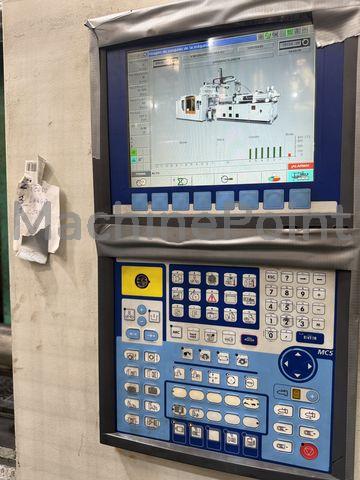

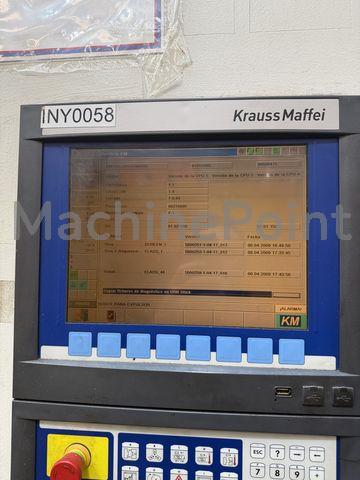

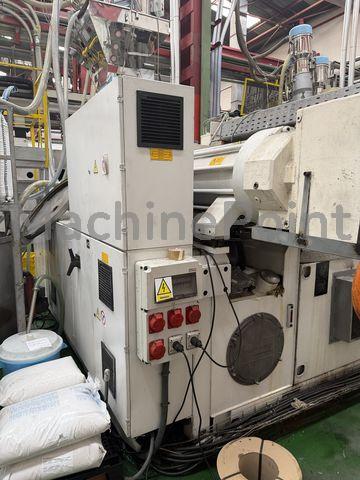

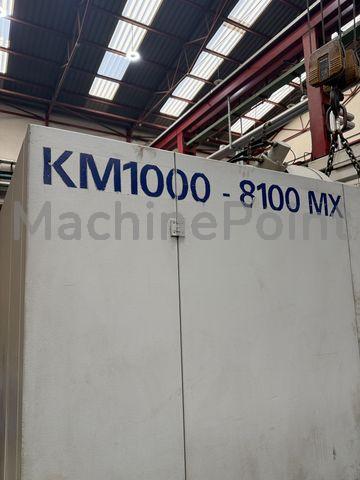

Used KRAUSS MAFFEI KM 1000-8100-MX of 2007 for sale
2007 | Ref.: 300049905
Injection molding machine from 1000 T KRAUSS MAFFEI, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.
Data Sheet of Used KRAUSS MAFFEI KM 1000-8100-MX
Ref.: 300049905
Year: 2007
Brand: KRAUSS MAFFEI
Status:
For sale
Delivery time: From date
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 1000 ton
- Shot Weight (Max): 4962 g
- Distance Between Tie-Bars (H): 1400 mm
- Distance Between Tie-Bars (V): 1150 mm
- Platen Size (H): 1960 mm
- Platen Size (V): 1710 mm
- Screw Diameter: 115 mm
- Mould Height (Max): 1200 mm
- Mould Height (Min): 500 mm
- Daylight Between Platens (Max): 2400 mm
- Opening Stroke (Max): 1900 mm
- Ejector Stroke: 300 mm
- Core Pulls: Yes
- Number Of Core Pulls: 4
- Screw L/D Ratio: 23
- Injection Volume: 5453 cm³
- Injection Pressure: 1482 bar
- Injection Rate: 965 cm³/s
- Nozzle Force (Max): 16.6 ton
- Plasticising Capacity: 188 g/s
- Heating Zones: 7
- Heating Capacity: 64 kW
- Oil Tank Capacity: 1500 l
Other Specifications:
Include Cartesian robot
3 machines available (price per machine)
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: From date
