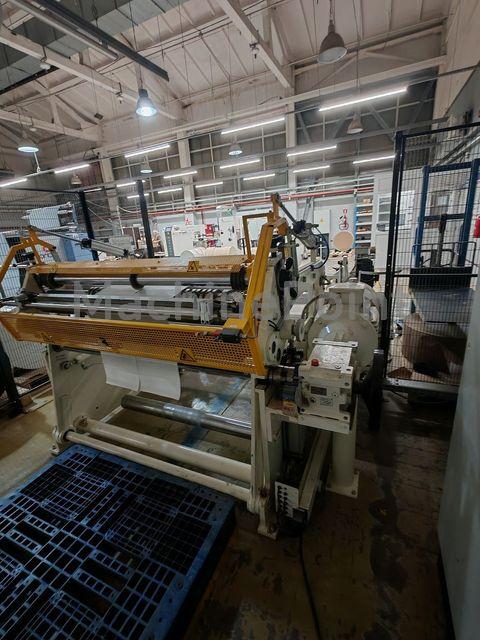

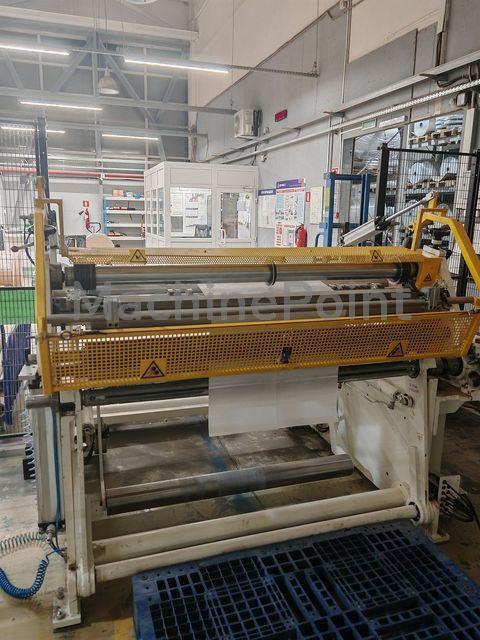

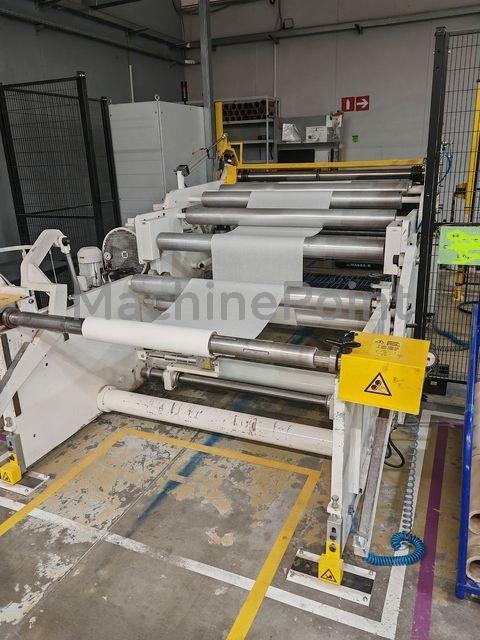

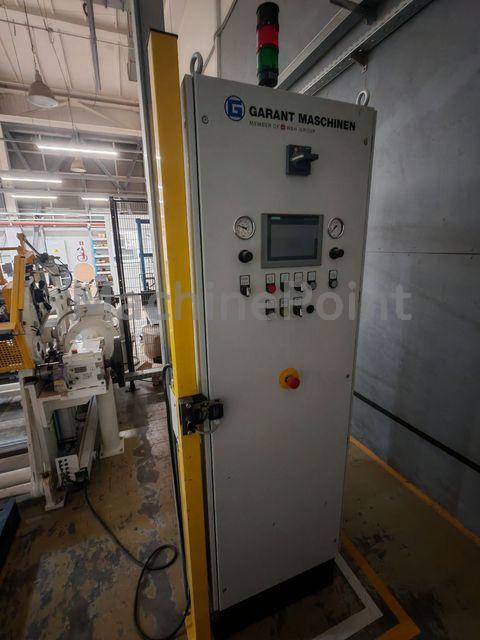

Used WINDMÖLLER & HÖLSCHER Longslit 1013P of 2021 for sale

350 m/min line speed - last running output 850 kg/h taken by owner Dosing system: INOEX Type: SAVEOMAT IGS Extruder A,B,C: 3 Component Each Extruder D,E: 4 Component Each Screws Diam and L/D: Ext A -105.30D, Ext B-90.30D, Ext C, D& E -70.30D Screen Changer Hydraulic, Brand: B+R Hydrulik Gmbh Die head Cloeren, 2950mm width and Manual Lip opening: more than 0,5 mm, add 10% to 15% to the lip opening. First chill roll diam & Width: 1000 mm/ 3200 mm Second chill roll Diam & width: 400 mm / 3200 mm Thickness control system: BST Procontrol Scanner BETA Web guide: Oscillation Corona treatment: AFS GmbH Type: G300S-FU-11 Rewinder type and diam max reels: Filmatic TC & 1200mm Erema 756T AIR O/P – Kg/hrs - 90-140, Installed power: 77 KW,

9-layer coextrusion line VAREX II for the production of barrier film & stretch hoods with Filmatic S II double winder, in combination with ISP module Installed melting capacity approx. 2050 kg/h Min working width. 1.560 mm Line speed max. 120 m/min Thickness 20-250microns Extruder combination 70.30D / 60.30D / 60.30D / 60.30D / 60.30D / 60.30D / 60.30D / 60.30D / 70.30D Screw type(s) HPS 9 MODULE(S) G3 - GRAVIMETRIC DOSING AND THROUGHPUT CONTROL Continuous gravimetric dosing of one main component per extruder Can be expanded to a total of 5 secondary and additive components per extruder PROCONTROL TS operating station ANCILLARY OR ADDITIVE COMPONENT(S) FOR SUCTION CONVEYING SYSTEM(S) FOR MODULE G3 Extension of the MODULE G3 with secondary or additive components Separate weighing hopper for each individual component Metering via wide-range metering screws 1 dosing screw per secondary or additive component Configuration for extruder A 2 Secondary component(s) 3 additive component(s) Configuration for extruder B, C, D, E , F , G, H 1 secondary component(s) 1 additive component(s) Configuration for extruder I 2 Secondary component(s) 3 Additive component(s) 2 SUCTION CONVEYOR SYSTEM(S) FOR MODULE G3 for extruder 70.30D, conveying section: M for fully automatic, effective pellet feeding of the main component SUCTION CONVEYOR SYSTEM(S) FOR MODULE G3 for extruder 60.30D, conveying distance: M 10 AUXILIARY OR ADDITIVE COMPONENT(S) FOR SUCTION CONVEYING SYSTEM(S) FOR MODULE G3 for extruder: 70.30D, conveying section: M for supplying pellets to the secondary or additive component(s) 14 ANCILLARY OR ADDITIVE COMPONENT(S) FOR SUCTION CONVEYING SYSTEM(S) FOR MODULE G3 for extruder: 60.30D, conveying section: M for supplying pellets to the secondary or additive component(s) 2x Extruders 70.30D 2 BASIC EQUIPMENT(S) for extruder 70.30D with bimetal grooved bush max. drive power: 82 kW max. speed: 180 1/min 2 HPS SCREW CONVEYOR(S) 7x Extruders 60.30D 7 BASIC EQUIPMENT(S) for extruder 60.30D with bimetal grooved bush max. drive power: 60 kW max. speed: 200 1/min 7 HPS SCREW CONVEYOR(S) Blow die head type 400/550-9 Die plate set of 550 mm diameter Internal and external Die Lip heating Die gap 1.25 / 2.25 mm Cooling ring ARCTIS DL 2100 M Cooling ring insert: Dual-Lip (2 air outlet levels), Blow-up ratio: 1.8 - 3.5 Optifil P2K Profile Control VARIOCAGE Calibration Basket with CFRP rollers Working width: 870 - 2600 mm 6 levels with 12 rollers each Extraction the monomer cooling air above the frost zone. Also Monomer separator for monomer suction MODULE K-NDC Non-contact rotative radiometric Profile Measurement Unit MODULE B - Width measurement control via width measuring bar Rotating MULTINIP Film Take-Off Unit ADDITIONAL BEAD STRIP FLATTENING unit for gusseted film with Two flattening frames SIDE FOLDING DEVICE in extended version Max. width up to 6400 mm before installation of the sealing surfaces Triangular side folding tools VAREX II Flatness package for achieving the best flatness using NOSTIC film take-off unit to minimize scratches Working width: 2600 mm Take-off speed: max. 120 m/min WATER BATH with film drying between film take-off and winder advance to reduce curl for asymmetrical barrier films (with PA in the outer layer) Working width: max. 2600 mm Web speed: max. 80 m/min Filmatic Double Winder "S" Max Roll diameter:1200mm Max Roll weight: 2500kg Winder cores: 76/152mm Total connected load approx. 1030 kVA with a simultaneity factor of 0.60

Printing cylinders with shafts Antistatic bars Pre heating (film) Viscosimeters Fasnacht Corona treatment ESA support Enulec Newer register eltromat regi_star 20 Two cameras (for both side printing) Application of cold seal (adjusted printing unit) Steam drying system, double zones in units 1, 9 and 10 Burner to heat water not included

Block bottom SOS bag making machine designed to manufacture 1 layer paper bags with flat handles Reel fed Servo system for the cutting length Min-max bag width: 105 – 320 mm Min-max carrier bags width: 180 – 320 mm Min-max cut off length: 240 – 650 mm Min cut off length for carrier bags: 270 mm Max cut off length for carrier bags including handle: 650 mm Min-max bottom width: 55-180 mm Min-max bottom width for carrier bags: 70 – 180 mm Roll width: 1070 mm Jumbo Roll Unwind: for rolls up to a diameter of 1.300 mm with motorized lateral adjustment Automatic precise and continuous web tension control over the entire diameter of the paper roll Servo motor – driven brake for the paper unwind with suspended dancer roller Hydraulic reel lift in 1 pneumatic unwind shaft, diameter 76 mm System for internally glued handles, for the in-line production of paper carrier bags with flat handles: Slitting unit to obtain broad bottom flaps Adhesive application nozzles for folded handle strips Nordson hotmelt application unit for the handles 2 unwind units for the paper handle strips, capable of pivoting to allow a spare roll to be loaded: roll diameter max 1.000 mm core diameter 70 or 76 mm 2 unwind units for the reinforcing patch material with edge guide control, FIFE, accommodated in a separate frame: roll diameter max 1.000 mm, core diameter 70 or 76 mm Assembly to perforate the web in the handle areas Gripper cylinders for application of the handle strips Draw unit for the outer web for adjustment of the web tension SERVO driven to synchronize the machine speed with the speed of the paper web. All cut-off length (incl. handle) of the bag machine can be processed. With 360 ° adjustment of the unit

Coextrusion line for the production of stretchfilm Typical output for stretch tube - 350kg/h (max. 450kg/h for non-stretch tube) 60/90/60mm diameter screws Die gap (mm): 1,2 and 2,0 and 2,8 Die diameter: 280mm Thickness Range (µm]: 40-150 Air ring with IBC Gusset (Max): 150 - 450mm Kundig thickness control system Gravimetric dosing unit: Nr of components: 6 (1+5)in the outer layer and 4(1+3) in the middle layer AFS Corona treatment (outside) Winder core diameter shafts 76,152mm Winding roll diameter (mm): max. 1200 Manzoni Stack printing unit with 6 (3+3) printing stations, 2005 year Max. printing width 1400 Additional equipment to be negotiated: Micro perforation  Electronic retrofit KIT from WH in value of 100K euros was purchased and can be acquire for lower price with the machine (e.g. to update electronics to latest version of Siemens)
