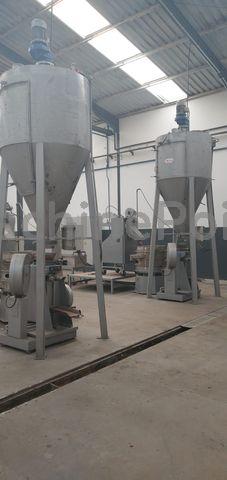

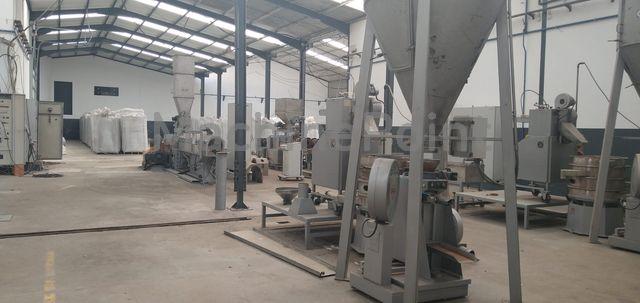

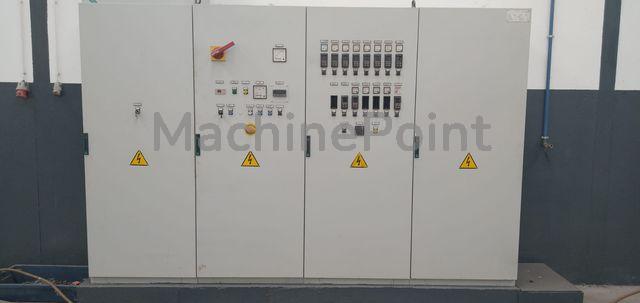

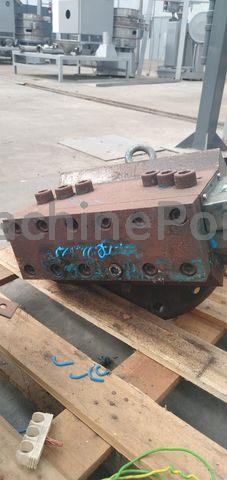

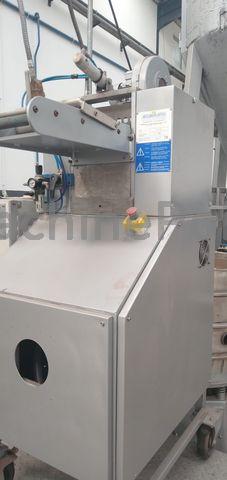

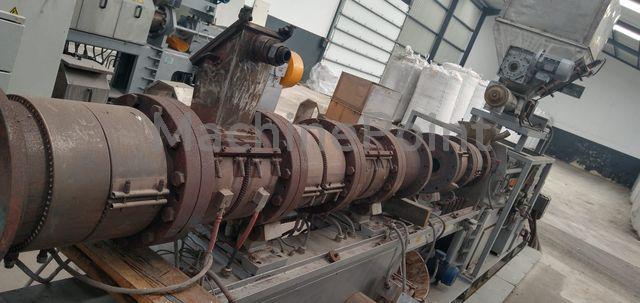

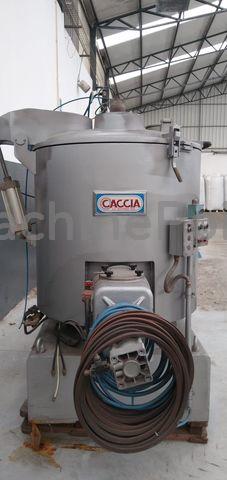

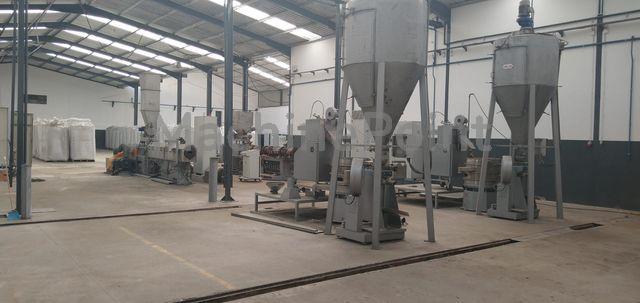

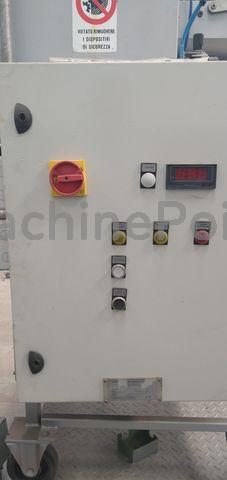

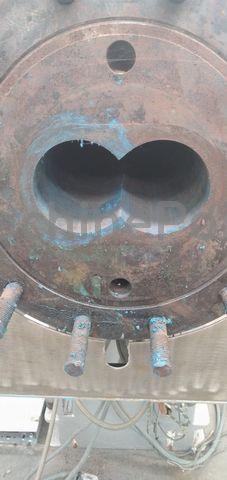

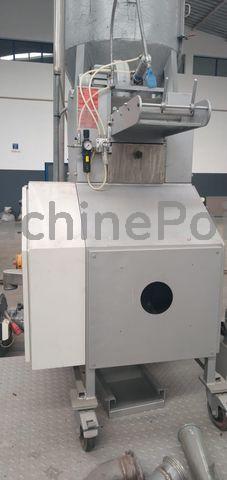

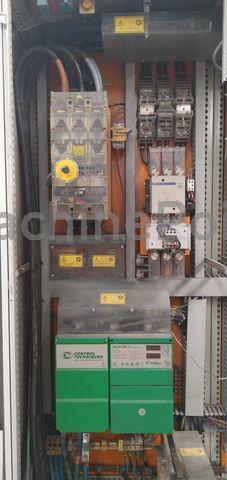

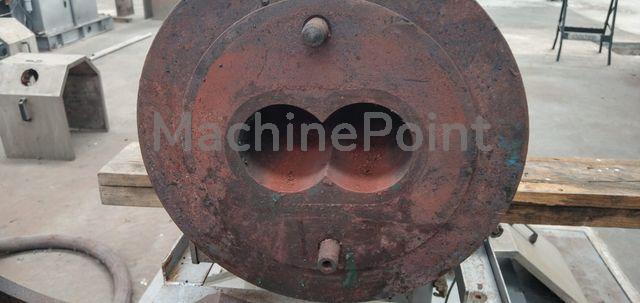

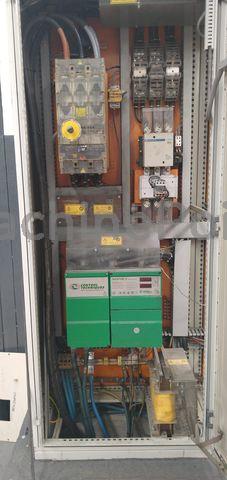

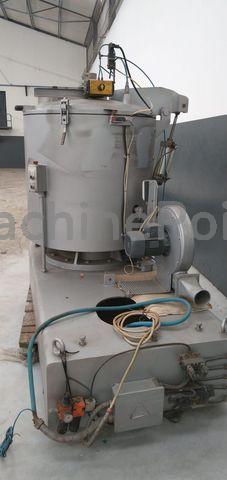

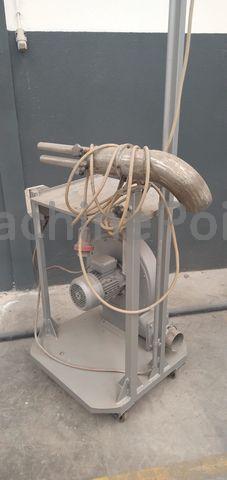

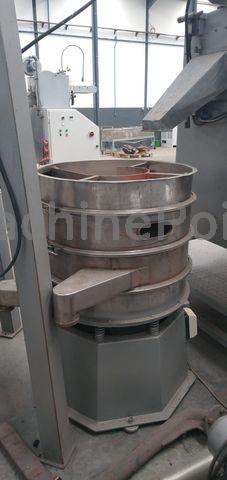

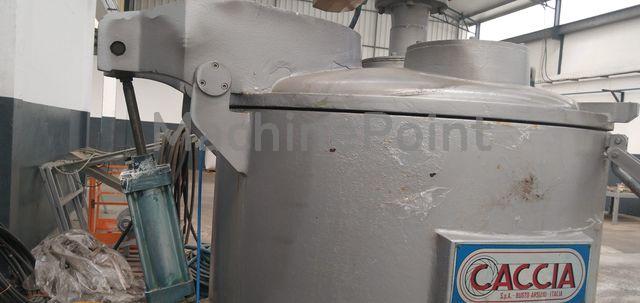

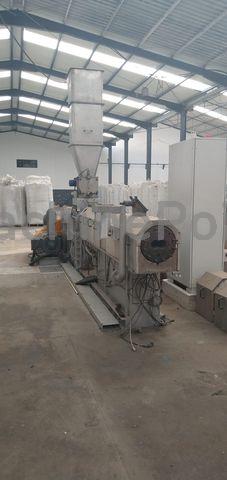

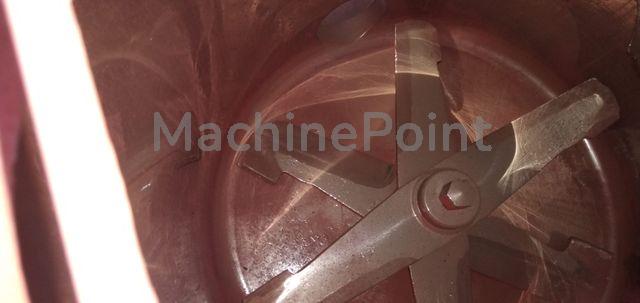

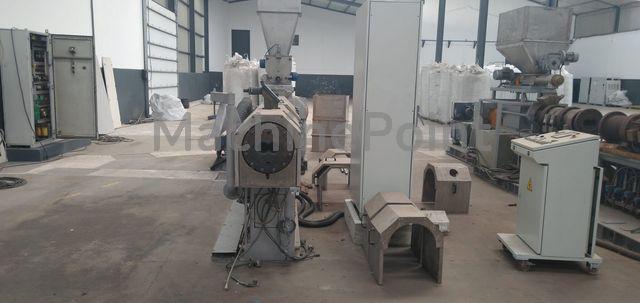

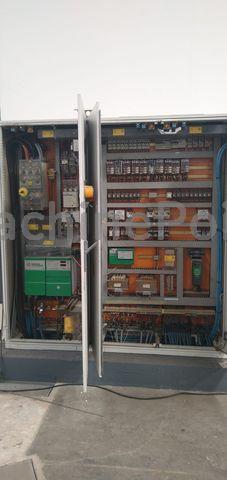

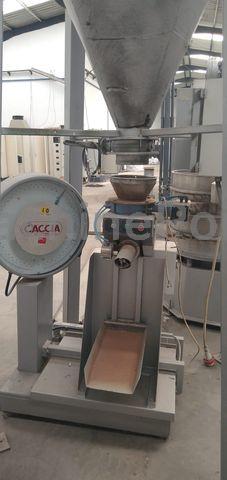

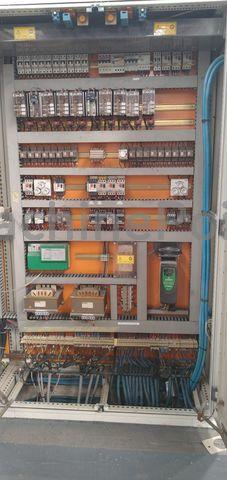

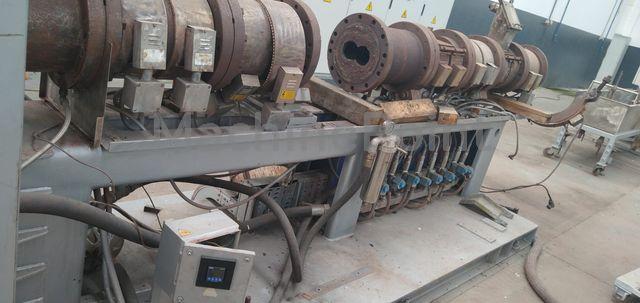

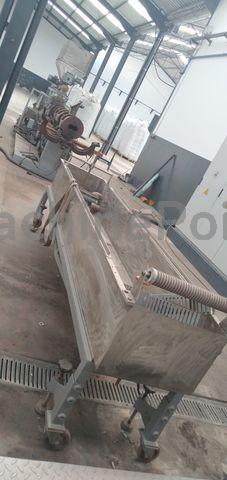

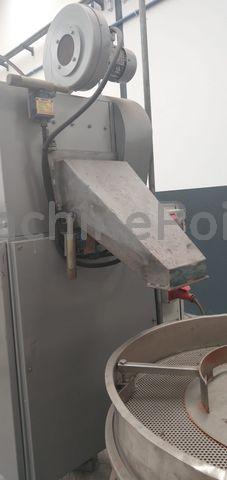

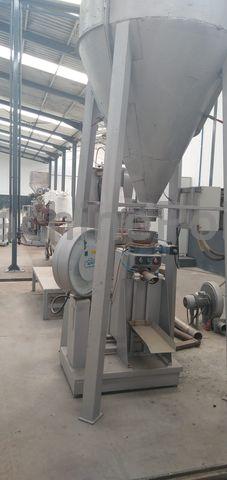

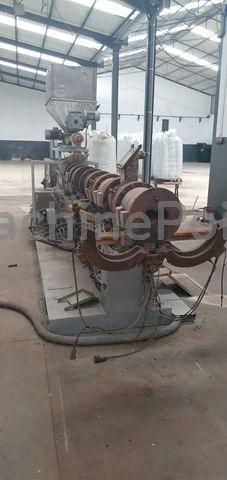

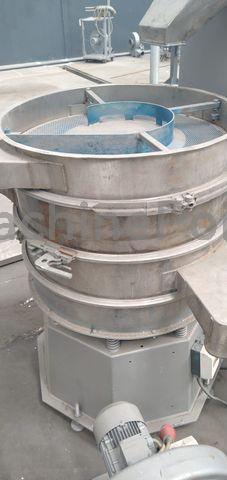

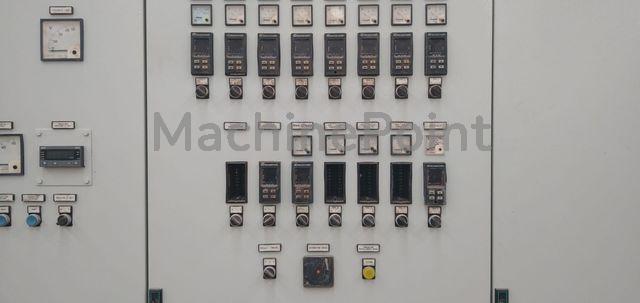

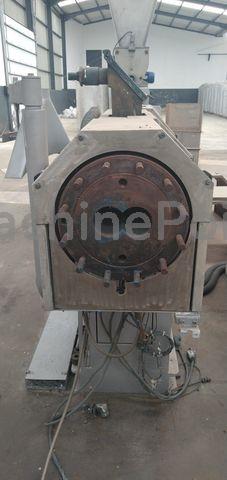

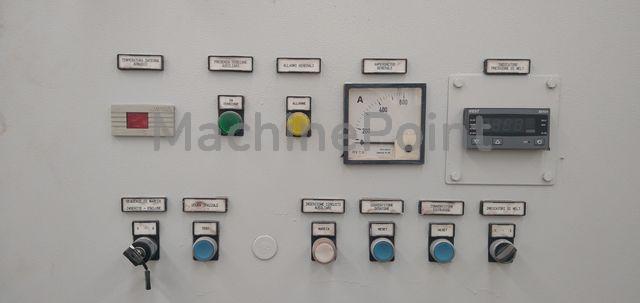

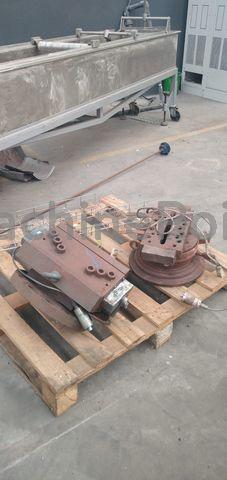

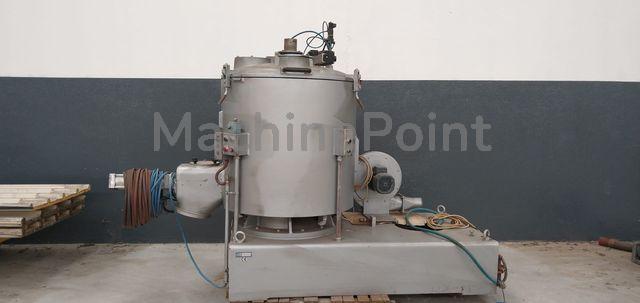

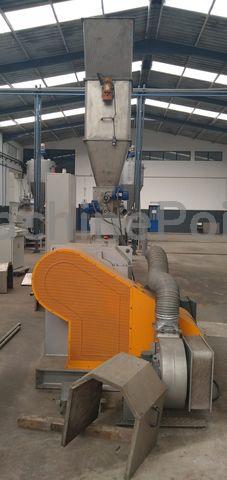

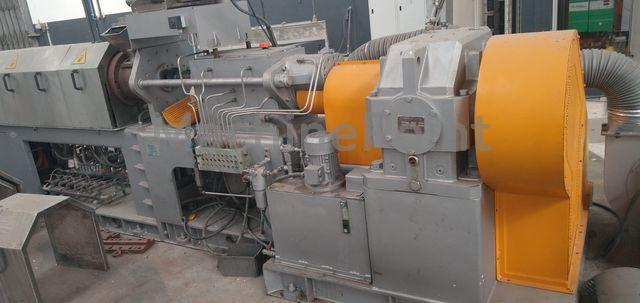

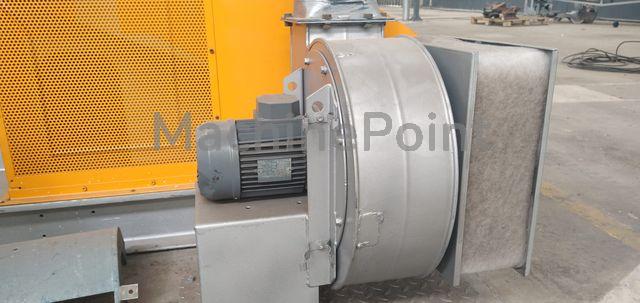

COMAC PLAST EBC 90 of 1999

COMAC PLAST EBC 62 corotating twin screw extruder year 2000 - ABB MOTOR 108 KW DC - SCREW DIAMETER 62 - LD 42 - SCREEN CHANGER - N°1 SIDE FEEDER - N°2 SPARE CYLINDERS - RPM SCREWS 500

Compounding line COMAC Type/Model: EBC40 HT/ Ø43- 42d Condition: only used for testing Line composition: - Twin screw extruder EBC40 HT - Extrusion head/ Manual filter - Twin screw side feeders - Dosing gravimetric system - Electrical equipment of control and command with cooling - Cooling water bath and 2 drying fans - Sheer pelletizing unit SGS 100(with spare parts) 1. Co rotating twin-screw extruder: Screw diameter: 43 mm – L/D 42 Extrusion Height: 1245 mm Main Motor: 50 kW Screw rpm: 0 – 650 rpm Barrel thermo-regulating zones: 8 Max temperature: 350 ºC Length with extrusion head: ~ 4420 mm Width with degassing unit and twin-screw side feeders: ~2300 mm Height of the posterior electric cabinet for inverter: ~ 1600 mm Extruder Weight: 3000 kg Included components: - Supporting frame and protection cases - Transmission with electric motor - Reduction gear/ splitting motion - Modular extrusion barrel with heating elements - Lubrication unit and lubricant cooling systems for reduction gear/splitting unit - Degassing unit and steam sectors - Cooling unit for barrel sectors - 3 degassing units: 1 atmospheric and 2 vacuum pump 2. Extrusion head: Extrusion head 45º fast openable system, interchangeable extrusion plate. Die with 10 holes – Ø4 Thermoregulation x2 Conveyor and flange die wide for screen changer Manual filter 3. Dosing system for powders, fibers, etc. x2 Application gravimetric dosing unit- ENGIN-PLAST x1 main gravimetric dosing unit 4. Twin screw side feeders: -framework support -transmission with geared motor - cooling is possible for the two screws contained in the twin screw side feeders barrel 5. Control panel Electric cabinet for inverter, reading desk panel 6. Water bath for cooling and 2 fans for drying 7. Sheer pelletizing System- SGS 100 - Available spare parts

1 Twin screw extruder COMAC HT60 year 2010 with degassing pump motor 160 kW 2 SIDE FEEDER 4 Gravimentric dosing units DSM year 2010 1 Water ring cutting unit GAMMA MECCANICA TDA 6.0 year 2010 Working hours 12.000 Used for masterbatch production, concentrations 2% to 75%

Extrusion line for profiles for PVC - Twin screw extruder COMAC PLAST model 60-N year 1987 motor DC 15 kW. no. 6 heating zones (no inverter) - Calibration table Pagani year 1989 length 2.500 mm - no. 1 vacuum pump 4 kW - Puller Pagani 1400x160 mm - Saw diam. 170 mm Line length 12 mt. - Width 1 mt.

COMAC 90/42D Twin Extruder corotating with segmented screws for PA/PC/PP Output: PA Fv 550 kg/h ; ABS 500/600 kg/h; PS 500/600 kg/h PP 500 Kg/h Spare set of screws 90/36D motor Siemens 180 kW Rpm 250 Extra segments 1 side feeder Gravimetric 2+1 and touch screen Spaghetti die head + cooling tank + cutting unit Previero SCREEN CHANGER KREYENBORG BKG K-SWE 180/RS (year 2005)
