Used ARBURG 570 C 2200 - 1300 of 2004 for sale
2004 | Ref.: 300049945
Injection molding machine up to 250 T ARBURG, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.
Data Sheet of Used ARBURG 570 C 2200 - 1300
Ref.: 300049945
Year: 2004
Brand: ARBURG
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 220 ton
- Shot Weight (Max): 826 g
- Distance Between Tie-Bars (H): 570 mm
- Distance Between Tie-Bars (V): 570 mm
- Platen Size (H): 795 mm
- Platen Size (V): 795 mm
- Screw Diameter: 70 mm
- Mould Height (Min): 300 mm
- Daylight Between Platens (Max): 950 mm
- Opening Stroke (Max): 650 mm
- Ejector Force: 6.6 ton
- Ejector Stroke: 225 mm
- Screw L/D Ratio: 17
- Screw Speed: 51 rpm
- Screw Torque: 1867 N·m
- Injection Volume: 904 cm³
- Injection Pressure: 1470 bar
- Injection Rate: 388 cm³/s
- Nozzle Force (Max): 9 ton
- Nozzle Stroke (Max): 550 mm
Other Specifications:

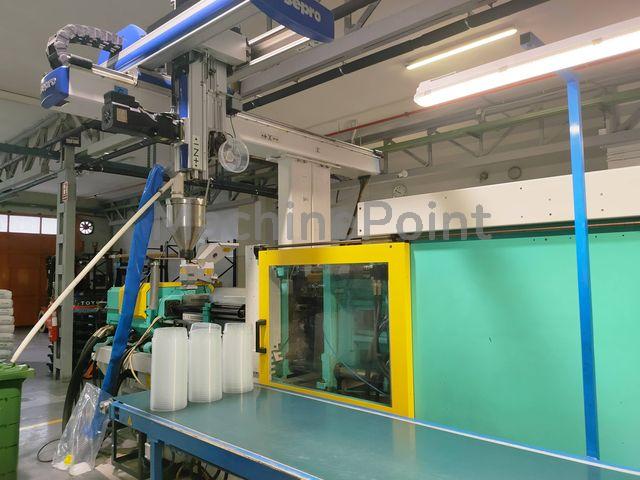

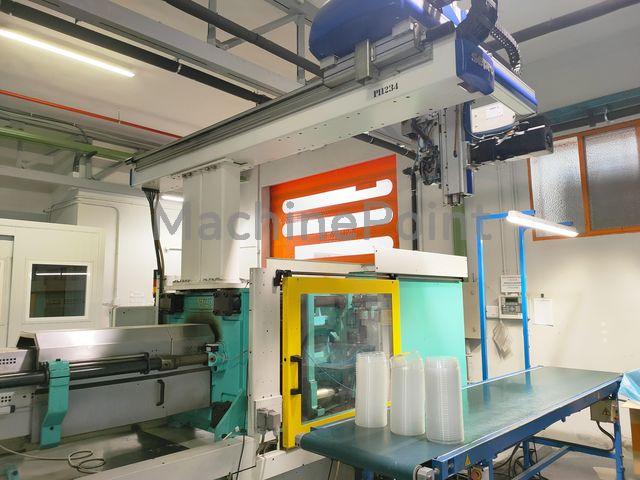

Includes ROBOT SEPRO SR4020 S3 year 2003
Available a similar machine + robot as spare parts (price upon request)
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
