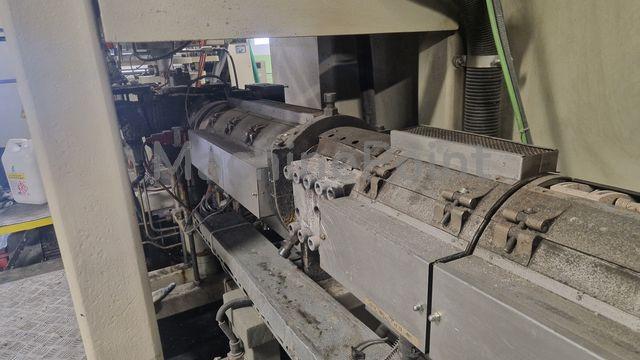

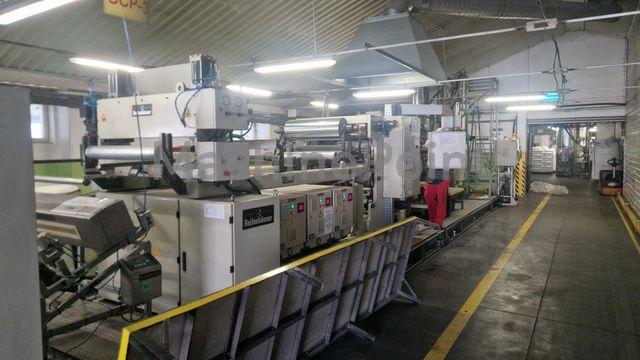

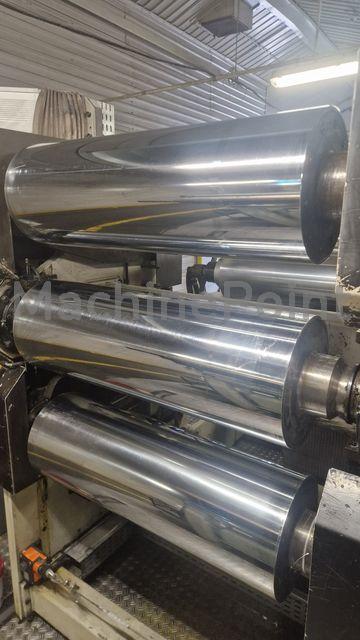

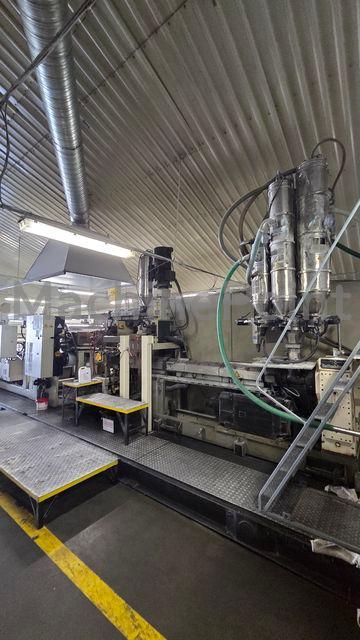

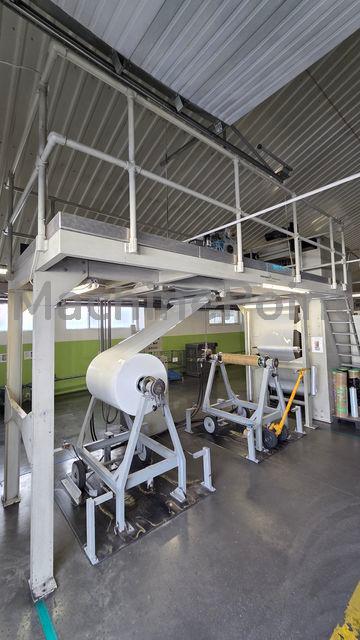

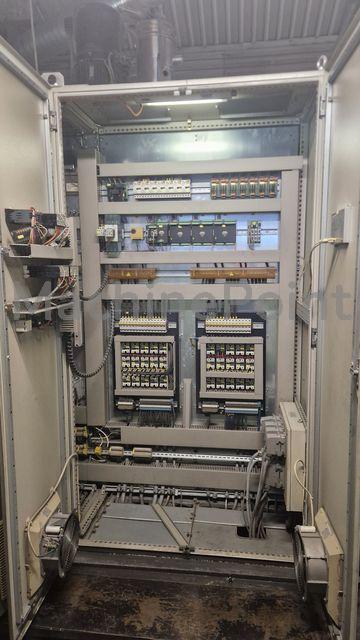

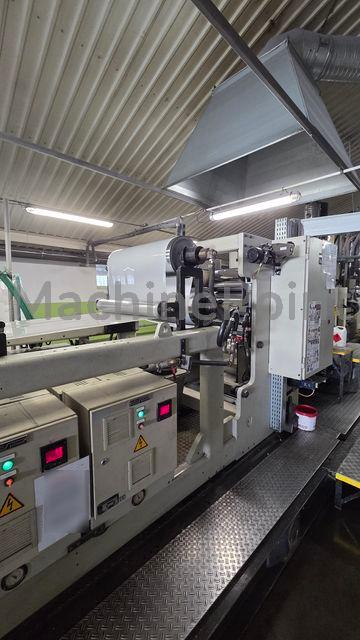

Used REIFENHÄUSER Coex Calandering Line of 2001 for sale

PVC roofing/roofing sheet extrusion line WITHOUT EXTRUDER 1. MOLD (LIP) Manufacturer NORWELL Year 2008 weight 713 Kg mold length 53". Minimum lip closure 0,0mm maximum lip opening 2,0 mm total heating zones 7 2. CALANDER Manufacturer: REIFENHAUSER Year: 1971 (fully overhauled) calender weight: 2550 kilos working area length (rollers) 1,60 cm Height: 240 cms Width: 290 cms Length: 110 cms Minimum closure between rollers 0,0mm Maximum roller opening Total heating zone 1 Heating zone 1 on the roller shutter 3 THERMOREGULATION EQUIPMENT - THERMOREGULATORS (3) Total zone of thermoregulation equipment 3 one per roller One zone per control unit and roller 4. ONDULATOR Year 2008 corrugator weight: 3950 kilos working area length: 115 cms Height : 210 cms Width : 220 cms Length : 160 cms Minimum closure between rollers 0,0mm Maximum opening of rollers according to product specifications. Total heating zone of corrugator : 6 heating zones upper and lower infeed on the corrugator 5. COOLING SYSTEM 6. PULLER Year 2008 puller weight : 1535 approx 7. DIE CUTTING MACHINE - DIE CUTTER

Used Reifenhäuser Coextrusion Line A-B-A for PP Film with Inline ILLIG RDM70K, ILLIG BGR 53 & Inline ILLIG RS75 Grinder Details are as follows:- Motan 4 Component Gravimetric Dosing Mixing Unit Main Extruder Reifenhäuser RH 801-1-90-30 age 1990, Dia 90 mm, L/D 30 Co-extruder Reifenhäuser RH 241-1-50-30, age 1997, Dia. 50 mm, L/D 30 Siemens SIMOREG Extruder Drives Screen Changer: Coextruder is manuel, Main Extruder is automatic SML Screen Band Filter, controlled with both Pressure and time Melt Pump: MAAG 56/ 56 A-B-A Adapter 860 mm Flexlip Die 3 x Roll Polished Chrome Reifenhäuser Cooling/ Polishing Stack, updated with individual LENZE Servo Motors for each Roll Dia Ø 250 mm, Width 795 mm 2 x Roll Take-Off Max. output with PP: Main Extruder 250 Kg/ hr, Coextruder 50 Kg/ hr Inline ILLIG RDM 70K, age 1991 With SIEMENS S5 PLC and ENCODER on the Main Shaft Indramat Servo Motor Indexing, with ELAU Control Panel Max. material width 730 mm Max. Indexing length 300 mm Hydraulic Plug Assist, Max. Part height 125 mm Top & Lower heaters, total connected load top & bottom heaters 74.2 kW Drive Motor 6.93 kW Auto Transport Rail Spreading for PP Sheet Sag Control

Extrusion coating Machine used only for Testing Products Extrusion coating part: -For one-sided application (coating) of thermoplastics on different carrier materials carrier materials, -extrusion lamination of two substrates and for the production of cast films Raw materials used to date: PP PP filled with up to 60% chalk and chalk/talcum PET LLDPE PE TPU TPE EVA EVOH Extrusion 1 extruder RH 801-1-100-33 V ‘C’ 1 extruder RH 241-1-50-30 V ‘B’ 1 tailwheel RZE 66/41 D ‘A’ (co-rotating twin screw) Output: up to 300 kg/h ‘C’ up to 70 kg/h ‘B’ up to 350 kg/h ‘A’ Numerous different co-extrusion blocks for different layer geometries ((a)symmetrical, 1-5 layers) Wide slot die with internal deckling Gravimetric multi-component dosing unit for extrusion consisting of Gravimetric 4-component dosing unit Moulding REIcofeed 5-layer coextrusion system Coextrusion block, 5-layer -> 12 different channel packs Wide slot die BSD-B01-1200 Outlet width: 1200 mm Opening width: 0.5 to 0.8 mm depending on the lip displacer of the width adjustment Laminator unit BE- L 01/L-NB 1200-1 Nominal width 1200 mm Two unwinders up to 1 m roll diameter: main unwinder (non-stop), laminating unwinder Rewinder max. 1 m roll diameter mech. speed max. 500 m/min. Production of a multi-layer composite by applying an extruded fusion layer to a continuous substrate. Substrate: Fabric: 10 to 400 g PET, PP, PE, PVC, LDPE Paper: 50 to 250 gr. Aluminium: from 20 my oApplication thickness from 2 - 950 my PE, PP, LDPE, TPU, PA Extruder throughput line: Granulate drying Somos T200HT_Dry air 1 new Beta-Control thickness measuring unit and control cabinet with isotope Kr 85 Pre-treatment - Corona-Plus generator - type CP 3 - 10 KW input power 12 KVA Output power 10000 Watt max. Corona-Plus Station - VETAPHONE Type TOU 13(C4) 120 PN Pre-treatment width 1100 mm Roller body 1320 mm, 318 mm diam. Non-stop rewinder UMRC 100-M consisting of: Roller width 1200 mm Roller diameter 1000 mm max.; min. 400 mm Running speed max. 500 m/min Roller weight max. 1500 kg Spare parts - 1 coating die + 1 film die - 1 new vacuum box - a dozen different channel packages - various impression rollers (Teflon, rubber, steel, ...) - moulding rollers: 1 Stratodur, 1 embossing line

Extrusion line for 3-layer PE/PP sewage pipes from 75 to 160 mm Type: 75 - 160 Production: 1990 / 2004 -Extruder for intermediate layer Reifenhäuser 65 Kw, Model : RH 551-1-70-25, Year 1990 New alternating current motor -Extruder for the inner layer Reifenhäuser 65 Kw, Model : RH 551-1-70-30, Year 1990 New electrical cabinet -Extruder for the outer layer Reifenhäuser 65 Kw, Type : RH 551-1-70-25, Year 1990 -Kreyenborg filter, Type : K-SWE-101, Year 1999 Cincinnati 3-layer head, Type: PHPO 16-3-COEX, -Tools : o75x3,8 o110x4,8 o125x5,3 o160x7,5 -Vacuum bin KUAG, Type : DVK 250 / 1,5 + 5,5 INDEXT 3-belt puller, Type : RA 225/3, Year 2004

5-layer Coextrusion line for shrink and lamination film Thickness 20-180 my Extruders 1 EVOLUTION 60-30-B Extruder A 1 EVOLUTION 70-30-B Extruder B 1 EVOLUTION 90-30-B Extruder C 1 EVOLUTION 70-30-B Extruder D 1 EVOLUTION 60-30-B Extruder E 1 Vacuum-Suction Blower Type 1200-30.5/-50 Hz 5 Gravimetric Batch Blending P4, 4 components for each extruder 5 Pivoting Screen Changers 5-Layer Die Head 300/650-5.1 for die diameters from 300 mm - 650 mm with IBC system EVOLUTION ULTRA COOL Die plate 400 mm 2 Gap Rings 400mm: 1,4 and 2 mm High-capacity cooling EVOLUTION ULTRA COOL Ultrasonic Bubble Control Rotating haul off Evolution 2200 mm Web guide 2200EL Plast Control non-contact measuring head Corona treater for two-sided treatment of tubular film EVOLUTION W-P 2200-02 Film Winder automatic two station centre/surface/gap winder Chiller included
