Used SCHMALZ JumboFlex 35 manipulator for handling tasks of 2023 for sale
Manipulator for Handling Tasks SCHMALZ, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.
Data Sheet of Used SCHMALZ JumboFlex 35
Ref.: 300049963
Year: 2023
Brand: SCHMALZ
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
Manipulator for Handling Tasks
Other Specifications:
Manipulator for Handling Tasks
Facilitates lifting and carrying cartons, bags, etc.

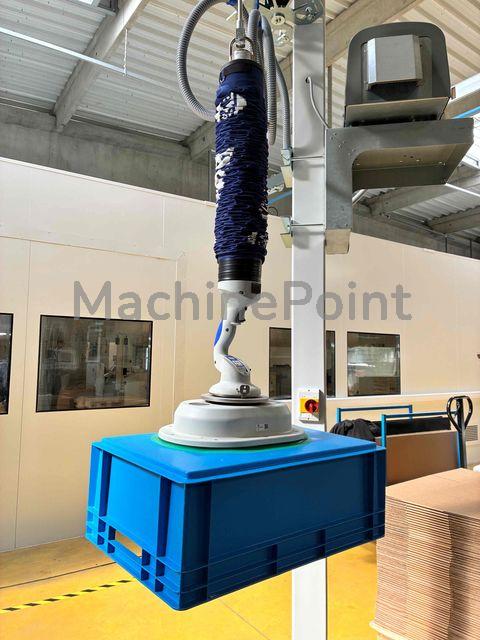

Vacuum Lifting Tube – JumboFlex 35
Maximum capacity for smooth and sealed loads: 35 kg
Includes accessories: vacuum pump, remote filter, circuit breaker switch, vacuum hose, soundproof casing, etc.
1 suction cup tool with skirt
Support:
Jib on mast, reach 3000 mm
Rotation stops and chemical anchors
Lifting Tube:
Maximum load capacity for smooth and sealed loads: 35 kg
Maximum working stroke: 1500 mm
Includes:
Swivel joint with ball bearing for continuous handle rotation
Suspension eyelet on swivel joint for easy attachment to a transport trolley, eyelet diameter: 23 mm
Multilayer lifting tube design
Safety check valve for slow load descent in case of power failure

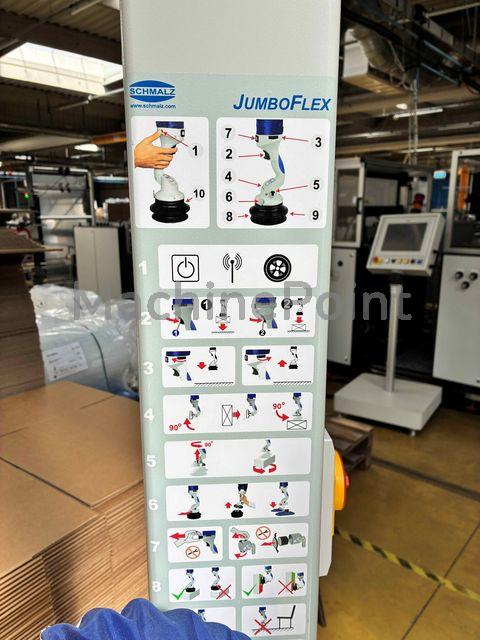

Control Handle:
Manipulator control unit includes:
Joystick-style handle for ergonomic one-hand operation (left or right-handed)
Intuitive control of lift, lower, and lifting speed, with or without load
Instant tool change via quick-change system (lever + 15° rotation of tool)
Adjustable height without load (except with hook)
Vacuum Pump – EVE 50:
Dry-rotor pump, constant suction power, robust, low maintenance
Power supply: Three-phase
Noise level: 67 dB
Voltage (50Hz): 400V TRI+T
Includes vacuum limit valve
Suction capacity (50Hz): 50 m³/h
Maximum vacuum: -600 mbar
Nominal power (50Hz): 1.3 kW
Weight: 39 kg
Soundproof Enclosure – SBB:
For Schmalz turbine
Material: Galvanized steel / ABS
Maximum noise level: 56 dB
Base material: galvanized steel
Cover material: impact-resistant ABS
Suction Tool:
Round suction cup Ø150 mm with silicone skirt
Vacuum Adjustment Valve:
Allows regulating the lifting tube capacity
Dust Filter – STF:
Protects vacuum pump from particles and dust
Steel housing
Pore size: 3 μm
Storage Hook:
Allows storage of the lifting tube after use; space-saving
Mounting: Wall-mounted or on jib mast
Suspension for Jumbo:
Adjusts the height of the lifting tube relative to the jib
Length: 1000 mm (site adjustable)
Wear Protection:
Nylon protection on tube prevents mechanical damage to lifting tube
Supply Hose:
Connects lifting tube to vacuum pump
Diameter: 32/26 mm
Length: 12 m
Switch / Circuit Breaker:
Integrated in jib mast, controls pump start/stop
Built-in circuit breaker
Jib / Potence:
Mast-mounted jib, 270° rotation
Triangulated aluminum boom
Capacity: 35 kg
Reach: 3000 mm
Overall height: 3500 mm (allow 200 mm above jib for installation)
Height under boom: 3000 mm
Supplied with:
Hoist trolley
Base plate for floor mounting
Power line on trolleys
Followers / chemical anchor kit
Aluminum hollow profiles with internal PVC-reinforced trolley for optimal rolling and ergonomics
Rotation stops for column/wall-mounted jibs
Individual pivot area limitation
Pivot limit per side: 0°–100°
Material: galvanized steel
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown with material
Availability: Immediate
