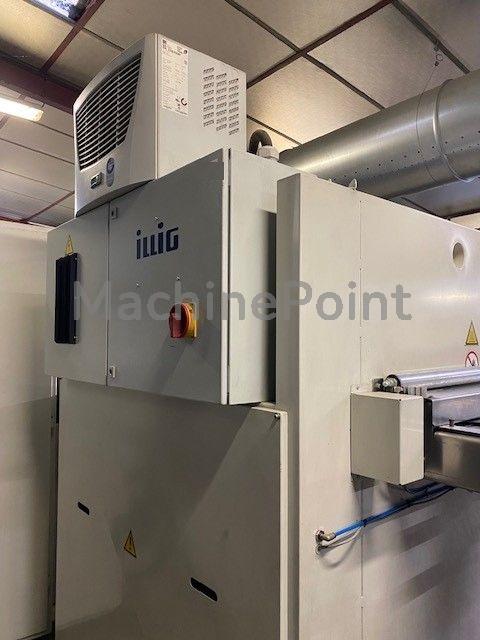

Used ILLIG VHW 90 2/b of 2015 for sale

2015 | Ref.: 300049994

Preheaters ILLIG, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.


Data Sheet of Used ILLIG VHW 90 2/b

Ref.: 300049994

Year: 2015

Brand: ILLIG

Status:
For sale

Delivery time: Immediate


Ask for machine price Want to sell your machine?

Technical Specifications:


  • Sheet Width (Max): 900 mm
  • Material Thickness: 1.8 mm
  • Power: KW 35,4

Other Details:


Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Similar Products:


Machines sold in the past:


Forming/Cutting/Stacking Min-max forming area: 400x250 - 704x515 Tool width between film transport spars min-max: 420-724mm Tool length in feed direction min-max: 274-538mm Film width min-max: 454-760mm Max. gap dimensions per side: 12mm Feed length min-max . 250-540mm Formed part height above film level max: 120mm Formed part height below film level max: 40mm Table travel upwards max: 160mm Table travel downwards max: 195mm Clamping frame upstroke max: 140mm Blow box stroke max: 60mm Upper heater length: 2000mm Lower heater length: 1875mm Vacuum pump flow max: 100m3/h Max. mold clamping force: 80 kN Max. forming pressure: 2 bar Max. cycle rate: 35 cycles/min Working hours at 25/07/2025 : 30753
Working hours : 3739 (05/06/2025) Forming area min-max : 300x100 - 500x350mm Film width min-max : 340-540mm Piece height above/below film level: 100/30mm Reel diameter: 600mm Connected electrical power of upper heater: 9.8kW Connected electrical power of lower heater: 5.6kW Max output: 15/min The machine is equipped with a stacker. It may not appear in the video, as it's not always used. So there are 3 stations: forming, cutting and stacking. Min thickness worked : 0.28mm
Forming/Cutting/Stacking Min-max forming area: 400x250 - 704x515 Tool width between film transport spars min-max: 420-724mm Tool length in feed direction min-max: 274-538mm Film width min-max: 454-760mm Max. gap dimensions per side: 12mm Feed length min-max . 250-540mm Formed part height above film level max: 120mm Formed part height below film level max: 40mm Table travel upwards max: 160mm Table travel downwards max: 195mm Clamping frame upstroke max: 140mm Blow box stroke max: 60mm Upper heater length: 2000mm Lower heater length: 1875mm Vacuum pump flow max: 100m3/h Max. mold clamping force: 80 kN Max. forming pressure: 2 bar Max. cycle rate: 35 cycles/min Working hours at 25/11/2024 : 22899
Card dimension min-max : 450x400 - 770x500 Card weight max : 600 g/m2 Material width : 540mm Height of package : 100-150 mm Number of cycles at 100mm package height : 3 Number of cycles at 150mm package height : 2,5 Weight of product on total card max : 4kg Material roll diameter max : skin : 350mm / Blister 400mm Material thickness min-max : 0.1-0.5mm Material roll core diameter : 70mm Longitudinal cutting blade max : 9 pieces Number of cross cuts which can be carried out : 11 (=10 cavities) Trim-im place tool : 8 pieces Cutting accuracy max in operation direction : +- 0.5mm Heater power rating : 9.0/13.9 kW Vacuum pump : 40 m3/h Total connected load : 15.55 kW Operation pressure : 6 bar Air consumption/cycle : 70-210 litre Compressor suction capacity min : 230 l/min
Machine for skin, blister and standard thermoforming. The machine has : 1 robot for automatic carton placement on the table 1 conveyor belt 1 thermoforming machine 1 trimming block with guillotine puller + punch-die punch holes, longitudinal separation by trimming knots, max 8 pcs. Cardboard format: 450X1200 mm Max reel diameter (blister) : 495 Film thickness : PE film 100 my, PS : 1.5mm & APET PVC 1.2mm Carton weight : 600g/m2 max Cone diameter : 70 mm Actuality : blistering set of shower curtain rods
