Used KRAUSS MAFFEI KM 230-750 AX of 2014 for sale
2014 | Ref.: 300050012
Injection molding machine up to 250 T KRAUSS MAFFEI, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.
Data Sheet of Used KRAUSS MAFFEI KM 230-750 AX
Ref.: 300050012
Year: 2014
Brand: KRAUSS MAFFEI
Status:
For sale
Delivery time: > 3 months
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 230 ton
- Shot Weight (Max): 432 g
- Distance Between Tie-Bars (H): 610 mm
- Distance Between Tie-Bars (V): 560 mm
- Platen Size (H): 880 mm
- Platen Size (V): 830 mm
- Screw Diameter: 55 mm
- Control Type: Electronic
- Mould Height (Max): 680 mm
- Mould Height (Min): 250 mm
- Daylight Between Platens (Max): 1230 mm
- Opening Stroke (Max): 550 mm
- Ejector Force: 5 ton
- Ejector Stroke: 130 mm
- Screw L/D Ratio: 18
- Screw Speed: 320 rpm
- Injection Volume: 475 cm³
- Injection Pressure: 1564 bar
- Injection Rate: 380 cm³/s
- Plasticising Capacity: 52.9 g/s
Other Specifications:
No robot and ancillaries included
47.000 hours worked, 25.03.2026

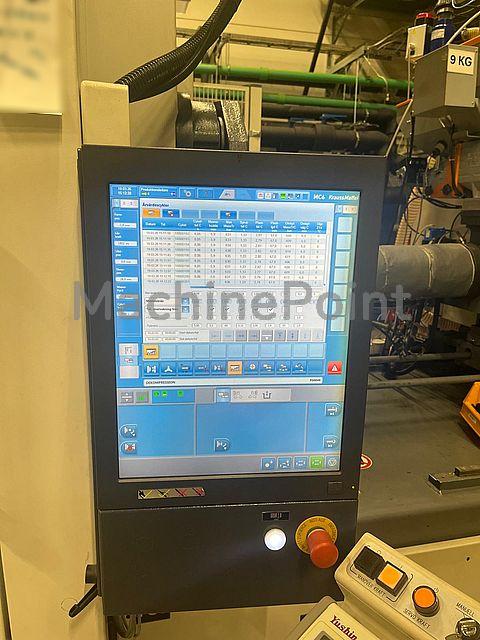

Control: MC 6
New screw 10.2025
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: > 3 months
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 38 Kw
