Used TOSHIBA 1500 of 2010 for sale
Sheet coextrusion lines TOSHIBA, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.
Data Sheet of Used TOSHIBA 1500
Ref.: 300050015
Year: 2010
Brand: TOSHIBA
Delivery time: 1 - 2 months
Ask for machine price Want to sell your machine?
Technical Specifications:
- Materials: PC,PMMA,ABS
- Film Width (Max): 1500 mm
- Film Thickness (Min): 0.8 mm
- Film Thickness (Max): 10 mm
- Output Capacity: 1000 kg/h
- Layers: 1
- Number Of Extruders: 1

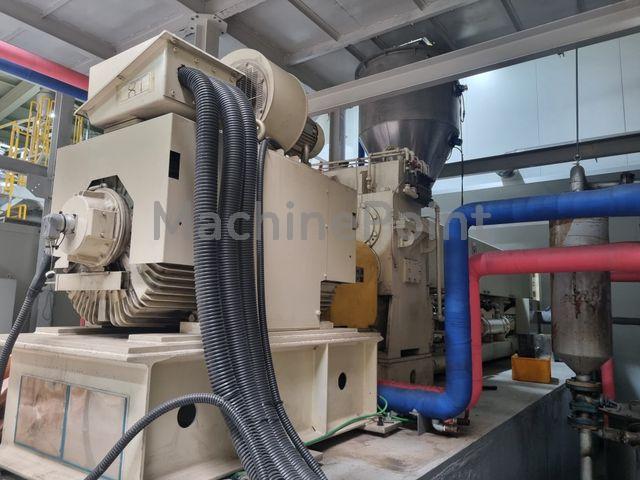

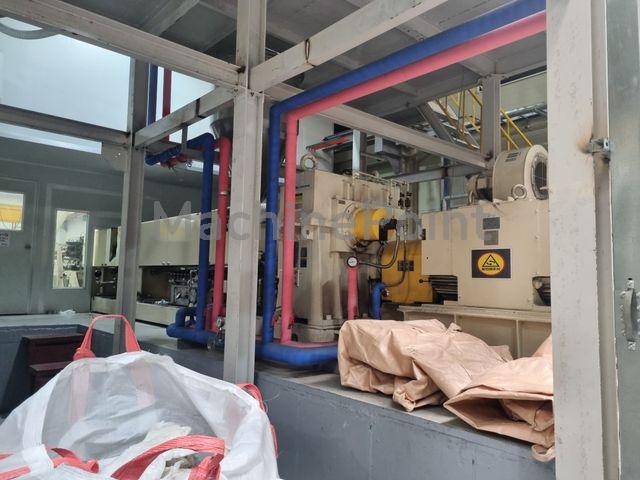

- · EXTRUDER: 1
- Screw L/D Ratio: 15
- Venting: Yes
- Number Of Rolls: 4
- Roll Diameter: 500 mm
Other Specifications:

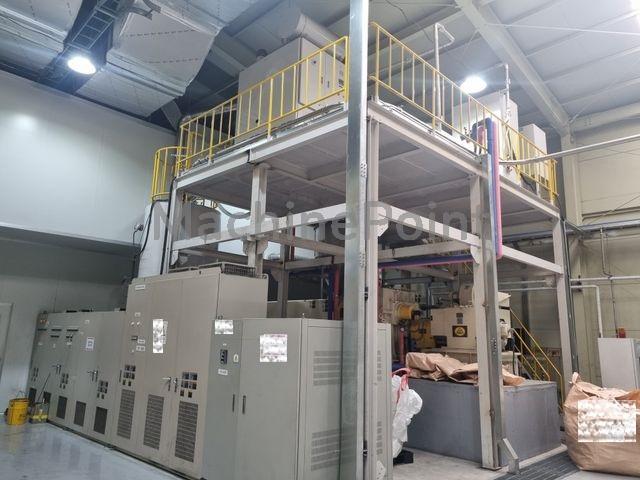

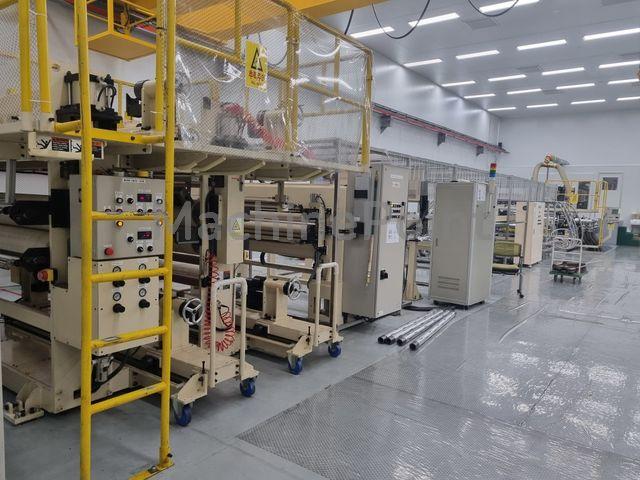

Complete Optical sheet extrusion line Toshiba 1500
Model : SPU for clear sheet manufacturing Equipment
Useful width : 1,500mm,1220mm,1,000mm

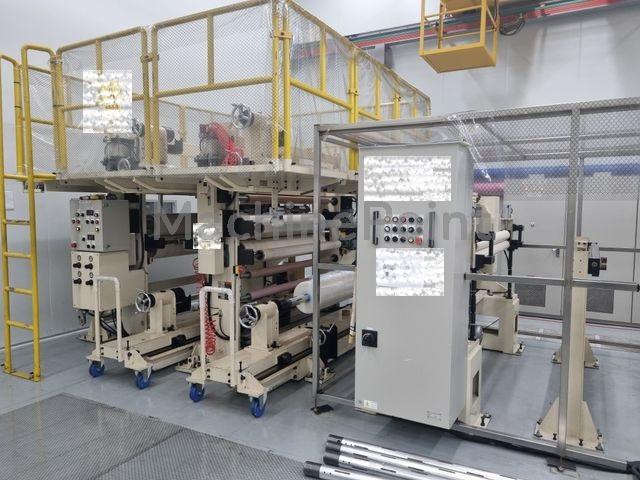

Finished Material : Sheet and rigid sheet in PC rewound in rolls

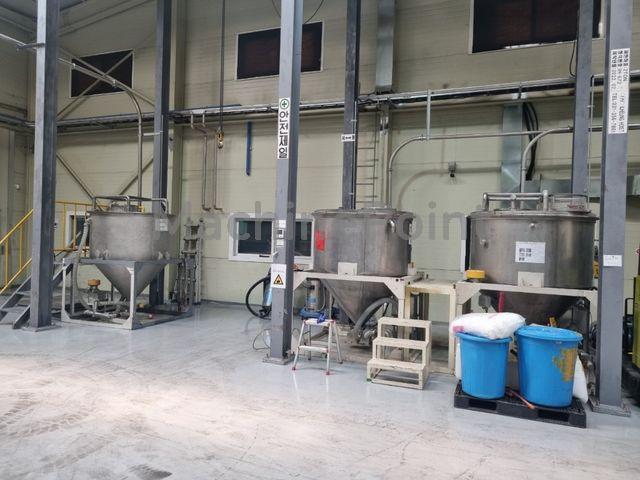

Feed material : Virgin+Flakes
-Edge Cutting system : 2 Driven running saw

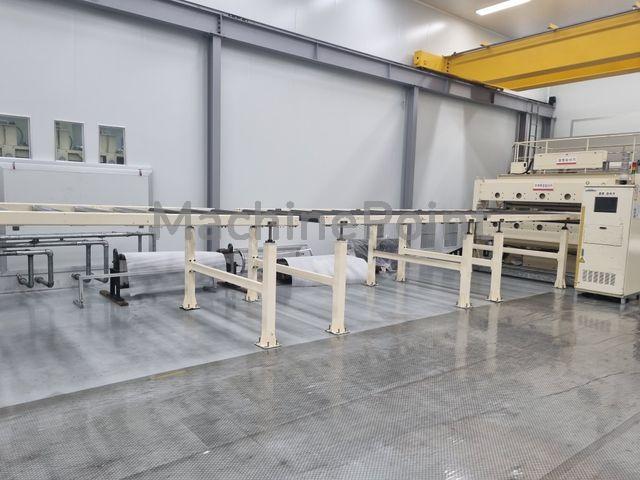

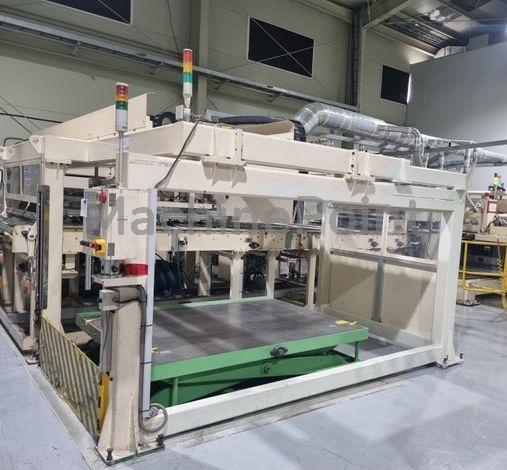

-Cross cutting system : 1 Driven running saw
The machine has 3 dies available with different sizes:
- Extrusion Die 1 : Single layer( width 1650mm)
- Extrusion Die 2 : Single layer( width 1500mm)
- Extrusion Die 3 : Single layer( width 1300mm)
- Polishing Roll No1 : Diameter 350mm
- Polishing Roll No2 : Diameter 350mm
- Polishing Roll No3 : Diameter 500mm
- Polishing Roll No4 : Diameter 500mm
- Spare of Polishing roll : 4 EA
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: 1 - 2 months
