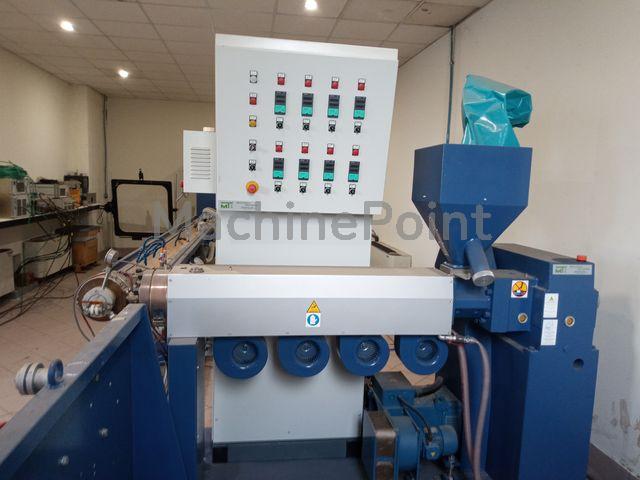

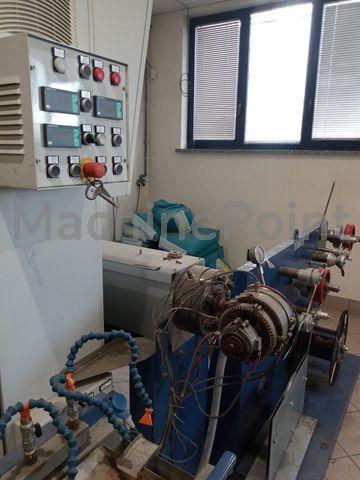

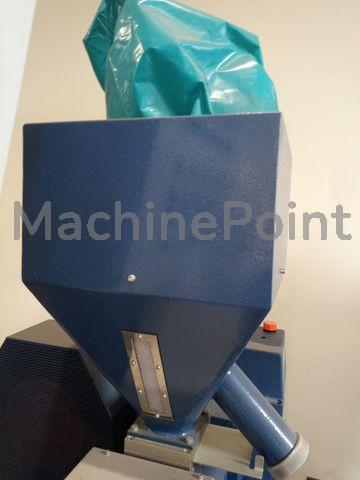

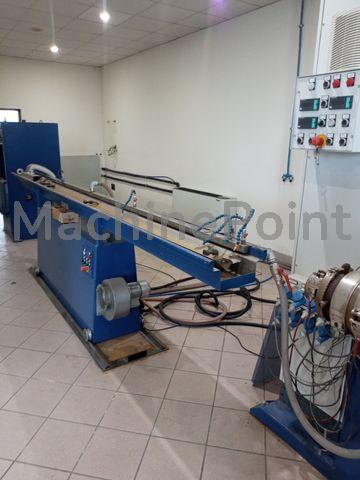

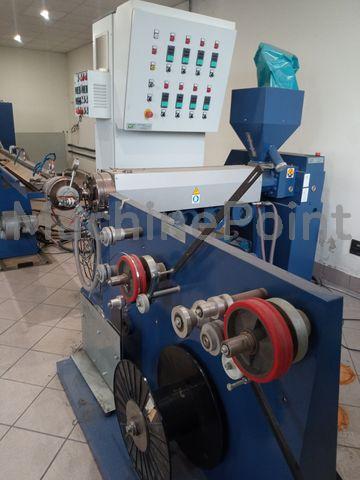

Used MT E 60/25 of 2007 for sale

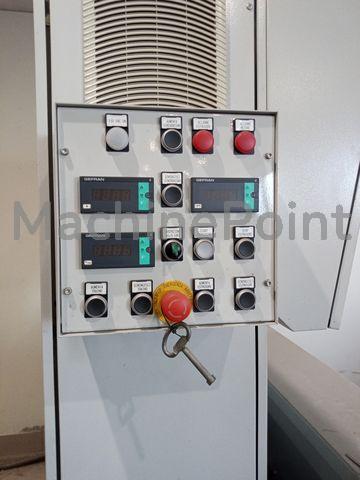

Extruder equipped with an extrusion screw suitable for processing SIS rubber has the following features: - Model 120 L/D=25 - Two-speed reduction unit: Speed A 0-54.6 RPM Speed B 0-127 RPM - Wear-resistant cylinder in Hv 1000 - Heating power 43 KW - Heating element voltage V 240 - Heating current 195 A - Heating zones 5+1 - Cooling power 3.75 KW - Cooling zones nr. 5, with nr. 5 electric fans - Fan motor power 0.75 KW - Extruder drive with Magnetic motor 84 KW - Speed control range max. 1850 RPM - Voltage 400 Volt - Current 156 A. - Degree of protection IP 23 - Motor complete with electric fan for cooling; power 1.1 KW - Control panel complete with motor drive via Mistsubishi inverter - PLC for regulating the 6 Gefran temperature controllers, complete with no. 6 static relays for powering the heating elements - Total installed power 131 KW - Extrusion axis: mm. 1050

Line for monofilament in PVC for broom/brushes(few working hours) - output 170 kg(h Scope of delivery: 1. PVC Mixer CACCIA 100 kg powder + additives + Cooler AS800 for 300 kg + additives 2. no. 2 Extruders MECCANICA TRECATESE single screw + electical cabinet from year 1998 - screw diameter 70 mm - LD 24 - Output 85 kg/h (each extruder) - Motor DC 36,76 kW 3. Dowstream MECCANICHE MODERNE: - Pulling unitt type SC/35190/500 year 1977 rollers L.500 mm composed of 2 stations with 4+3 rollers those towards the dies and 1 with 3+2 rollers the last one at the end of the system and with two stainless steel heating tanks in the middle of the drafting units. - Coiler type MODASP 70/6 year 1977

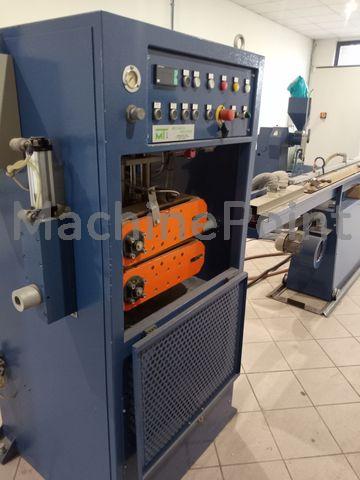

MT TC400/2M HAUL OFF (MANUAL CLOSING) Haul off unit with two flat tracks. Useful length 400mm, width 90mm, each consisting of rubber ring with Multitele reinforcement; sliding on roller tracks with ball bearings, individually driven by two twin gear motors connected in V/F to a single inverter sized for double the power complete with potentiometer, suitable for obtaining variable speed from 0 - 25 metres/minute Adjustment of upper track by handwheel Manual lower track adjustment by handwheel Maximum track opening 100 mm Maximum cylinder stroke (upper track closing) 70 mm. Cutting unit type MT TG 40 -Double-acting cutting blade with MT design profile -Blade driven by pneumatic cylinder ISO dia 40 stroke 100 -Signal from encoder for cutting lengths -Inlet and outlet bushings for cutting precision -FR+L unit for pneumatic circuit feeding -Control panel + new spare blade

Complete extrusion line for PVC pipe (electrical tube) Manufacturer: Meccanica Trecatese (Italy) Year: 1997 Single screw extruder PVC MT60/24S Vaccum Calibration bath MT VV 63/3 Cooling tank MT VR 63/3 Marking unit Gnata Haul offMT TC 700 Saw MT TS 350 Chips vaccum cleaner MT AT5 Tilting table MT VR4 Tooling: 16-20-25-32-40 with calibrators and pins AVAILABLE (request price and pics) * Tools for trials on rigid and corrugated tubes * Lab equipment for rigid and corrugated tubes * Tunnel shrinkable film application device * Chiller 24000 kc
