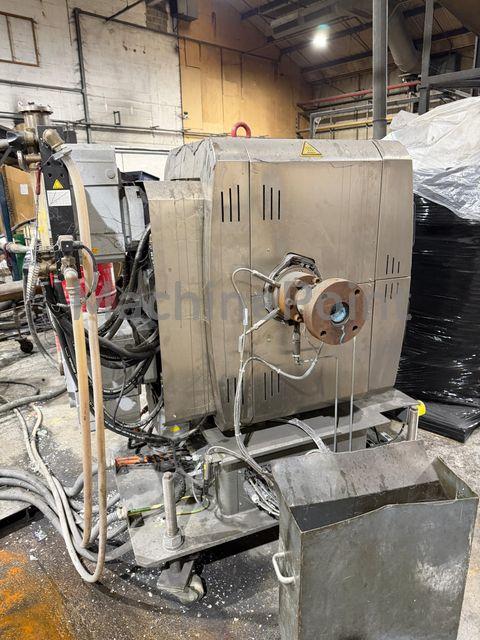

Used MAAG ERF 500 Gen.2 of 2022 for sale
Screen changer for extruders MAAG, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.
Data Sheet of Used MAAG ERF 500 Gen.2
Ref.: 300050022
Year: 2022
Brand: MAAG
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Type Of Changer: Hydraulic
- Screen surface: 314000 mm²
- Throughput: 1500 kg/h
Other Specifications:

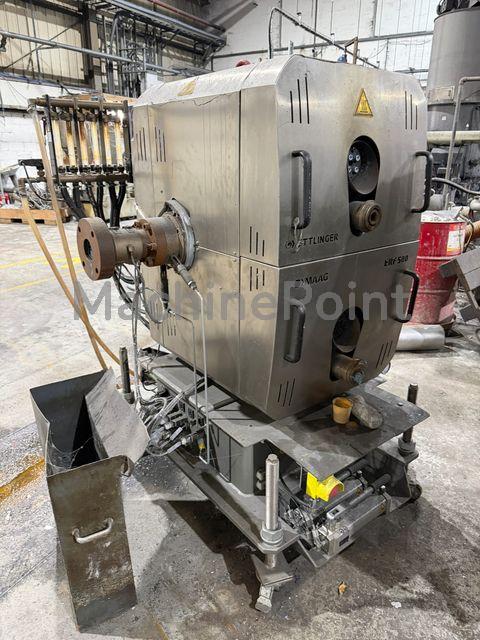

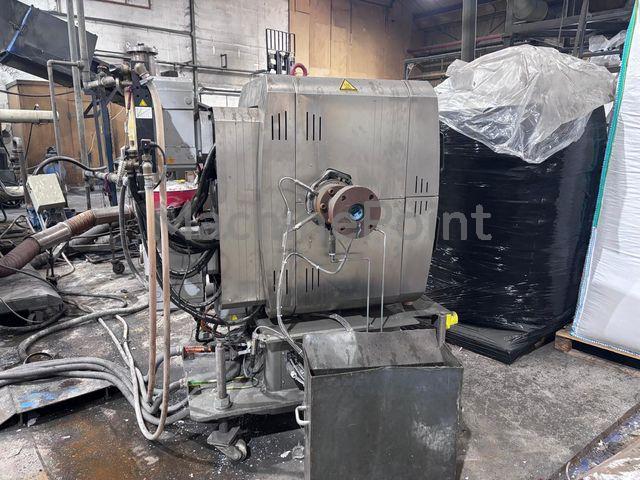

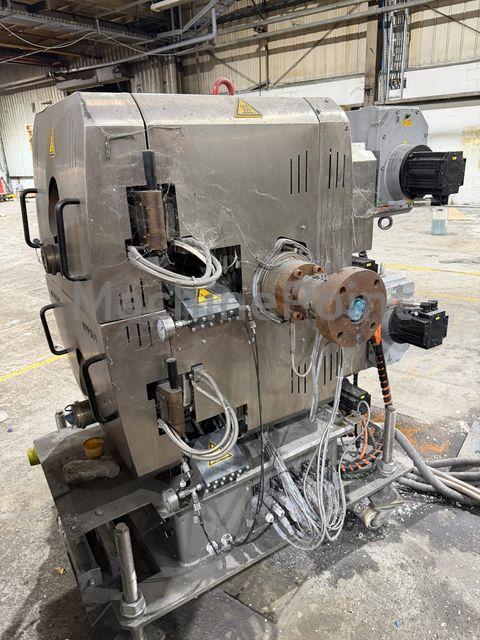

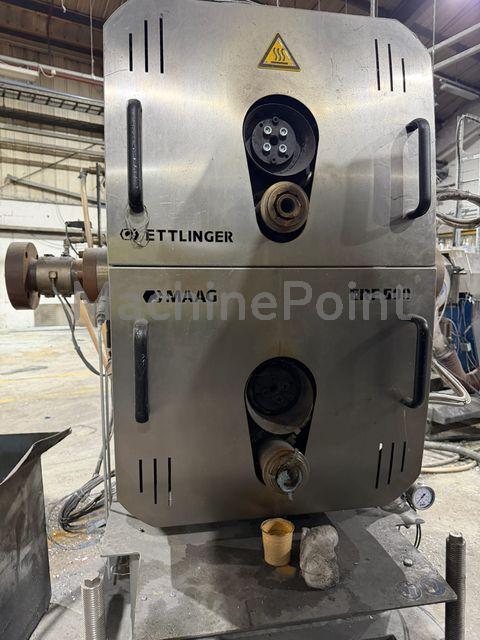

Compact filter housing
2x 250 um filter screens and 2x carrier installed
2x scrapers, each equipped with pressure controller for scraper contact pressure

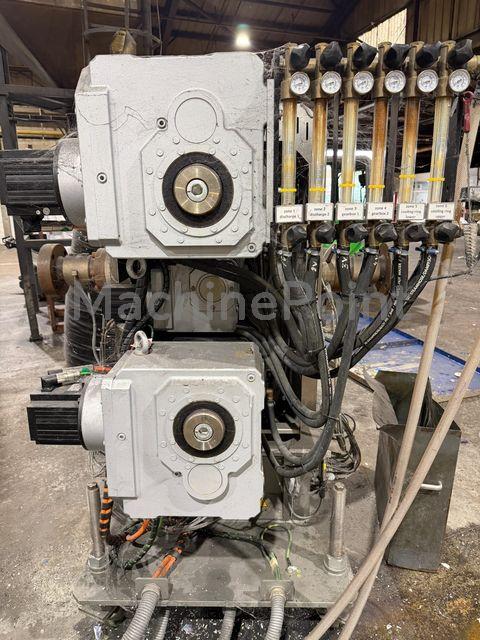

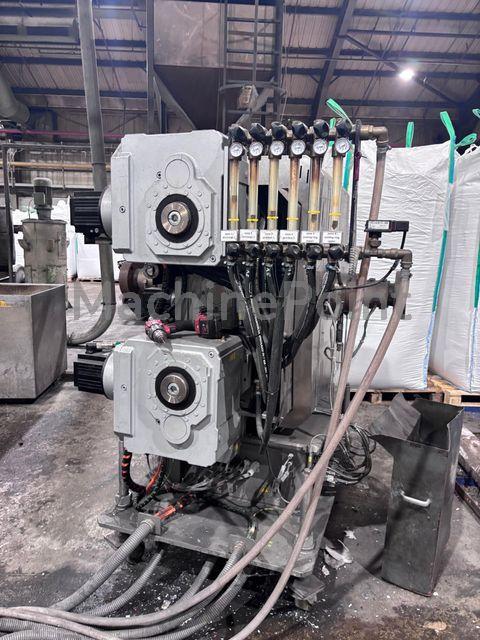

2x Compact and energy-efficient servo drives for filter shafts;
one additional servo drive for each exit screws; can be set separately
Heating zones - 15 pc., separately controllable
Melt pressure sensor (input flange), signal will be used as control variable
Melt temperature sensor (input flange)

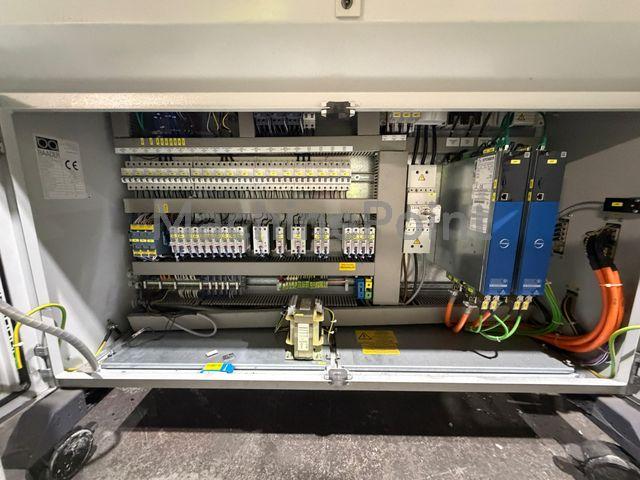

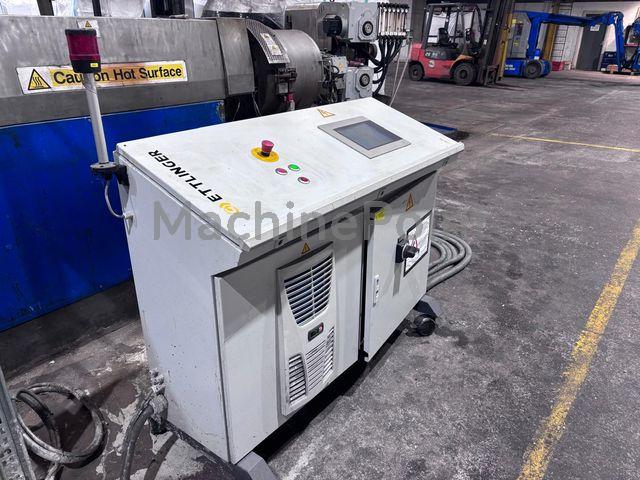

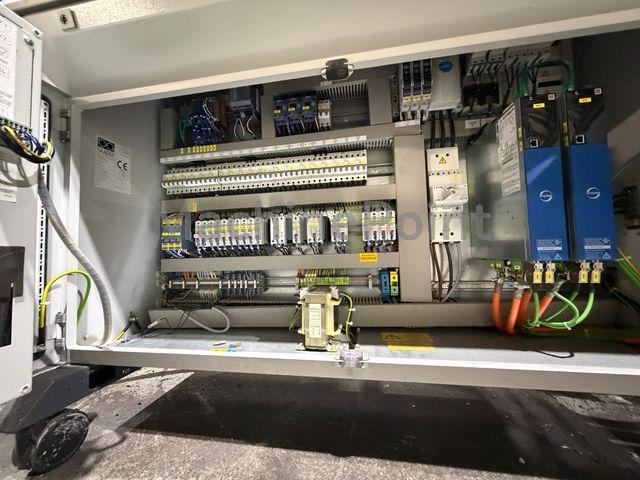

Air-conditioned control cabinet with colored touch screen, SPS hardware and touch panel Siemens
Condition: free of hard metal particles > 3mm and minerals e.g. sand, glass
Polymer: LDPE
Viscosity: 0,4 g/10 Min. 190°C/2,16kg
Melt temperature [C]: 190°C
Contamination type: paper, aluminum, wood, unmelted polymers
Contamination [%]: 1-2%
Filter fineness [um]: 250
Throughput max. [kg/h]:1000-1500
Heating zones: 15
Operating pressure max. [bar]: 300
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 67 Kw
