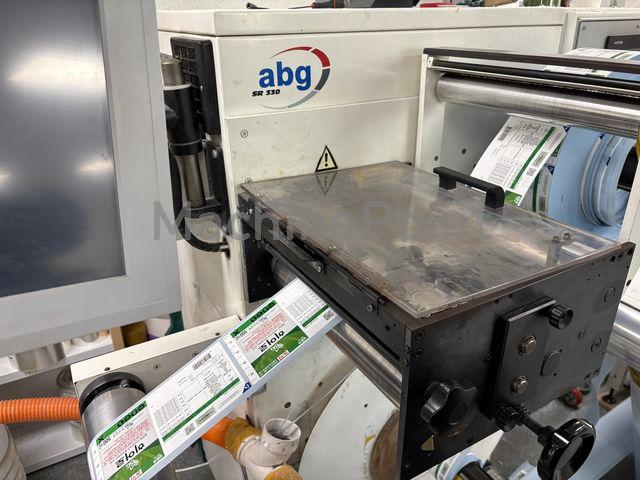

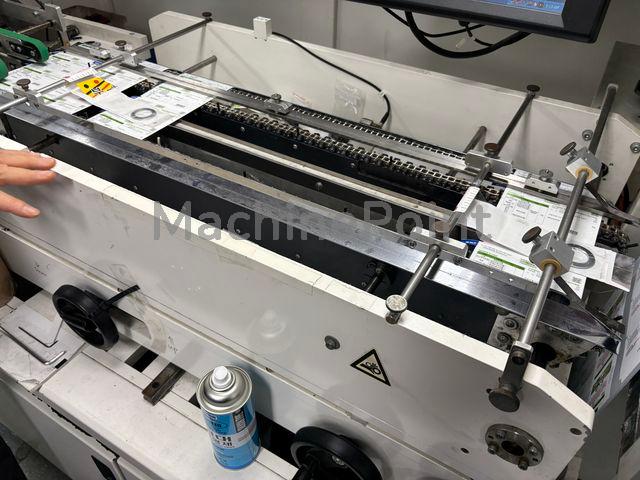

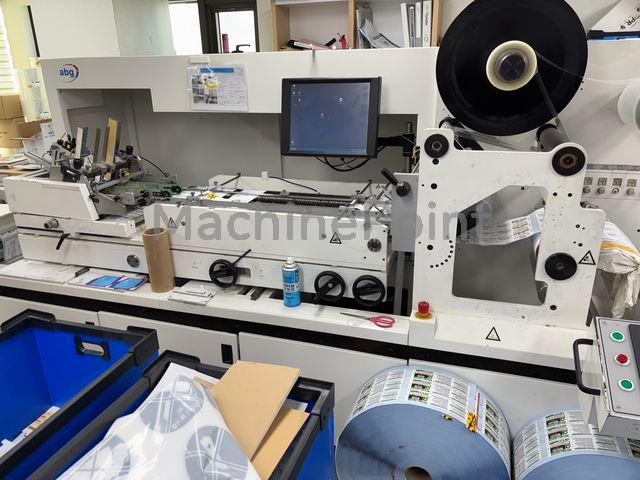

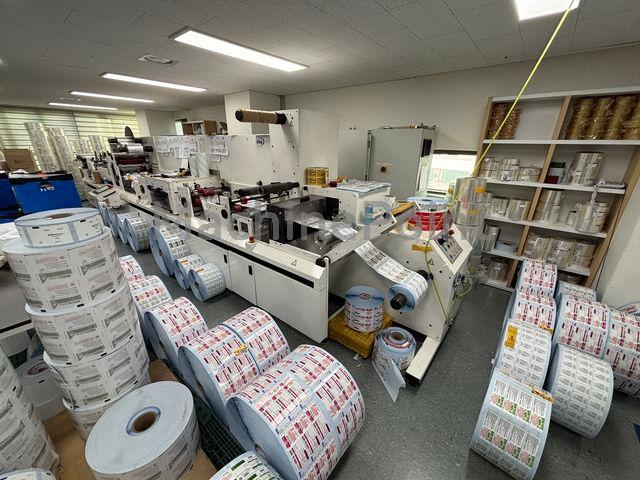

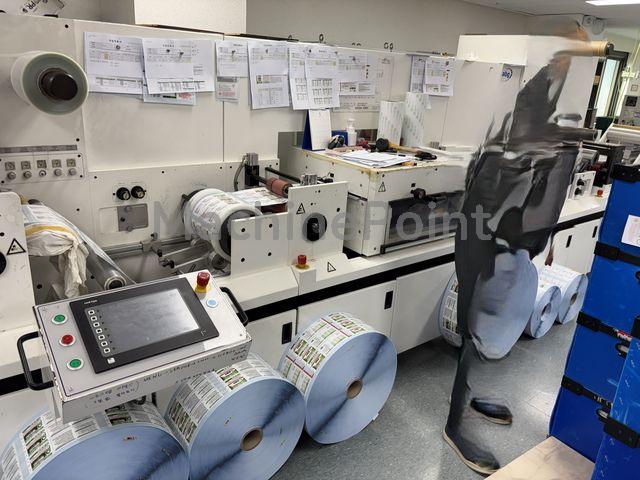

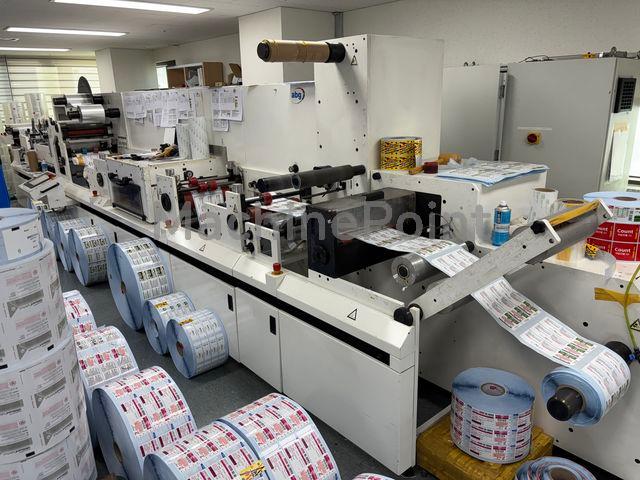

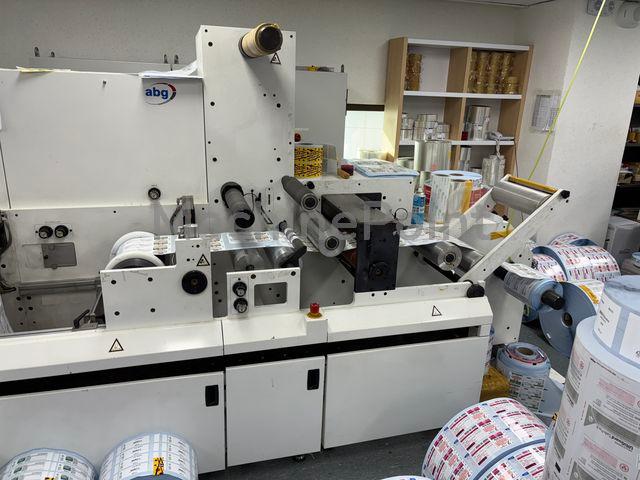

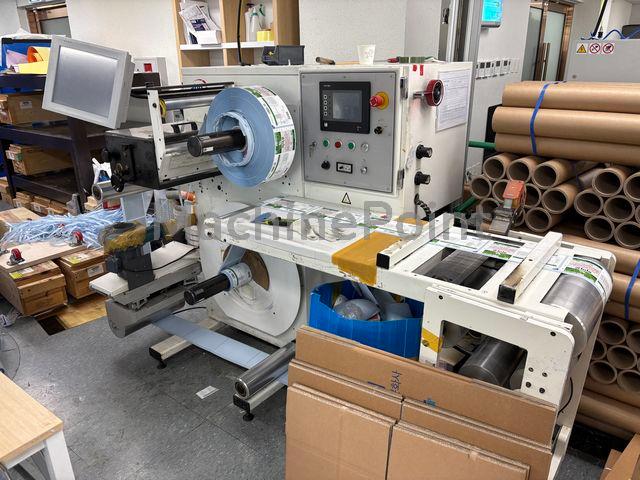

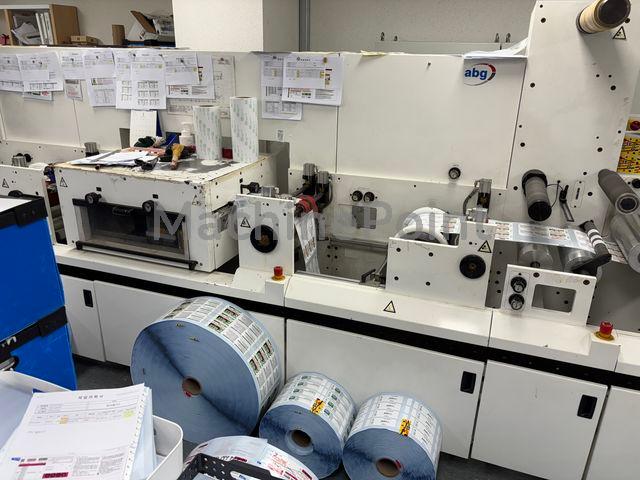

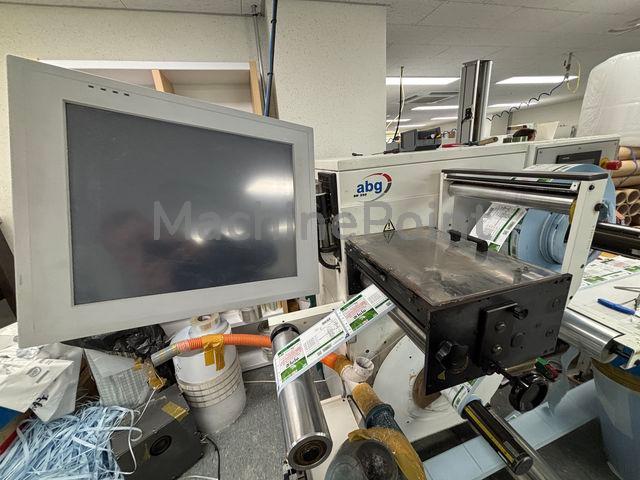

Used ABG Booklet + SR330 converting line for booklets of 2011 for sale

1 flexo and varnishing unit with UV Hot foil unit with GEW integrated 1 x Stork Rotary Screen with UV 1 x Flat beds or Embossing Unit 1 x standard semi rotary die unit 19” max. repeat with fully rotary option Lamination Maximum roll diameter unwinder: 700mm Web Guide Treater Waste Rewinder Razor Slitter and male/female knives

DIGICON SERIES 3 - Machine to be configured in right to left format. Basic Equipment Comprising Of: Cantilevered Ø800mm unwind module. Pneumatically braked unwind module complete with programmable end of roll slow or stop, automatic tension control, Ø76mm air expanding unwind mandrel and localised HMI controls. Electronic web guide with ultrasonic edge guide sensor and adjustable splice table, interlocked web clamps and tape dispenser. Space suitable for mounting web cleaner, corona & static elimination. Servo driven full rotary quick change flexographic printing station. Servo driven full rotary quick change flexographic printing station suitable for flood coating only, complete with light weight ink cartridge, Teflon coated high-capacity ink pan for easy wash up, rubber pick up roller, ceramic anilox roller (screen to customer’s choice), reverse angle doctor blade and one 11” rubber covered coating roller (coating width of 325mm as standard). GEW E2C low energy air cooled UV curing station 140w/cm (10”-25½” repeats available, tape and plate specifications also required). Servo driven semi rotary die cutting station. Servo driven semi rotary die cutting station complete with magnetic cylinder suitable for semi-rotary die cutting only. Complete with automatic die pressure on/off, re-register servo drive, electronic longitudinal register control and manual lateral register control. Servo driven shuttle assembly for semi rotary web motion. Servo driven full rotary infeed nip assembly with pneumatically pressurised nip roller. Machine to be supplied with 25 ½” cylinders as standard unless otherwise specified as “Special Note”. Servo driven waste matrix stripping. Servo driven waste matrix stripping assembly, with lay on roller, independently motor driven for precise tension control, maximum roll of Ø800mm. Foot pedal for easy setup of the waste matrix stripping. Servo controlled rewind module. Single spindle (upper position) product rewinder complete with Ø76mm air expanding rewind mandrel suitable for winding labels in/out 1 Vetaphone corona treater model CP01 with integrated controls and ventilator for conductive and non-conductive substrates. (other sizes and powers available on request) 1 Upcharge from full rotary flood flexo only print station to re-register rotary flexo print station. Adds a Servo driven full rotary infeed nip assembly with pneumatically pressurised nip roller to the flexo module. Re-register sensor and 1 plate cylinder to customer’s specification (10”-25½” repeats available, tape and plate specifications also required) 1 Upcharge from full rotary re-register flexographic printing station to semi rotary flexographic print station. complete with servo driven semi rotary shuttle. 1 Low inertia chill roller for operating in full rotary web motion only, chiller required. 1 Servo drive to chill roller. 1 1.8kW chiller for single lamp system. 1 Electronic dispro SOFTWARE upgrade subject to speed, die pattern and materials. Drive roller is included as standard 1 Kocher & Beck Gapmaster with lubrication system for semi rotary and full rotary re-register die cutting, fixed - not moveable. 1 Overlamination suitable for cold foiling/super varnishing and for handling laminate with or without carriers and complete with moveable quick release nip roller assembly. Capable of operating in full rotary mode for cold foiling but with speed limitation. 1 Scissor slitting module complete with lift out knife shafts & 5 sets of knives. 1 Razor blade slitting with 5 holders. 1 Back scorer with 2 knives (manual setting). 1 Lower position rewind with 76mm air shaft; suitable for 800mm dia. rolls; capable of winding labels in and out; including taper tension control as standard. 1 Upper web advance complete with 5 separators, multiple stop positions and pneumatic web clamp to aid accurate lane placement on roll changes. Included : Cylinder: 204T - Plate: 1,14 mm - Tape: 0,508 mm Anilox: 200LPI

Automatic cutting line Application: Unwinding / Rotary die-cutting / Linear die-cutting / Winding Width 320 mm. Automatic catch-up. Touch-screen control. Speed 100 M/min in cutting mode. Accessories : Tool change: 125Kgs electric hoist on jib. Loading of mother reels: A 500Kgs pneumatic reel lifter. The machine had been purchased for slitting and trimming flocked or abrasive labels, and the oscillating winding was a specific request in order to increase the size of the drop roll and thus increase output by reducing the frequency of roll changes. This is an interesting option, depending on the product being cut. It can be set to non-oscillating. Label die-cutting is feasible, depending on the type of die, and can be adapted to a wide range of formats. See photos of the latest products cut, which are sinusoidally edged, but it's the tool that determines this type of edging. You can also do straight edging, depending on the shape of the tool (as shown in the photos of the linked machine). You'll also see a label peeled off to see the type of adhesive.

Rewinder for reel-to-reel labels Used for quality control or rewinding on other diameters Full Rotary" max. speed: 150 for Ø 76 and 100 for Ø40mm Max web width: 330 mm Max. rewinding diameter: 350 mm Shafts diameter: 40 & 76mm There is no unwinder.

Machine build to work right to left Web width 330mm QUIPMENT DESCRIPTION / FEATURES: Unwind • 700mm unwind, electronic web guide (edge guide sensor) splice table and web clamps, auto brake tension control. • Roll lift for 700mm unwind • Corona treatment Vetaphone Infeed nip drive section, infeed dancer. Semi rotary flexographic printing station with quick change cassette comprising stainless steel ink pan, pick up roller, ceramic anilox roller and reverse angle doctor blade. The station has auto pre-positioning and servo drive re-register • 2 x Coating Cylinder 19” (coating width 320mm) • 1 x Printing Cylinder 19” o Flexo plate = 1,70mm o Tape = 0,20mm • 1 x Anilox roller 400LPI (6,77cm3/m2) • 1 x Anilox roller 200LPI (11,8cm3/m2) • GEW air cooled UV curing unit 140w/cm • Hot air drying system Over laminating tower with waste carrier rewind Mid press dancer to allow full rotary coating Semi rotary die cutting station with 19” magnetic cylinder (18” maximum repeat). • Kocher & Beck Gapmaster Outfeed nip drive section, outfeed dancer. Waste matrix stripping (maximum diameter 600mm) Rewind • Scissor slitting including 5 knives and removable knife shafts • Back Scorer used for edge trimming the silicon carrier, which is then rewound with the matrix. • Single spindle rewind with variable tension control, 76mm air expanding shaft • label length counter with batch and pause facility • Second rewind shaft with 76mm shaft Specification Maximum web width 330mm Minimum web width 180mm Maximum repeat length 18” (457,2mm) Minimum repeat length 2” (50,8mm) Rewind max diameter 500mm
