SML BCF 4x2E/75/75 of 2013 used

Other Specifications:

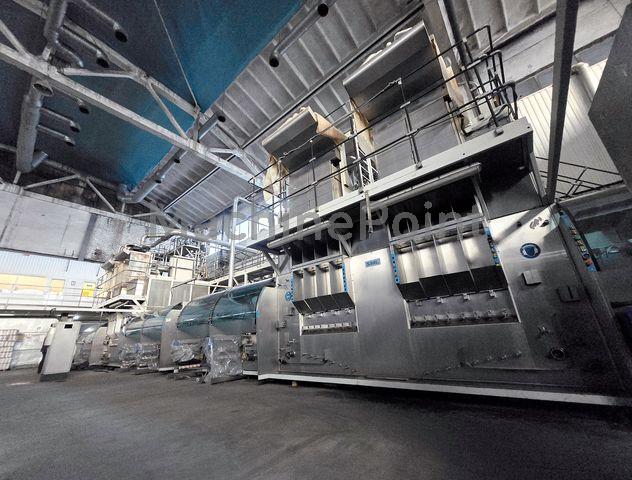

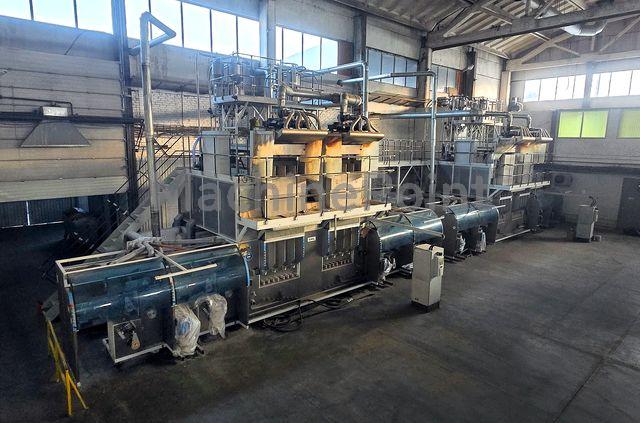

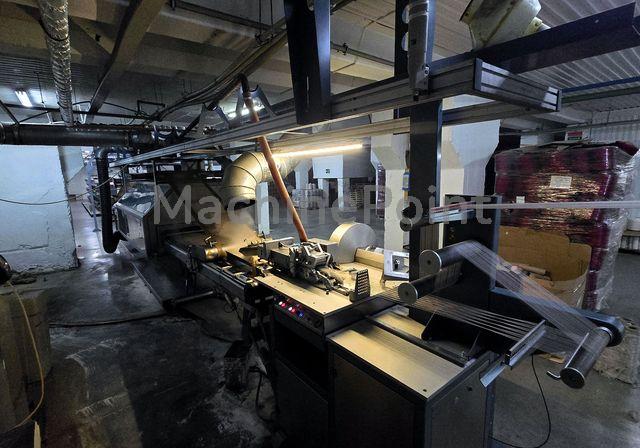

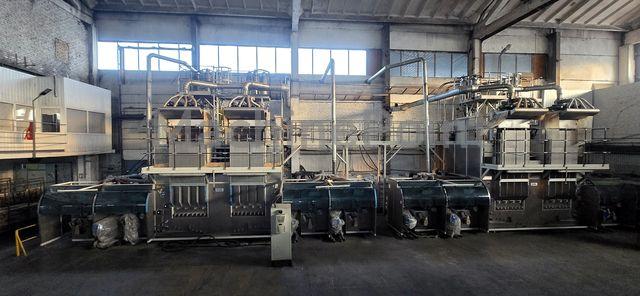

Multifilament extrusion line for BCF yarn production

Main technical characteristics:

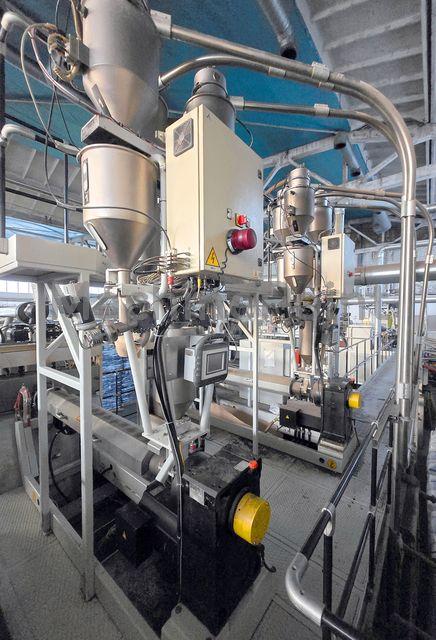

Number of extruders: 2
Type of extruders: single-screw
Screw diameter: 75 mm
L/D: 30:1
Performance of one extruder: 80 - 160 kg/h
Total line performance: 160 - 320 kg/h

Components:
SML main machine
SMILE control system
Winders Sahm 3200
(Maximum winding speed: 4000 m/min
Used cardboard sleeves: 73 * 3,0 * 290)
Electrical cabinet

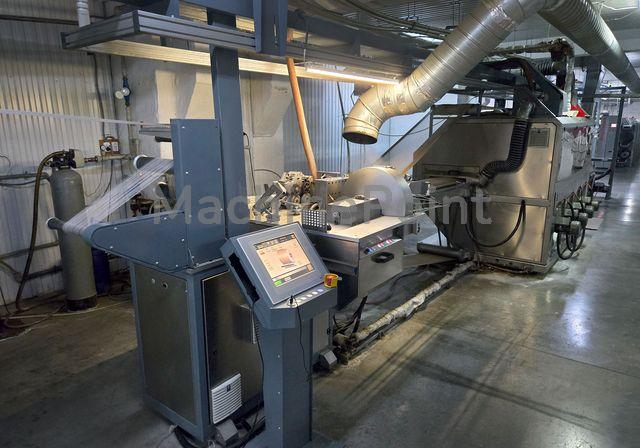

Operator panel
Chiller
Condenser

Technical characteristics of yarn:
Yarn: BCF
Material: PP
Dtex range: 800 - 3600

Yarn type Dtex Number of filaments
Fine 800 - 1200 96 * 210
Medium 1200 - 2200 128 * 270
Coarse 2200 - 3600 128 * 270

Available for sale separately (price on request):

1 Identical BCF yarn production line SML BCF 4x2E/75/75
Year of production: 2012

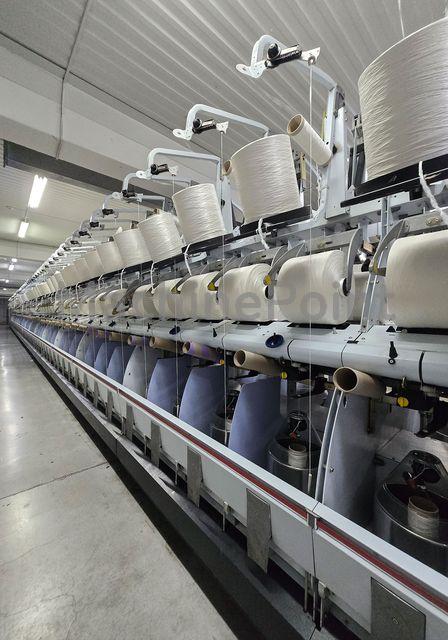

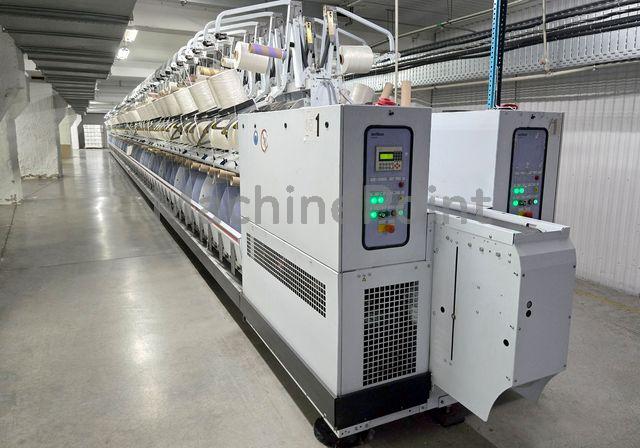

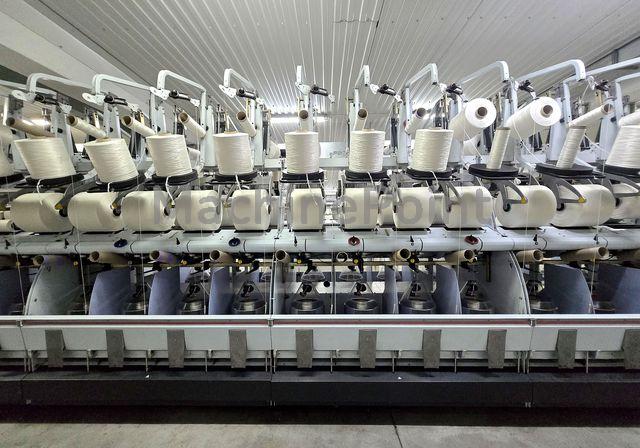

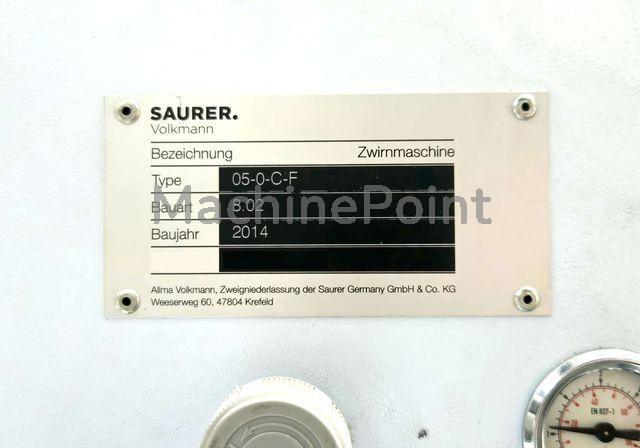

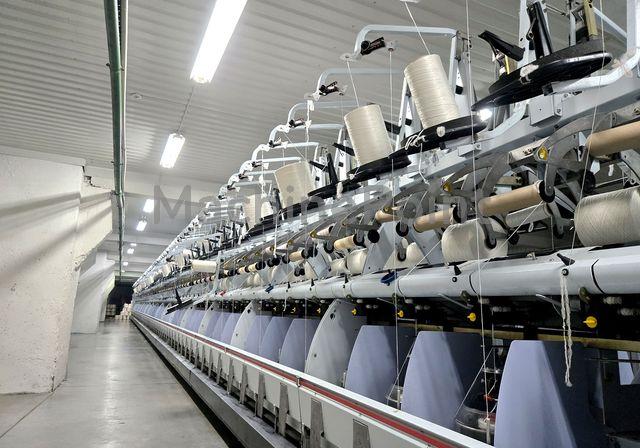

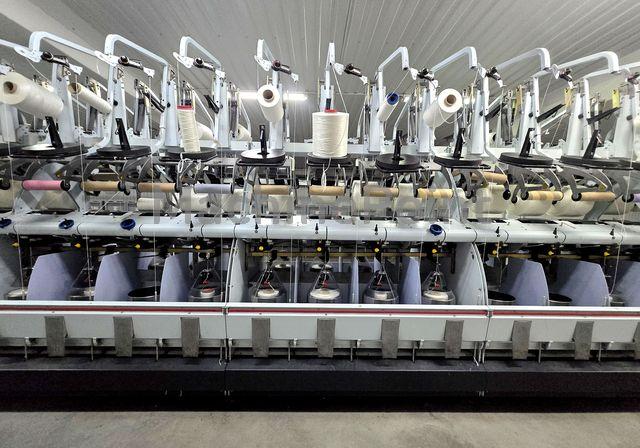

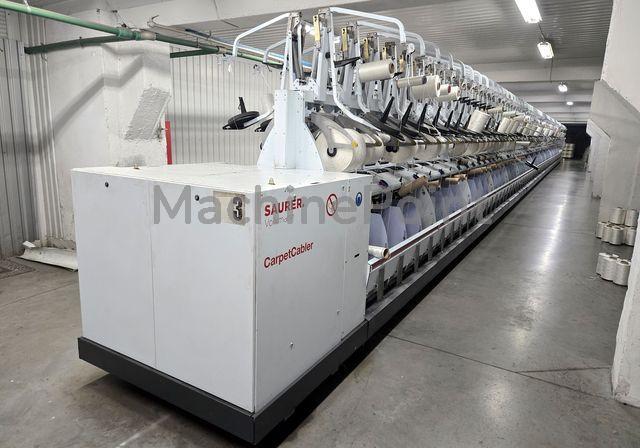

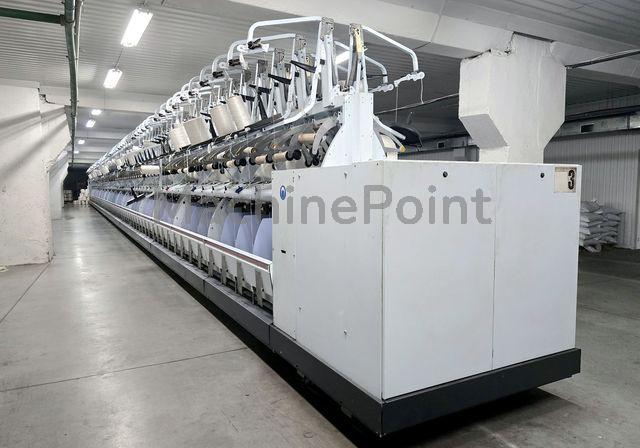

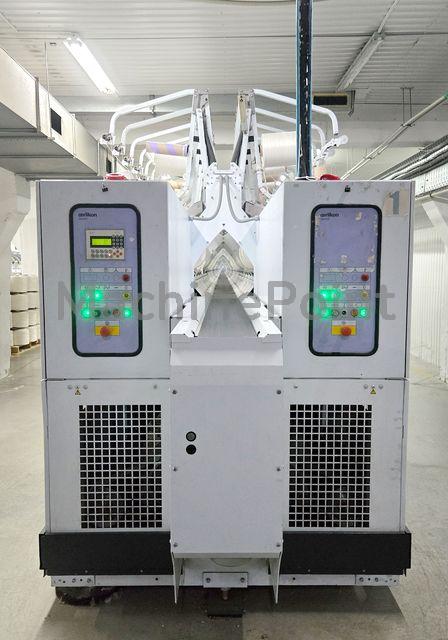

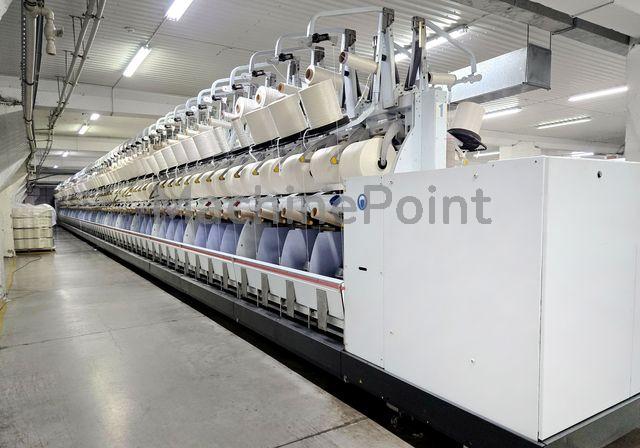

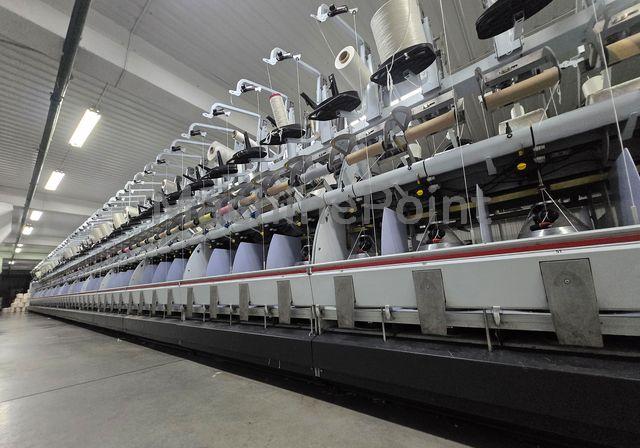

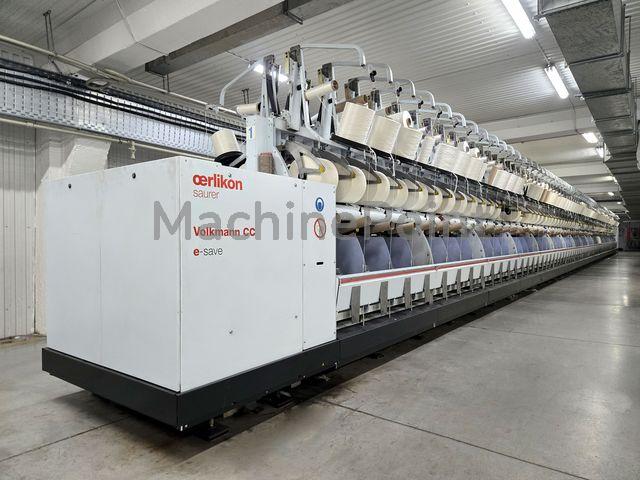

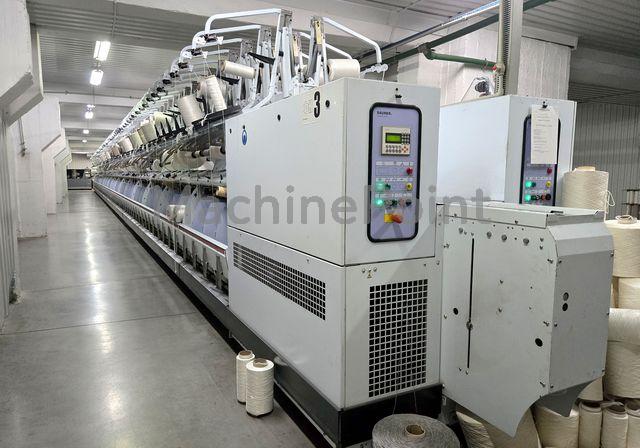

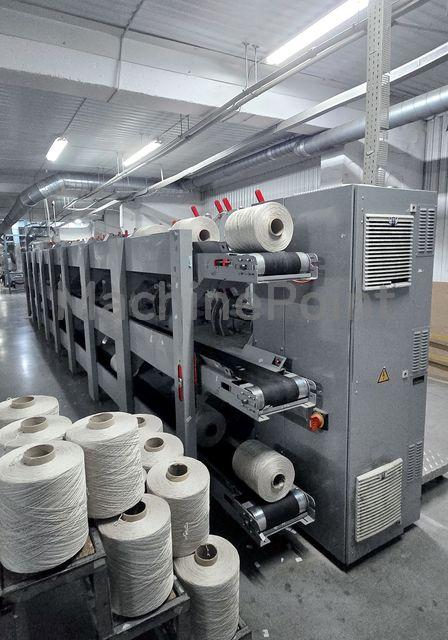

2 twisting / reeling BCF-yarn lines Saurer Volkmann Carpet Cabler (Germany)

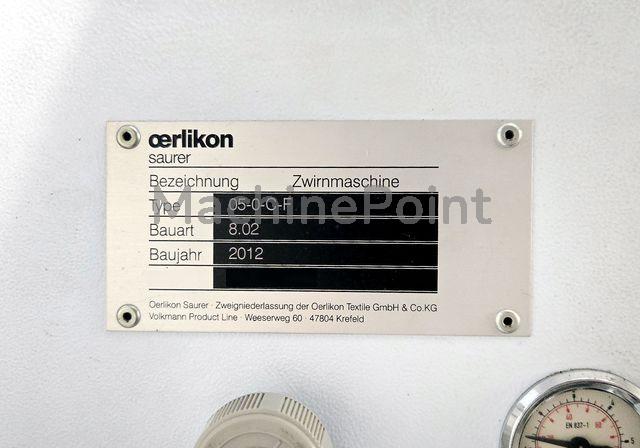

Model: 05-0-CF (each one)
144 Spindles (each one)
Years of production: 2012 and 2014

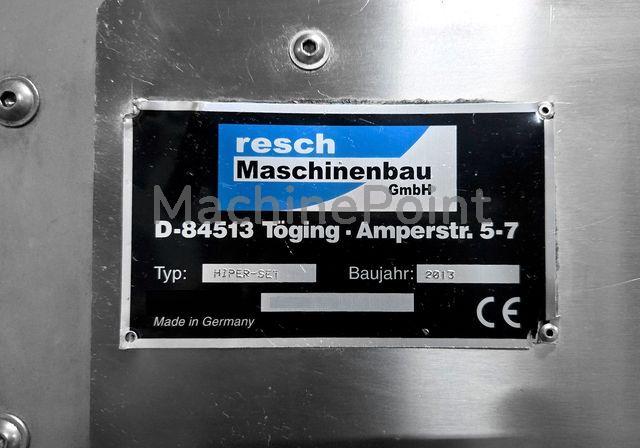

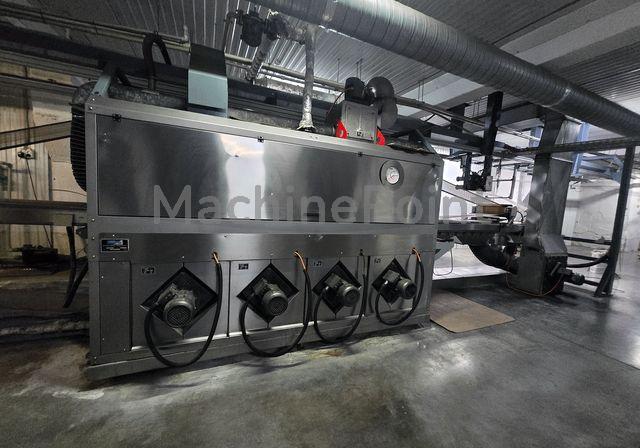

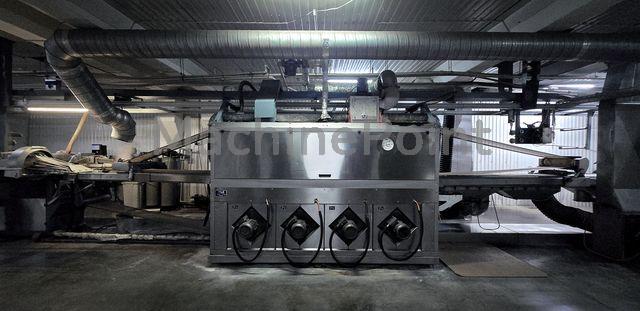

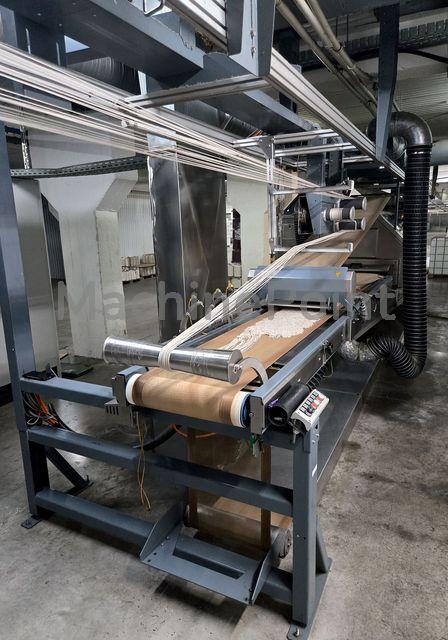

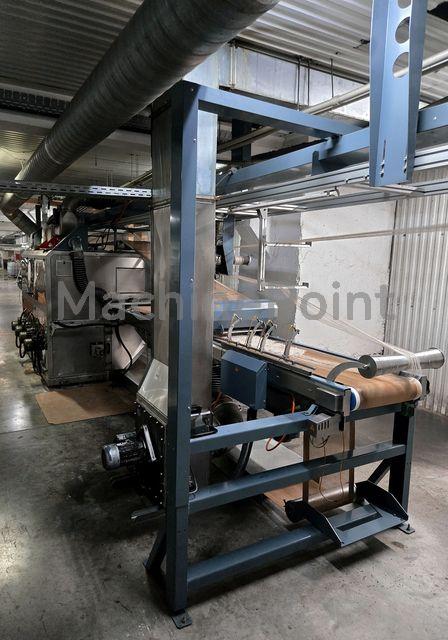

1 thermosealing line Resch Maschinenbau GmbH (Germany)
Model: HIPER-SET
Year of production: 2013

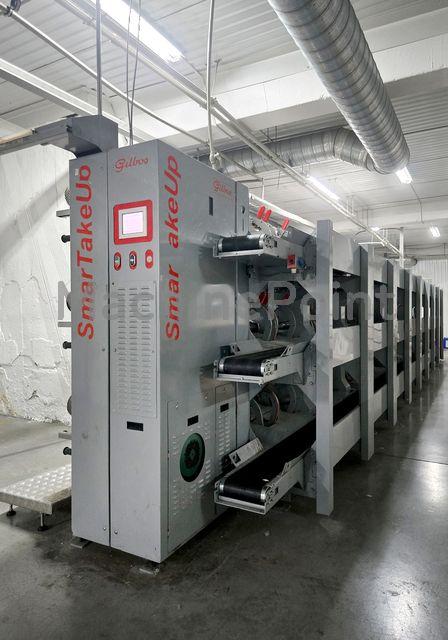

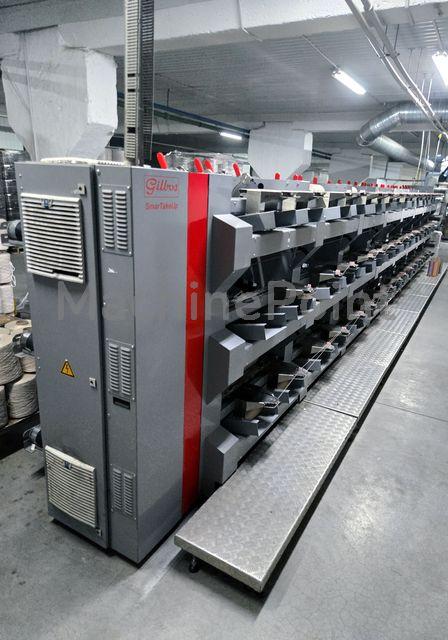

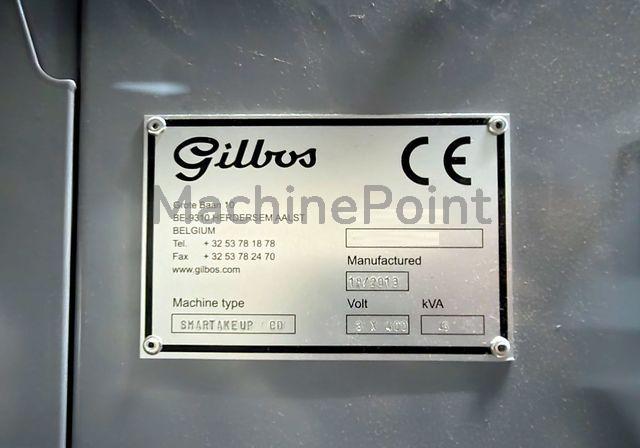

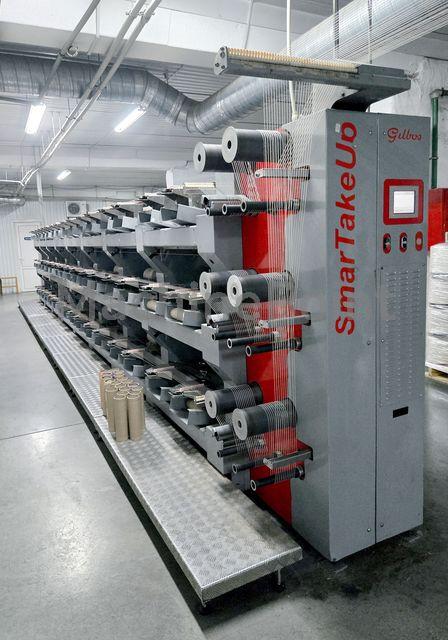

1 winder Gilbos (Belgium)
Model: SMARTAKEUP CD
Year of manufacture: 2013.
