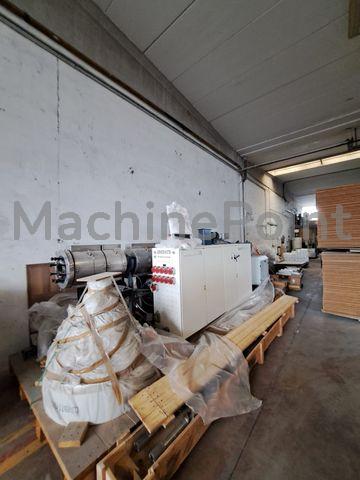

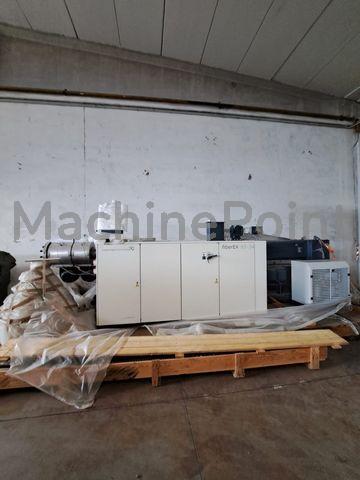

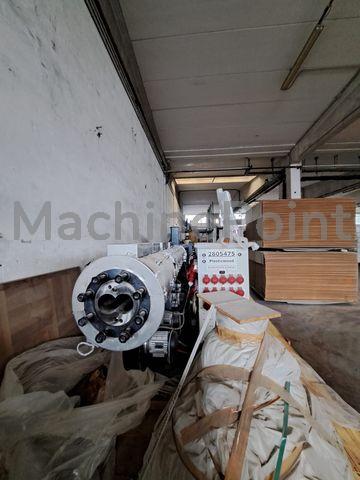

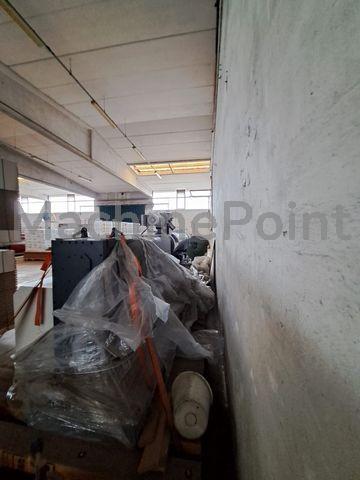

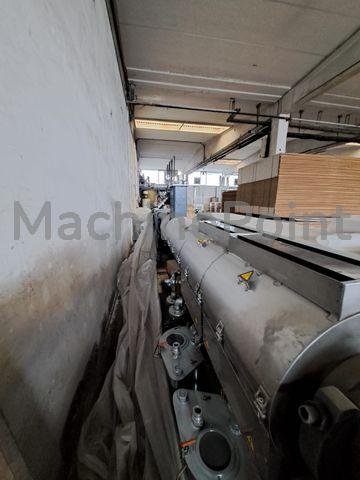

Used BATTENFELD-CINCINNATI fiber-EX 93-34D of 2016 for sale

Working hours: 47 700 Included: two sets of screws and barrels

Complete line for production of cups / vending cups consists of: 4 layers sheet extrusion line Battenfeld-Cincinnati BEX 1-75-40 V, Thermoforming machine WM FT 700, Packing machine Imanpack Material to process PS / PP. The same die head for multilayer PS and mono PP sheets Sheet extrusion line for the production of PS multi-layer sheets and mono PP sheets: 1. Main extruder BEX 1-75-40 V for PP/PS (Year: 2012) Screw diameter 75 mm Static mixer, Manual screen changer, Melt pump Production capacity (PS)- 600 kg/h 2. Co-extruder BEX 1-35-30 B (Year: 2012) Screw diameter -35 mm, Production capacity - 40 kg/h 3. Co-extruder BEX 1-45-32 V (Year: 2012) Screw diameter - 45 mm, Production capacity - 200 kg/h 4. Co-extruder BEX 1-45-32 V (Year: 2012) Screw diameter - 45 mm, Production capacity - 200 kg/h 5. Mixture block: 4 connections; mixture of A-B-C-D 6. Flat die: width 1000 mm Sheet width min. – max.: 730 mm – 1000mm Sheet thickness: 200-2000 µm 7. Calander ILV 400-T2; width 1050 mm, 3 rollers of 400 mm each, individual drive of each roller, individual built-in water cooling of each roller, 2 draw rolls 250 mm each 8. Thermoforming Machine: WRAPPING MACHINERY FT 700 (Year: 2010) Maximum outside mold dimensions: 705 - 400 mm Maximum trim area dimensions: 685 - 340 mm Sheet width 400-750 mm Sheets pre-heating: two sheet edge heaters before entering in the termoforming machine 9. Rim Roller 10. Conveyor belt 11. Packing machine Imanpack (Year: 2013) 40 packs/min PE film with counter device 12. 1 electric extruders control cabinet 13. 2 electrical calender control cabinets 14. 1 electric thermoformer control cabinet 15. Mezzanine for main extruder dosing and feeding system 16. One mold for PS cups (32 cavities) with two inserts 180, 155 ml 17. One mold for PP cups (32 cavities) 200, 220 ml. 18. Grinder OFFICINE MECCANICHE VERONESI (Year: 1989) with tubes for grinded material move back to the process + accumulation hopper Dosing equipment: 1. For the main extruder BEX 1-75-40 V for PP/PS (Year: 2012): Manufacturer: EnginPlast For 4 components, consists of: 1) Volumetric dosing unit DPM 35/100 2) Volumetric dosing unit DPM15/30 3) Volumetric dosing unit DPM15/50 4) Volumetric dosing unit DPM15/50 5) Pressurised loading system DMIX AF 120 2. For the co-extruder BEX 1-35-30 B (Year: 2012) Manufacturer: EnginPlast For 1 component, consists of: 1) Material hopper volume: 35 litres 2) Volumetric dosing unit DPM15/30 3. For the co-extruder BEX 1-45-32 V (Year: 2012) Manufacturer: EnginPlast For 2 components, consists of: 1) Material hopper volume: 50 litres 2) Volumetric dosing unit DPM15/30 3) Volumetric dosing unit DPM15/30 4. For the co-extruder BEX 1-45-32 V (Year: 2012) Manufacturer: EnginPlast For 1 component, consists of: 1) Material hopper volume: 50 litres 2) Volumetric dosing unit DPM15/30.

Three layer die-head for production of PVC foam core pipes. Complete with heaters. Year of production : 2018 Dimensions: 110; 125; 160; 200 mm SDR: 41; 34 Integrated feed block – SPYDER tecnhology for foam core 3 layer pipes New chrome coating

BI-INJECTION MOLDING MACHINE Battenfeld HM 400/2250/750S Year of production: 2011 Control system: Unilog B6S injection unit: .../2250/750 Screw diameter: 65/45 mm Specific injection pressure: 2070/2116 bar Injection volume: 1078/358 ccm Injection weight: 981/325.8 g Mould closing system: 400/... Clamping force: 400 t Mould platen dimensions: 1450 x 1350 mm Distance between tie bars: 900 x 710 mm Mould height: 1175 mm Opening stroke: 600 mm Max. distance between platens: 1775 mm Pump motor power: 75 kW Cylinder heating bands power: 29.4/12.1 kW General data: Availability: Immediately Dimensions (m) LxWxH: 7.0 x 2.4 x 3.3 m Weight: 22100 kg Instrumentation: - 4 x hydraulic core - 8 x cascaded control - 1 x air valve - 1 x extendable column for changing forms - Batteries - Robot - Conveyor belt - Restricted access zone - Cooking feeder new screw+barrel 65mm included in the offer (ask for the price) without guarantee

Used Materials PP; ABS; PC; PA;TPE Hours worked: 73 612 h (October 2022) No robot included
