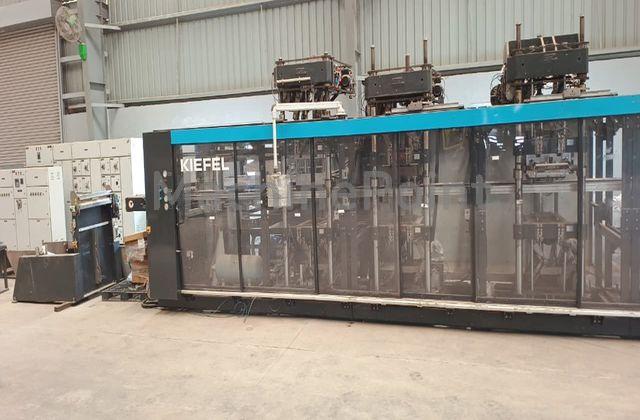

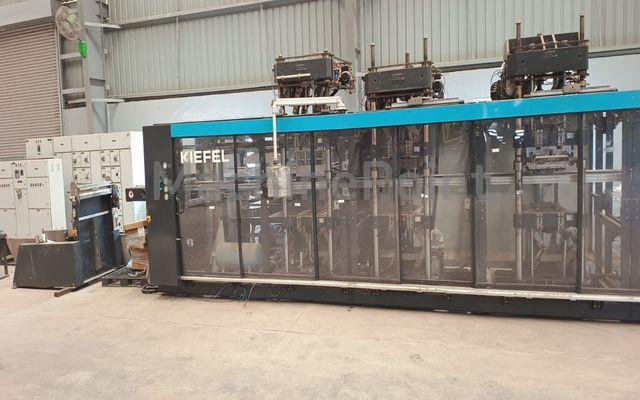

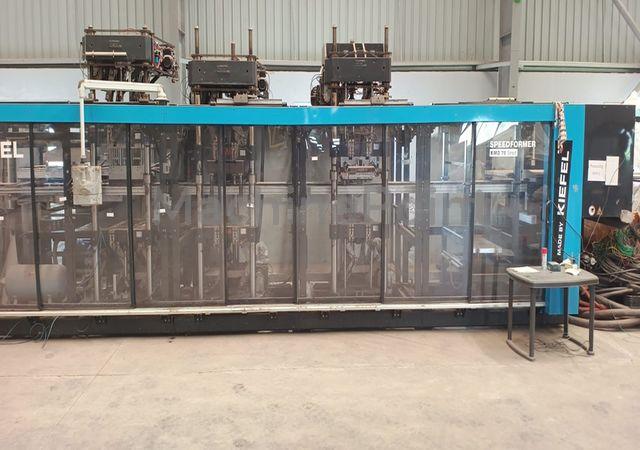

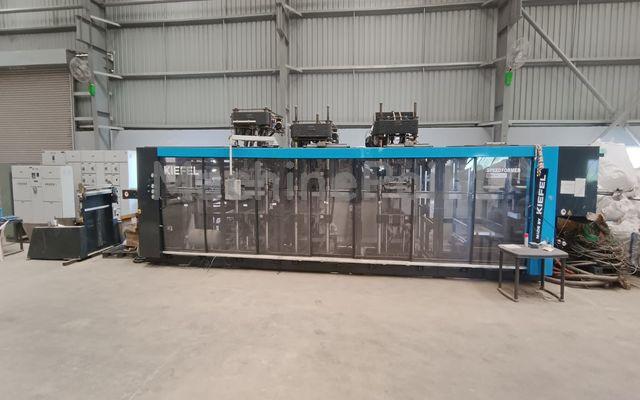

Used KIEFEL KMD 78 SMART of 2019 for sale

4 stations thermoforming machine Min Forming area 375x350 mm Tool dimensions 780x560 mm Film width 810 mm Max theorical production 40/min Forming station force 250kN Cutting station force 500 kN Hole station force 300 kN

Available at the beginning of July Working hours : 69313 Forming area min-max : 380x250 - 750x540mm Post/neg forming depth : 150mm Max material width : 800mm Forming force : 500KN Cutting force : 800KN The machine has 3 stations (forming, cutting and upper stacking). Maximum output: 35 cycles/min

KLS-machine with 4-up rotary upper table and a 2-up rotary lower table, equipped with a foil preheating station. Used to produce high-quality IMG laminated car doors Max punching force OT: 30 kN min. thermoforming area: 340 x 1200 mm max. part height: 220 mm Foil level: 1805 mm Direction of film passage: from left to right (operating side) Extraction capacity: 500 m³/h Compressed air consumption: 300 Nl/cycle Connected load: 326 kVA Rated current 471 A Back-up fuse: 500A

Forming/Cutting/Stacking Universal automatic thermoforming machine for thermoforming by compressed air and/or vacuum. Forming area min : 260x250mm Forming area max : 520x400mm Part height max positive/negative : 120mm Max sheet width : 570mm Max sheet thickness : 1.5mm Sheet level : 1216mm Max operating pressure : 6bar Compressed air consumption : 50 Nl/cycle Cooling water consumption : 200 l/min Max cooling water pressure : 5 bar Max capacity in dry cycle : 50 cycles/min BFS molding station : Drive motor power up/down : 4.48 kW Table travel (constant) : 140mm The stacking is with a robot installed several years ago, but it is possible to put back the standard kiefel stacker. The unwinder oven is from 2004. If the machine works with PP, it is necessary to use it as an oven. Working hours on 23/07/2024 : 34223

Max. sheet width: 805 mm Depth of draw: Positive: 15mm Output: 40 cycles/min Molds: 48 cavities (dimension each 85 mm) Mold closing force: 600 kN Servo Plug Assist Forming and In mold cutting Stacking Kist 78/56 Grinder Drive: Siemens Simotion PLC's Manufacturer: Siemens Electical usage: 258 kVA Air consumption: 35 NI/Cycle (without forming air)
