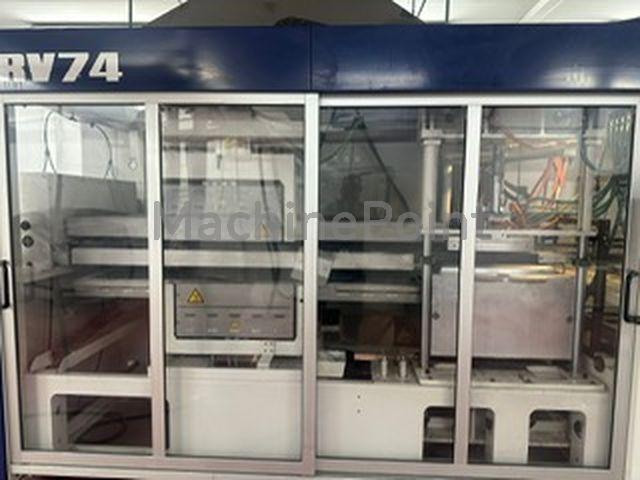

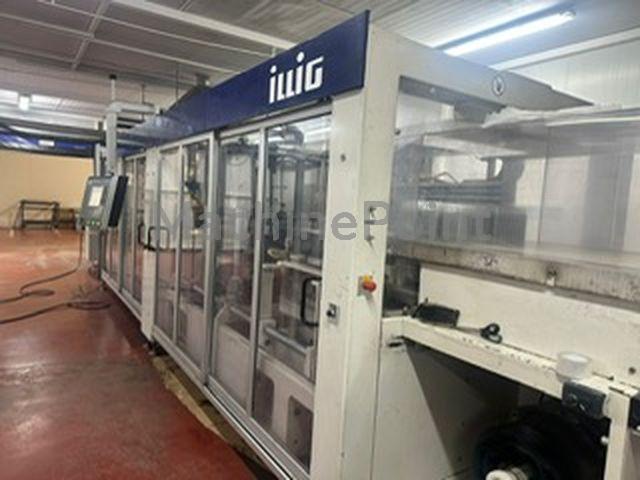

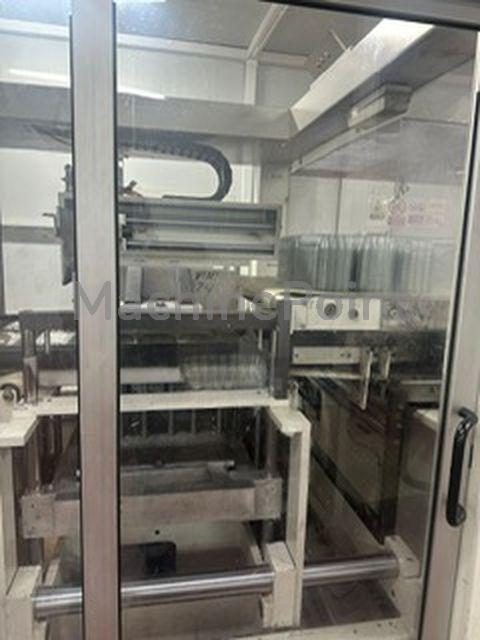

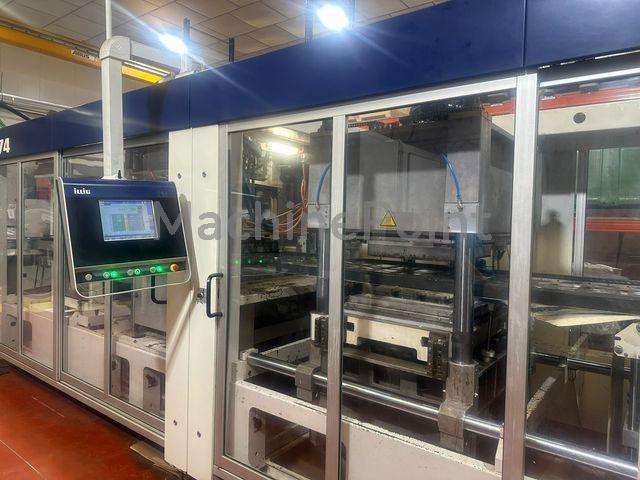

Used ILLIG RV74C of 2016 for sale
Thermoformer ILLIG, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used ILLIG RV74C
Ref.: 300050057
Year: 2016
Brand: ILLIG
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Forming Area (Vxh): 704x515
- Depth Of Draw: 120 mm
- Material Thickness (Min): 0.18 mm
- Material Thickness (Max): 2 mm
- Products Type: Container

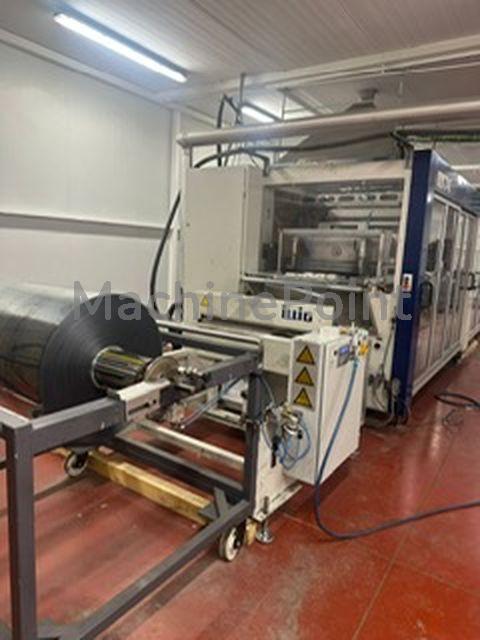

- Feeding Systems: Roll fed
Other Specifications:
Forming/Cutting/Stacking
Min-max forming area: 400x250 - 704x515
Tool width between film transport spars min-max: 420-724mm
Tool length in feed direction min-max: 274-538mm
Film width min-max: 454-760mm
Max. gap dimensions per side: 12mm
Feed length min-max . 250-540mm
Formed part height above film level max: 120mm
Formed part height below film level max: 40mm
Table travel upwards max: 160mm
Table travel downwards max: 195mm
Clamping frame upstroke max: 140mm
Blow box stroke max: 60mm
Upper heater length: 2000mm
Lower heater length: 1875mm
Vacuum pump flow max: 100m3/h
Max. mold clamping force: 80 kN
Max. forming pressure: 2 bar
Max. cycle rate: 35 cycles/min

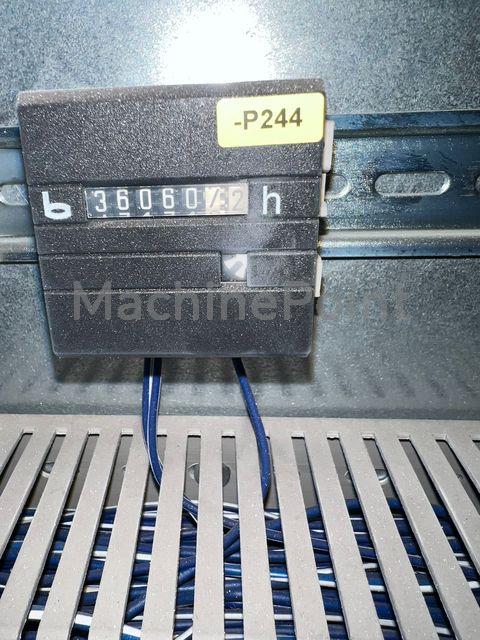

Working hours at 08/04/2026 : 36060
Molds available for sale too (ask for list and price)
Refurbishment done in January by Illig (36.000€)

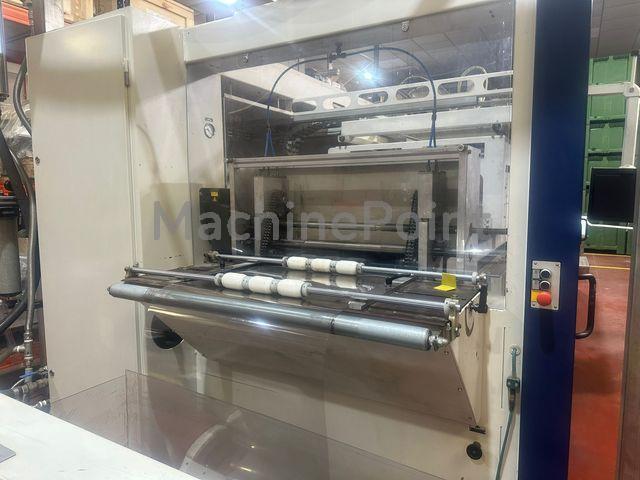

Complete repair of the sheet width at the material inlet, replace all bearings and gears, worm shafts, drive shaft, clean and reassemble.
Complete repair of the sheet width after the forming station, replace worm shafts and bearings.

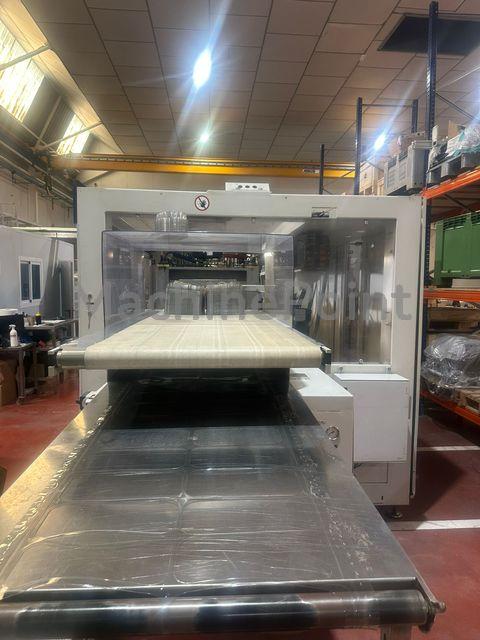

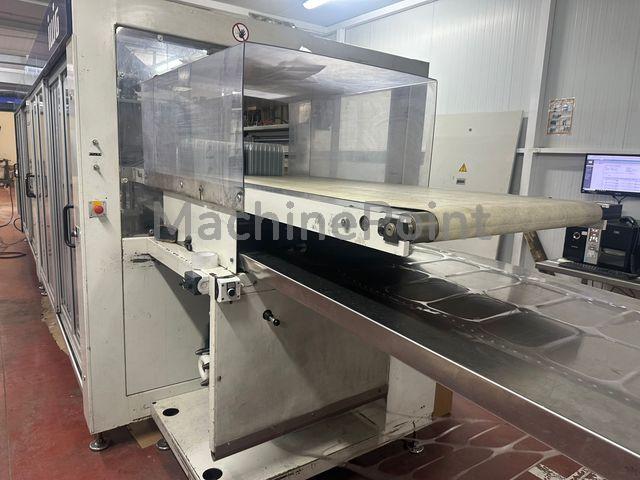

Complete repair of the conveyor, straighten the conveyor, replace side plates, repair bottom plates, realign conveyor fasteners, clean, and reassemble.
Repair the chain drive, replace bearings and sprockets.
Repair all limit switches on the die-cutting and stacking stations.

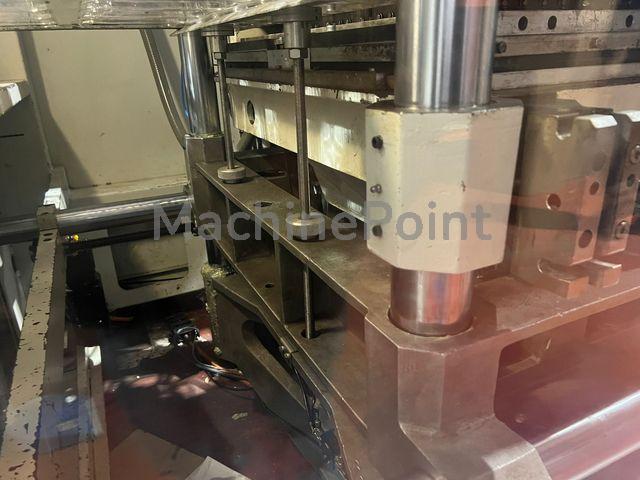

Perform a overhaul of the punching station, install automatic lubrication, completely disassemble the punching station from the machine, repair tables, repair and align the intermediate section using 0.02 and 0.01 gauges to achieve perfect parallelism, clean and repair height adjustment wheels and spacer discs, repair adjustment chain wheels and tensioners, sand the table surfaces with a grinding stone until a perfectly flat surface is achieved.
Achieve parallelism with the following results:
Operator side, sheet input: 0.002
Operator side, sheet output: 0.000
Non-operator side, sheet input: -0.004
Non-operator side, sheet output: -0.001
The machine is started up, the repairs are verified, and everything is functioning correctly.
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
