Used BANDERA TR60 of 1995 for sale

1995 | Ref.: 300050075

Extrusion line for PVC profiles BANDERA, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.

Data Sheet of Used BANDERA TR60

Ref.: 300050075

Year: 1995

Brand: BANDERA

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

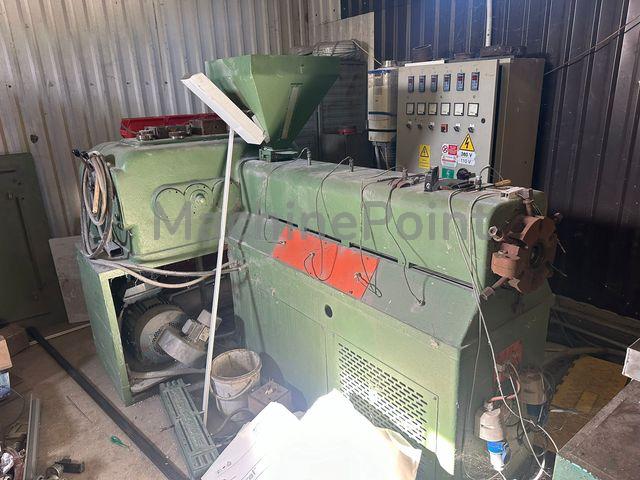

BANDERA - TR60 - Used machine

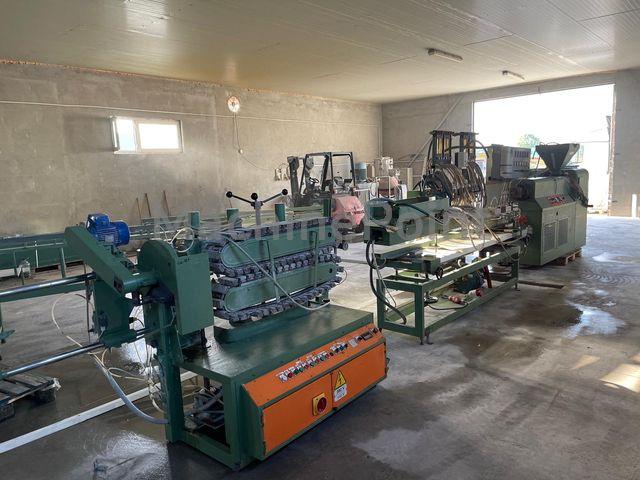

BANDERA - TR60 - Used machine

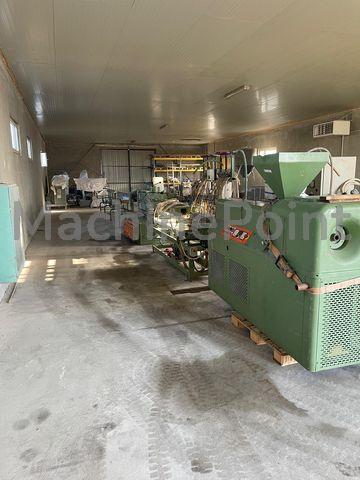

BANDERA - TR60 - Used machine

Technical Specifications:

  • Profile Width (Max): 100 mm
  • Output Capacity: 60 kg/h
  • · EXTRUDER: Bandera
  • Screw Diameter: 60 mm
  • Number Of Screws: 1
  • Screw L/D Ratio: 20
  • Main Drive Power: 15 kW
  • · CALIBRATION TABLE: Bandera
  • Length: 3000 mm
  • · CATERPILLAR HAUL OFF: Bandera
  • Belt Contact: 1500 mm
  • · SAW: Bandera
  • Cutting Height: 100 mm

Other Details:

Guarantee: Without guarantee

Current condition: Disconnected. Can't be seen in running condition

Availability: Immediate

MachinePoint's services:

Loading and lashing

Packaging

Dismantling

Refurbishing & Overhauling services

Used Machinery Appraisals

Transport of industrial machinery
