Used ILLIG RV74C of 2015 for sale
Thermoformer ILLIG, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.
Data Sheet of Used ILLIG RV74C
Ref.: 300050094
Year: 2015
Brand: ILLIG
Delivery time: > 3 months
Ask for machine price Want to sell your machine?
Technical Specifications:
- Forming Area (Vxh): 704x515
- Depth Of Draw: 120 mm
- Material Thickness (Min): 0.18 mm
- Material Thickness (Max): 2 mm
- Number Of Stations: 2
- Products Type: Container
- Feeding Systems: Roll fed
Other Specifications:
Machine available in October 2026.
No stacking unit
Can be sold with or without a preheater VHW 90/2b year 2015 (price listed does not include a preheater)

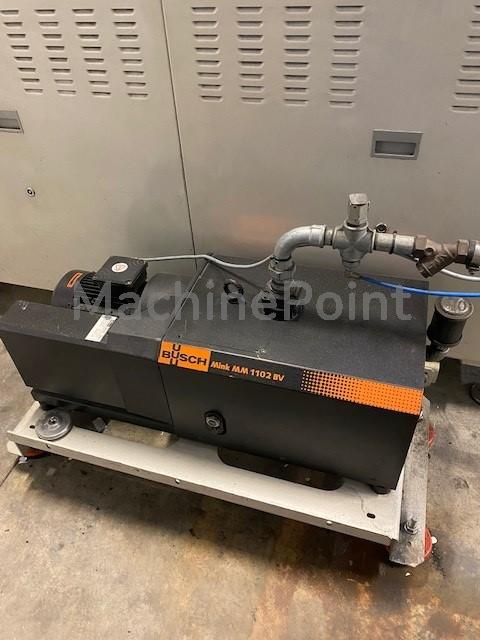

Reinforced vacuum pump

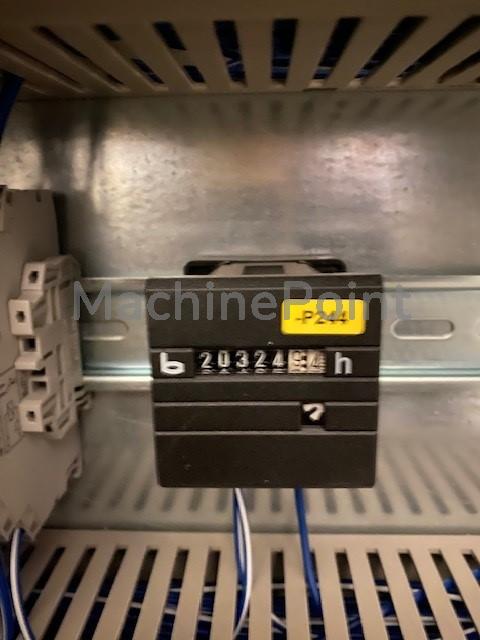

Working hours on 16/04/2026 : 20324
Forming/Cutting
Min-max forming area: 400x250 - 704x515
Tool width between film transport spars min-max: 420-724mm
Tool length in feed direction min-max: 274-538mm
Film width min-max: 454-760mm
Max. gap dimensions per side: 12mm
Feed length min-max . 250-540mm
Formed part height above film level max: 120mm
Formed part height below film level max: 40mm
Table travel upwards max: 160mm
Table travel downwards max: 195mm
Clamping frame upstroke max: 140mm
Blow box stroke max: 60mm
Upper heater length: 2000mm
Lower heater length: 1875mm
Vacuum pump flow max: 100m3/h
Max. mold clamping force: 80 kN
Max. forming pressure: 2 bar
Max. cycle rate: 35 cycles/min
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: > 3 months
