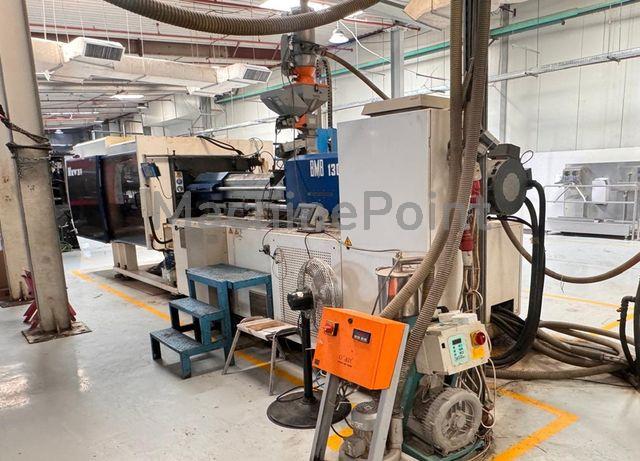

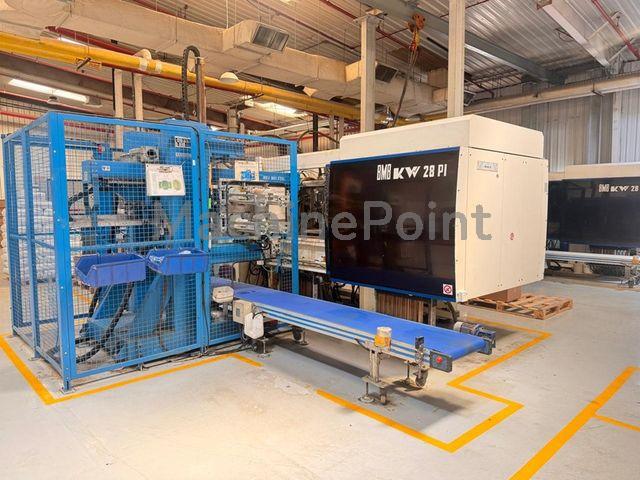

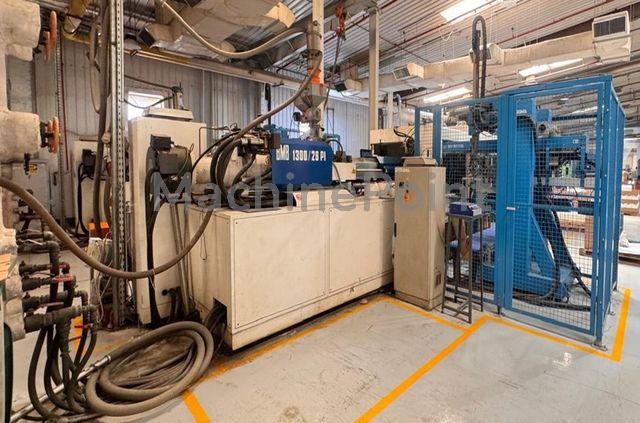

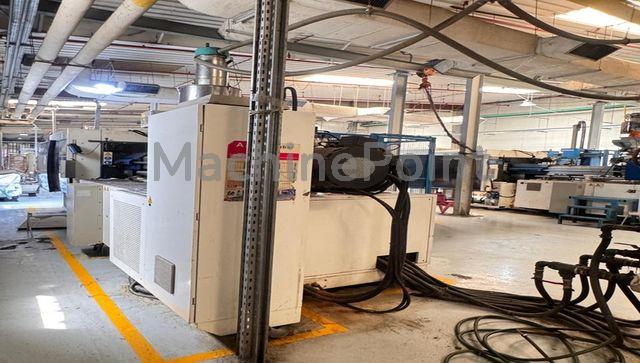

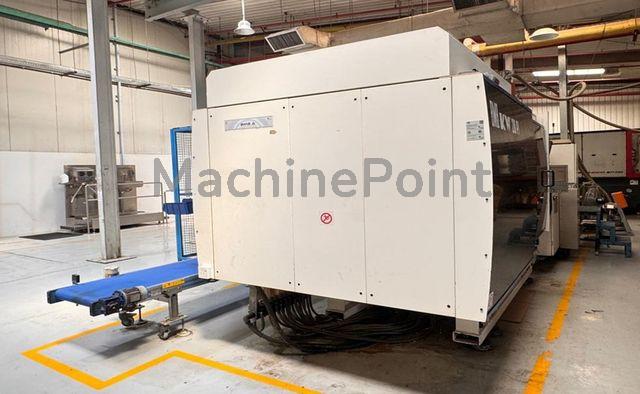

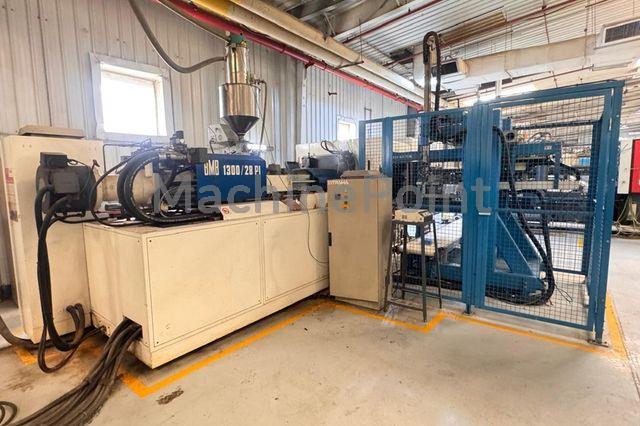

Used BMB BMB 36 KW28P1/1300 of 2006 for sale
2006 | Ref.: 300050101
Injection molding machine from 250 T up to 500 T BMB, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.
Data Sheet of Used BMB BMB 36 KW28P1/1300
Ref.: 300050101
Year: 2006
Brand: BMB
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 280 ton
- Shot Weight (Max): 536.9 g
- Distance Between Tie-Bars (H): 630 mm
- Distance Between Tie-Bars (V): 560 mm
- Platen Size (H): 910 mm
- Platen Size (V): 840 mm
- Screw Diameter: 55 mm
- Control Type: Hydronica
- Tie-Bar Diameter: 100 mm
- Mould Thickness (Max): 650 mm
- Mould Thickness (Min): 200 mm
- Daylight Between Platens (Max): 1250 mm
- Opening Stroke (Max): 600 mm
- Ejector Force: 6.7 ton
- Ejector Stroke: 220 mm
- Screw L/D Ratio: 25
- Screw Speed: 450 rpm
- Injection Volume: 590 cm³
- Injection Rate: 2500 cm³/s
- Nozzle Stroke (Max): 450 mm
- Plasticising Capacity: 65 g/s
- Heating Capacity: 220 kW
- Oil Tank Capacity: 700 l
Other Specifications:
Feeding systema & IML Robot included
EUROMAP 12
Product made = Lids
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
