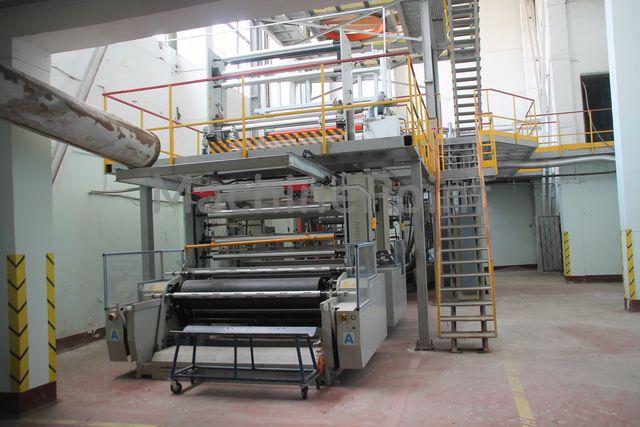

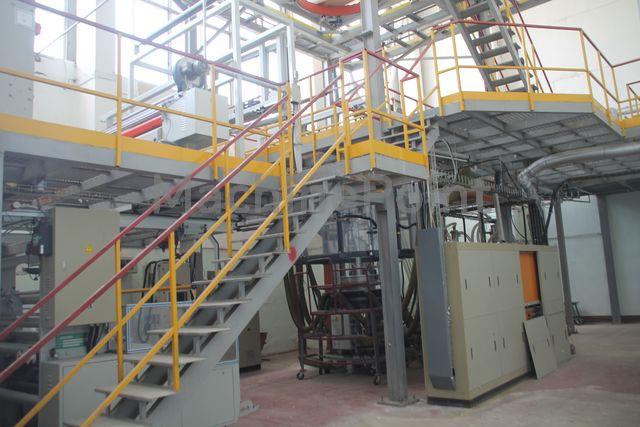

Used MACRO ENGINEERING BLOWN FILM LINE of 2008 for sale

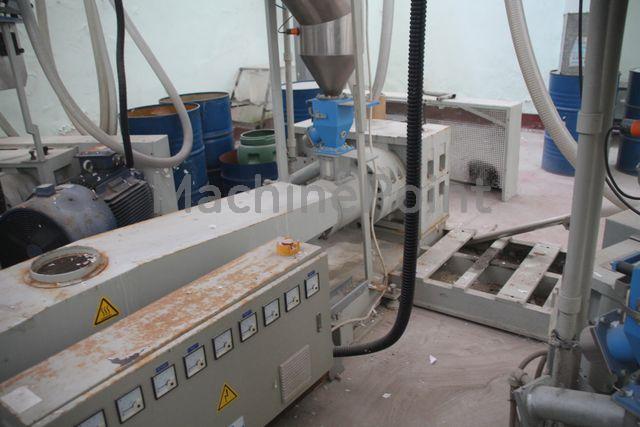

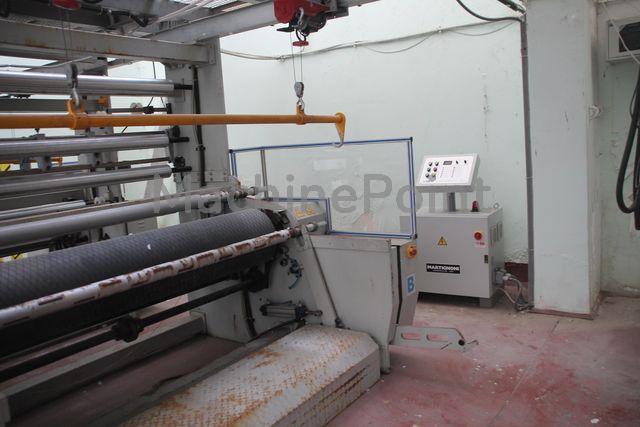

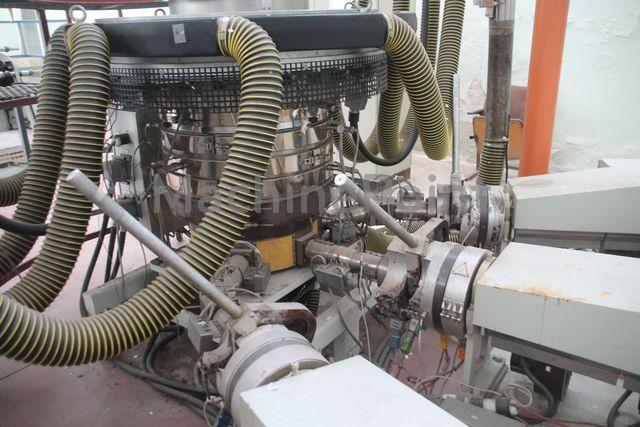

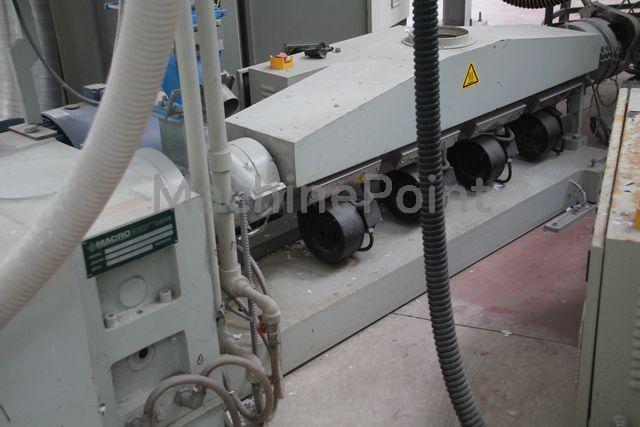

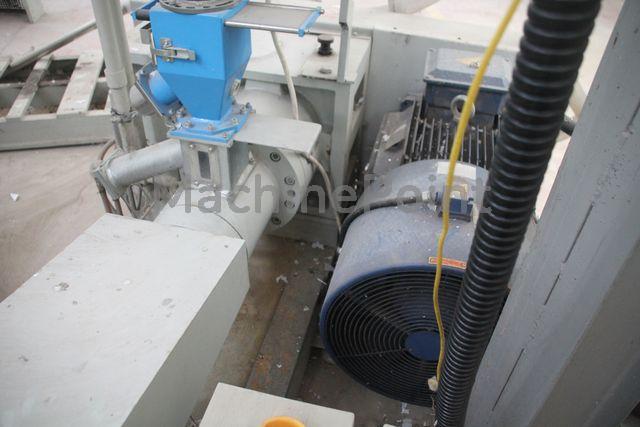

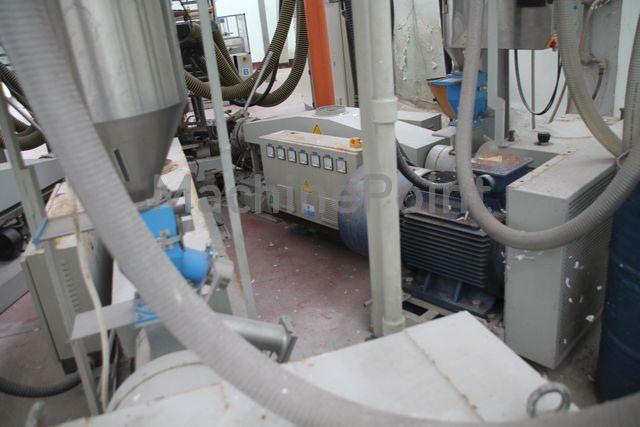

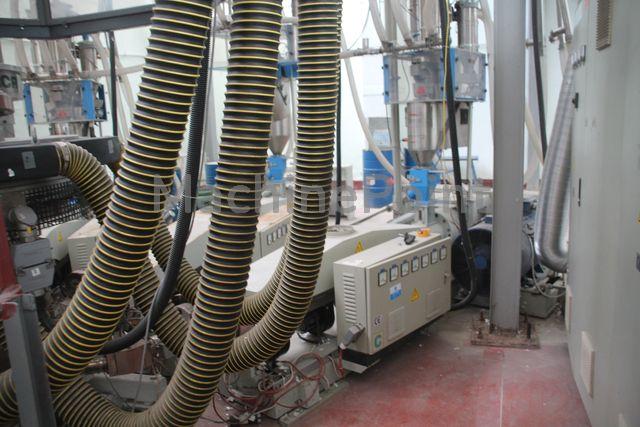

This extrusion line has produced sheet of ELVAX 3185 at a thickness from 0,20- 1,0 mm for photovoltaic solar panels Macroplast Extruder diam. 3" L/D 24 Gearbox SF 1.6 min Max. screw speed:80 RPM No. of heat/cool zones :5 Zones Motor Size 250 HP 1675 flat die diameter Three roll stack castin chill roll station Three roll stack, 18” diameter rolls, with independent temperature control system and AC drives for each roll 1 X NDC 8000 SERIES BACKSCATTER THICKNESS GAUGE 2 X SINGLE SPINDLE NON-DRIVEN UNWIND STANDS 88” face width, unwind for carrier web, max roll dia 48”, includes pneumatic brakes with loadcell feedback for tension control, brakes have selector valve allowing operation with 1 or both brakes. Each unwind mounted on wheels to allow side shift out of web path, travel distance sufficient to allow loading with roll cart. IDLER ROLL/CONVEYOR ASSEMBLY WITH DANCER Between chill rolls/casting unit and slitting station PULL ROLL/ANVIL ROLL SLITTING STATION – 88” Face width 2 X 2 SPINDLE 88” FACE AUTOMATIC TURRET WINDERS Each with gap or contact winding capability, flying knife cutover, web tucking assemblies, dancer tension control, taper tension control, and AC Vector variable motors and drives (SSD/Eurotherm) on spindles and turret indexing. Both winders include cantilevered shafts (swing gate) for ease of roll removal without the need for handling airshafts (designed for 3” & 6” airshafts). SLITTER SECTION, 4 slitting heads. Infrared oven 2 X Dual spindle trim/scrap winders. Cantilevered design with pneumatic core chucks to accept 3” cardboard cores, with 12” face width and a max roll diameter of 30”

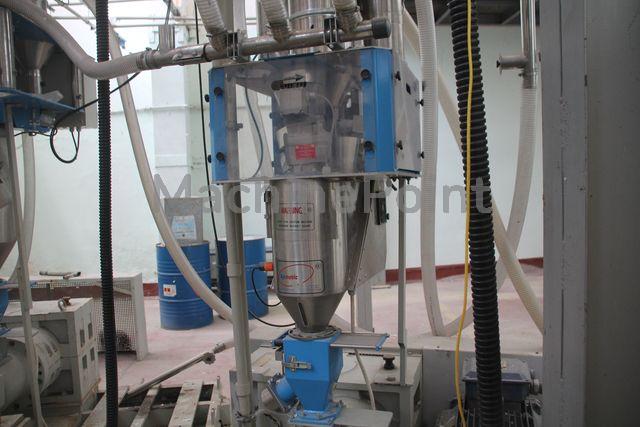

This extrusion line has produced sheet of ELVAX 3185 at a thickness of 0.018” and a width of 86” for photovoltaic solar panels Macroplast Extruder diam. 5" L/D 24 Gearbox SF 1.6 min Max. screw speed:80 RPM No. of heat/cool zones :5 Zones Motor Size 250 HP 86" flat die diameter Macguirre dosing unit, year 2010 Three roll stack castin chill roll station Three roll stack, 18” diameter rolls, with independent temperature control system and AC drives for each roll 1 X NDC 8000 SERIES BACKSCATTER GAMMA THICKNESS GAUGE 2 X SINGLE SPINDLE NON-DRIVEN UNWIND STANDS 88” face width, unwind for carrier web, max roll dia 48”, includes pneumatic brakes with loadcell feedback for tension control, brakes have selector valve allowing operation with 1 or both brakes. Each unwind mounted on wheels to allow side shift out of web path, travel distance sufficient to allow loading with roll cart. IDLER ROLL/CONVEYOR ASSEMBLY WITH DANCER Between chill rolls/casting unit and slitting station PULL ROLL/ANVIL ROLL SLITTING STATION – 88” Face width 2 X 2 SPINDLE 88” FACE AUTOMATIC TURRET WINDERS Each with gap or contact winding capability, flying knife cutover, web tucking assemblies, dancer tension control, taper tension control, and AC Vector variable motors and drives (SSD/Eurotherm) on spindles and turret indexing. Both winders include cantilevered shafts (swing gate) for ease of roll removal without the need for handling airshafts (designed for 3” & 6” airshafts). SLITTER SECTION, 4 slitting heads. Infrared oven 2 X Dual spindle trim/scrap winders. Cantilevered design with pneumatic core chucks to accept 3” cardboard cores, with 12” face width and a max roll diameter of 30”.
