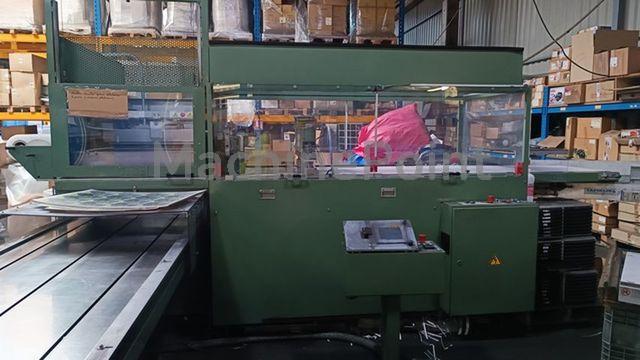

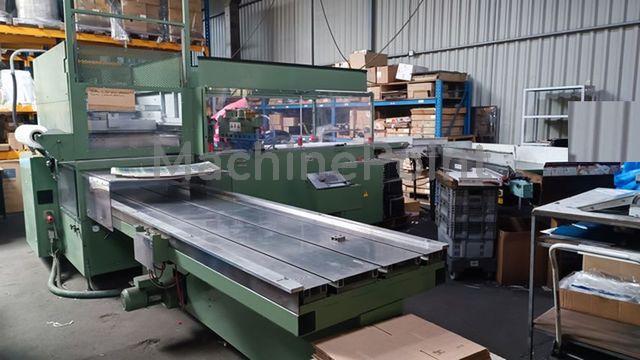

Used ILLIG SB74C4 of 1996 for sale

Min-max cardboard size: 495x345mm - 770x500mm Film width: 540mm Positive die-cutting depth: 100mm Package height: 100mm Max blister reel diameter: 400mm Max skin reel diameter: 350mm Inner roll diameter: 70mm Max cutting force: 200,000N Cutting length: Max skin cardboard + film: 4500mm Max corrugated cardboard + film: 4000mm Cutting precision: +- 0.5mm Maximum cutting length in the direction of travel: 300 mm Minimum-maximum cutting tool height: 40-100 mm Maximum cutting punches: 8 pieces Heating power: 13 kW Vacuum pump: 40 m3/h Waste winder: maximum diameter 600 mm The machine can also produce blister packs; the control panel offers this option (see published photo). However, this option has never been tested due to a lack of molds.

Refurbished in 2016 Depth of Draw: positive 600 mm; negative 300 mm Preheater Feed length: 1000 mm Photo cell sagging control Pneumatic plug assist

Forming/Cutting/Stacking Min-max forming area: 400x250 - 704x515 Tool width between film transport spars min-max: 420-724mm Tool length in feed direction min-max: 274-538mm Film width min-max: 454-760mm Max. gap dimensions per side: 12mm Feed length min-max . 250-540mm Formed part height above film level max: 120mm Formed part height below film level max: 40mm Table travel upwards max: 160mm Table travel downwards max: 195mm Clamping frame upstroke max: 140mm Blow box stroke max: 60mm Upper heater length: 2000mm Lower heater length: 1875mm Vacuum pump flow max: 100m3/h Max. mold clamping force: 80 kN Max. forming pressure: 2 bar Max. cycle rate: 35 cycles/min Working hours at 25/07/2025 : 30753

Working hours : 3739 (05/06/2025) Forming area min-max : 300x100 - 500x350mm Film width min-max : 340-540mm Piece height above/below film level: 100/30mm Reel diameter: 600mm Connected electrical power of upper heater: 9.8kW Connected electrical power of lower heater: 5.6kW Max output: 15/min The machine is equipped with a stacker. It may not appear in the video, as it's not always used. So there are 3 stations: forming, cutting and stacking. Min thickness worked : 0.28mm

Forming/Cutting/Stacking Min-max forming area: 400x250 - 704x515 Tool width between film transport spars min-max: 420-724mm Tool length in feed direction min-max: 274-538mm Film width min-max: 454-760mm Max. gap dimensions per side: 12mm Feed length min-max . 250-540mm Formed part height above film level max: 120mm Formed part height below film level max: 40mm Table travel upwards max: 160mm Table travel downwards max: 195mm Clamping frame upstroke max: 140mm Blow box stroke max: 60mm Upper heater length: 2000mm Lower heater length: 1875mm Vacuum pump flow max: 100m3/h Max. mold clamping force: 80 kN Max. forming pressure: 2 bar Max. cycle rate: 35 cycles/min Working hours at 25/11/2024 : 22899
