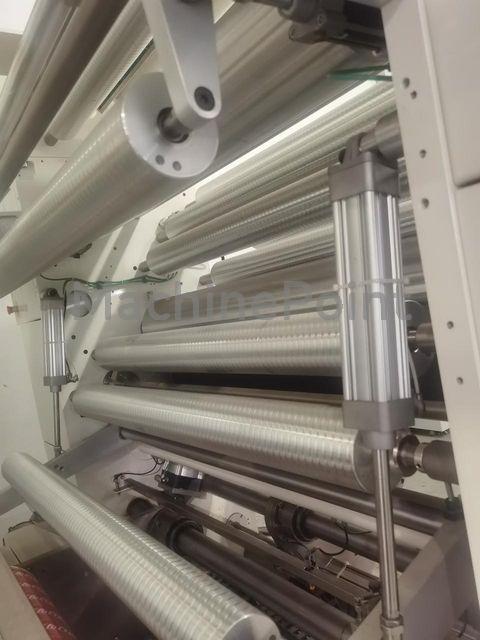

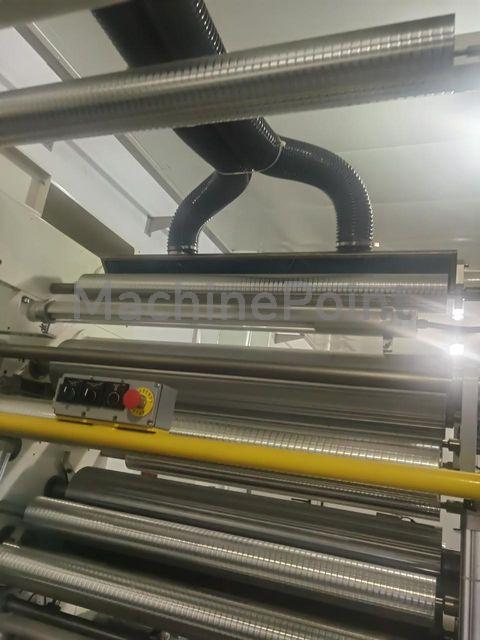

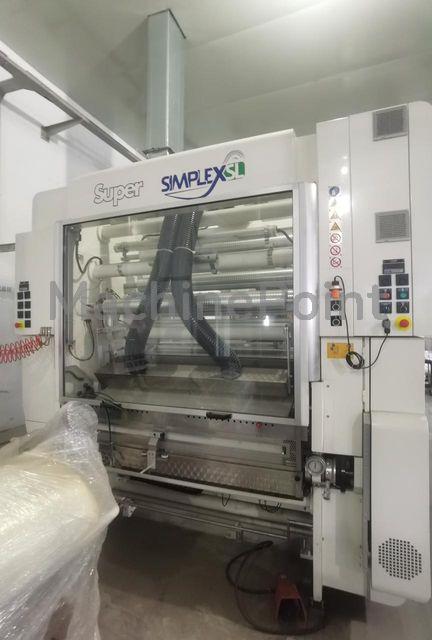

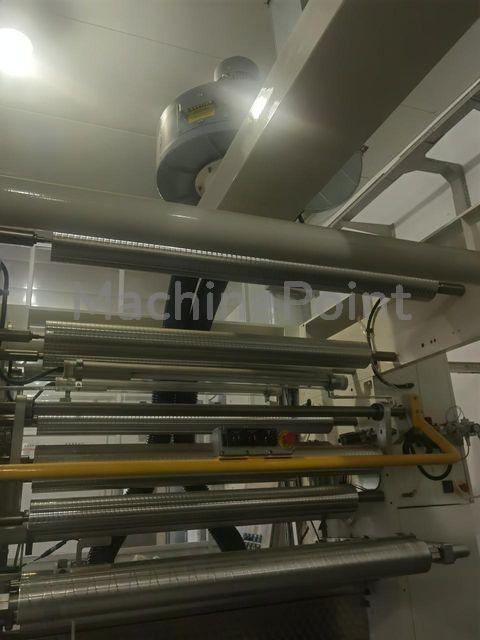

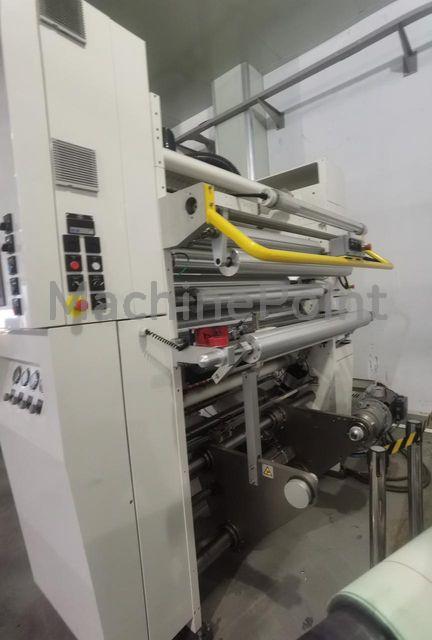

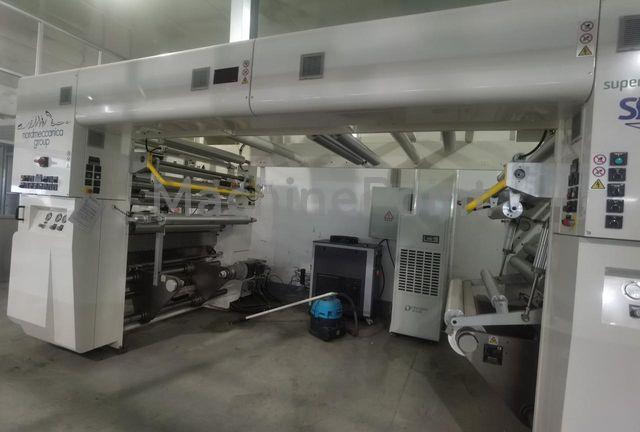

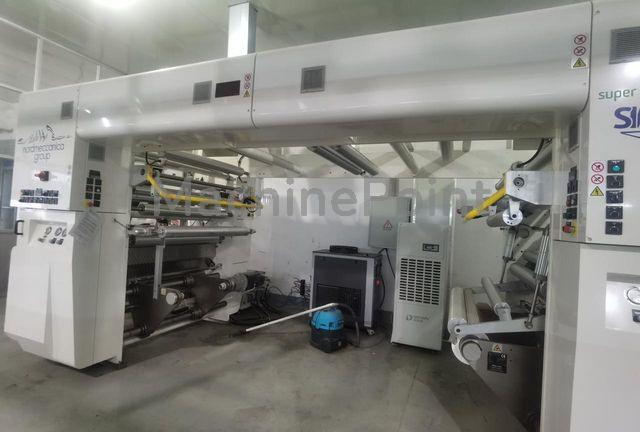

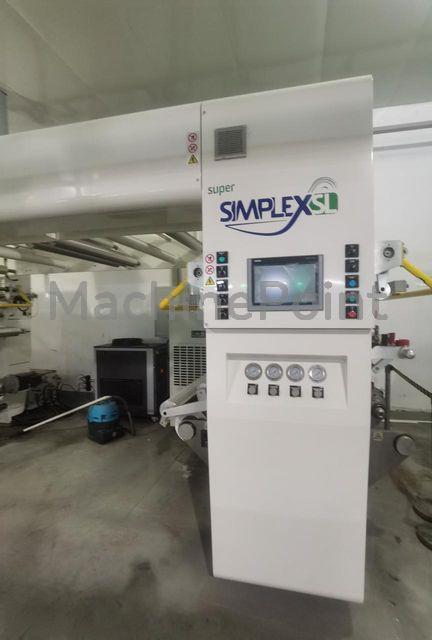

Used NORDMECCANICA Super Simplex SL Mod. 1300 of 2020 for sale

Web width 650 - 1330 mm Coating material Paper : 40 - 200 gr ALU : 15 - 20 µ PA : 12 - 20 µ BOPP : 15 - 80 µ PET : 12 - 30 µ Web tension 2 - 25 daN Unwinder & rewinder cores diameter: 1x76mm - 1x152mm Coating / laminating Glue transfer roller: Stainless steel Drive system:Independent Temperature control : Corema Dosing roller : Shafted Laminating roller : drive system Independent Web guide infeed Web guide outfeed 6 x pressure roller 13 x spreader roller 1 x Mixing unit MATRIX M3 (VEA)

Film width : 550-1130mm Max coating width : 1115mm Min-max unwinder tension : 2-20 Kg Min-max rewinder tension : 4-25Kg Max. diameter of unwinder/rewinder rolls : 850mm Max. unwinder/rewinder reel weight : 600Kg Unwinder mandrel diameter: 3"/6". Diameter of rewinder mandrel : 6 Materials to be coated BOPP 12 - 80 μ PETP 10 - 30 μ LDPE, LLDPE 30 - 200 μ OPA 12 - 18 μ NYLON CAST 30 - 80 μ ALU (Foil) 6,3 - 40 μ PP CAST 60 - 150 μ PAPER 40 - 150 gr/m2 Materials to be laminated BOPP 12 - 80 μ PETP 8 - 30 μ LDPE, LLDPE 20 - 200 μ OPA 12 - 18 μ NYLON CAST 20 - 80 μ ALU (Foil) 6,3 - 40 μ PP CAST 20 - 150 μ COEX FILM 25 - 200 μ PAPER 40 - 150 gr/m2 Nordmeccanica World Mixer Vapours suction system: Exhaust fan capacity: 3000m3/h

Configuration of machine: 1 Coating Section. 1 Laminating Section. 2 Shaftless unwinders reel O.D. 1000 mm 1 Shaftless rewinder reel O.D. 1000 mm Max web width: 1130mm Max core width with expanding shafts: 1140mm Cores: Unwinder: 76 and 152 mm Rewinder: 152 mm Materials to be coated BOPP 12 - 80 μ PETP 10 - 30 μ LDPE, LLDPE 30 - 200 μ OPA 12 - 18 μ NYLON CAST 30 - 80 μ ALU (Foil) 6,3 - 40 μ PP CAST 60 - 150 μ PAPER 40 - 150 gr/m2 Materials to be laminated BOPP 12 - 80 μ PETP 8 - 30 μ LDPE, LLDPE 20 - 200 μ OPA 12 - 18 μ NYLON CAST 20 - 80 μ ALU (Foil) 6,3 - 40 μ PP CAST 20 - 150 μ COEX FILM 25 - 200 μ PAPER 40 - 150 gr/m2 Nordmeccanica World Mixer Corona treatment F&B Supervisor system Nordmeccanica Syntesis Turbo Cleaner SL Crane for the rollers 30 rubber rollers: Rossini

Nominal film width : 1300mm Min-max film width : 600-1330mm Max application width : 1315mm Min-max unwinder tension : 1-20 Kg Min-max rewinder tension : 3-25Kg Max. diameter of unwinder/rewinder rolls : 850mm Max. unwinder/rewinder reel weight : 600Kg Unwinder mandrel diameter: 3"/6". Diameter of rewinder mandrel : 6 Max speed : 315 m/min Total weight : 5.000Kg Materials that can be applied : BOPP : 12-18 microns PETP : 10-30 microns LDPE, LLDPE : 30-200 microns OPA : 12-18 microns NYLON CAST : 50-80 microns ALU : 12-40 microns PP CAST : 60-150 microns CALENDRATED PAPER : 40-300 grams Materials that can be laminated : BOPP : 12-80 microns PP CAST : 25-150 microns ALU : 7-20 microns LDPE, LLDPE : 20-200 microns COEXTRUSED MISCELLANEOUS : 25-200 microns NYLON CAST : 20-80 microns PETP : 8-30 microns OPA : 12-18 microns EVOH : 12-20 microns PVC : 20-300 microns CALENDRATED PAPER : 40-200 grams The machine has : Tension control device during the winding process 2 alignment devices with "edge" band reading installed on the unwinders 1 trolley for the replacement and maintenance of the conveyor rollers of the solvent-free application trolley World Mixer Mecvill mixer, for mixing and dosing two-component adhesives. Rubber rollers : 330-375-475-490-520-560-660-715-780-845 Control Siemens Simatic S7-300

Duplex laminator with solvent and solventless trolleys with the possibility of cold seal in register Shaftless driven unwinders & rewinder Coating unit Solventless Second Coating unit rotogravure for solvent Drying 2 zones - gas burner Register control for cold seal Mixer World mixer Corona treatment F&B
