Used MACCHI Plastex of 2018 for sale

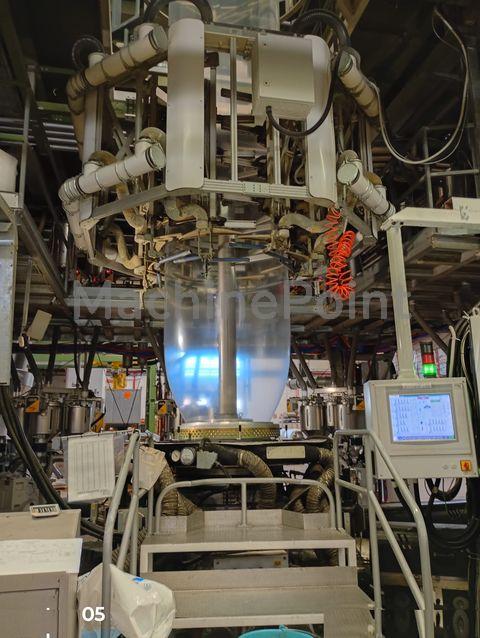

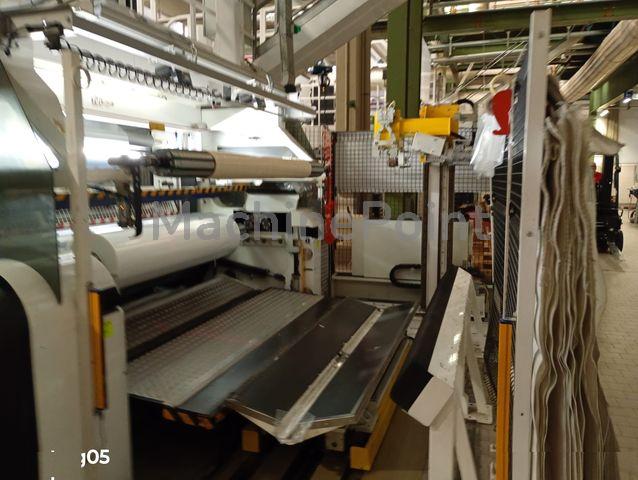

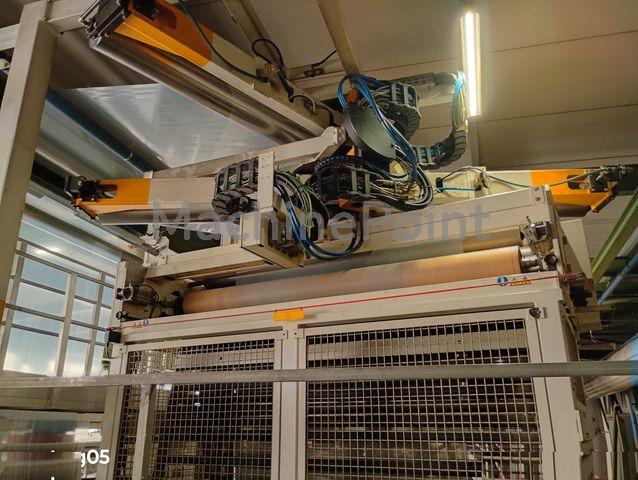

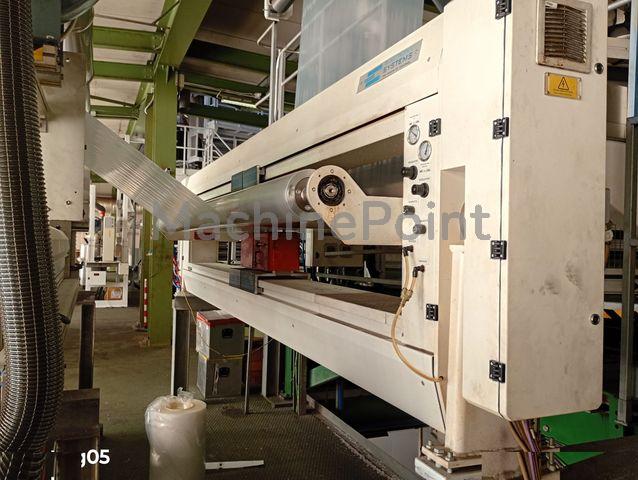

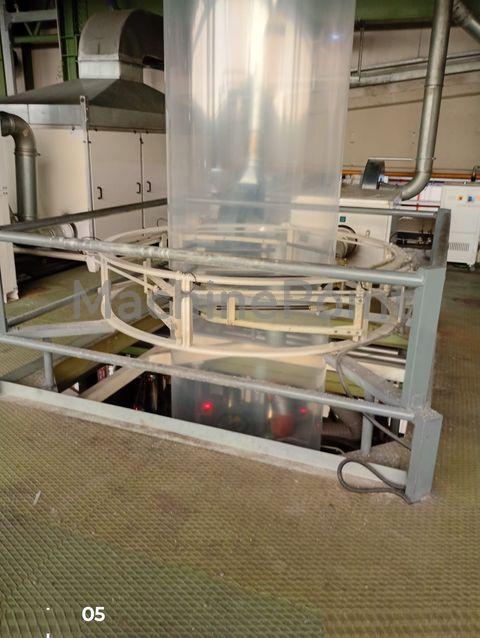

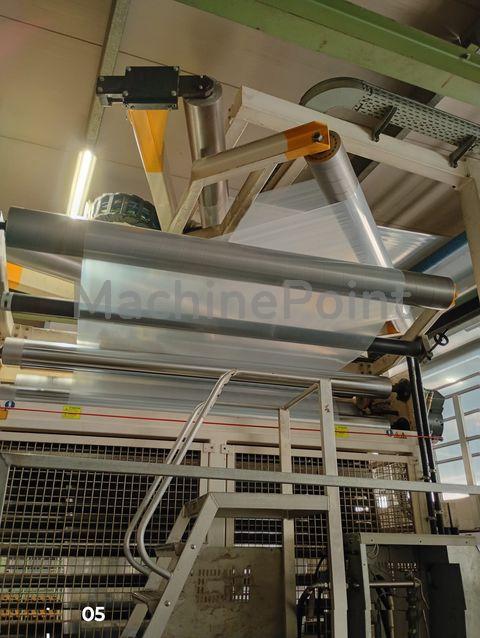

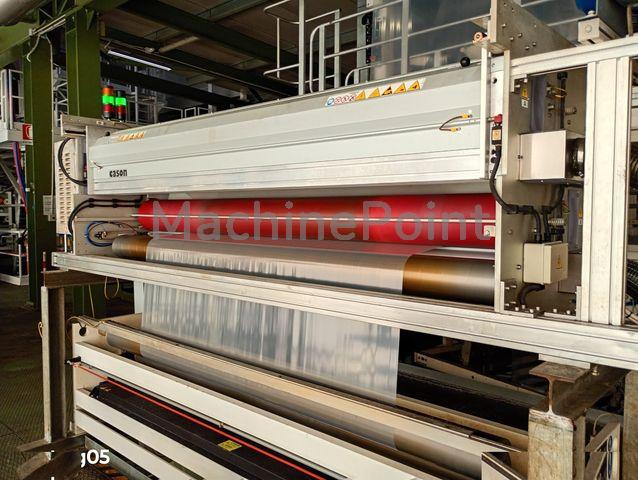

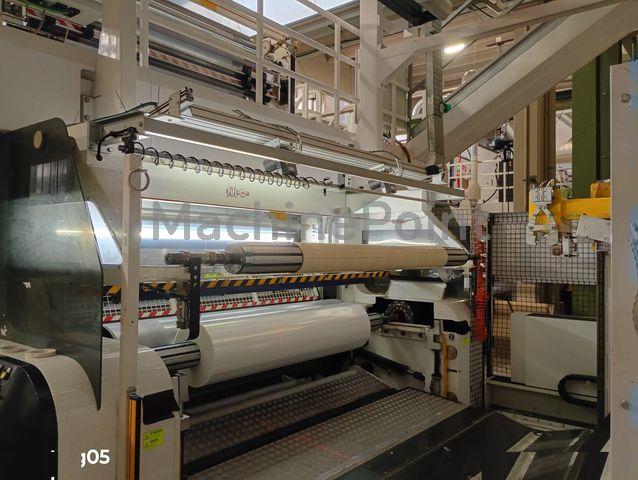

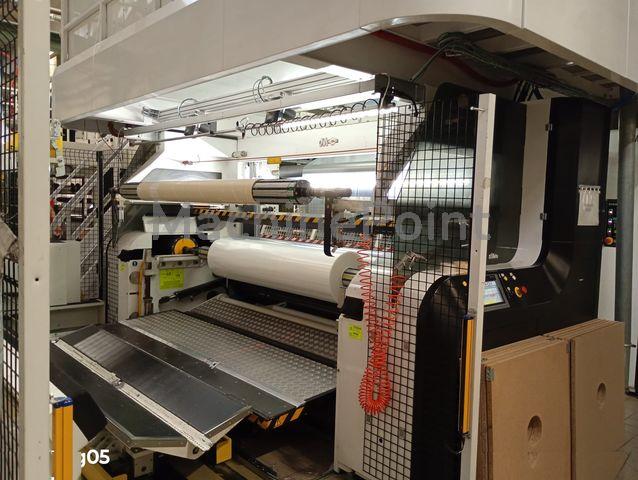

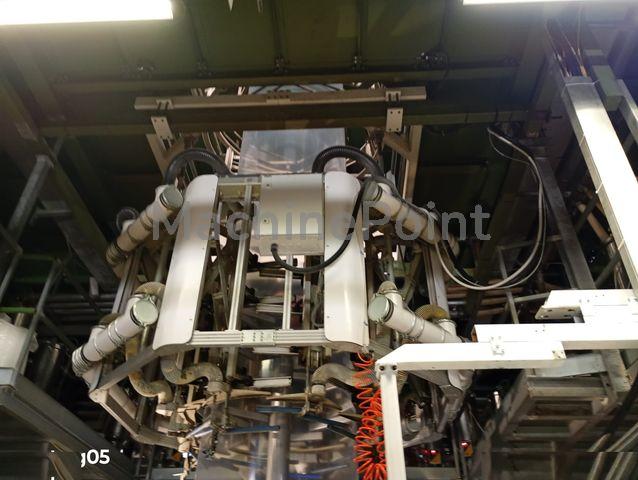

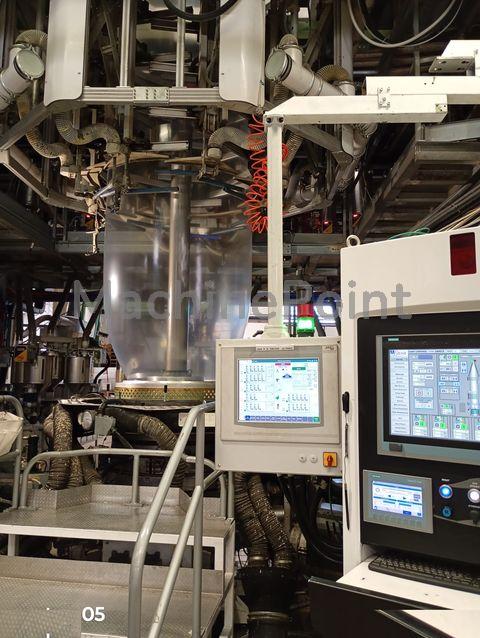

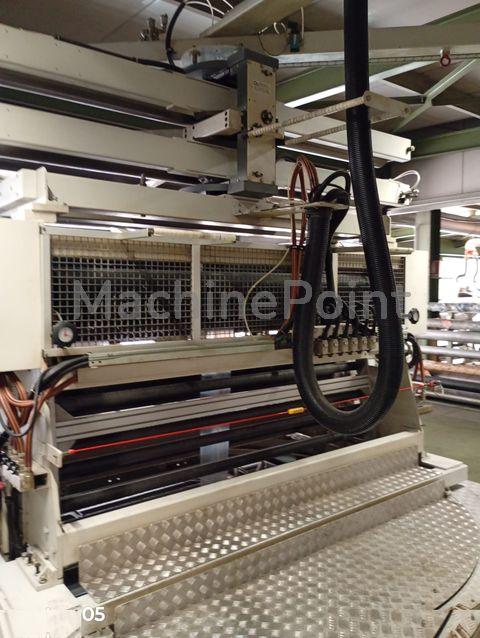

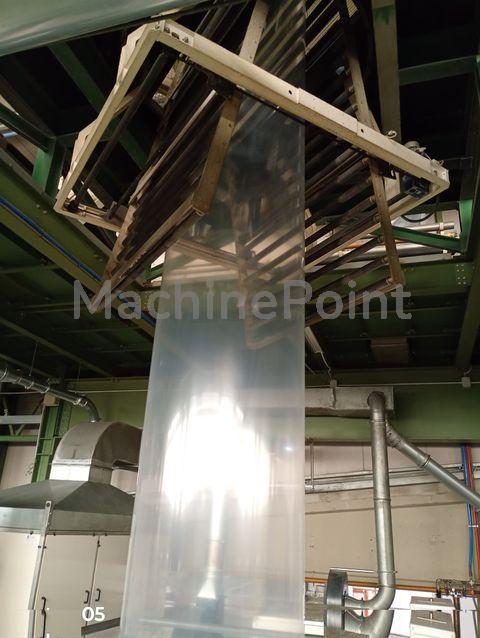

Gravimetric weight control system Piovan, 4 hoppers per extruder Extruders : 65/80/65 Infrared heaters Hydraulic screen changers 3 layer blown film die head TE502 : 350mm diam.,die gap 1.8mm Air ring: Dual lip Plast-Control Automatic thickness control by Plast-Control Calibrating basket Oscillating nips, side gusseting Web guide E&L Corona treater Ferrarini & Benelli FBF cold needle slalom micro-perforation Double automatic winder, fully automatic back-to-back rewinder Trim removal system : Recotrim 8 air shafts Tower Installed power: 630A Consumed power:400A

Line installed in 2021 Kind of production Stretch and shrink hood, collation shrink and courier bags Film thickness min. and max 15 - 180 micron - without gussets 50-120 micron with gusset (stretch hood film) Max bubble circumference 5400 MM Gravimetric dosing system DOTECO GRADO ADROIT. 4 components for each extruder Extruders Direct Drive Plastex: 65 mm + 80 mm + 65 mm, 30 D 3 hydraulic screen changers 3 Layer blown film Die head Model TE502.-IBC-350/500, Die plate available 350 mm, gap 2,4 mm CR-MAX3-K2 double-flow cooling ring with integrated automatic profile control system IBC cooling control system , type Jet Extra Ultrasonic bubble rupture sensor Air cooling batteries for air ring & IBC Eurochiller Chiller Model AX160 Eurochiller Film width measure and control through ultrasound sensors Primary calibration basket Model Radial 2750 - Layflat Range 770/2780 Contact-type capacitive online thickness measurement – K-DESIGN, Model KR2800+T850 – Layflat range 525/2800 Secondary calibration basket Model FM2750 - Layflat Range 630/2790 Horizontal oscillating Take-off unit - 2400 Lateral triangles with Motorized gusset system, Max. Gusset Depth achievable: 640+640 mm Automatic edge guide system Corona treatment Double station automatic winder BO Plus – 2400 Recotrim -In line system for side trim recovery Tower

7 Layers Macchi that can produce different types of films with thicknesses from 30my to 370my Polythene based film with different types of PE homopolymers and copolymers. High gas barrier film using EVOH polymers. Thermoforming and gas barrier film using PA with or without EVOH. Sealing layers films having various characteristics: antifog, anti UV, peelable, with particular sealing characteristics ( heat resistance, high welding speed, polluted surfaces, etc.). Owner used the machine to produce mainly PE/EVOH/PE-based films for printing and laminating with PA, BOPP, PET for the production of tops for containers in a controlled atmosphere. 7 centralized gravimetric dosing units Doteco with 4 and 2 components with consumption detection and automatic adjustment of the extruders 7 extruders diameter 65/55 30 diameters with AC motors controlled by inverters 7 manual hydraulic screen changers Macchi exclusive design 7-layer spiral head with ceramic resistors. Die plate diameter 500mm with IBC Dual flow air ring Chiller Thickness control system Motorized calibration basket Corona treatment Web guide Double contact and mixed rewinder

5 layers 2100 mm width Blown Film Line Speed. Max 150 m/min. Min. 15 micron +/- 5% thickness. Diameters: 65+45+55+45+65 mm 30:1 Extruders, 4-comp. gravimetric dosing unit on 65 mm & 55 mm Extruders, 1-component on 45 mm Extruders. PIOVAN 450 mm Die-head, 550 x 2 mm insert for LLDPE. 10-zone heating. IBC, auto air exchange Air ring with 64 inserts. Heat-exchangers for chilled air for OBC & IBC (excl. Chillers). Motorized Calibration cage. Ultrasonic web-break detector. Horizontal Oscillating Take-up, AC vector drive. On-line Thickness & Width measurement & Control system. KUNDIG 2-side Corona Treater Web guide. BO Plus automatic rewinder for reel up to 1200 mm diam

Extrusion line, for the production of 3-layer bubble film, equipped with coex flex dimension 3 coextrusion platform with : 2 plastex 65 / 30 d high performance single-screw extruders 1 plastex 80 / 30 d high performance single-screw extruder: Materials: ldpe, lldpe, metallocene, mdpe, hdpe, pp, eva, surlyn Production type: tubular sheath and film Film width with 350 mm diameter die: min. 1000 mm, max 2300 mm Film thickness: min. 20 micron - max. 200 micron, air gap 1.6 mm (measured cold) Production capacity with 1400 mm width and 50 micron thickness: 350 kg/hr ldpe Speed of extruders 65/30d: 0 to 170 rpm Speed of extruder 80/30d : 0 to 130 rpm Rewinder mechanical speed: from 7 to 110 m/min Max. film width on rewinder: 2300 mm Cardboard core for reels: int. diam. 76 mm Total system height: 12 m recommended Power supply for A and C layers 74 kw AC motor Plate screen changer diameter 65 mm Power supply for central layer B 100 kw AC motor Plate screen changer, diameter 80 mm Fixed 3-layer co-extrusion head, coex flex, IBC 350 mm diameter die, 1.6 mm gap 220/400 mm die range Internal cooling control unit (ibc) jet 6 Height-adjustable calibration basket. gsrc 2500/8-6 Rotating haul off 360 degrees st 199r - 2400 - roll width 2,400 mm - film passage width 2.350 mm Special alum/teflon combination panel st199 - 2400 Motorized gusset forming system depth 525+525 (depending on flattening panel) Dual-station BO plus/d 2400 automatic winder - automatic reel change at preset meter number - hydraulic unloading of finished reels - max reel diameter: 1200 mm (depending on reel weight) high-sensitivity pneumatic dancer cylinder for front calender pull 2 pairs of lifting hoists 150 kg each 6 expanding shafts diam. 76 for BO plus - 2400 E+L automatic web guide 2400 Available in December 2024 Screws + barrel + cylinder heads changed in May 2024 INCLUDED : Plast Control cabinet (this cabinet controls dosing and profile control) year 2022 PLAST CONTROL 15-component weight dosing year 2022 NOT INCLUDED : Corona treatment not included The tower is not included, as it is the structure of the building.
