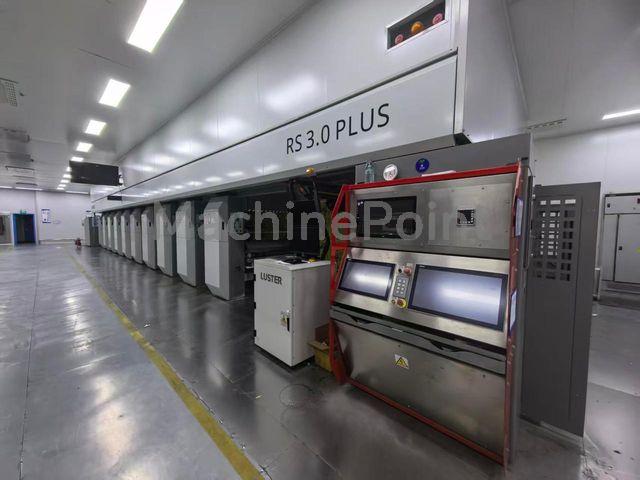

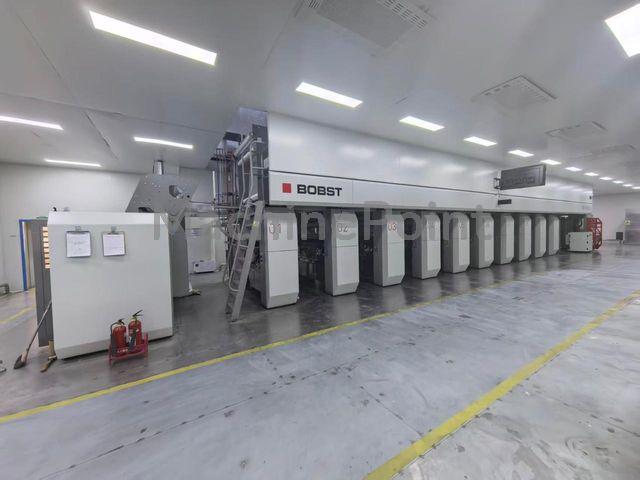

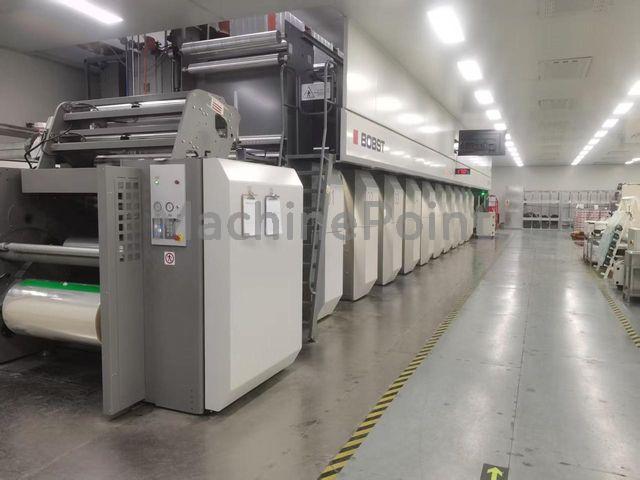

Used BOBST RS 3.0 PLUS of 2023 for sale

Material Thickness: BOPP: 10-50 μm PET: 10-50 μm CPP: 20-40 μm LDPE: 20-40 μm Nylon: 12-50 μm UPVC: 20-100 μm Width min. : 1050 mm Core dia. : 152 mm Winding tension : 49-538 N 3 pcs Self-centring mechanical expanding shafts 1 pcs Spiral out grooved spreader roller 3 pcs Bowed spreader rollers 2 pcs Load cell rollers 1 pcs Independently driver draw roller 1 x Polycold PFC 1102 CE cryogenic unit Anti telescoping Web cooling No. of evaporator: 26 Cooling medium: Water/glycol Vacuum performance: 5x10-4 mbar

All printing stations are equipped with their own a.c. vector motors that are interlinked and controlled via electronic shaft The press accepts printing cylinders with a facelength of 1250 and 1300 mm Pneumatic ink pumps WEB Inspection Systems TOKYO KEIKI P-CAP Indirect drying by electric heat-exchangers. - 6 heating and temperature control groups for maximum air temperature of 100°C (for the dryers model V1750). Printing stations n° : 2 to 7 - 2 heating and temperature control groups for maximum air temperature of 120°C (for the dryers model V3000). Printing stations n° : 1 and 8 No cylinders available

Type of inks : Waterbased Max. mechanical speed . 350 m/min Unwind type : Automatic turret Unwind shafted Max. unwind reel diameter : 1020 mm Rewind type : Automatic turret Rewind shafted Max. rewind reel diameter : 1020 mm Video camera : 1 chip camera Corona treater Inline slitting

Duplex lamination with solvent based and water based adhesives with rotogravure coating system Web width: Max 1350mm, min 420mm Coating width: Max 1325mm Tension range: Unwinder 1: from 20N to 400 N Unwinder 2: from 20N to 400 N Rewinder 1: from 40N to 550 N Taper tension: up to 90% Primary Simplex unwinder, shaftless type (800 series) Max reel diameter: 1020mm (40”) Max reel weight: 1000kg (2200lbs) I.C.D. possibility: 3”-6” (76-152mm) Max cores length: 1350mm (53,1”) Min core length: 420mm (16,5”) Bobst primary unwinder web edge sensor Couple of mechanical chucks for 3” Couple of mechanical chucks for 6” Secundary Simplex unwinder, shaftless type (800 series) Max reel diameter: 1020mm (40”) Max reel weight: 1000kg (2200lbs) I.C.D. possibility: 3”-6” (76-152mm) Max cores length: 1350mm (53,1”) Min core length: 420mm (16,5”) Bobst secondary unwinder web edge sensor Couple of mechanical chucks for 3” Couple of mechanical chucks for 6” Coating unit Drying Tunnel Air recycling system Detecting/control of solvent concentration level Bonding section Thermoregulation for laminating drum Simplex rewinder, shaftless type (800 series) Max reel diameter: 1020mm (40”) Max reel weight: 1000kg (2200lbs) I.C.D. possibility: 3”-6” (76-152mm) Max cores length: 1350mm (53,1”) Min core length: 420mm (16,5”) Couple of mechanical chucks for 6” Viscosity controller, Gama model VIS G30 Rubber roller size: (Rossini) 1.550 2. 590 3. 3610 4. 630 5. 650 6. 670 7. 680 8. 690 9. 710 10. 700 11. 730 12. 750 13. 770 14. 810 15. 820 16. 830 17. 850 18. 910 19. 990 20. 790 21. 1010 22. 1030 23. FULL

Web Width 600 - 1250mm Material to be Handled (In Micron) BOPP 12-60 PET 8-60 BOPA 15-60 PVC Film 30-50 CPP 25-50 PE 40-120 Met PET 10-25 Met BOPP 15-50 Met CPP 25-50 Pearlized BOPP 20-40 Paper 35-120 g/m2 (From 100 to 120 g/m2 the Max. web width is limited to 1000mm due to web tension) Laminates 30-100 g/m2 Web tension range 3.5 to 35 daN Duplex Automatic Unwinder (Model 310 Air Shafted) Automatic high speed reel splicing, push-button controlled Core diam. - 152mm Max. core length 1300mm The unwinder can load 1 reel with diameter 1020mm and 1 reel with diameter 500mm at the same time, or 2 reels with diameter 800mm. Corona treatment from Rotomec with ceramic covered surface. Colour registration control - S5100 BOBST Viscosity controller-auto Turn bar for reverse printing at station number 9. Electronic Line Shaft
