Used BANDERA TECHNOFLEX PLUS of 2018 for sale
Coextrusion lines BANDERA, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used BANDERA TECHNOFLEX PLUS
Ref.: 300050146
Year: 2018
Brand: BANDERA
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Materials: LDPE, EVA, LLDPE, mLLDPE, EVOH
- Film Width (Max): 2000 mm
- Output Capacity: 400 kg/h
- Number Of Extruders: 5
- Layers: 5
- Rewind Unit Type: Back to back
Other Specifications:

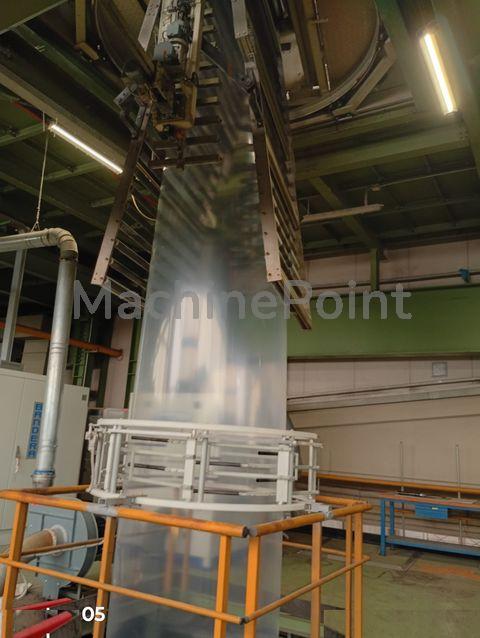

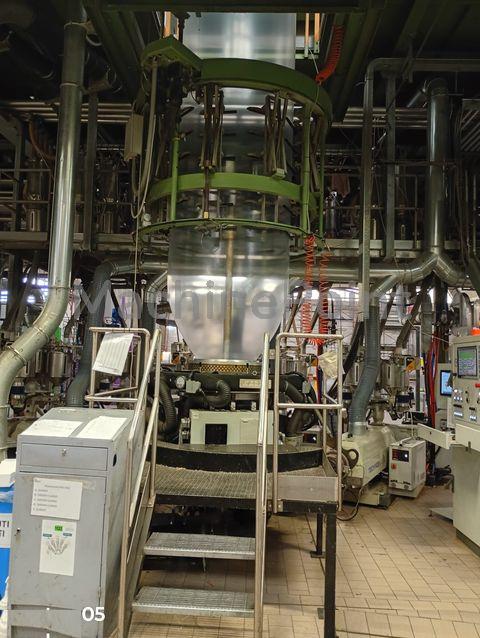

5-layer bubble film extrusion line for:
Lamination and printing films (peelable and heat-sealable films)
Films for automatic packaging
Symmetrical barrier films with EVOH resin in the central layer
Thicknesses: 25–200 microns
INNOPLAST 5-component gravimetric loss-in-weight system for extruder

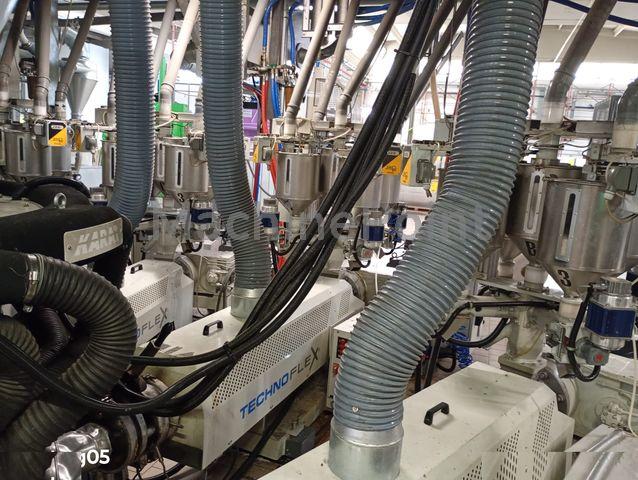

Extruders
1x 50-30D extruder for central layer C
4x TR 65-30D extruders for layers A, B, D, & E
EXPH 400 CO5 5-layer fixed die head with IBC and PVD-type coating
350 mm die plate

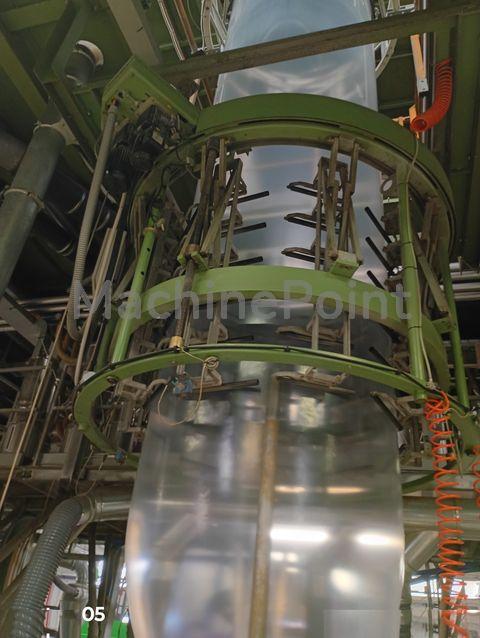

Karat COM2 dual-flow cooling ring

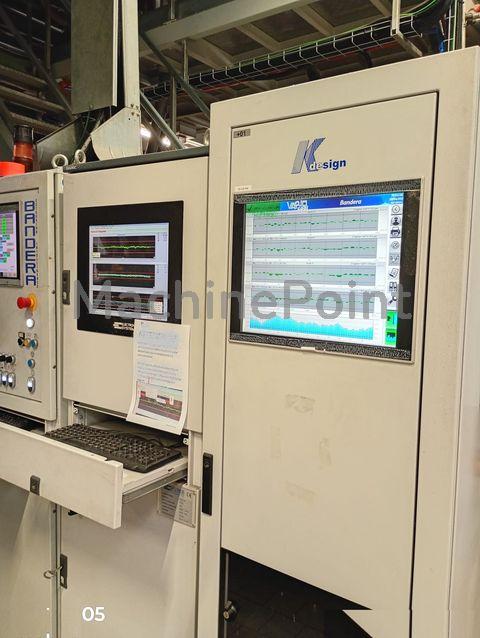

X-ray sensor for reading and correction (AUTOMATIC CONTROL) of total thickness

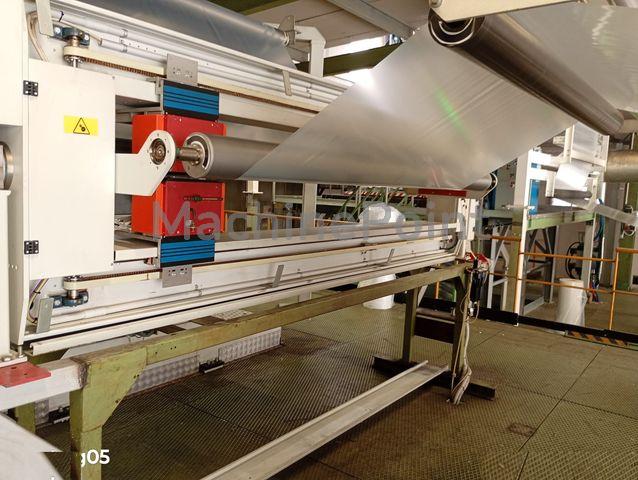

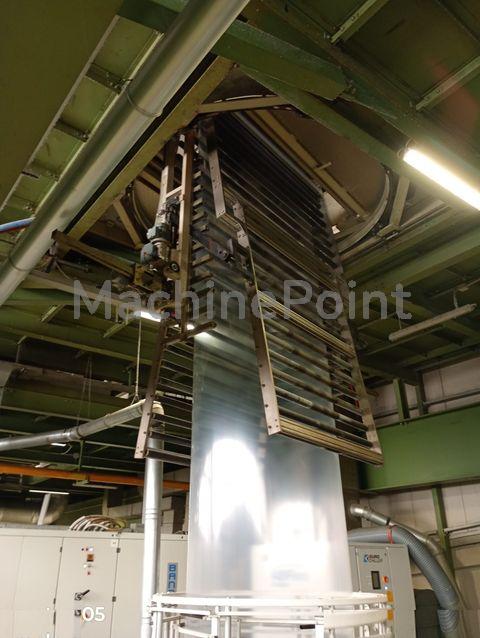

ST 2200 oscillating haul-off
E+L device

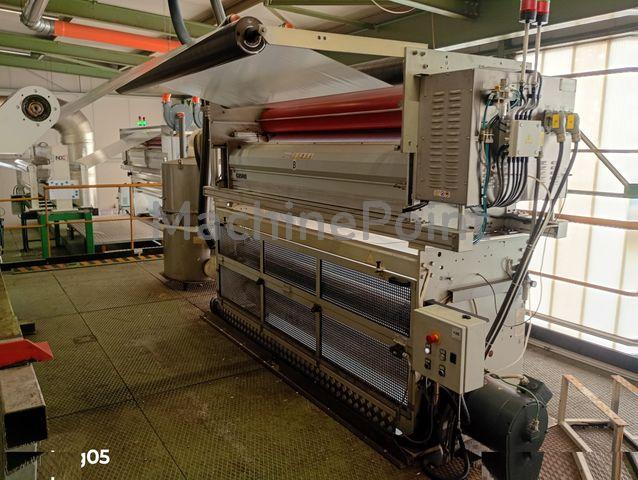

CASON corona treatment

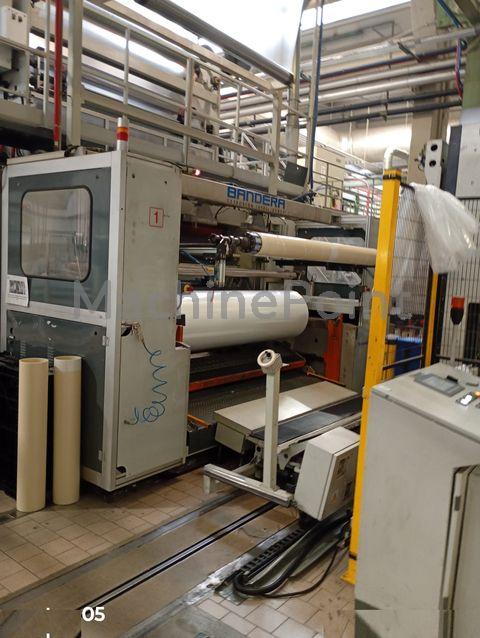

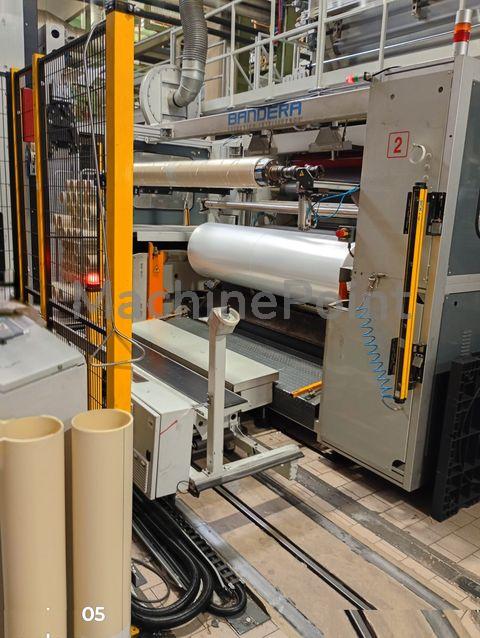

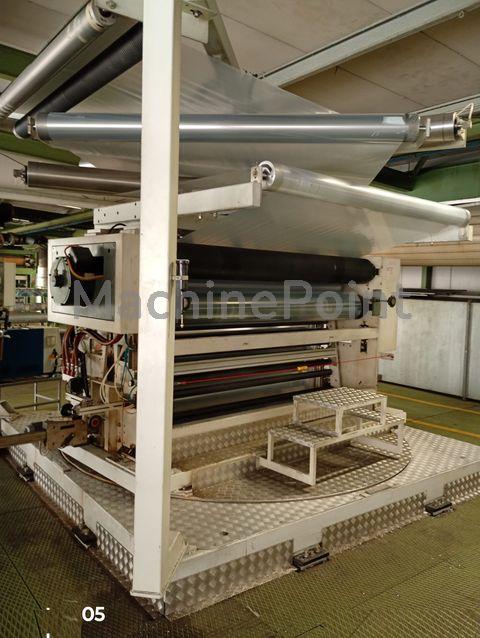

ESR 9000 TW 2200 dual-station automatic winder
Tower not included
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
