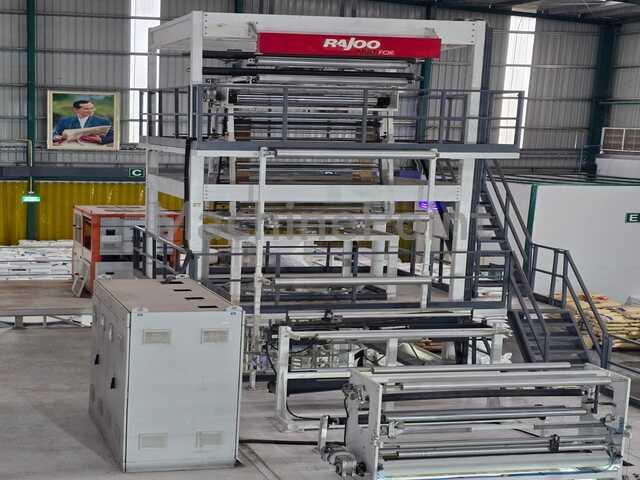

Used RAJOO RECF-2350-75/1600 OH of 2020 for sale

Output: 160~220 kg/hr. Depending on material Thickness range: 18-160 micron. (3-15 umicron nylon / tie-layers) 5 x 55 mm diameter screw 5x 1 component volumetric Dosing unit. Die head: 350 x 2.5 mm, Run with or without IBC air blower motor hp of obc & ibc : 15kw for obc & 5.5 kw ( in ) & 5.5 kw ( out ) for ibc chiller TR of ibc and obc : 15kw for obc & 5.5 kw ( in ) & 5.5 kw ( out ) for ibc Motor HP of each extruder : Extruder -A/B/C/D/E - 45KW/30KW/30KW/30KW/45KW No thickness Controll installed and Width adustable from Panel Oscillating Take-up IEEC Corona Treater : autowatt density corona BST Web guide 4-stations semi-auto Winder with auto splicing total installed power excluding chillers : 230KW total all heater load : 126KW Tower included

Screw 1 - 50mm / 32D / 30kW grooved feed barrier screw extruder Screw 2 - 60mm / 32D / 45kW grooved feed barrier screw extruder Screw 3 - 50mm / 32D / 30kW grooved feed barrier screw extruder All 3 screws are tungsten coated Standard Die diameter in mm - 450 - 2.3gap Film Thickness range in micron - 20-200 my Line speed in mtr/min - 7-70 Candle filter instead of Manual type screen changer with each extruder Die carriage & die-head with one die - OBC Dual flow air ring with blower and heat exchanger Motorized calibration basket CKD type tower with two walk around platforms Oscillating take-off unit with one walk around platform SAPN type dual station surface winder Process control panel Web guide system digital opto electronics E+L make

Die Lip Width: 900mm Grooved feed extruder 75mm Continuous hydraulic Screen Changer with Power Pack Melt pump and controller Flat sheet die with trolley (JC TIMES) Hydraulic independently drive vertical polishing roll stack Stabilization roller frame assembly with cooling roll Take-off unit with dual station center winder (1 Ton Capacity Roll) Process control panel OPTIONAL INCLUDED: Four component gravimetric feeding system with loss in weight arrangement instead of two component gravimetric feeding system Four: Mould Temperature Controller (18KW , 300 Itrs/min) Air conditioned Control Panel. HMI Control and overhead wiring

3 LAYER CO-EXTRUDED BLOWN FILM LINE Model - MULTIFOIL RECF-2360-70/1800 IBC consisting of following: 2 x 60mm/30 D/45 kW grooved feed barrier screw extruders 1 x 70mm/30 D/70 kW grooved feed barrier screw extruder 3 x Lever type single action manual screen changers Die carriage, universal co-ex. die-head UCD® with two die Internal bubble cooling (IBC) system External air ring with blower Calibration basket CKD type tower with two walk-around platforms Oscillating take-off unit with one walk around platform Dual station fully automatic surface winder with load cell based taper tension control Set of pneumatic components Process control panel Smooth bore sleeve for 60 mm extruder to run PA SALIENT FEATURES OF THE LINE Screw Speed Range (rpm) 20-120 / 20-120 Standard Die Diameter (mm) 275-1.8 & 2.2 gap Additional Die (mm) 425 -1.8 & 2.2 Lay flat Width Range (mm) 900-1700 Film Thickness Range (micron) 20-200 Maximum output (kg/hr) 400 Line Speed (mts/min) 10-100 Drive Load (kW) 150.32 Heating Load (kW) 84.00
