Used CACCIA RT2503B of 2004 for sale

2004 | Ref.: 300050162

Rotomolding machine CACCIA, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.

Data Sheet of Used CACCIA RT2503B

Ref.: 300050162

Year: 2004

Brand: CACCIA

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

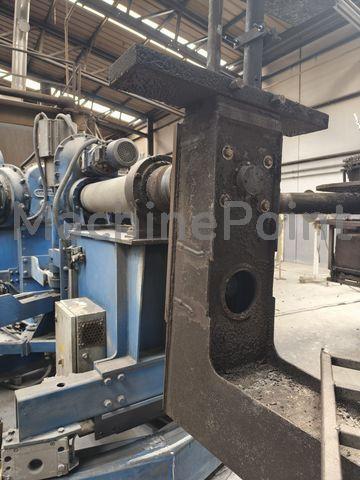

CACCIA - RT2503B - Used machine

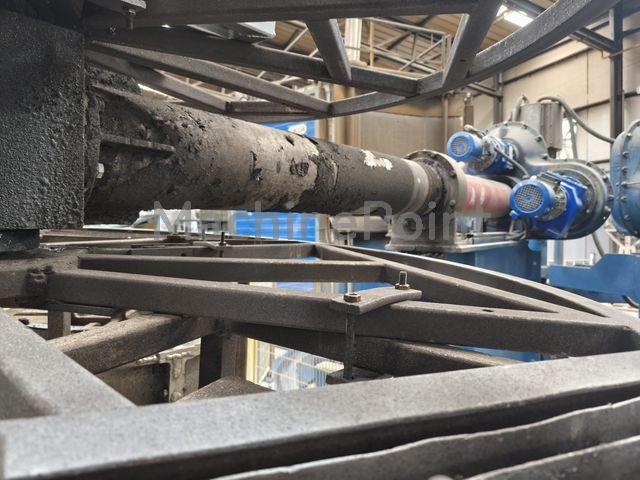

CACCIA - RT2503B - Used machine

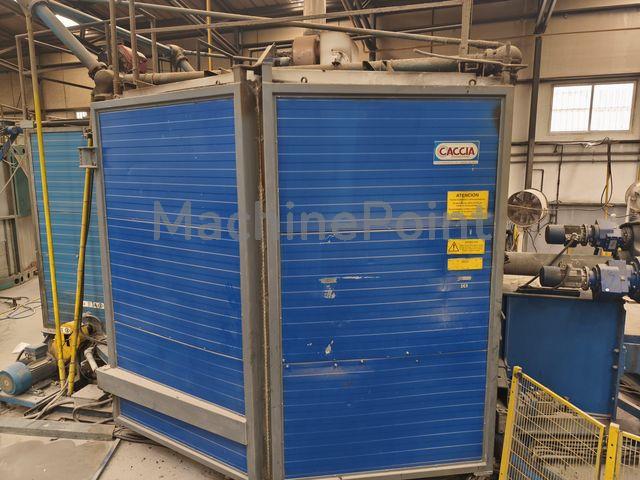

CACCIA - RT2503B - Used machine

Technical Specifications:

  • Machine Type: Carousel (fixed arm)
  • Number Of Arms: 3
  • Type Of Mould Carrier: Straight

Other Specifications:

Straight arms: 2
Square arms: 1
Spherical diameter: 2500 mm
Max. flat diameter (straight arm): 2450 mm
Max. flat diameter (square arm): 2100 mm
Max. load capacity / straight arm: 1250 Kg
Max. load capacity / square arm: 1000 Kg
Rotation/revolution ratio: Variable Max. RPM primary axis: 10.0 rpm
Max. RPM secondary axis: 9.0 rpm Heating system

Fuel: Diesel EL
Viscosity at 20°C (3/8" G): 6 mm²/s
Burner power: 330 KW
Max. working temperature: 330 °C
Alarm temperature: 370 °C

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 24 Kw

MachinePoint's services:

Loading and lashing

Packaging

Dismantling

Refurbishing & Overhauling services

Used Machinery Appraisals

Transport of industrial machinery
