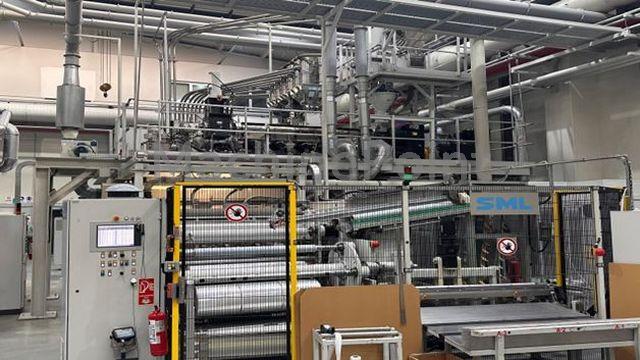

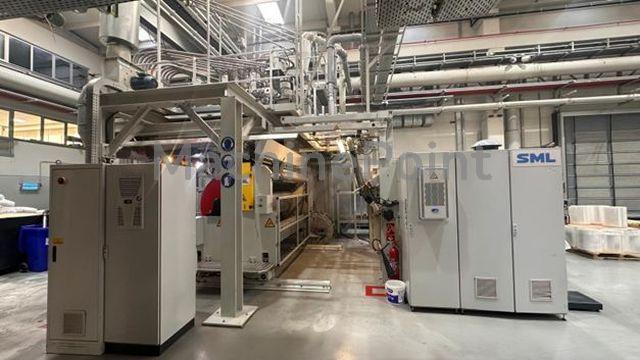

Used SML Minicast CC/90, 60, 60, 60/2100/650 of 2017 for sale

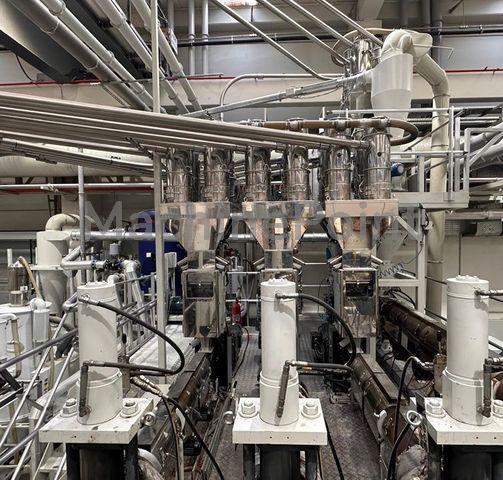

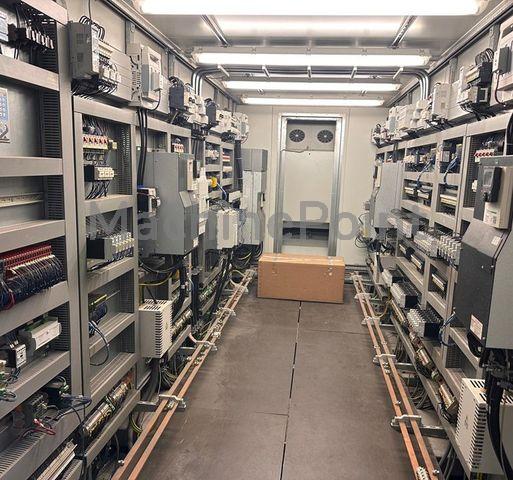

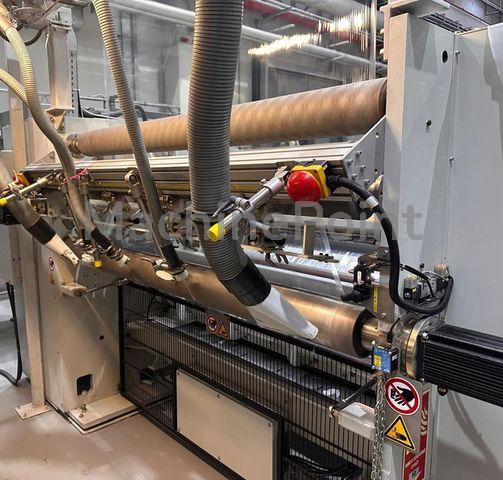

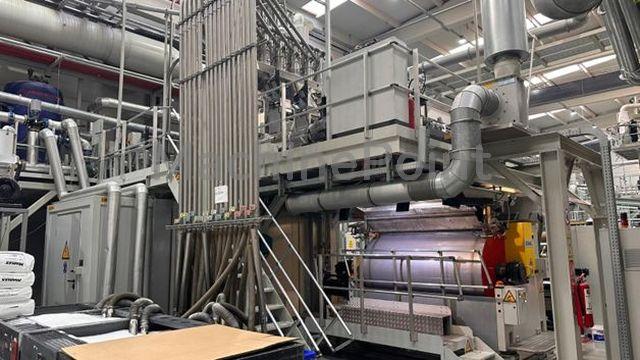

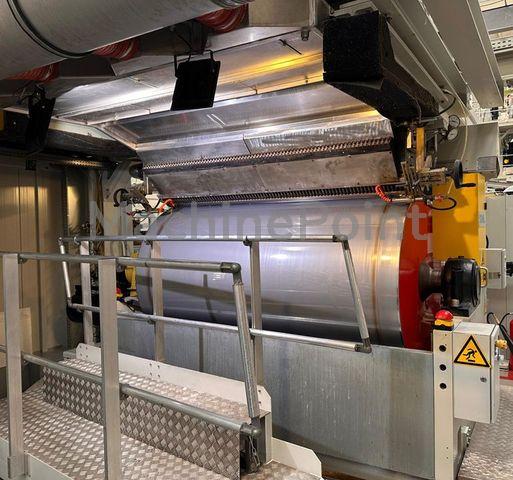

Materials: CPP Film Width (Max): 2150 mm Number Of Extruders: 3 Screw Dia-A : 65 Screw Dia-B : 150 Screw Dia-C : 65 Other specs: 3 Coex Castfilm for CPP, Mono layer/Multi-layer Gravimetric Dosing System included Die – Cloeren Make -USA Deckle – Yes. Internal Type Corana Treatment – Sherman – 22KW – Italy Make Thickness range: - CPP 15 - 35 µm Max. Mechanical speed 350 m/min Pneumatic working pressure 5-8 bar Air consumption approx. 60 - 300 Nm3/h Control System SML - Siemens S7-300-2017 Temperature control system: - Water cooled material inlet - Heated feeding zone Output: - CPP for max. 500 kg/h to 650 kg/h DC motor with elastic coupling and reduction gear with capacity of A extruder 290 kw Bimetal extruder cylinder with 8 heating / cooling zones Melt pressure feeler at cylinder end 3 Layer Feed block FG/SP H Automatic CLOEREN make flat die H2450 Dual Vacuum box width 2480 mm (assembled at the flat die) Edge Pinning Device with 2 charging electrodes, 2 air jets, a pressure regulator, a high voltage transformer and 2 adjusting support for electrodes and air jets Cooling Roller C1 - width 2500 mm - diameter 800 mm - roller surface electrically dulled Cooling Roller C2: - width 2500 mm - diameter 550 mm - roller surface hard chromium plated, polished Pressing / cleaning roll width: 2500 mm DC servomotors for Roller C1 and C2 Longitudinal and Heights adjustment motors Roller temperature control with 2 cooling circuits, pumps and a connection to external water circuit Thickness Measuring JASCH Auto Scanner Krypton 85 - Radioactive Edge Trim Device 1: - Both Side Trimming System - 2 blade holder for 2 blades - 2 suction pockets WINDER winding mechanical speed: 35 - 350 m/min winding width 2050 mm width of contact roller 2500 mm Film thickness 15 - 100 µm Lay on pressure contact roller 30 - 300 N Winding Tension 10 - 200 N/m Bobbin diameter at 6" shaft: max. 800 mm Bobbin diameter at 6" shaft: max. 920 mm Main frame with web tension measuring roller, 2 fix point rollers, dancer roller, contact roller and 2 winding stations Cross cutting unit Oscillation unit Shaft handling system with portal robot Automatic roll handling system with bobbin carriage and turret unit for winding shaft Electrostatic discharging bar with transformer
