Used POLYSTAR HA65-1200 of 2021 for sale

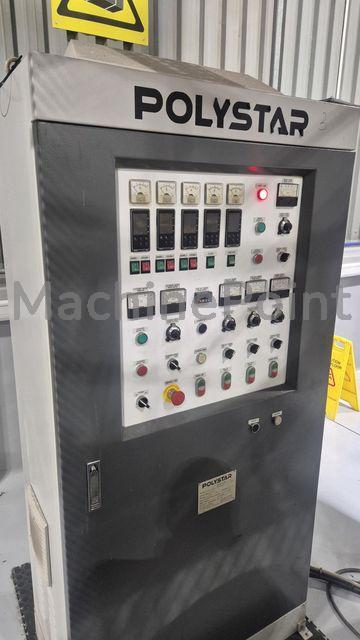

Applicable Materials PE, PP film Conveying Unit Feeding band 3500 X 600 mm Feeding control Automatic feeding controlled by Ampere meter Shredding drum Drum dia. 650 mm Cooling blower 1/8 HP X 2 sets, with water cooling device Rotary cutter 4 pcs (on rotary bar) Stationary cutter 8 pcs (inside the drum wall) Extrusion Unit (with water cooling device on feed hopper) Filtration Unit Screen changer: Automatic hydraulic slide type with power pack, Screen filter Ø 150 MM Pelletizing Unit Die : PE x 1 set, PP x 1 set Blowing motor for conveying plastic pellets 3 HP Conveying capacity 300 Kg/Hr Storage tank 1000 Kg Control Panel: with digital displaying temperature controller, A-meter, push button, magnetic contactor, spring type T/C wire for temperature sensing. Socket type on die & adaptor heaters

Very low mileage, used only for tests. Control cabinet Feeder with metal detector Double degassing Agglomerator Cooling station Pumps Vibrating tank Centrifuge dryer Silos 1000 kg

Degassing: Double Vacuum degassing Screen changer before degassing: Double cylinder type Material feeding system: Conveyor belt Sesotec metal detector Extruder hopper type: Agglomerator/Cutter Compactor – Extruder combination Pelletising system: Hot Granulation on Die – Water Circle system Attachments and accessories: Water bath Water pump Centrifuge Dryer Big Silo (1 Ton)

Conveyor belt Metal detector (S+S) Cutter compactor shredder Extruder Single vented degassing with two stage type (mother-baby extruder) for even better degassing Pelletizing unit Water cooling Centrifuge dryer for drying Spares PP and HDPE/LDPE Die. 1 of each. Spare screw Cutting arm (two blade holder) The machine runs on a three blade right now 12/72 Holland weave mild steel filter discs Cutting blades (originals x 200) 3 - 4 sets of Cutter/compactor blades Control switches The machine even got a new screw installed late 2022.

Conveying Unit Feeding band: 4000 X 800 mm Driving motor: 1 HP X 6P Automatic feeding controlled by ammeter Cutting Compactor Drum Drum diam.: 900 mm Driving motor. 100 HP X 4P Cooling blower: 1/4 HP X 2 sets, with water cooling device Rotary cutter: 6 pcs (on rotary bar) Stationary cutter: 12 pcs (inside the drum wall) Extrusion Unit (with water cooling device on feed hopper) Screw: Ø 120 mm; L/D ratio 36/1, Material: SACM-645 nitride treatment, surface polished Barrel (Double Vented for de-gassing) Material: SACM-645 nitride treatment, honed polished Barrel temperature control: 6 zones Barrel cooling blower: 1/4 HP x 6 sets Main driving motor: 125 HP AC +inverter control (Siemens) Gear Box: Made with FC25, with lubrication and cooling system Gear Material: SCM-21 carbon treat & gear face ground Filtration Unit Screen changer: Automatic hydraulic slide type with power pack, non-stop operation with “Dynisco” pressure gauge Hydraulic motor: 7.5 HP Screen filter Ø 220 MM Heating capacity 10.7 kw Pelletizing Unit (Die face cutting) Die face cutting motor: 3HP x 4P with inverter control Die Heating capacity: 5 kw Die: Ø 2.8 x 100 holes for PE x 1 set, Ø 2.5 x 80 holes for PP x 1 set Cutting blades: 1-4 pieces Pellet Cooling & Conveying Unit Water jacket: SUS304 stainless steel, 5 HP water cooling pump for water circulation Water trough: SUS304 stainless steel Vibration motor: 1/2 HP x 4P x 2 sets Blowing motor for conveying plastic pellets: 5 HP Conveying capacity: 600 Kg/Hr Storage tank capacity: 1000 Kg Control Panel With digital displaying temperature controller, A-meter, push button, magnetic contactor, spring type T/C wire for temperature sensing. Socket type on die & adaptor heaters
