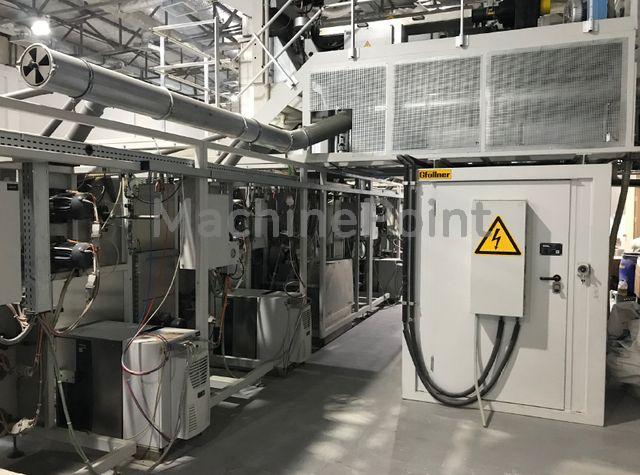

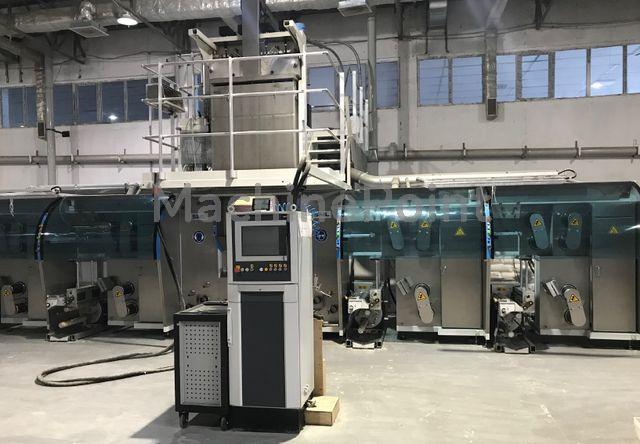

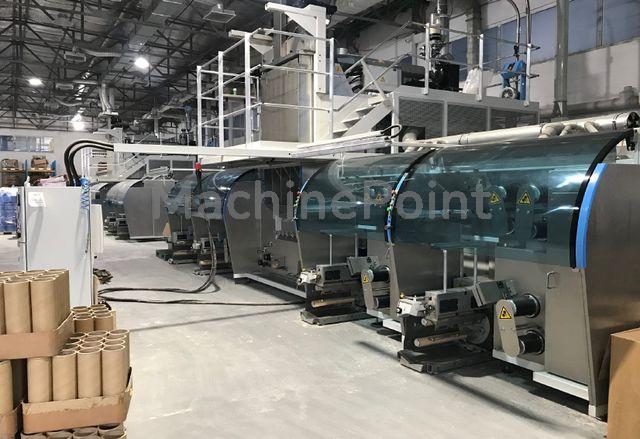

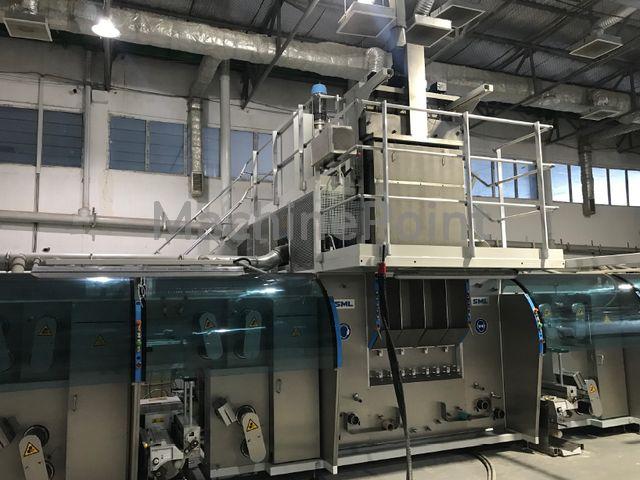

Used SML Austrofil HT 4x2(4)/75 NShPY of 2022 for sale

Materials: CPP Film Width (Max): 2150 mm Number Of Extruders: 3 Screw Dia-A : 65 Screw Dia-B : 150 Screw Dia-C : 65 Other specs: 3 Coex Castfilm for CPP, Mono layer/Multi-layer Gravimetric Dosing System included Die – Cloeren Make -USA Deckle – Yes. Internal Type Corana Treatment – Sherman – 22KW – Italy Make Thickness range: - CPP 15 - 35 µm Max. Mechanical speed 350 m/min Pneumatic working pressure 5-8 bar Air consumption approx. 60 - 300 Nm3/h Control System SML - Siemens S7-300-2017 Temperature control system: - Water cooled material inlet - Heated feeding zone Output: - CPP for max. 500 kg/h to 650 kg/h DC motor with elastic coupling and reduction gear with capacity of A extruder 290 kw Bimetal extruder cylinder with 8 heating / cooling zones Melt pressure feeler at cylinder end 3 Layer Feed block FG/SP H Automatic CLOEREN make flat die H2450 Dual Vacuum box width 2480 mm (assembled at the flat die) Edge Pinning Device with 2 charging electrodes, 2 air jets, a pressure regulator, a high voltage transformer and 2 adjusting support for electrodes and air jets Cooling Roller C1 - width 2500 mm - diameter 800 mm - roller surface electrically dulled Cooling Roller C2: - width 2500 mm - diameter 550 mm - roller surface hard chromium plated, polished Pressing / cleaning roll width: 2500 mm DC servomotors for Roller C1 and C2 Longitudinal and Heights adjustment motors Roller temperature control with 2 cooling circuits, pumps and a connection to external water circuit Thickness Measuring JASCH Auto Scanner Krypton 85 - Radioactive Edge Trim Device 1: - Both Side Trimming System - 2 blade holder for 2 blades - 2 suction pockets WINDER winding mechanical speed: 35 - 350 m/min winding width 2050 mm width of contact roller 2500 mm Film thickness 15 - 100 µm Lay on pressure contact roller 30 - 300 N Winding Tension 10 - 200 N/m Bobbin diameter at 6" shaft: max. 800 mm Bobbin diameter at 6" shaft: max. 920 mm Main frame with web tension measuring roller, 2 fix point rollers, dancer roller, contact roller and 2 winding stations Cross cutting unit Oscillation unit Shaft handling system with portal robot Automatic roll handling system with bobbin carriage and turret unit for winding shaft Electrostatic discharging bar with transformer

PET sheet Extrusion line Crystallization unit Piovan Dryer Dosing unit PIOVAN, Gravimetric Dosing Unit Screws 150 and 75 mm Die VERBRUGGEN, 2000mm Rewind type Winder Series 4000 Max. rewind reel diameter 1200 MM Thickness measurement Domino Electronic Systems S.P.A In line edge trim collection with Tria Recycling unit Slitting machine Ashe

5 layers stretch extrusion line with 4 extruders A:75/33D , B:90/33D, C: 90/33D, D:75/33D mm Die Nordson, 3600 mm AOM XVII-100/ 40// ENC// MF8 , Min – Max material thickness 9 – 45 my Max. Output 1500 kg/hour (23 micron) Rewind 3” shaftless winder stations Max. rewind reel diameter 450 mm Dosing units Doteco Grado Thickness measurement Inline Edge trim and Recycle system Starlinger Including Noel 1 rewinder year 2011 Noel 2 rewinder year 2012 2x Class Engineering rewinders year 2014

Stretch extrusion line with 4 extruders 2x 90/33 mm and 2x60/28 mm Automatic die Cloeren 2700 mm Min – Max material thickness 10 my - 35 my Max. Output 15 – 20 my Net output 1100 kg / hour from 20 my Net output 1200 kg / hour Rewinder Winder Series 4000 Max. rewind reel diameter 440 MM Number & sizes airshafts winder 2 shafts 76 MM (dia) Hydraulic screen changer DOTECO, Gravimetric Dosing Unit 3 components per extruder Thickness measurement Electronic Systems Edge guide Recycling machine in line STARLINGER recoStar Basic 85

In the beginning, the machine produced POY yarn after the modernisation of the winders, it produces a medium-strength yarn of about 4-4.5 g/den. Single screw extruder Screw diameter 75 mm Screw length 28 D Output max. MDY - PP 110 kg/h Actual output depends on yarn specification Screw speed max. 160min-1 Motor rated power 38 kW Drive system AC motor Screw/barrel material nitrided steel alloy/bimetal cylinder Number of heating zones 5 (cylinders) Number of double spinning pumps 4 Performance of the double spin pump 2x6 cm³/U Number of spin packs 8 Cooling unit Horizontal Zones 3 Vertical Zones 4 Number of stretch units 2 Godet diameter 160mm Stretch ratio variably adjustable max. mechanical godet speed in front of the winder 3300 m/min Number of rewinders 2
