Used CDM ENGINEERING ES 130 LD 40 of 2022 for sale
Single screw repelletizing line CDM ENGINEERING, We provide a quality service in the buying and selling of used machinery, with all the services necessary to achieve a successful transaction.
Data Sheet of Used CDM ENGINEERING ES 130 LD 40
Ref.: 300050179
Year: 2022
Brand: CDM ENGINEERING
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Screw Diameter: 130 mm
- Output Capacity: 500 kg/h
- Screw L/D Ratio: 40
- Forced Feeding: Yes
- Degassing System: Yes
- Heating Power (Extruder): 280 kW
- Heating Zones (Extruder): 8
- Last Material Recycled: PE
- Type Of Screen Changer: Hydraulic
Other Specifications:

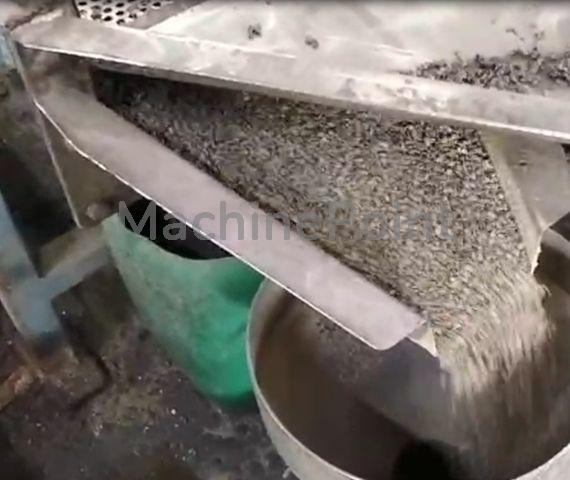

Complete line for the pelletization of pre-ground PE film using a screen with holes up to 12/14 mm in diameter and for the reprocessing of PE pellets.

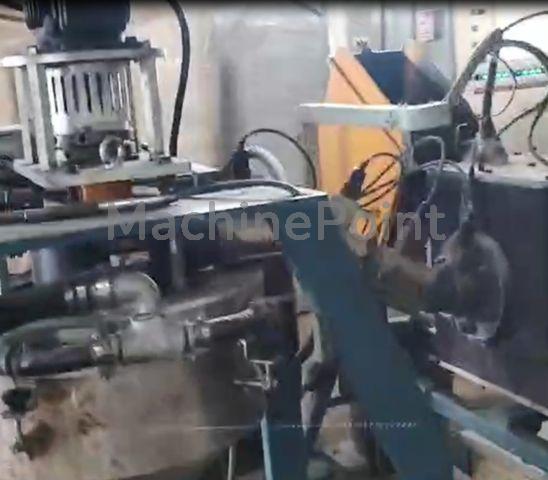

The line consists of a CDM Engineering ES 130 L/D 40 extruder with dual degassing, complete with accessories and a vertical hot-end cutting system for pellet production.
600-series grinder with 3 blades and 2 counter-blades, including spare blades
4 m³ silos for film, 4 feed systems (film, 100 kg masterbatch, 500 kg pellets, and screw conveyor for regrind, all connected to the PLC)
Variable-speed forced-feed hopper
Hopper made of heavy-gauge sheet metal, connected to the extruder’s feed inlet. Equipped with a truncated-conical steel feed screw machined from solid bar stock.

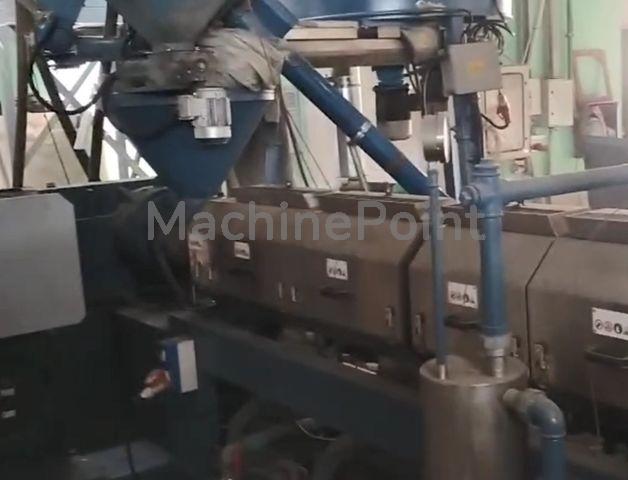

ES 130 L/D 40 extruder with double degassing
Hydraulic filter changer

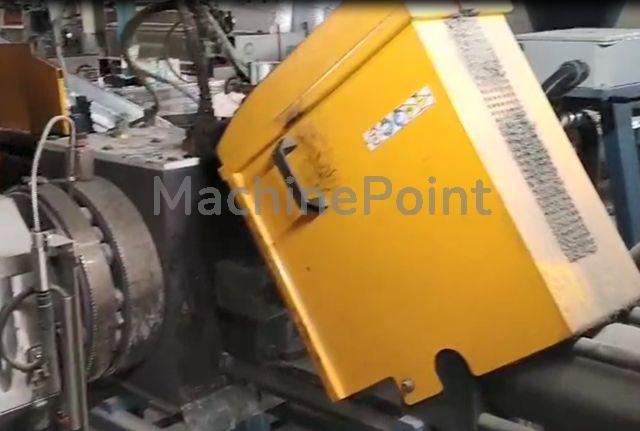

Head cutter with water ring
Centrifuge
Heat exchanger
Big bag structure
Cosmotec 2022 chiller
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
