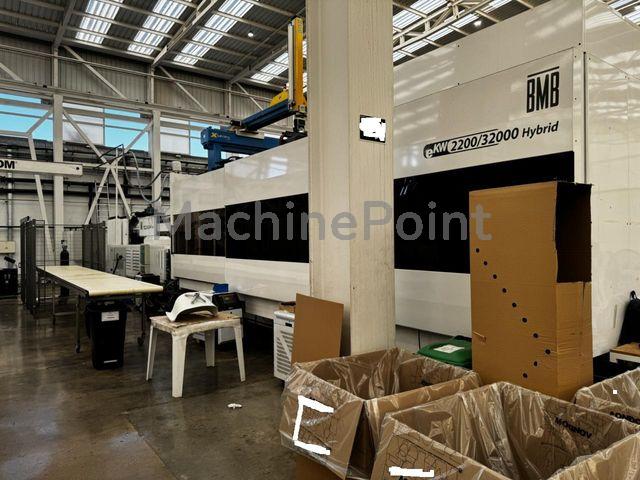

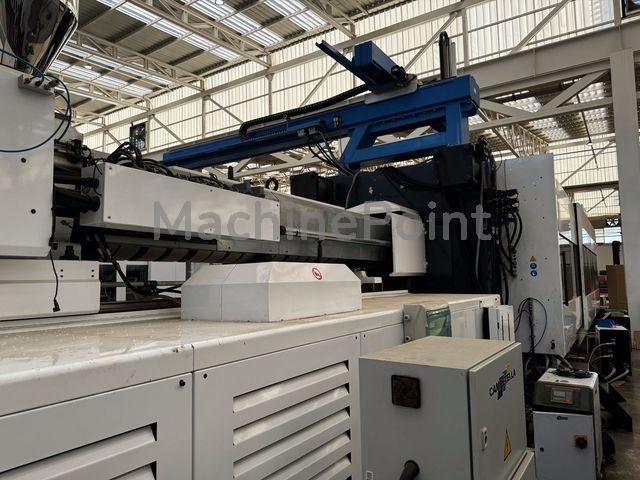

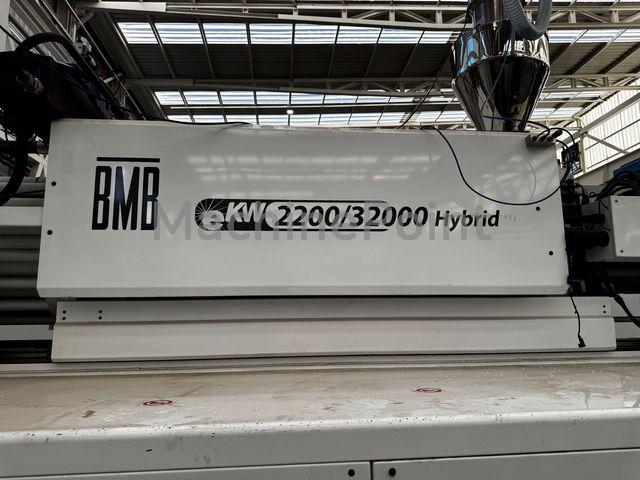

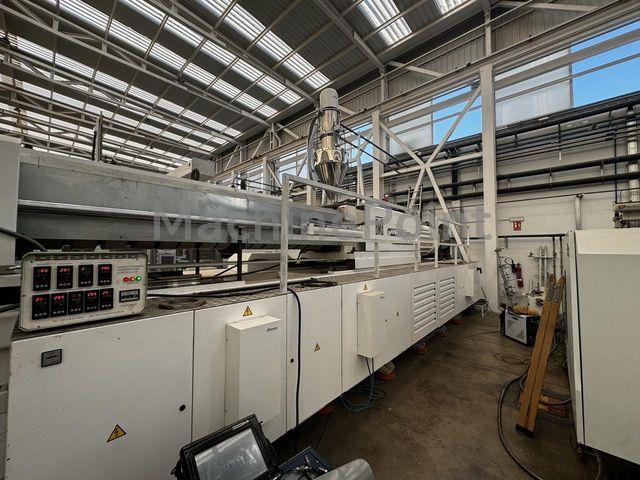

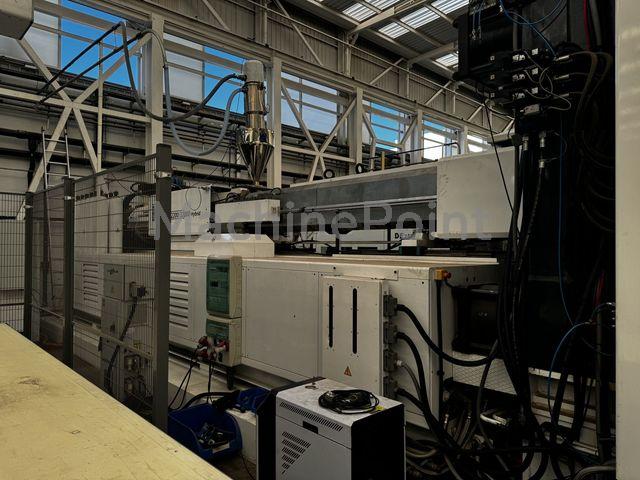

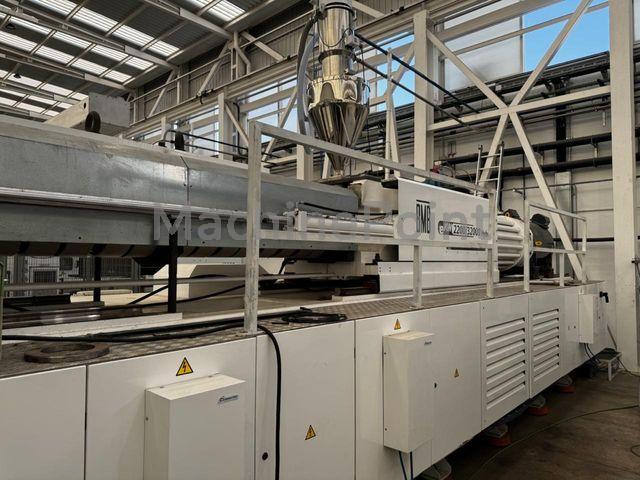

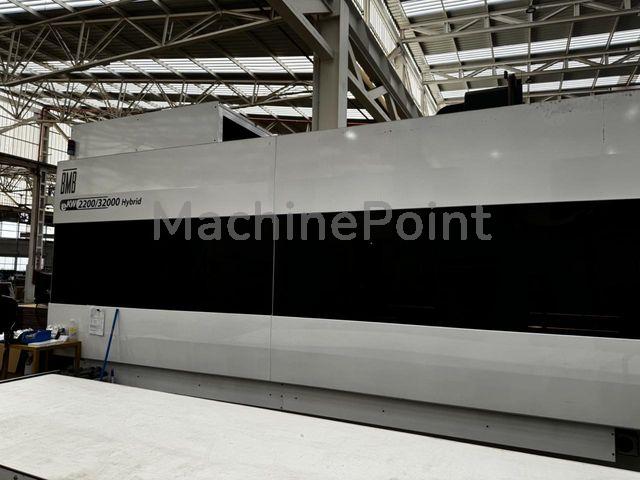

Used BMB Ekw 2200 - 32.000 Hybrid of 2015 for sale
Injection molding machine from 1000 T BMB, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.
Data Sheet of Used BMB Ekw 2200 - 32.000 Hybrid
Ref.: 300050202
Year: 2015
Brand: BMB
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 2200 ton
- Shot Weight (Max): 20306 g
- Distance Between Tie-Bars (H): 1810 mm
- Distance Between Tie-Bars (V): 1510 mm
- Platen Size (H): 2550 mm
- Platen Size (V): 2240 mm
- Screw Diameter: 180 mm
- Tie-Bar Diameter: 280 mm
- Mould Thickness (Max): 1500 mm
- Mould Thickness (Min): 500 mm
- Daylight Between Platens (Max): 3700 mm
- Opening Stroke (Max): 2200 mm
- Ejector Force: 30 ton
- Ejector Stroke: 550 mm
- Screw L/D Ratio: 24
- Screw Speed: 100 rpm
- Screw Torque: 16000 N·m
- Injection Volume: 21375 cm³
- Injection Rate: 6810 cm³/s
- Plasticising Capacity: 200 g/s
- Heating Zones: 8
- Heating Capacity: 200 kW
Other Specifications:

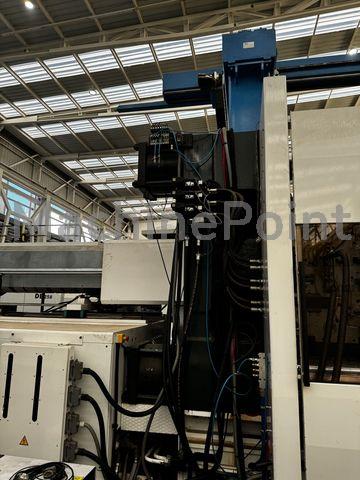

ROBOT (NOT for sale)
The BMB eKW HYBRID injection moulding machine includes the following accessories:

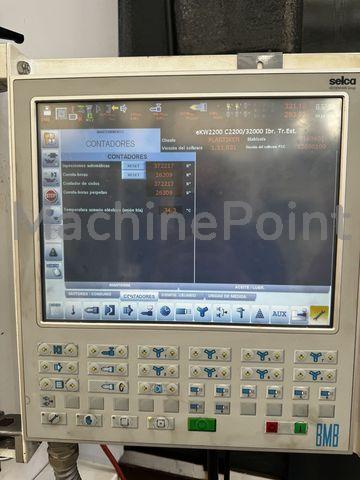

1 x SELCA microprocessor with colour touchscreen
1 x Electric unit for clamping, injection, ejection, closing and opening
1 x Electric ejection unit (optional from 550 tonnes)
1 x Ceramic heating elements
1 x Screw with 3T mixer (optional from 12,500 g injection capacity)
1 x Colorimeter connection with 220 V electrical connection box
1 x USB connection for data saving and printer
1 x 220 V electrical connection for printer
1 x Ethernet network card
1 x Extension for clamping force reading
1 x Robot interface with 400 V power supply socket
1 x Hydraulic control unit for hydraulic nozzle control, hydraulic core control
and carriage movement.
1 x Automatic machine shut-off
1 x Hydraulic nozzle (optional from 12,500 g injection capacity)
1 x Closed-loop control unit for cooling motors, spindles and bearings.
1 x “S”-shaped skids with protective housing (up to 400 tonnes)
1 x Linear guides with roller carriages (optional from 450 tonnes)
1 x Automatic (electric) gate (optional up to 450 tonnes)
1 x Residual current circuit breaker with release coil
1 x Tropicalisation
1 x Harting limit switch for screens on the side opposite the operator for
robot guards with side entry (optional from 550 tonnes)
1 x Stilite spindle for diameters of 100 mm or greater (optional up to 8500 injection)
1 x MOOG servo valve on the injection unit
1 x Power supply: 400 V, 3-phase + neutral + earth; heating: 230 V
1 x High-performance vibration feet
1 x Control unit for 12 air valves
1 x Gas interface
1 x Euromap 67 robot interface with 400 V 3-phase power socket
3 x Hydraulic cores on the fixed platen
3 x Hydraulic cores on the moving platen
4 x Air valves on the fixed platen, opposite the operator
4 x Air valves on the moving platen
1 x 16-zone control system for mould hot runner
1 x Hydraulic nozzle for material plasticisation during
opening and closing movements
1 x Thermostatic valve for mould or plasticiser cooling
1 x 16-inlet + 16-outlet stainless steel water manifold
1 x Pump motor inverter
1 x Sequential injection interface
4 x Pneumatic sequential injection valves
1 x Maximum mould thickness extension to 1800 mm
1 x Bimetallic chamber
1 x Screw with 3T mixer (screw diameter = 180 mm;
length/diameter ratio = 24); Stellite-coated screw
1 x Heating blanket in plasticiser
1 x Provision for future installation of a 12,500 unit

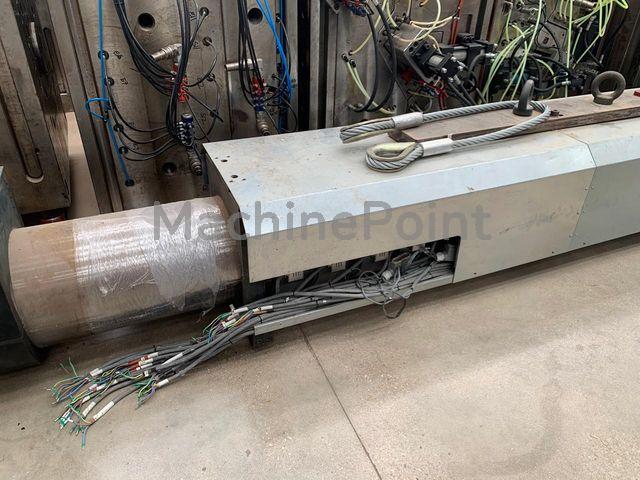

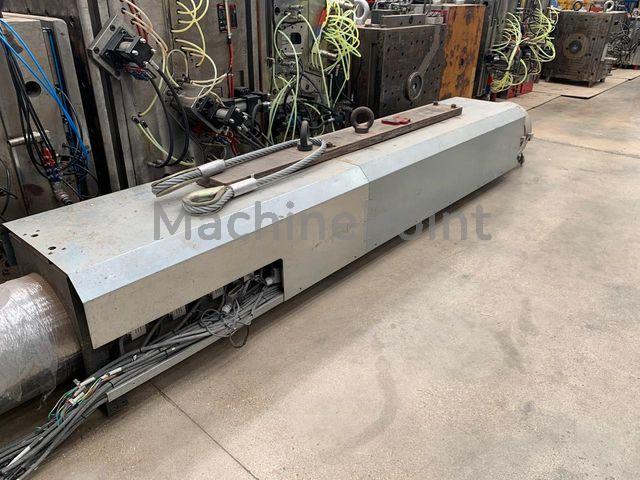

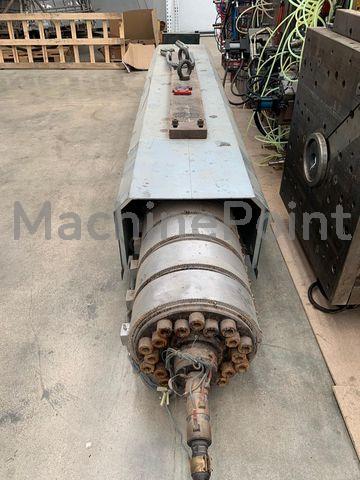

THE PRICE INCLUDES A SECOND COMPLETE PLASTICISER FOR SPARE PC
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
